AtlasIED ALA20T-B 20 Speaker Full Range Line Array Speaker System - Black

ITEM #: ATL-ALA20T-B MFG #: ALA20T-B

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,119.99

Our Price:

$896.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.


ALA20T-B - Overview

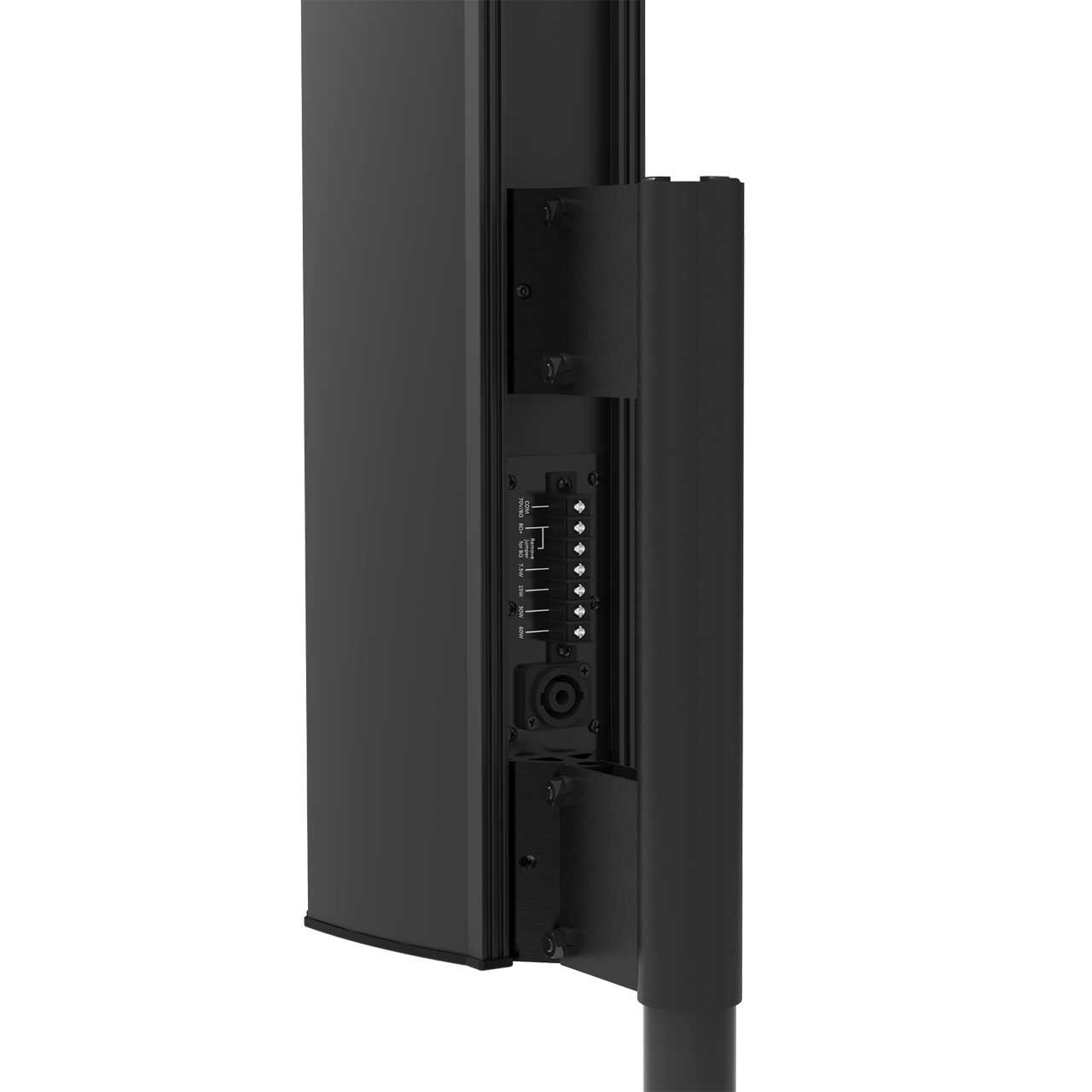

The AtlasIED ALA20T-B column line array speaker delivers maximum pattern control performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA20T-B's transducer configuration combines twenty tight packed 3" full range drivers and six 3/4" high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with our A-Line subwoofer.

Note: Pole and pole mount bracket sold separately.

  • Features:

    • 45° Vertical Coverage
    • 135° Horizontal Coverage
    • Twenty (20) Proprietary 3" (76mm) Full Range Drivers
    • Barrier Strip and NL-4 Terminals
    • Barrier Strip and NL-4 Terminals
    • Lightweight Aluminum Housing
    • Wall Mount Bracket Included

  • Specifications:

    • 8 Ohm RMS Power: 500 Watts
    • 70.7V Power Taps: 7.5, 15, 30, & 60 Watts
    • Dispersion: 135° H & 40° V
    • Sensitivity: 97dB 1W/1m
    • Frequency Response: 110Hz - 20kHz
    • Height: 65.75" (1670mm)
    • Depth: 5.43" (137.9mm)
    • Width: 4.61" (117mm)

  • Item Includes:

    • 1x Atlas IED ALA20T-B 20 Speaker Full Range Line Array Speaker - Black

  • Warranty:

    • 5-Year Limited Warranty
