West Penn 25246B 14 AWG 4 Conductor Stranded Unshielded Plenum speakON Speaker Cable Gray Jacket - 1000 Foot

ITEM #: WP-25246B-1000 MFG #: 25246BGY1000

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$855.70

Our Price:

$689.72

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

25246BGY1000 - Overview

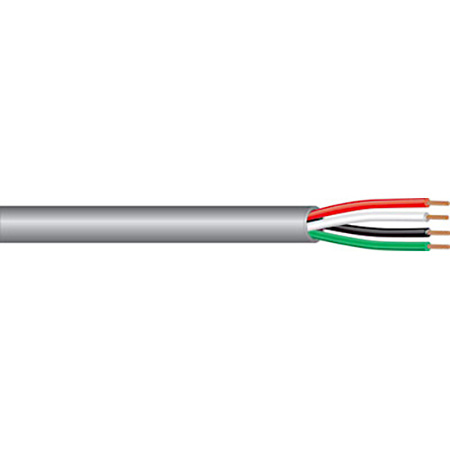

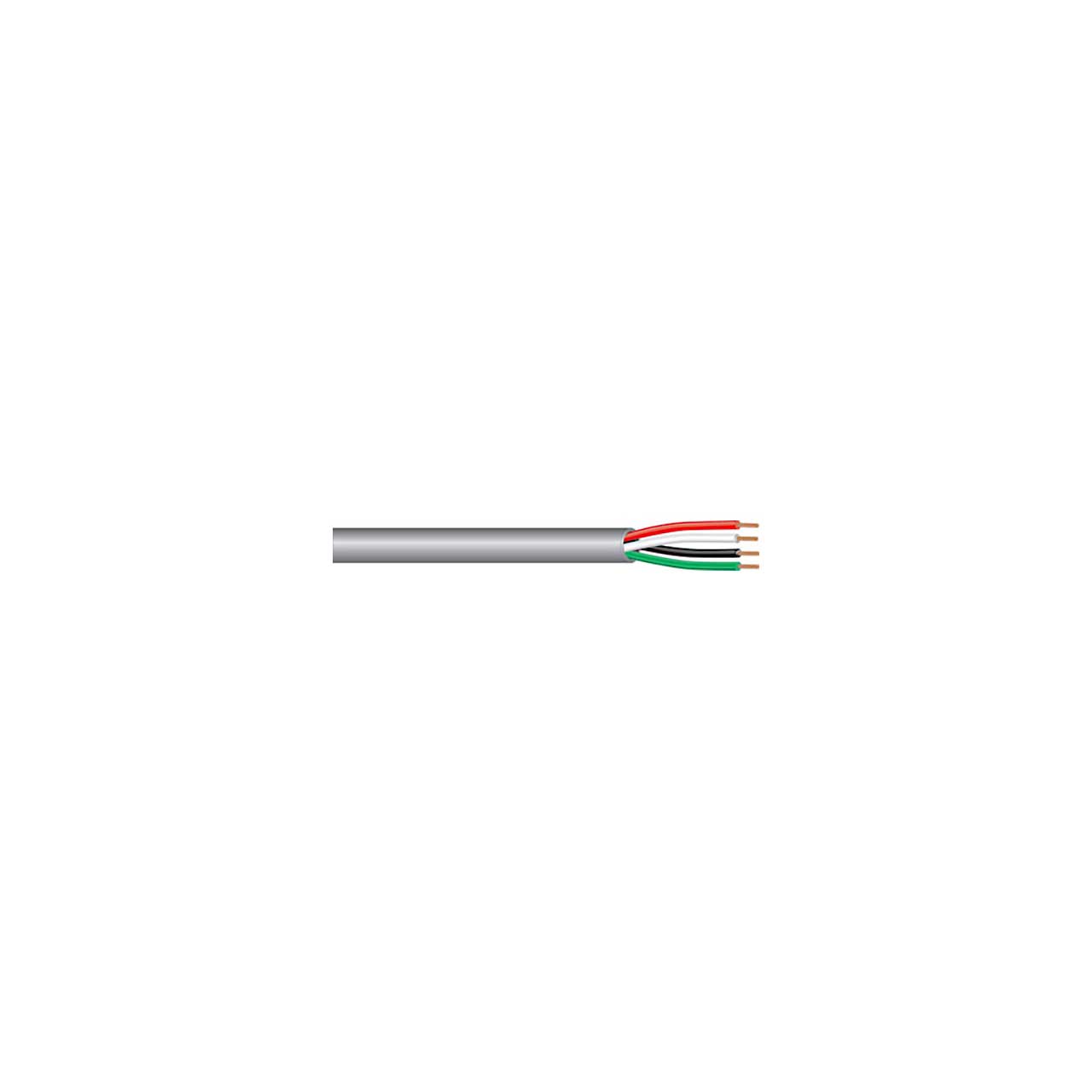

West Penn 25246B is a 14 AWG 4-conductor stranded/unshielded Plenum communication cable in grey, 1000 feet.

  • Specifications:

    • Conductor Parameter
    • Number of Conductors: 4
    • AWG Size: 14
    • Conductor Stranding: 19x27
    • Conductor Type: Bare copper
    • Nominal DCR: 2.7 Ohm/1000ft
    • Cabling Lay Length: 4.5 in

      Insulation Parameter
    • Insulation Type: Plenum PVC
    • Insulation Thickness: 0.012 in
    • Insulation Color Code: 1.Black,2.Red,3.White,4.Green

      Overall Construction Parameters
    • Jacket Type: Flexible Plenum
    • Jacket Thickness: 0.015 in
    • Nominal Cable O.D.: 0.262 in
    • Plenum: Yes
    • NEC UL Rating: CL3P, FPLP
    • RoHS Compliant: Yes
    • Pull Tension1: 45 lbs
    • Bend Radius: 2.358 in
    • Cable Weight: 67 lbs


  • GTIN:

    0612825046745
