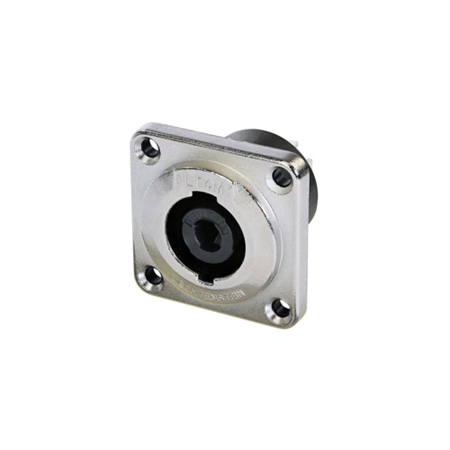

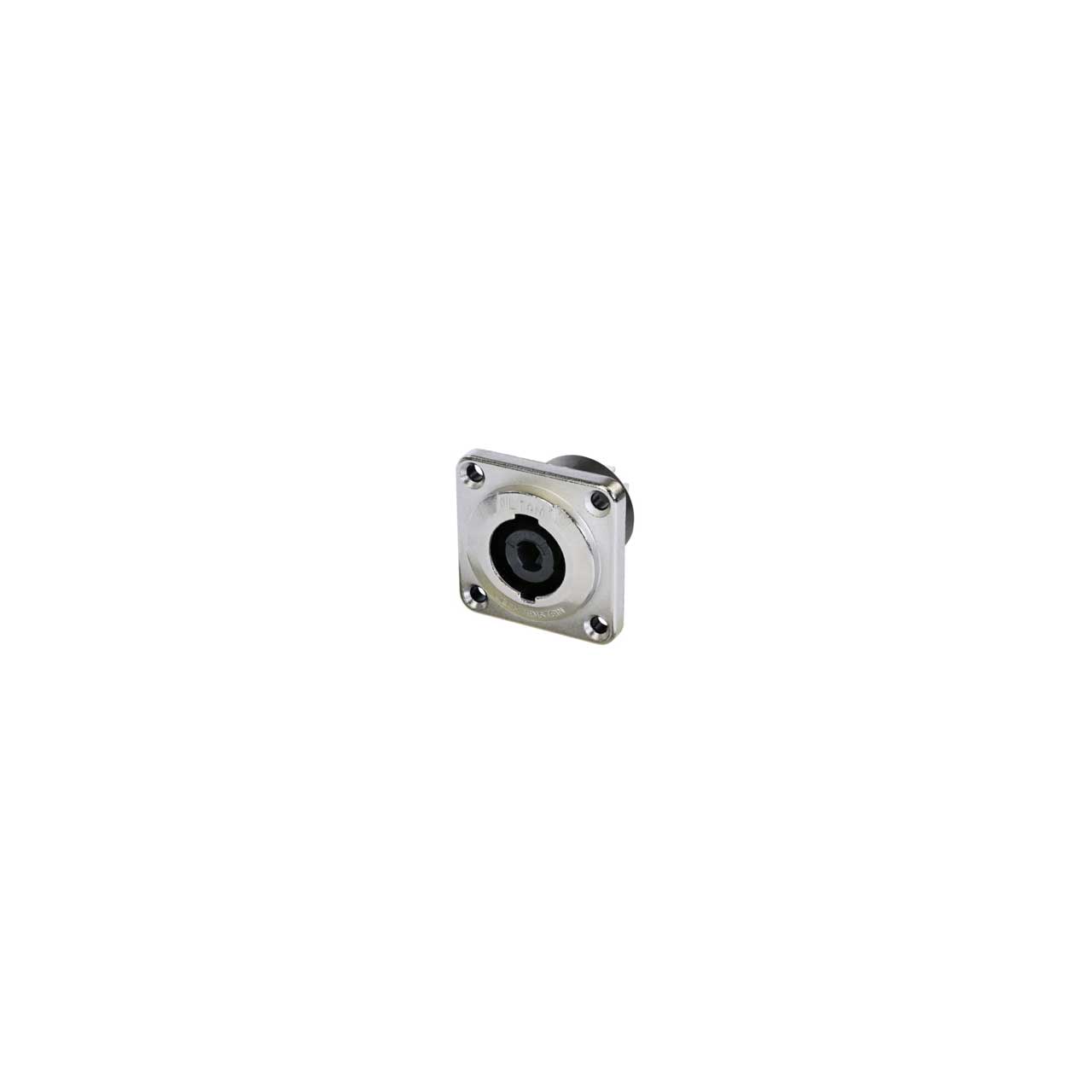

Neutrik NLT4MPXX 4 Pole Male Chassis Connector - Metal Housing Solder Contacts or 1/4in Flat Tabs/Countersunk Thru Hole

NLT4MPXX - Overview

• Features:

  • IEC 61984 certified, IEC 62368-1 compliant
  • Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
  • Uses precise "Quick Lock" system
  • Weatherproof built-in gasket meets IP 54 protection class in mated condition
  • Airtight design - optimized for speaker applications


• Specifications:

  • Gender: male
  • Contact resistance: < 2 mΩ
  • Dielectric strength: 2.8 kVac
  • Insulation resistance: >0.1 GΩ (after dampheat)
  • Rated current per contact: 30 A rms continuous
  • Rated voltage: 250 V ac
  • Attention: speakON is NOT to be used as an AC mains or power supply connector!
  • Lifetime: > 5000 mating cycles
  • Termination: 1/4" flat tabs
  • Locking device: Quick Lock
  • Mounting direction: Rear / front mounting
  • Chassis shape: square G-size flange
  • Layout: four thru holes
  • Contact plating: Ag
  • Contacts: Copper Alloy
  • Shell: Zinc diecast, Ni plated
  • Insert: Polyamide (PA 66)
  • Temperature range: -30 °C to +80 °C
  • Flammability: UL 94 V-0
  • Protection class: IP 54 (mated condition)


• Item Includes:

  • 1x Neutrik NLT4MPXX 4 Pole Male Chassis Connector - Metal Housing, Solder Contacts or 1/4in Flat Tabs/Countersunk Thru Holes
