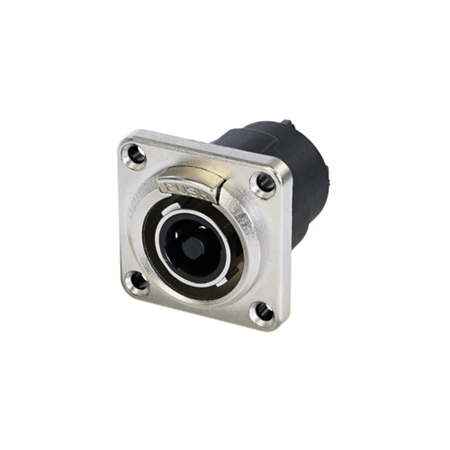

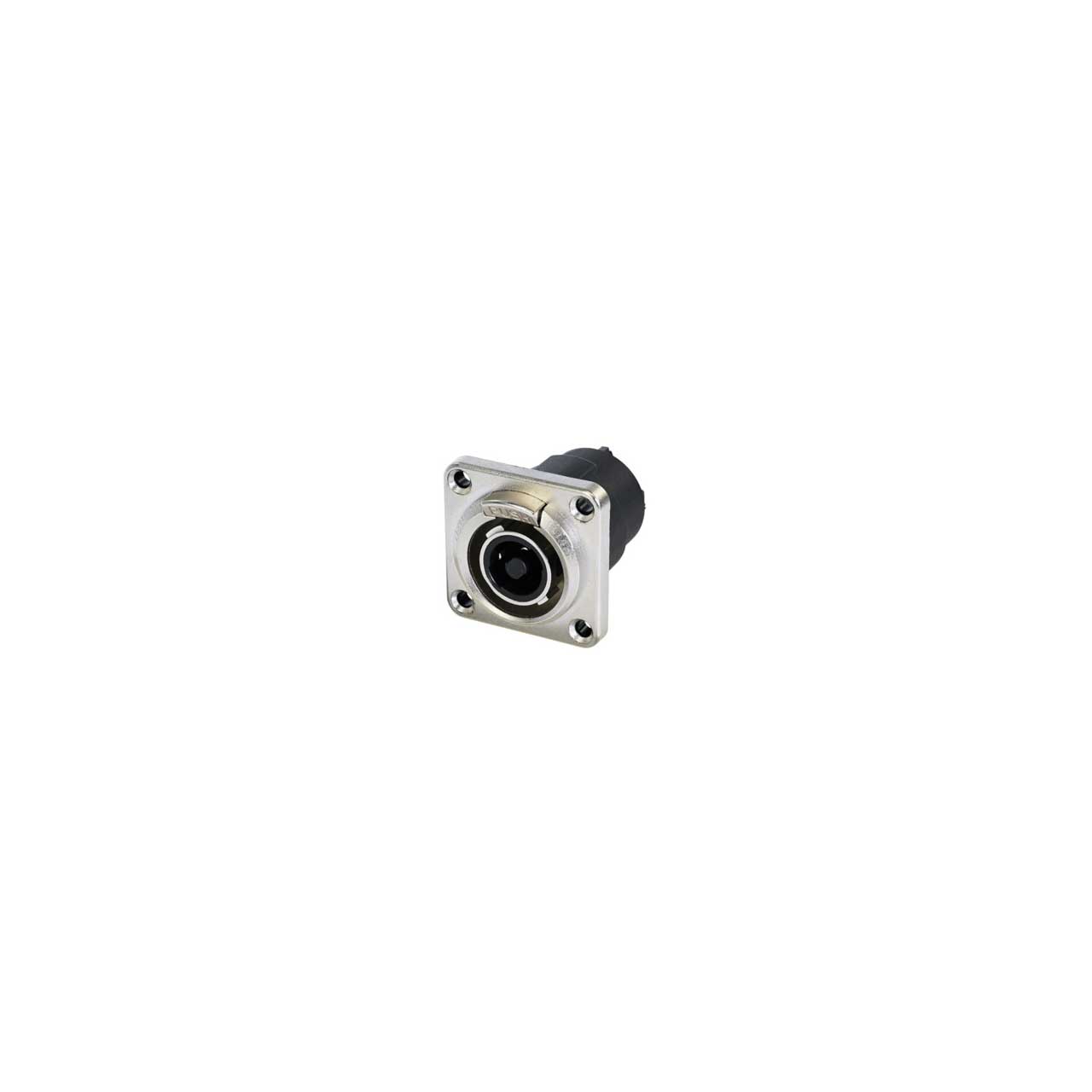

Neutrik NLT4FPXX Receptacle speakON STXX 4 Pole Female Chassis Connector - Solder Cups - V-0 Insert - Nickel/Silver

NLT4FPXX - Overview

• Features:

  • IEC 61984 certified, IEC 62368-1 compliant
  • Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
  • Uses precise "Quick Lock" system
  • Airtight design - optimized for speaker applications
  • Weatherproof built-in gasket meets IP 54 protection class in mated condition


• Specifications:

  • Electrical
  • Contact Resistance: < 2Ω
  • Dielectric Strength: 2.8 kVac
  • Insulation Resistance: >0.1 GΩ (after dampheat)
  • Rated Current Per Contact: 30 A rms continuous
  • Rated Voltage: 250 V ac

    Mechanical
  • Lifetime: > 5000 Mating Cycles
  • Wiresize: 6 mm²
  • Wiresize: 10 AWG
  • Termination: Solder Contacts
  • Locking Device: Quick Lock
  • Mounting Direction: Rear / Front Mounting
  • Chassis Shape: Square G-Size Flange
  • Layout: Four Through Holes

    Material
  • Contact Plating: Ag
  • Contacts: Copper Alloy
  • Shell: Zinc diecast, black chrome plated
  • Insert: Polyamide (PA 66)
  • Locking element: Zinc diecast, Ni plated

    Environmental
  • Temperature Range: -22°F to 176°F (30°C to +80 °C)
  • Flammability: UL 94 V-0
  • Protection Class: IP 54 (mated condition)
  • Solderability: Complies with IEC68-2-20


• Item Includes:

  • 1x 4 Pole Female Chassis Connector
