AtlasIED ALA5TAW EN54-24 Certified 5-Inch Speaker Full Range Line Array Speaker System - White

ITEM #: ATL-ALA5TAW MFG #: ALA5TAW

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$561.99

Our Price:

$451.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


ALA5TAW - Overview

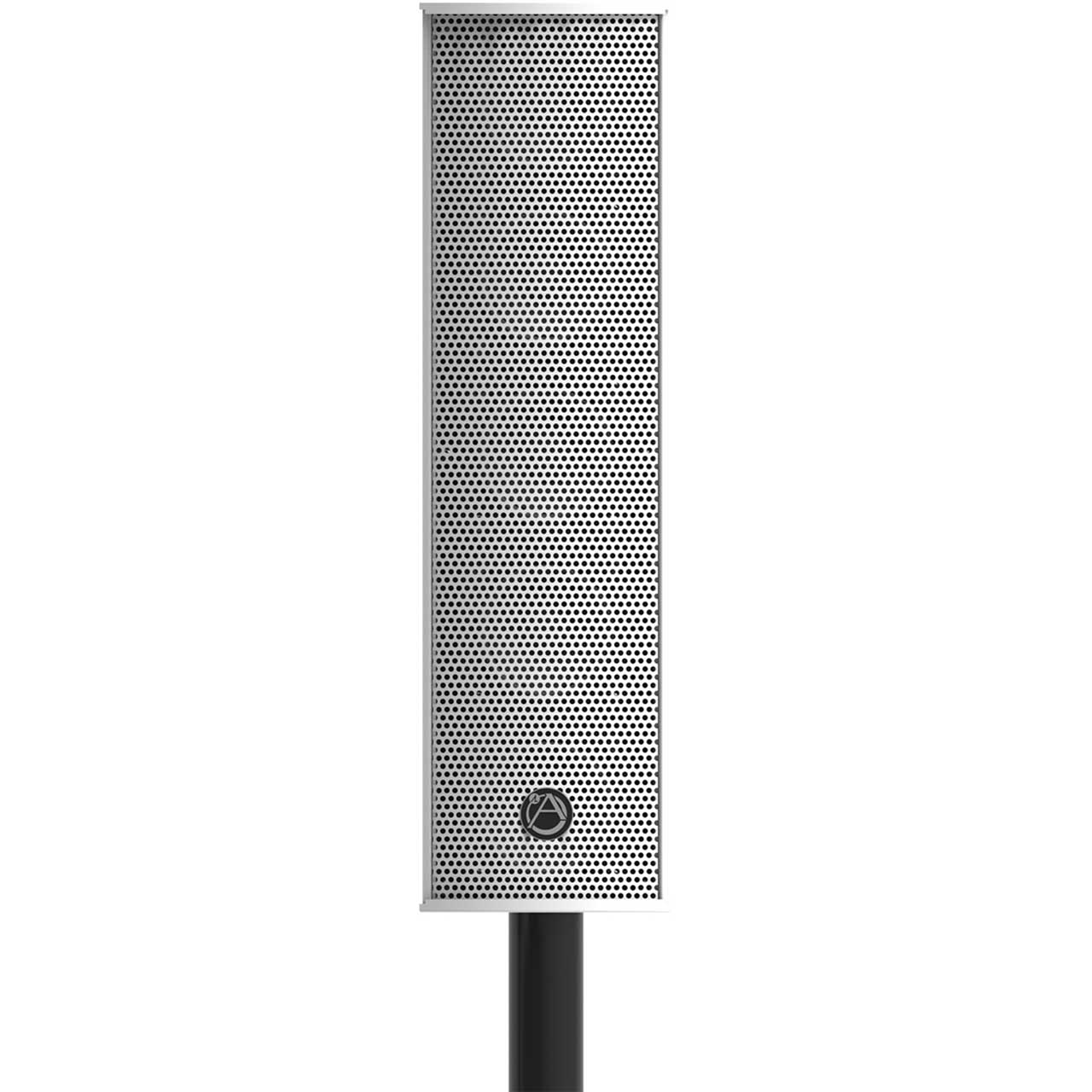

The Atlas EN54-24 certified ultra-compact ALA5TAW column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA5TAW's transducer configuration combines five tight packed 3" (76mm) full range drivers and two 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in applications coupled with a portable A-Line subwoofer system.

Applications:
Challenging Acoustic Spaces
Architecturally Sensitive Spaces
Houses of Worship
Transportation Hubs
Retail Spaces
Conference Rooms
Lecture Theatres
Gymnasiums
Convention Centers
Museums
Stadium Concourses
Multipurpose Venues

Note: Pole and pole mount bracket sold separately.

  • Features:

    • Use In Fixed Install or Portable Applications
    • 45° Vertical Coverage
    • 135° Horizontal Coverage
    • 70.7V, 100V or 6Ω Operation
    • Five (5) Proprietary 3" (76mm) Full Range Transducers
    • Two (2) High Frequency Tweeters
    • Barrier Strip and NL-4 Terminals
    • Lightweight Aluminum Housing
    • IP33C Weather Rating
    • EN54-24 Certified
    • Available In Black or White Finish
    • Wall Mount Bracket Included

  • Specifications:

    • System
    • Type: Full Range, Column Loudspeaker
    • Operation Mode: Non-Powered Passive
    • Operating Range (-10dB): 125Hz - 20kHz
    • Frequency Response (+/- 5dB): 137Hz - 20kHz
    • Input Sensitivity at 1W/4m EN54-24: 78dB
    • Max Input Ratings (6Ω): 125 W Continuous, 250 W Program, 27.4 Volts RMS, 54.8 Volts Peak
    • Transformer Taps - 70V: 60W (81Ω), 30W (163Ω), 15W (326Ω), 7.5W (653Ω) and Low Impedance (6Ω)
    • Transformer Taps - 100V: 60W (163Ω) RNP, 30W (326Ω), 15W (653Ω) and Low Impedance (6Ω)
    • Directivity Factor (Q): 9.3 @ 2kHz
    • Directivity Factor (DI): 9.68 @ 2kHz
    • Max SPL at 4m EN54-24 (Passive - 100V / 60W): 91dB (±3dB)
    • Recommended Signal Processing: 125Hz High Pass Filter
    • Recommended Power Amplification: 375W at 6Ω

      Transducers
    • LF Transducer Qty and Size: 5 x 3"
    • LF Voice Coil Size: 20mm
    • HF Transducer Qty and Size: 2 x 22mm
    • HF Voice Coil Size: 20mm
    • Maximum Output: 116.8dB SPL (Peak 6Ω)
    • Nominal Impedance: 6Ω
    • Minimum Impedance: 4.8Ω @ 5.9kHz
    • Crossover Frequency: 3500Hz

      Enclosure
    • Color: White
    • Enclosure Material: Extruded Aluminum
    • Grille Material: Powder Coated Aluminum, White (RAL-9016) or Black
    • Baffle Material: Aluminum
    • Mount Material: Powder Coated CRS (Color Matches Enclosure)

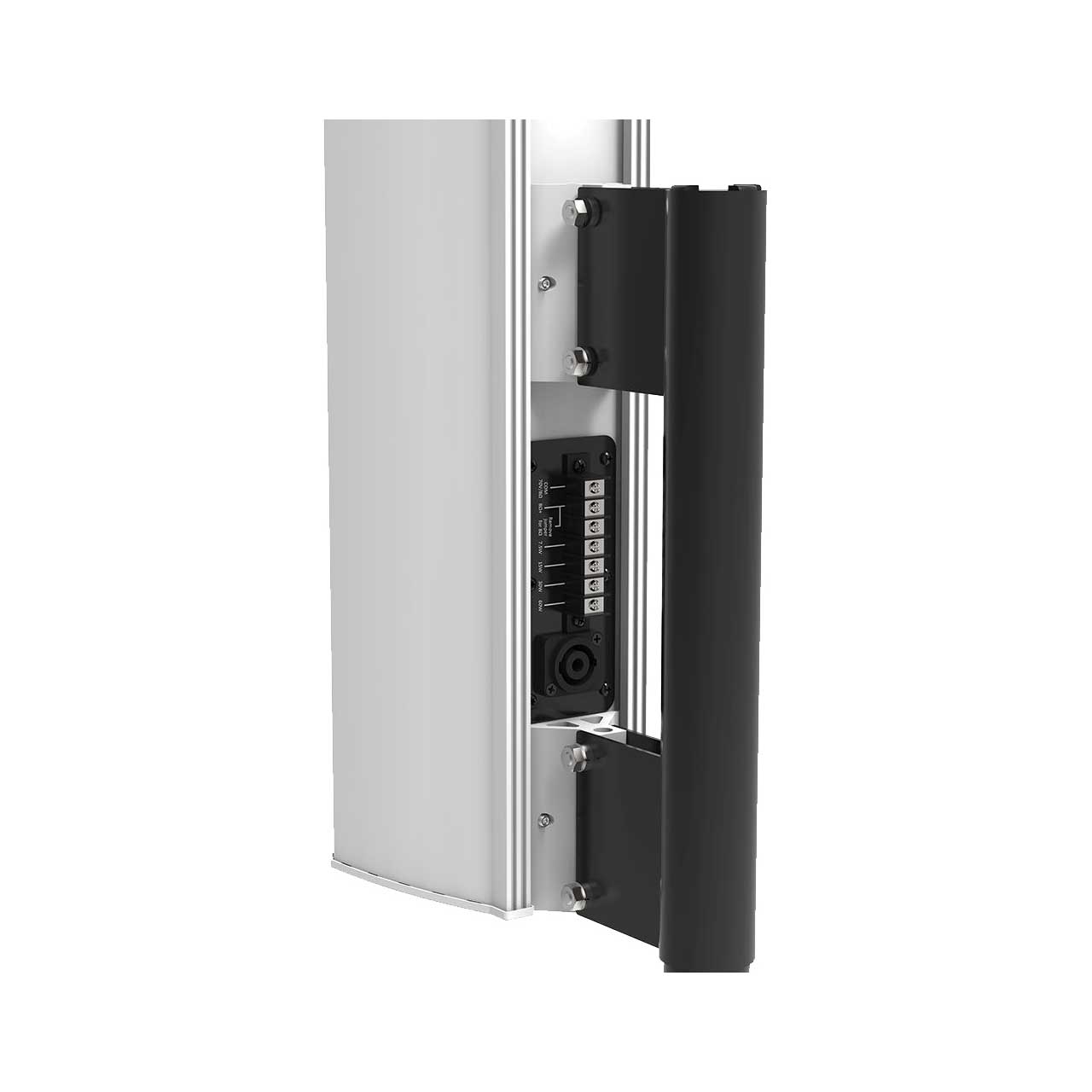

    • Input Connection: Barrier Terminal For Transformer & 6Ω Inputs/ NL4 For 6Ω Input
    • Mounting / Rigging Provisions: Wall Mounting Hardware Provided
    • Ingress Protection EN54-24: IP33C
    • Logo: Silver on Black Removable
    • Product Dimensions (HxWxD): 16.61" x 4.61" x 5.43"
    • Shipping Dimensions (HxWxD): 23.625" x 8.125" x 10"
    • Net Weight Unit w/ Wall Mount Bracket: 11.3 lbs.
    • Shipping Weight: 15.4 lbs

  • Item Includes:

    • 1x Atlas ALA5TAW EN54-24 Certified 5-Inch Speaker Full Range Line Array Speaker System
    • 1x Wall Mount Bracket

  • Warranty:

    • 5 Years
