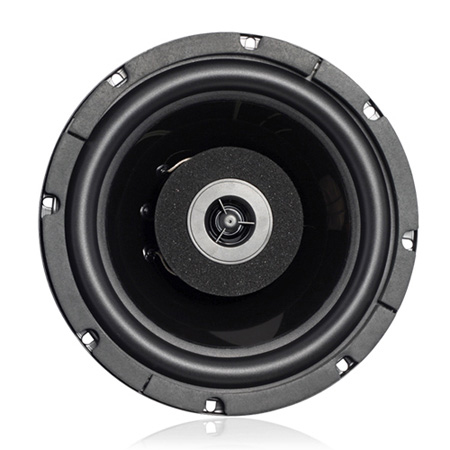

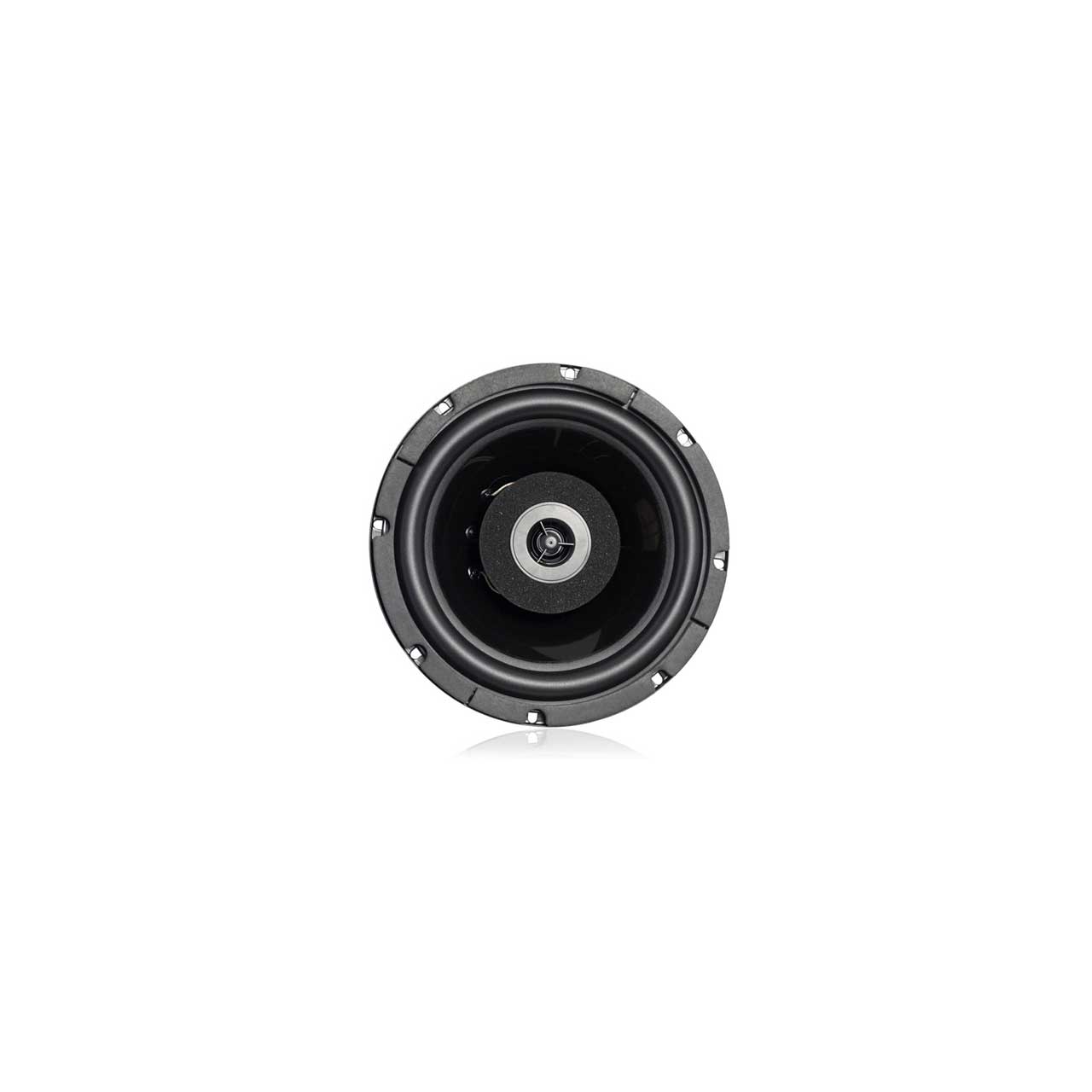

Atlas FA138T327 8 Inch Coaxial Loudspeaker with 32-Watt 70V Transformer

ITEM #: ATL-FA138T327 MFG #: FA138T327

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$179.99

Our Price:

$145.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


FA138T327 - Overview

Model FA138 is AtlasIED's premium 8" coaxial loudspeaker. This 32-watt unit includes a circuit board mounted high-pass/low-pass crossover which produces outstanding sound quality. It incorporates a tapered backplate for increased magnetic circuit efficiency and offers a frequency response of 75Hz - 20kHz. Model FA138 contains a Kevlar fiber reinforced polypropylene cone woofer, a custom butyl rubber surround, a 1-1/2" vented Kapton voice coil, a 21oz. magnet and a 1.2" mylar dome ferro fluid tweeter for clean and powerful weather-resistant performance.

  • Features:

    • 32-Watt, 8" Loudspeaker System Delivers Efficient Frequency Response
    • Loudspeaker Conveniently Front Loads into Acoustically-Matched Enclosure, Plaster or Trim Ring
    • Patented System Design Provides Easy Installation
    • Performance Sensitivity Offers Enhanced Audio Clarity

  • Specifications:

    • Speaker Type: Coaxial
    • Sensitivity: 89.5dB Average, 93dB Peak
    • Frequency Rresponse: 75Hz - 20kHz
    • Impedance: 8, 16, & 32 Watts
    • Dispersion: 110°
    • Depth: 5 1/2"
    • Diameter: 8 1/4"
    • Shipping Weight: 8.00 lbs
    • Saftey Listed: 1480

  • GTIN:

    0612079179329
