Atlas IP-HVP Indoor - Outdoor Wall Mount Speaker with High Output Horn PoE Vandal and Weather Resistant

ITEM #: ATL-IP-HVP MFG #: IP-HVP

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,165.99

Our Price:

$934.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


IP-HVP - Overview

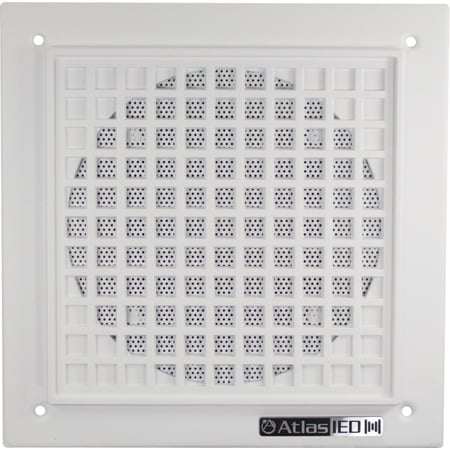

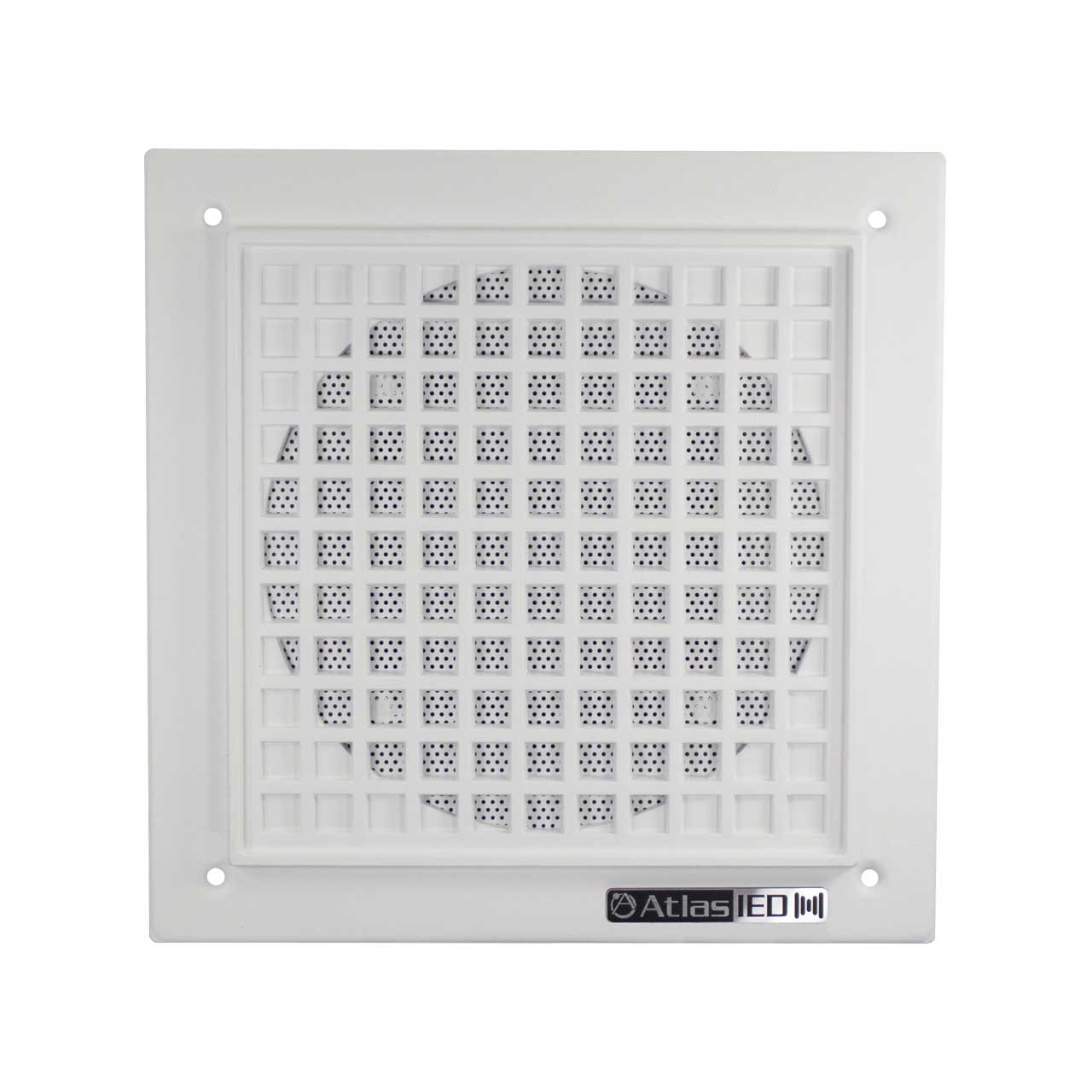

The AtlasIED IPX Series IP-HVP is a vandal proof, weather resistant, wall mount IP speaker. It leverages VoIP communication to extend tele-presence with enhanced audio for environments where network-wide communication is desired and high-output speakers are required to overcome high ambient noise and/or large spaces. The speaker grills are vandal and weather resistant. Manufactured of cast aluminum alloy, the grills provide security and durability in indoor and outdoor applications.

AtlasIED IP-HVP registers as a communication endpoint directly within InformaCast, GCK, and Revolution Advanced Notification applications, supporting audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded & scheduled announcements, while leveraging the WAN/ LAN Network Architecture.

When used within a Cisco Environment, the IP-HVP speakers can join Cisco's Unified Survivable Remote Site Telephony (SRST) as a supported device. Cisco's SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

Where 3rd party notification applications are not required, the IP-HVP vandal proof, weather resistant, wall mount IP can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts and public address applications.

Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist and prefer using a single enterprise-class communications platform.

  • Features:

    • Network Features
    • Dynamic or Static IP Address
    • IEEE802.3 10/100Base-T Ethernet
    • IEEE 802.1q Tagging
    • IEEE 802.11AT Compliant
    • VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)
    • Auto Provisioning: DHCP Option 66, 150, or TFTP Server or DHCP Option 72 for HTTP Server
    • Auto Registration: SLP for InformaCast or DHCP Option 72 for Revolution or GCK
    • Static Configuration: HTTP GUI for Static Configuration or Cisco SRST

      Audio Features
    • Integrated Amplifier 15-Watt Total Power: Primary Speaker Output 8 ohm
    • Aux Audio Line-In Unbalanced (2.8Vpp 10K)
    • Aux Audio Line-Out Unbalanced (2.8Vpp 10K)
    • Additional Features
    • 2 General Purpose Inputs
    • 1 General Purpose Output (2A @ 30 VDC)
    • Phone/Night Loud Ringer
    • External Power Supply Option

  • Specifications:

    • Speaker Type: Horn
    • Frequency Response: 600Hz - 14kHz
    • Dispersion: 95° (-6dB, 2000Hz Octave Band)
    • Max Spl: 120dB @ 15-Watts (Peak)
    • Power Rating: 12-Watts Max (802.3AF) / 25-Watts Max (802.3AT)
    • THD: <0.2%
    • Grille: Powder Coated Steel
    • Connector Type: RJ-45
    • Height: 14.37" (365mm)
    • Width: 12.87" (327mm)
    • Depth: 4.18" (106mm)
    • Weight: 5.21 lbs (2.36kg)
    • Shipping Weight: 6.66 lbs (3.02kg)
    • Safety Listed: 62368-1, CSA C22.2 #62368-1, IEC 62368-1 CB Scheme and FCC

  • GTIN:

    0612079664566
