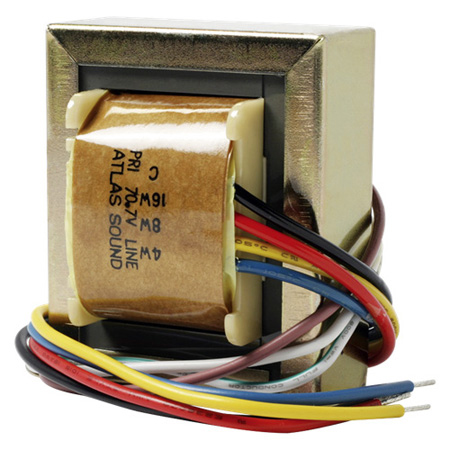

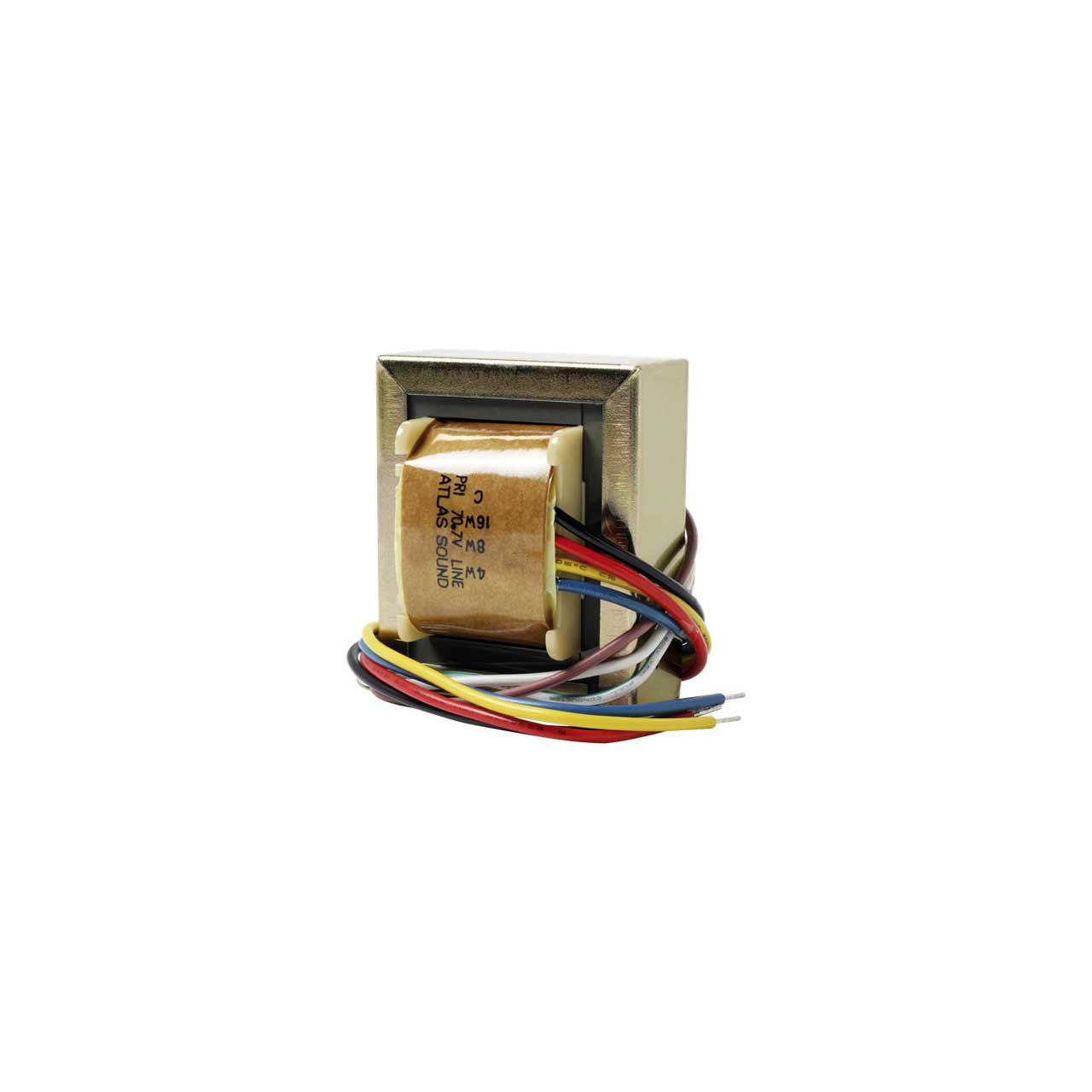

Model HT167 high quality line matching transformer features 0.6dB insertion loss to assure efficient loudspeaker matching in distributed 70.7-volt systems.
Unit is constructed of audio grade laminations and has primary taps at 4, 8 and 16 watts. The secondary impedance is 4 and 8 ohms.
Frequency response is +1dB from 40 Hz to 15 kHz.
