Audio-Technica ATW-R3250DF2 Body-pack Receiver for 3000 Series In-Ear Monitoring System

ITEM #: ATW-R3250DF2 MFG #: ATW-R3250DF2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$479.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ATW-R3250DF2 - Overview

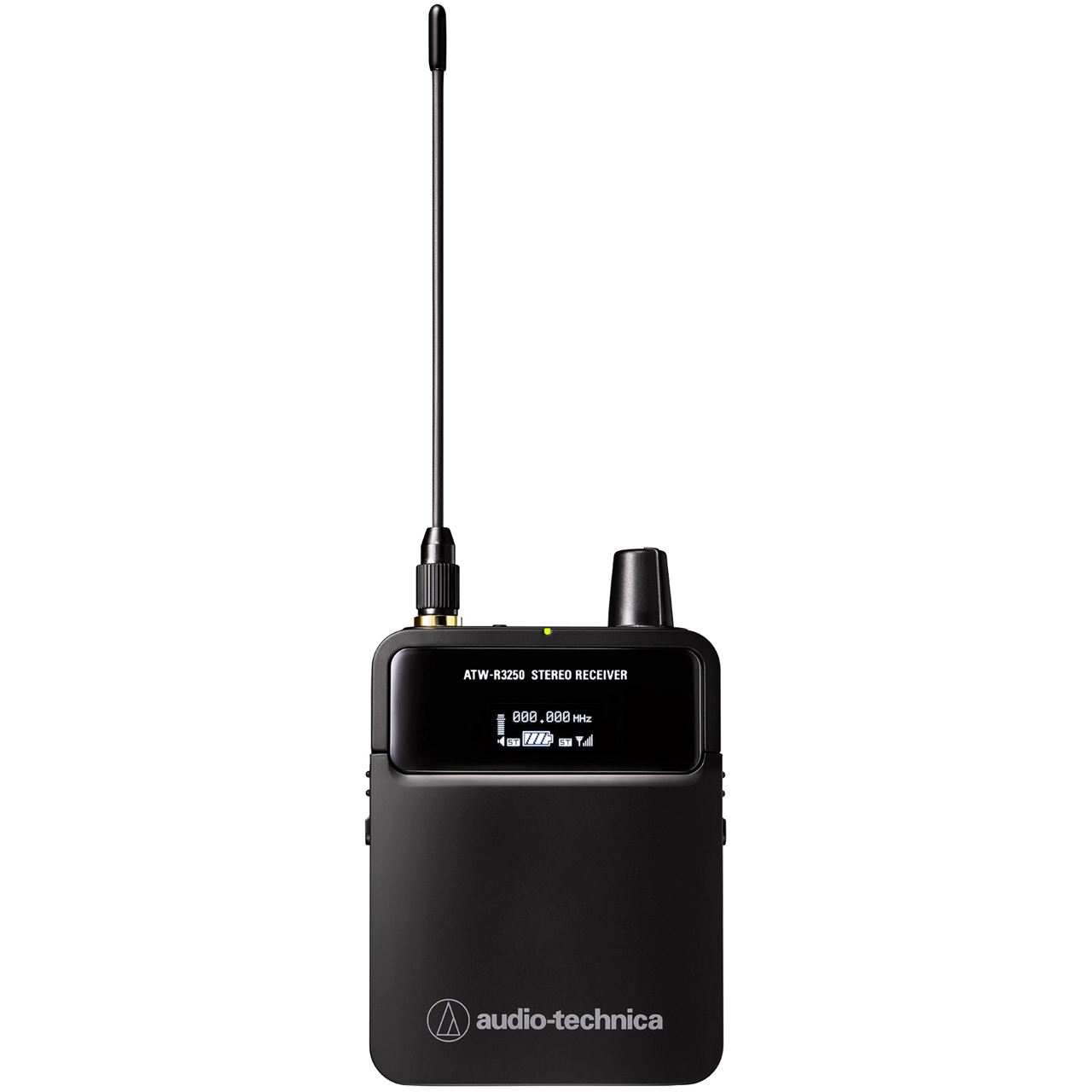

Body-pack receiver for 3000 Series In-Ear Monitoring System (ATW-3255).

The ATW-R3250DF2 3000 Series wireless in-ear monitor receiver delivers pro features at a price most musicians, techs, small-to-mid-sized venues and houses of worship can afford. Antenna diversity bolsters RF stability if the audience crowds the stage (the human body can actually reflect or absorb RF energy), line of sight between transmitter and receiver is impeded by the venue, or if the lighting rig and other RF noise generators (phones, computers and so on) seek to jam up your wireless signal. An onboard headphone amp produces pristine audio, and you can choose to monitor in stereo or mono, as well as make your own EQ adjustments to tailor the sound to your needs. The ATW-R3250DF2 makes tweaks and alerts easy to see with a high-resolution OLED screen that can be viewed on dark indoor stages and sun-drenched outdoor gigs.

  • Features:

    • Durable wireless in-ear monitor system delivers high-quality sound and stable RF.
    • Ideal for use in houses of worship and performance venues.
    • Optimized internal digital signal processing provides exceptional stereo separation.
    • Wide UHF tuning bandwidth of 138 MHz for maximum versatility in an increasingly congested RF environment; available in frequency bands DF2 (470 - 608 MHz) and EG2 (580 - 714 MHz).
    • Shares design elements with the 3000 Series UHF Wireless Systems for easy integration and compatibility.
    • Transmitter and receiver include OLED screens for optimal readout of key settings and alerts.
    • Offers network monitoring and control via Wireless Manager software.
    • A channel plan can be deployed to all network-connected transmitters via an RF scan from a single receiver, with no interference or third-order intermodulation.

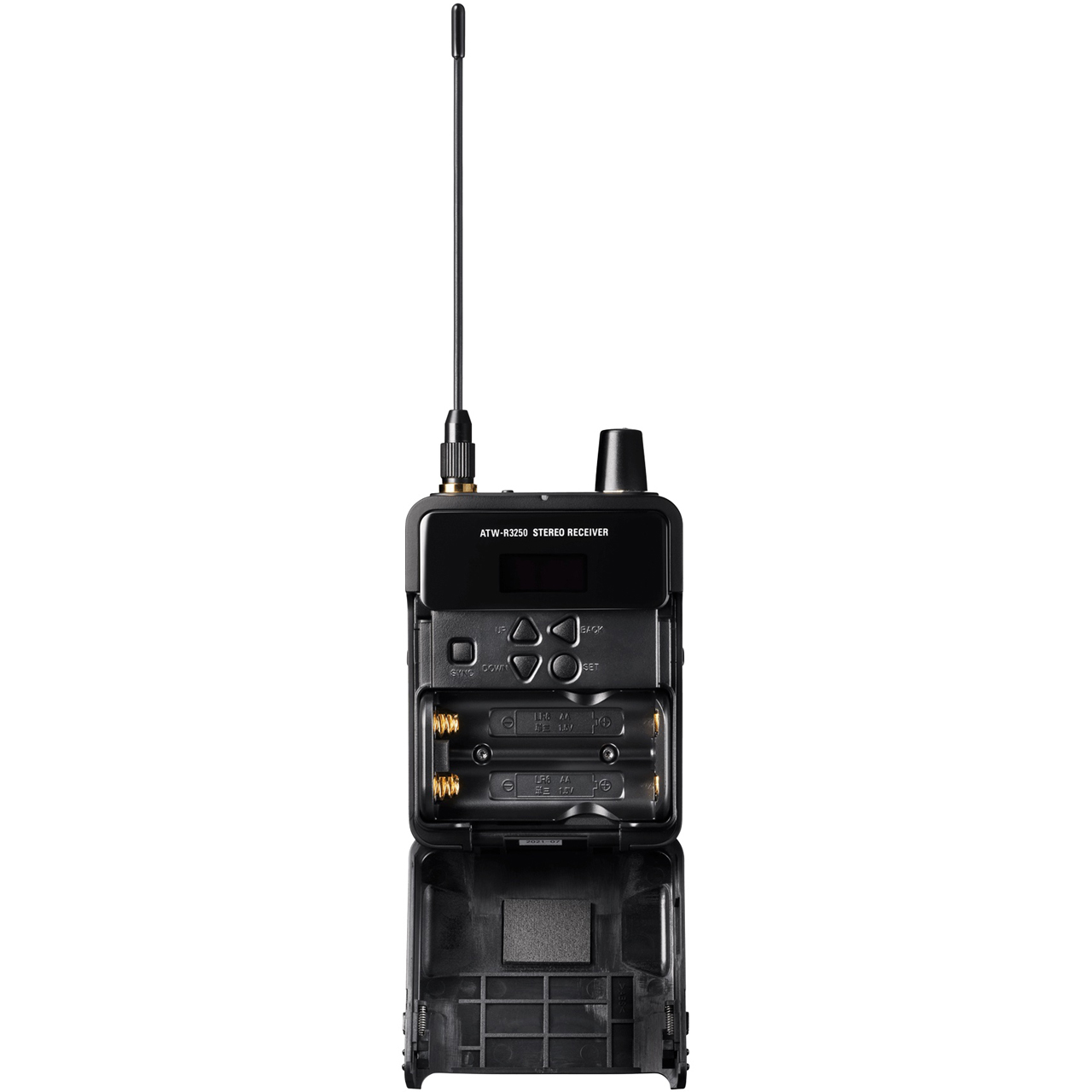

    • Body-pack receiver operates continuously for up to 7 hours when powered by NiMH batteries and charged in the ATW-CHG3 or ATW-CHG3N charging station (sold separately).
    • Stereo or mono operation with pan/personal mix controls.

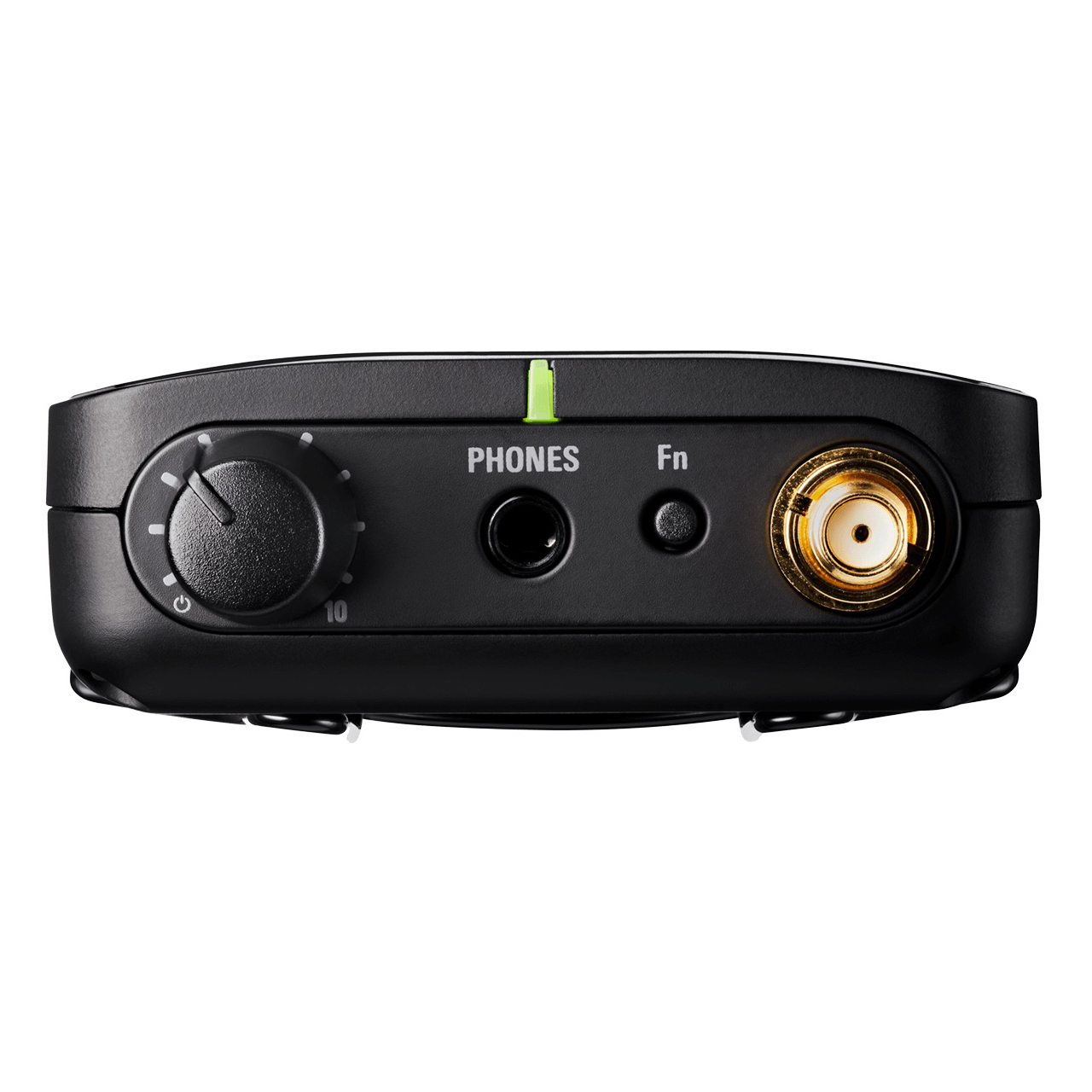

    • Receiver is equipped with an efficient headphone amp to ensure clear, natural sound quality.
    • Custom audio settings include EQ, limiter, gain control and balance.
    • Receiver's antenna diversity improves RF stability.
    • Included ATH-E40 professional in-ear monitor headphones feature propriety dual phase push-pull drivers for exceptional accuracy and clarity.
    • Transmitter is equipped with balanced XLR inputs and loop output, plus network port.

  • Specifications:

    • Operating Frequencies: Band DF2: 470.125 to 607.875 MHz, Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth/transmitting power due to local regulations.
    • Minimum Frequency Step: 25 kHz
    • Modulation Mode: FM
    • Nominal/Peak Deviation: ±34 kHz nominal / ±45 kHz peak
    • Frequency Response: 40 Hz to 14,100 Hz

  • Item Includes:

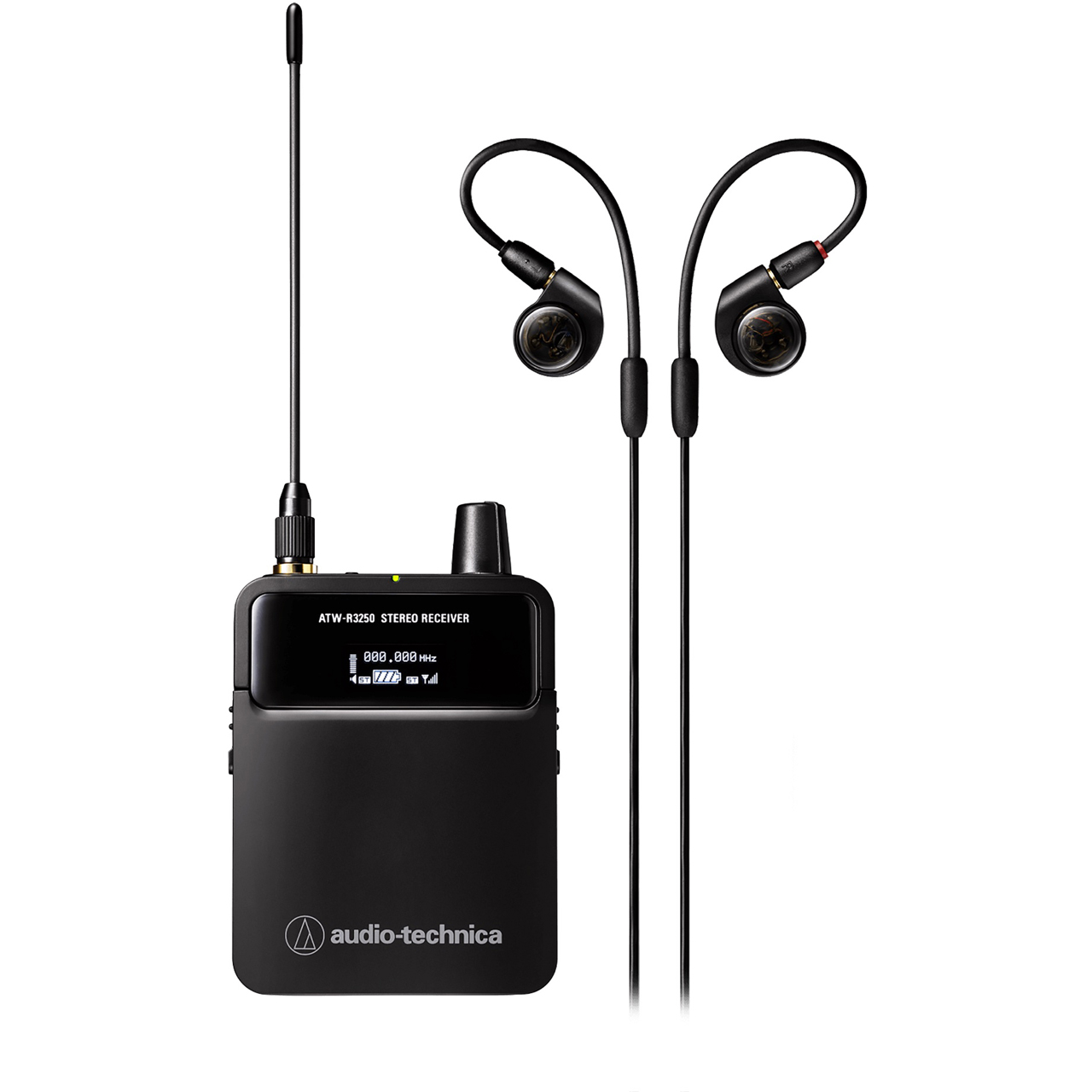

    • Audio-Technica ATW-3250 Wireless Stereo Bodypack Receiver with ATH-E40 Earphones (DF2: 470 to 607 MHz)

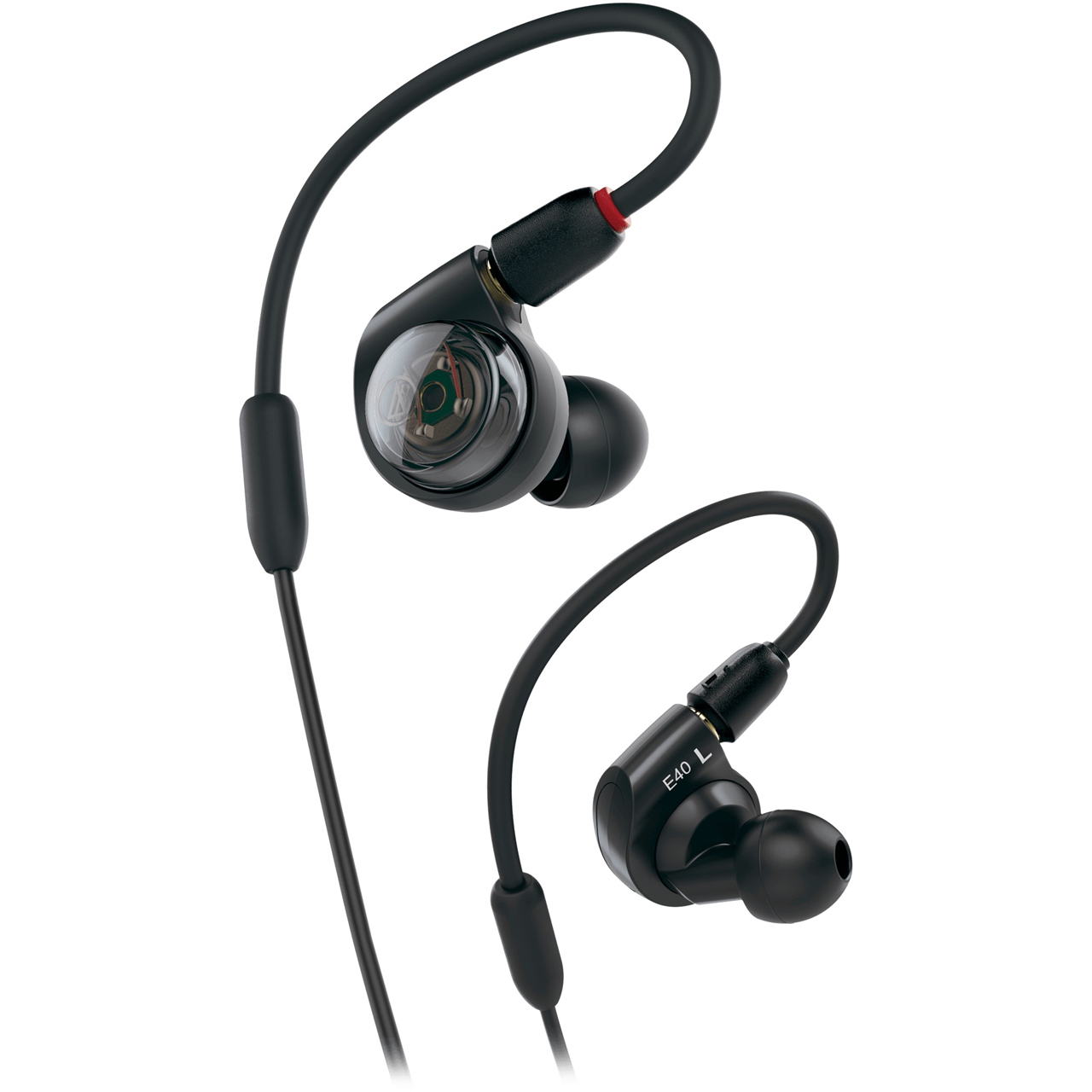

    • ATH-E40 Stereo Earphones
    • 4 x Pair Silicone Eartips (XS/S/M/L)
    • Limited 2-Year Manufacturer Warranty
