Audio-Technica ATW-3255 3000 Series Wireless In-Ear Monitor System

ATW-3255DF2 - Overview

• Features:

  • Durable wireless in-ear monitor system delivers high-quality sound and stable RF
  • Ideal for use in houses of worship and performance venues
  • Optimized internal digital signal processing provides exceptional stereo separation
  • Wide UHF tuning bandwidth of 138 MHzfor maximum versatility in an increasingly congested RF environment; available in frequency bands DF2 (470 -608 MHz) and EG2 (580 -714 MHz)
  • Shares design elements with the 3000 Series UHF Wireless Systems for easy integration and compatibility
  • Transmitter and receiver include OLED screens for optimal readout of key settings and alerts
  • Offers network monitoring and control via Wireless Manager software
  • A channel plan can be deployed to all network-connected transmitters via an RF scan from a single receiver, with no interference or third-order intermodulation
  • Body-pack receiver operates continuously for up to 7 hours when powered by NiMH batteries and charged in the ATW-CHG3 or ATW-CHG3N charging station (sold separately)
  • Stereo or mono operation with pan/personal mix controls
  • Receiver is equipped with anefficient headphone ampto ensureclear, natural sound quality
  • Custom audio settings include EQ, limiter, gain control and balance
  • Receiver's antenna diversity improves RF stability
  • Included ATH-E40 professional in-ear monitor headphones feature propriety dual phase push-pull drivers for exceptional accuracy and clarity

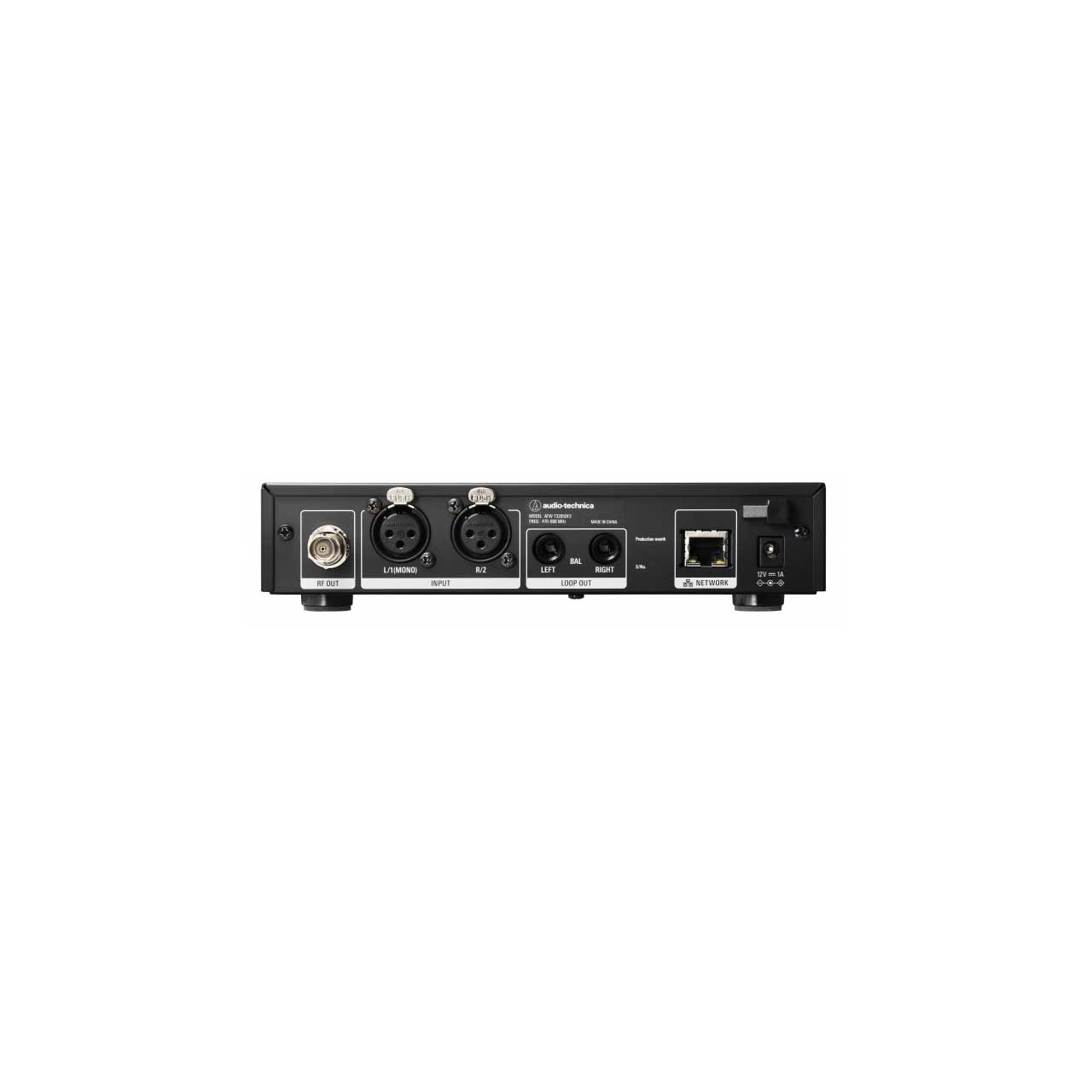

  • Transmitter is equipped with balanced XLR inputs and loop output, plus network port


• Specifications:

  • SYSTEM
  • Operating Frequencies DF2: 470.125 to 607.875 MHz
  • Frequency Step Size 25 kHz
  • Modulation Mode FM
  • Nominal/Peak Deviation ±34 kHz Nominal / ±45 kHz Peak
  • Dynamic Range >90 dB, A-Weighted, Typical
  • Total Harmonic Distortion <0.2% (at 1 kHz, +4 dBu Input)
  • Operating Range 300' / 90 m
  • Frequency Response 40 Hz to 14.1 kHz
  • Stereo Separation 75 dB
  • Max Transmitters per Band 49
    Transmitter:
  • RF Output Power High: 50 mW, Low: 10 mW, (Switchable) at 50 Ohms
  • Input Connections 2 x XLR-F Balanced (Pin1: GND, Pin2: Hot, Pin3: Cold)
  • Output Connection 2 x 1/4" / 6.3 mm TRS Balanced (Tip: Hot, Ring: Cold, Sleeve: Ground)
  • Network 100BASE-T, RJ45 Connector
  • Antenna Output BNC-Type, 50 Ohms
  • Power Supply 100 to 240 VAC (50/60 Hz) to 12 VDC, 1 A (Center Positive) Switched Mode External Power Supply (Included)
  • Dimensions (W x D x H) 8.3 x 7.5 x 1.7" / 210 x 191 x 43.4 mm
  • Weight 39 oz / 1.1 kg
    Receiver:
  • Receiving System Antenna Diversity (Earphone Cable Performs as Secondary Antenna)
  • Image Rejection >80 dB, Typical
  • RF Sensitivity 20 dBuV at 60 dBA S/N Ratio (50 Ohms Termination)

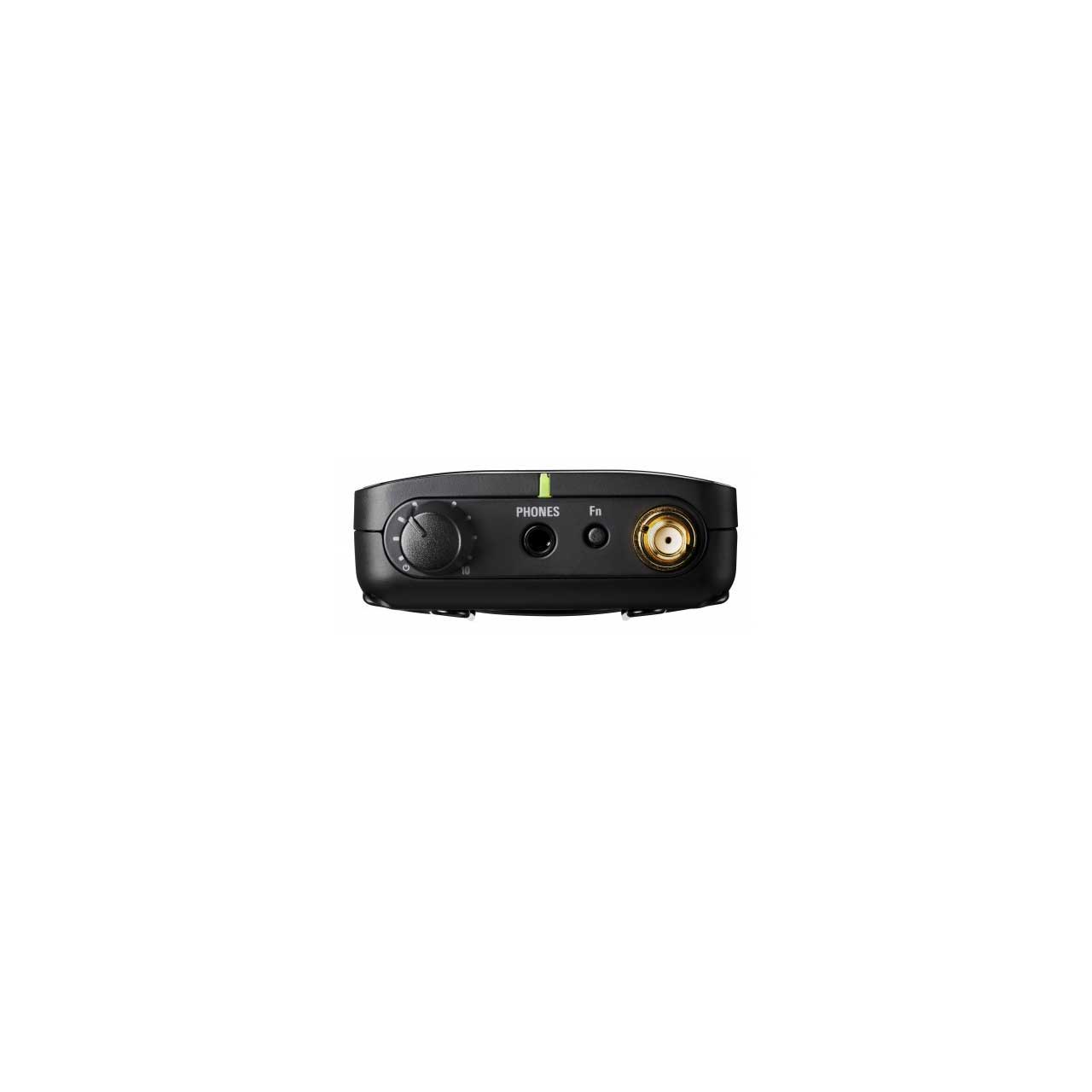

  • Headphone Connector 1/8" / 3.5 mm TRS Stereo Mini-Jack
  • Headphone Output 40 mW (at 12 Ohms)
  • Equalizer Low: 80, 160, 320 Hz / ±9 dB in 3 dB Steps
  • High: 6, 8, 10 kHz / ±9 dB in 3 dB Steps
  • Limiter Selectable: -30 dB to OFF (0 dB) in 6 dB Steps
  • Antenna Input SMA Type, 50 Ohms

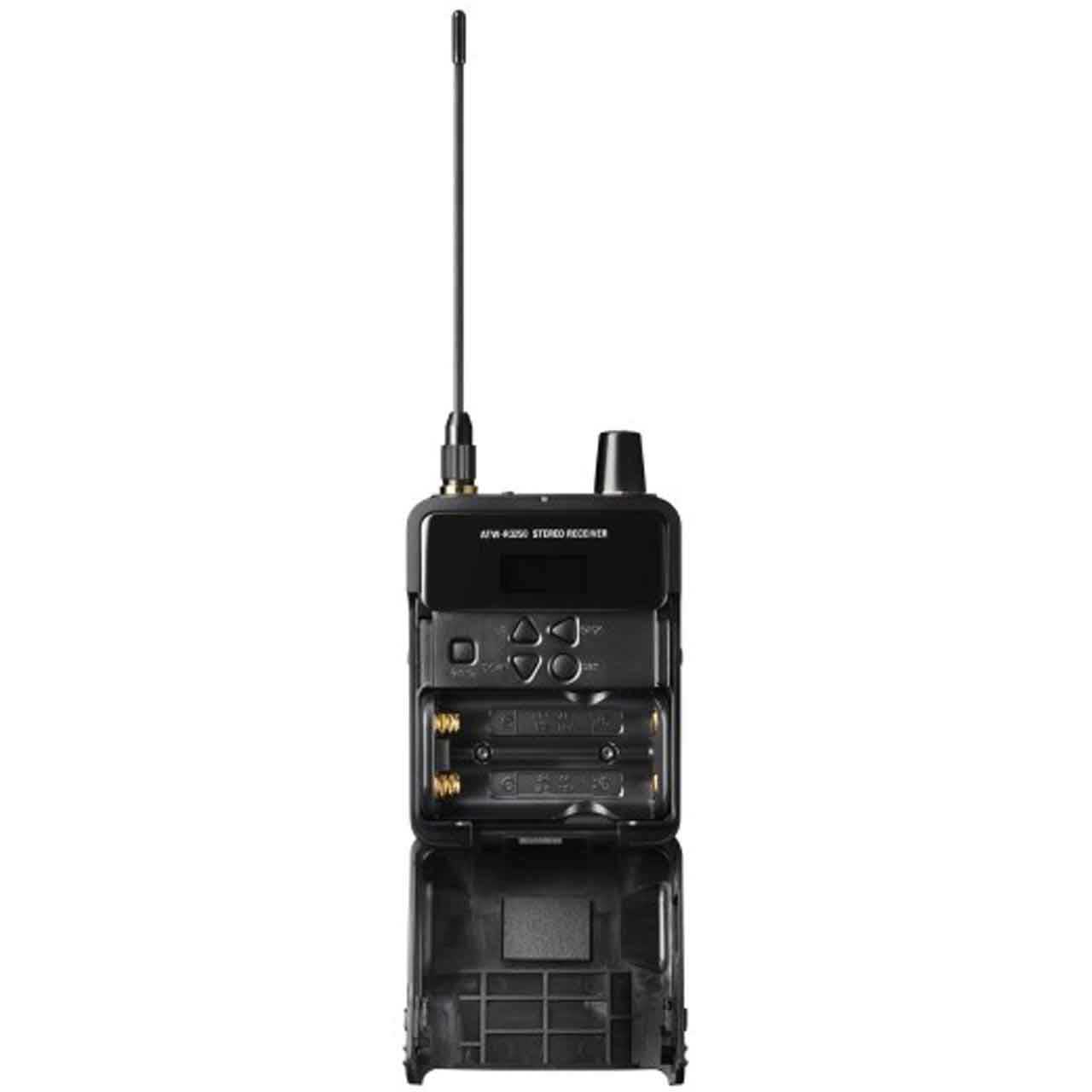

  • Batteries 2 x AA, 3 VDC (Not Included)
  • Battery Life 4 to 6 Hours (Alkaline)
  • 5 to 7 Hours (Ni-MH, 1900 mAh)
  • 11 to 13 Hours (Lithium)
  • Operating Temperature Range 2 to 113°F / -5 to 45°C
  • Dimensions (W x D x H) 2.5 x 0.91 x 3.2" / 64 x 23 x 82 mm
  • Weight 3.6 oz / 102 g (Without Batteries).
    Packaging Info
  • Package Weight 5.285 lb
  • Box Dimensions (LxWxH) 15.4 x 13.5 x 3.2"

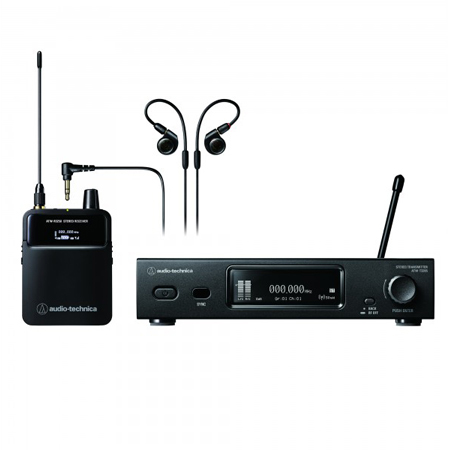

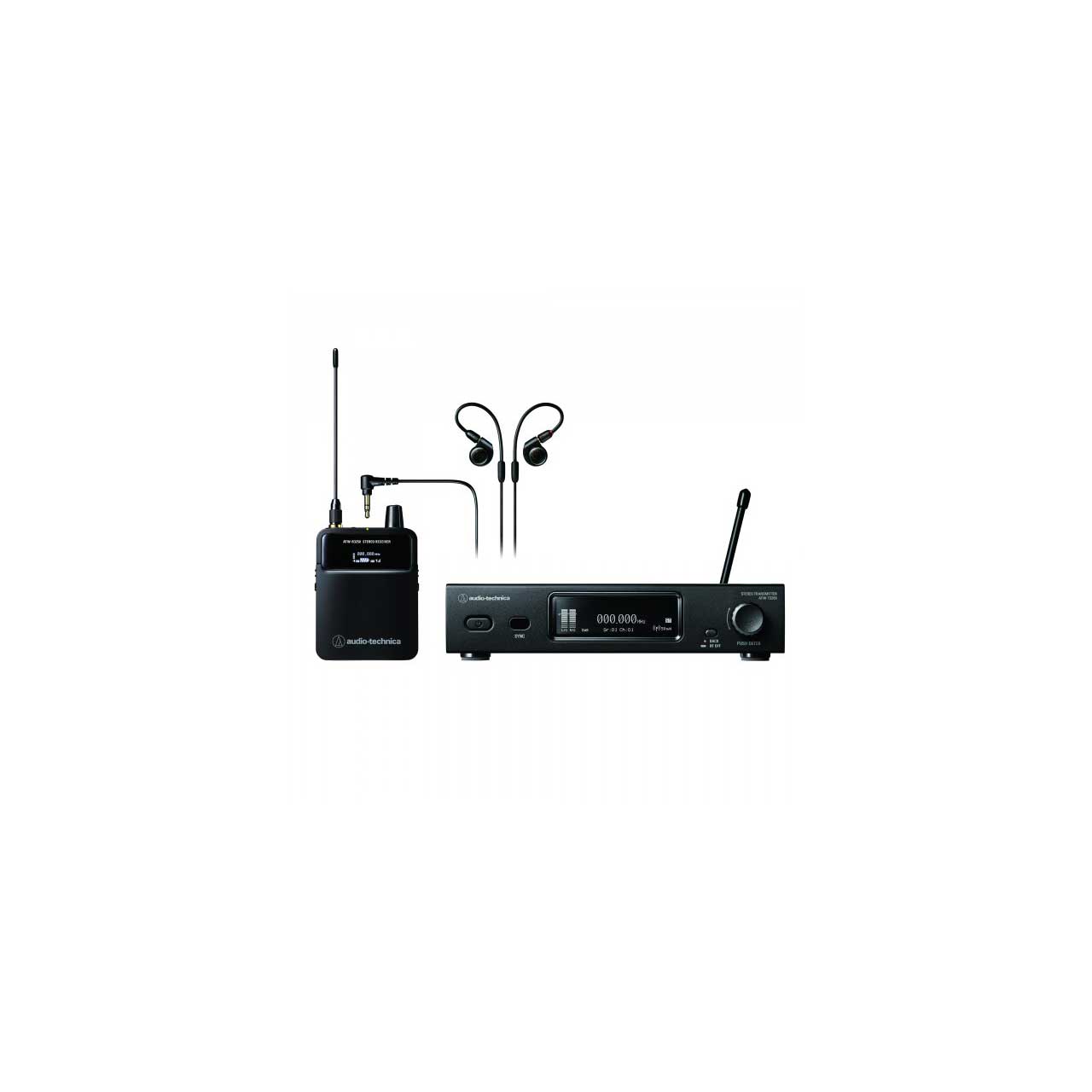

• Item Includes:

  • Audio-Technica ATW-3255 3000 Series In-Ear Wireless Monitor System (DF2: 470 to 607 MHz)
  • ATW-T3205 1/2-Rack Transmitter

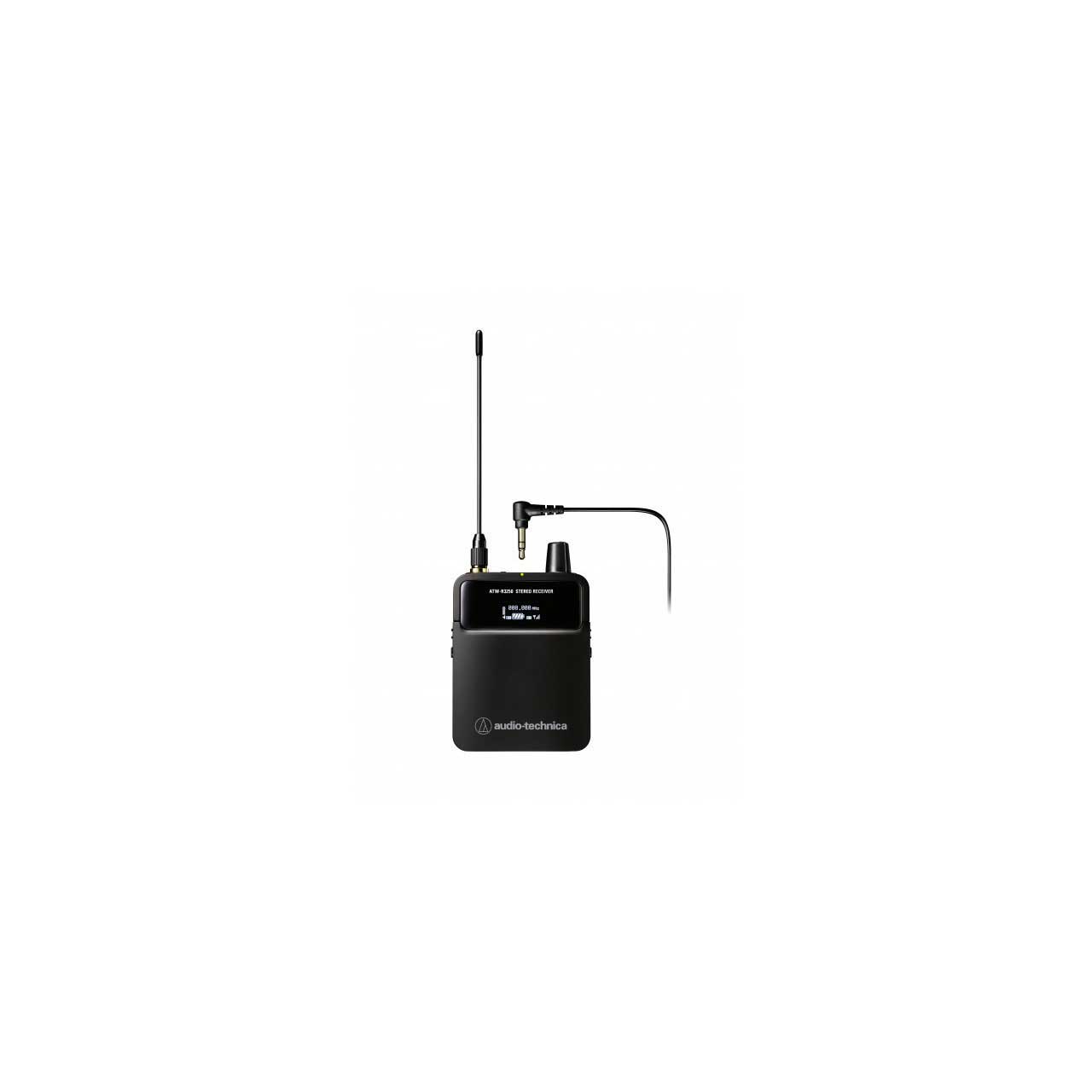

  • ATW-R3250 Bodypack Receiver
  • ATH-E40 Stereo Earphones
  • 4 x Pair Silicone Eartips (XS/S/M/L)
  • Flexible Antenna for Transmitter
  • AC Adapter for Transmitter
  • Rackmount (Large, Small)
  • Limited 2-Year Manufacturer Warranty
