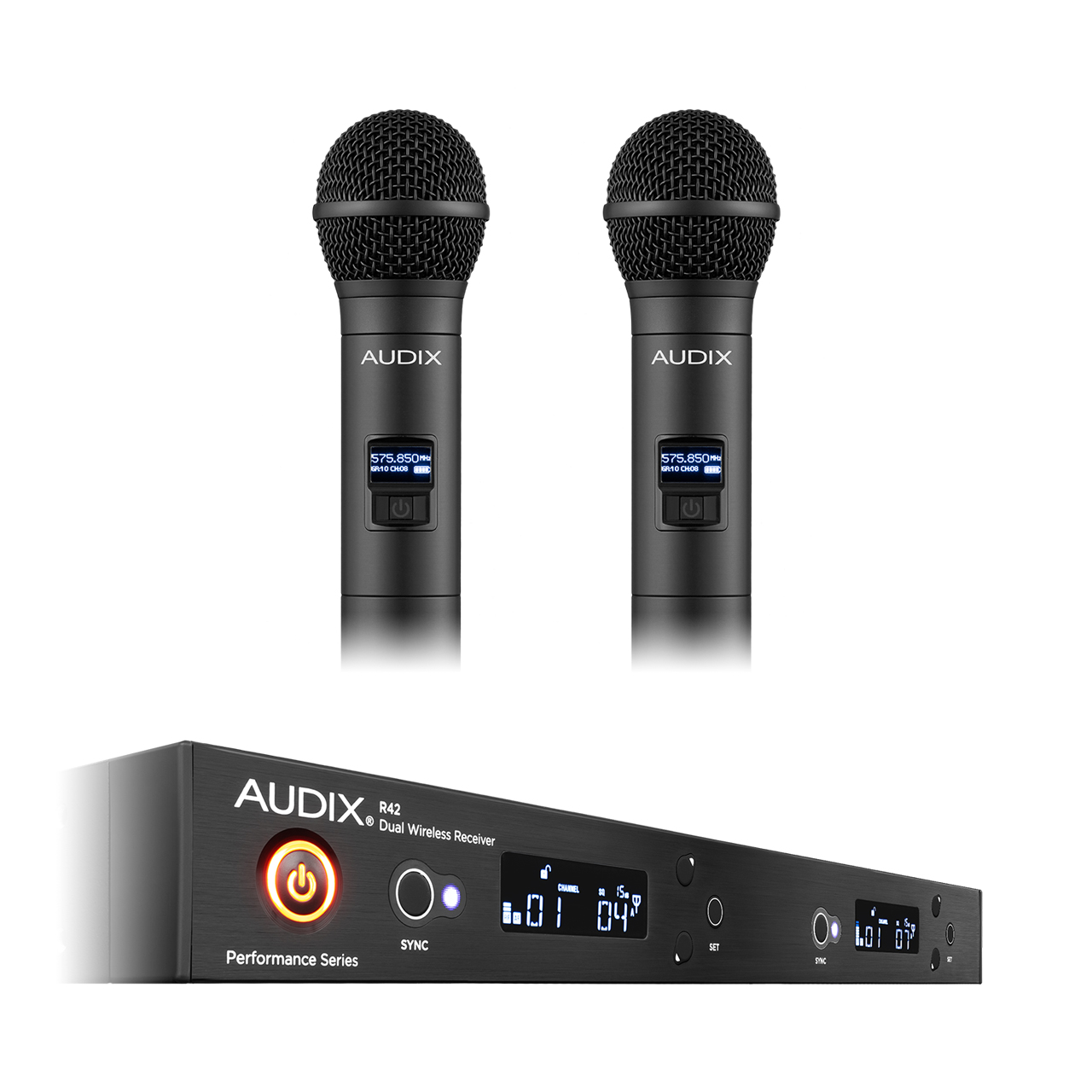

Audix AP42OM5B R42 Two Channel Diversity Wireless Mic Rx w/ Two H60/OM5 Handheld Tx - Freq-B 554MHz-586MH

AP42OM5B - Overview

• Features:

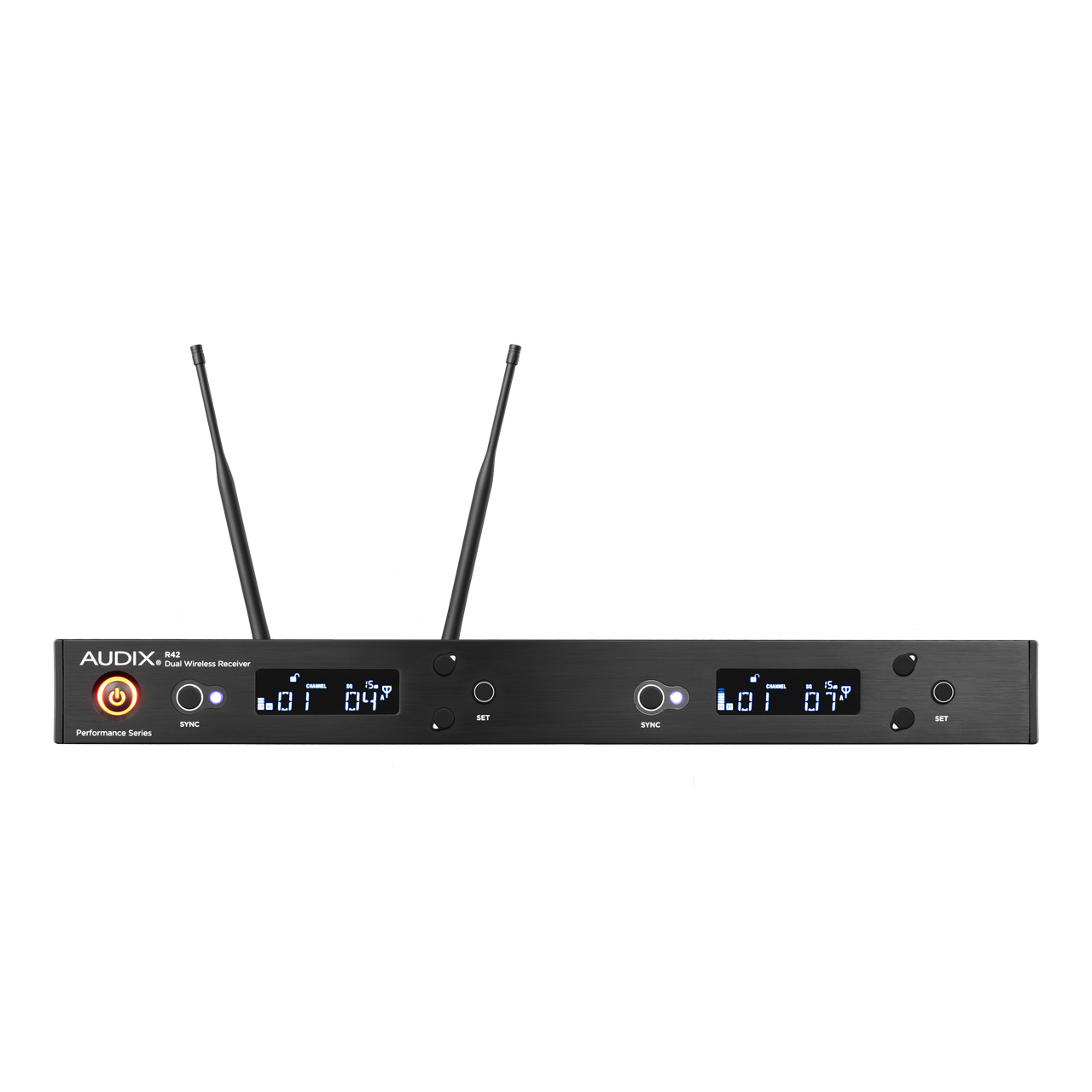

  • R42 Two Channel Diversity Receiver
  • 32 MHz Wide spectrum tuning receiver
  • 106 Pre-coordinated frequencies
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to the receiver via infrared beam

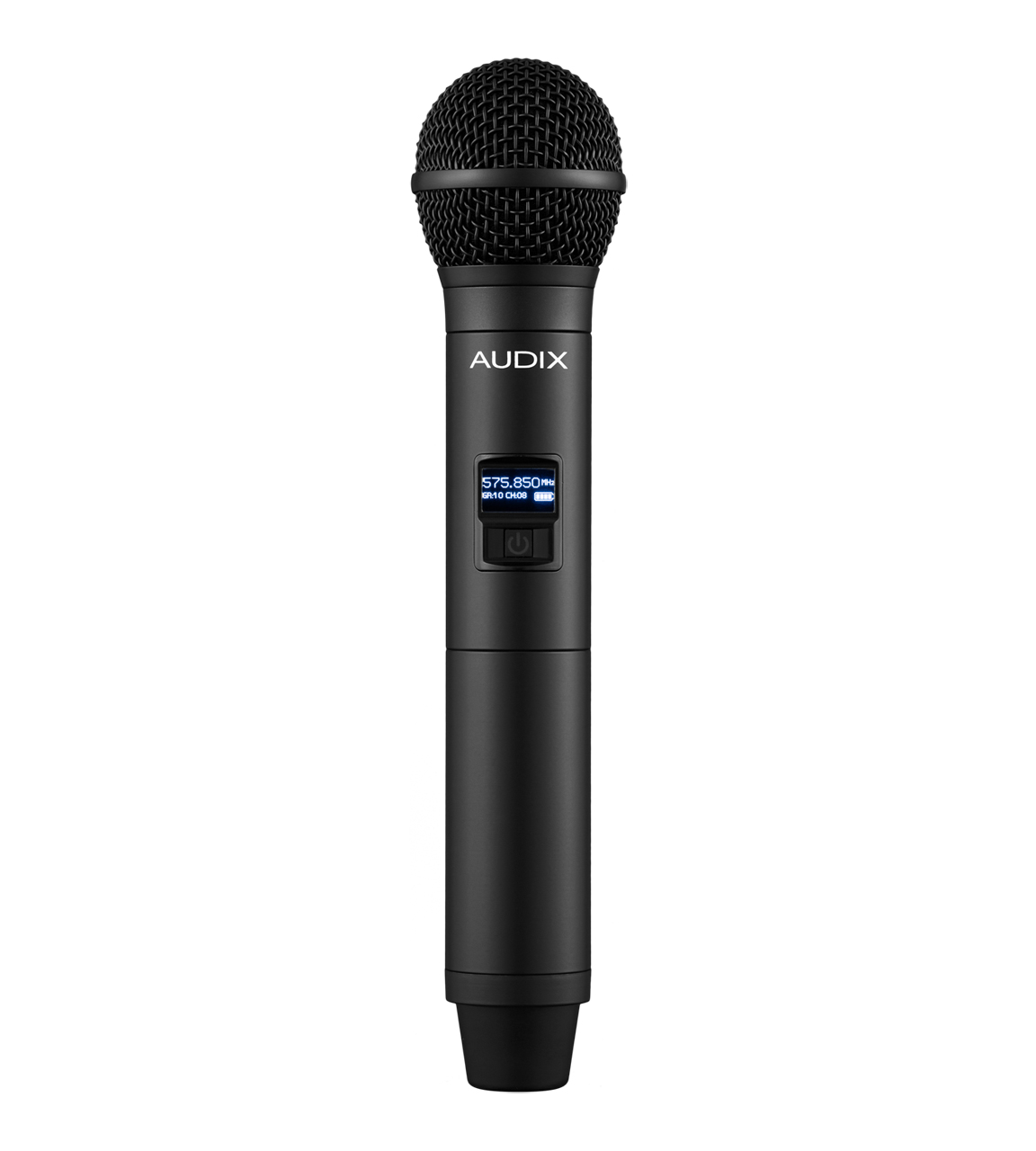

    H60 OM5 Handheld Transmitter
  • 64 MHz Wide spectrum transmitter with OM5 dynamic capsule module
  • Durable metal housing
  • 14 Hour run time - AA batteries


• Specifications:

  • Receiver
  • Frequency Range: 554MHz - 586MHz
  • Bandwidth: 32MHz
  • Compatible Systems: 16 Compatible system operation
  • Switchable Frequencies: 106 Preset frequencies
  • Frequency Response: 45Hz - 18kHz
  • Compander System: 2:1
  • Pilot Tone: 32kHz
  • Receiver System: Single tuner, diversity
  • Signal-to-Noise Ratio: 105dB at 30kHz deviation (A-weighted)
  • Total Harmonic Distortion: ≤.7% (33kHz deviation at 1kHz)
  • Sensitivity: 5 dBµV (S/N 60dB at 25kHz deviation, A-weighted)
  • Audio Output (AF=0):
    - Balanced: -12dBv @ 25kHz deviation, 600Ω load
    - 1/4": -18dBv @ 25kHz deviation, 10kΩ load
  • Output Connectors: 1/4", XLR
  • Audio Level Adjust:
    - Balanced: -12dBu - +9dBu
    - Line: -24dBu - +4 dBu (adjustable in 3dB-steps)
  • Range: 300 Feet, (91 Meters)
  • Power Supply: 100V - 240V/50 - 60Hz, 12V DC, 1A
  • Dimensions (HxWxD): 1.73" x 16.1" x 8.23" (44 mm x 409 mm x 209mm)
  • Net Weight: 4.4lbs (2.0kg)

    H60 Wireless Microphone
  • RF Power Output: 10mW, 40mW
  • Frequency Bandwidth: 64MHz
  • Gain Controls: 0dB, -6dB, -12dB
  • Batteries Included: 2x AA 1.5 V
  • Current Consumption: 110mA typical
  • Battery Life: 14 hours
  • Max Sound Pressure Level: >140dB (depending on capsule)
  • Dimensions: 2.1" diameter body, 10.43" (L)(53mm diameter body, 265mm (L))
  • New Weight: 11.0oz (312 g)(without battery)


• Item Includes:

  • 1x R42 32 MHz Two Channel Diversity Receiver
  • 2x H60 Handheld Transmitter with OM5 Capsule Module
  • 2x Antennas
  • 1x Audio Cable
  • 2x Clip
  • 2x Pouch
  • 4x AA Batteries
  • 1x Power Supply
  • 1x User Guide
  • 1x Rackmount Hardware
  • 2x BNC Cables


• Warranty:

  • 1 Year Warranty
