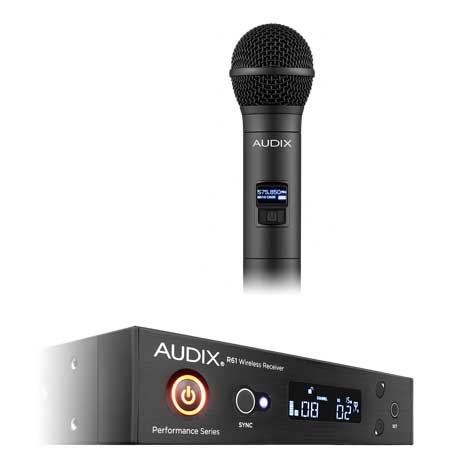

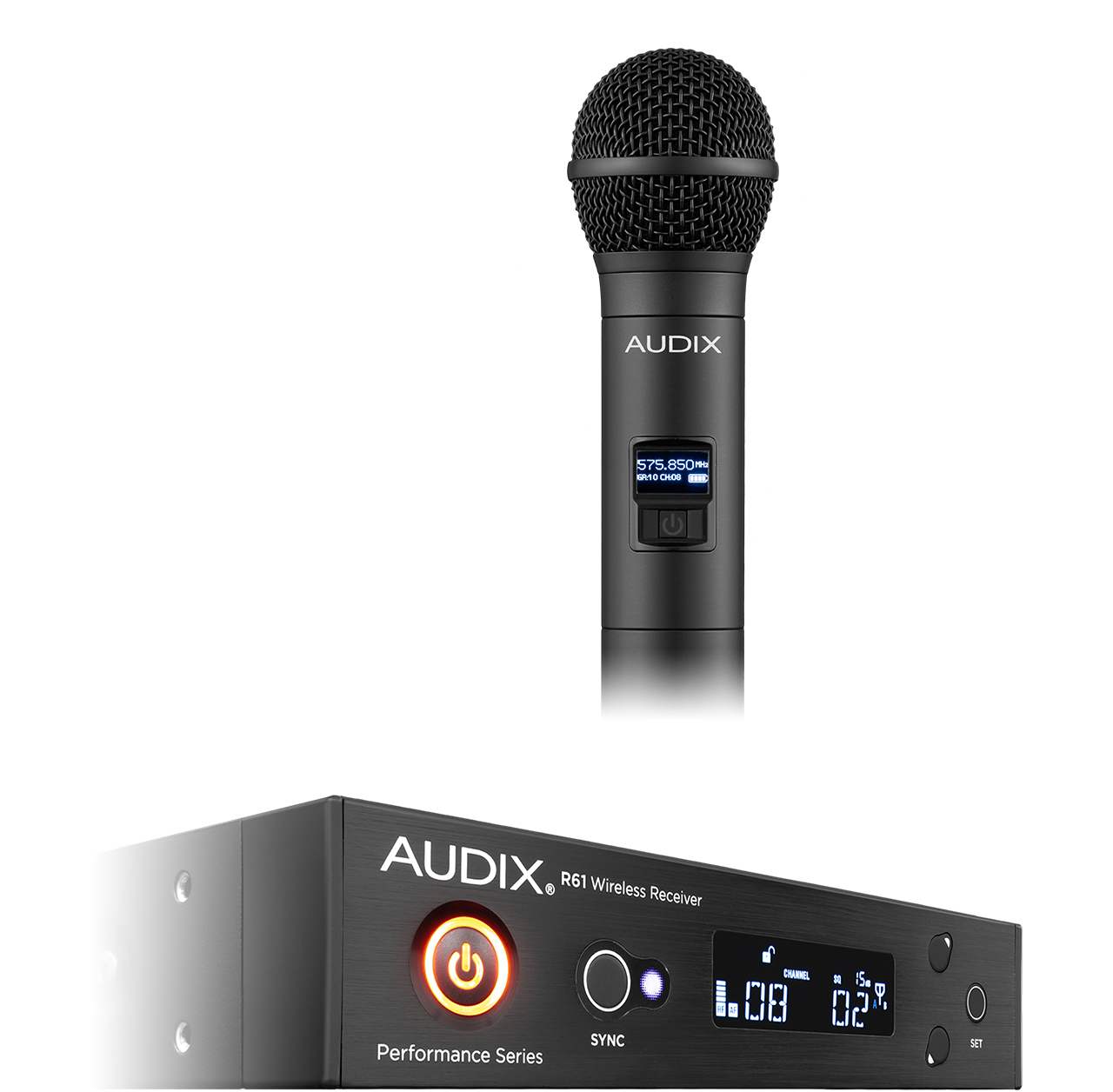

Audix AP61 OM5 R61 True Diversity R61 System - Receiver and H60 Handheld Mic Transmitter with OM5 Capsule - 522 - 586MHz

ITEM #: AUD-AP61-OM5 MFG #: AP61-OM5

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,029.00

Our Price:

$859.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AP61-OM5 - Overview

A professional true diversity handheld wireless system featuring the Audix OM5.

Since the mid-90s, the OM5 has become one of the most respected handheld dynamic mics in the world. Used on stage, in studios, and for broadcast applications, the OM5 has a reputation for clarity, resistance to feedback, and the ability to handle SPLs in excess of 144 dB without distortion.

A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include a rackmount kit for mounting two systems in one rack space, active directional antennas, and an antenna distribution system for up to four systems (4 channels).

  • Features:

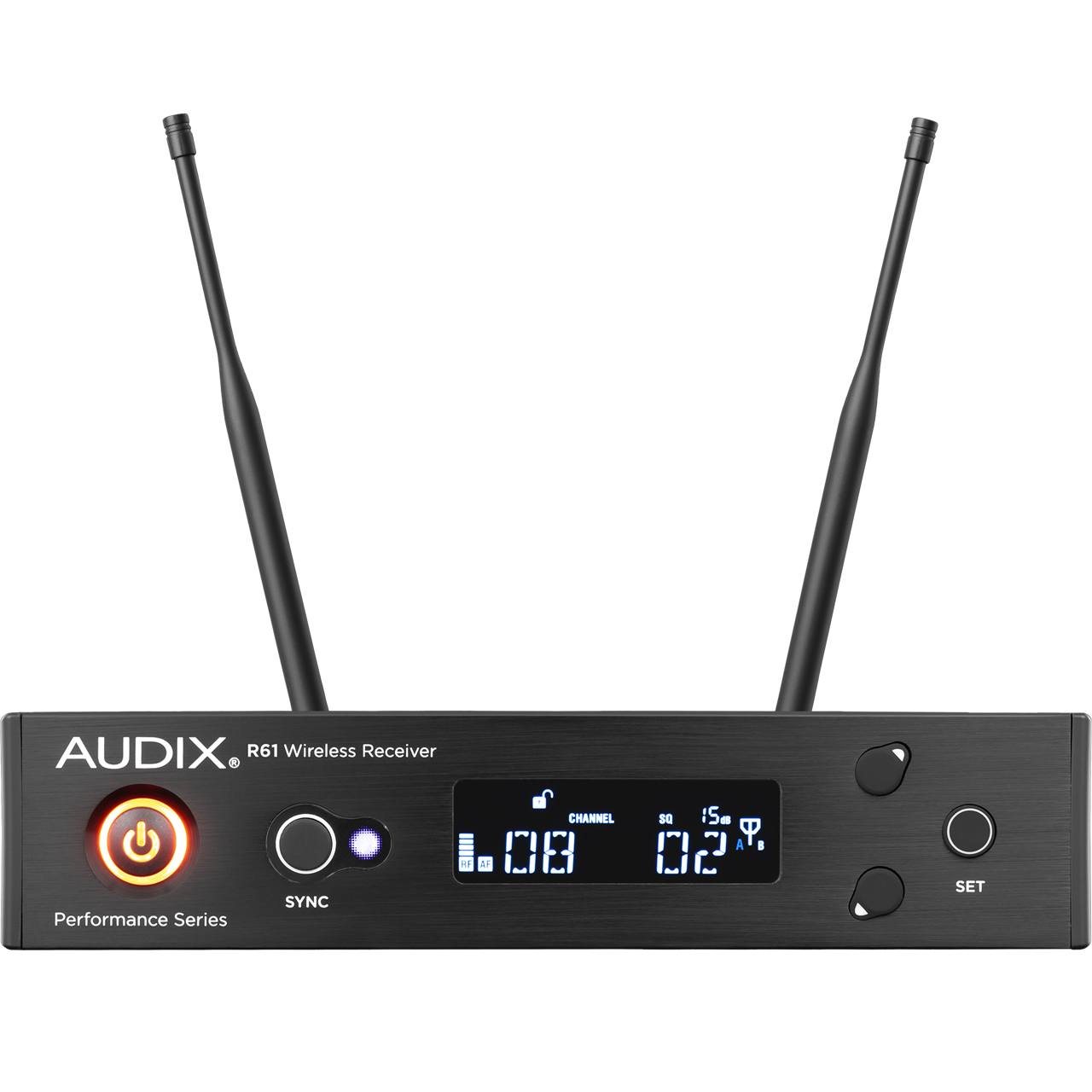

    • R61 True Diversity Receiver
    • 64 MHz Wide spectrum tuning receiver
    • 207 Pre-coordinated frequencies for quick, easy, and reliable set up
    • One-touch auto scan searches for clear channel
    • One-touch sync links transmitter to the receiver via infrared beam
    • 2560 tunable frequencies

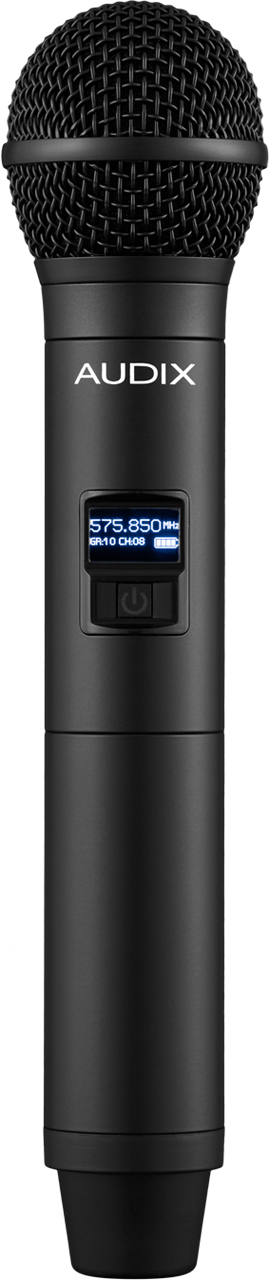

      H60 OM5 Handheld Microphone
    • 64 MHz Wide spectrum transmitter with OM5 dynamic capsule
    • Durable metal housing
    • 14 Hour run time - AA batteries

  • Specifications:

    • R61 True Diversity Receiver
    • Frequency Range: 554MHz - 586MHz
    • Bandwidth: 32MHz
    • Compatible Systems: 16 Compatible system operation
    • Switchable Frequencies: 106 Preset frequencies
    • Frequency Response: 45Hz - 18kHz
    • Compander System: 2:1
    • Pilot Tone: 32kHz
    • Receiver System: Single tuner, diversity
    • Signal-to-Noise Ratio: 105dB at 30kHz deviation (A-weighted)
    • Total Harmonic Distortion: ≤.7% (33kHz deviation at 1kHz)
    • Sensitivity: 5 dBµV (S/N 60dB at 25kHz deviation, A-weighted)
    • Audio Output (AF=0):
      - Balanced: -12dBv @ 25kHz deviation, 600Ω load
      - 1/4": -18dBv @ 25kHz deviation, 10kΩ load
    • Output Connectors: 1/4", XLR
    • Audio Level Adjust:
      - Balanced: -12dBu - +9dBu
      - Line: -24dBu - +4dBu (adjustable in 3dB-steps)
    • Range: 300 Feet, (91 Meters)
    • Power Supply: 100V - 240V/50 - 60Hz, 12V DC, 1A
    • Dimensions (HxWxD): 1.73" x 16.1" x 8.23" (44mm x 409mm x 209mm)
    • Net Weight: 4.4lbs (2.0kg)

      H60 Wireless Microphone
    • RF Power Output: 10mW, 40mW
    • Frequency Bandwidth: 64MHz
    • Gain Controls: 0 dB, -6dB, -12dB
    • Batteries Included: 2 AA 1.5 V
    • Current Consumption: 110mA typical
    • Battery Life: 14 hours
    • Max Sound Pressure Level: >140dB (depending on capsule)
    • Dimensions: 2.1" diameter body, 10.43" (L) (53 mm diameter body, 265 mm (L))
    • New Weight: 11.0oz (312g)(without battery)

  • Item Includes:

    • 1x R61 64 MHz True Diversity Receiver
    • 1x H60 Handheld Transmitter with OM5 Capsule Module
    • 2x Antennas
    • 1x Audio Cable
    • 1x Clip
    • 1x Pouch
    • 2x AA Batteries
    • 1x Carrying Case
    • 1x Power Supply
    • 1x User Guide
    • 1x Rackmount Hardware
    • 2x BNC Cables

  • Warranty:

    • 1 Year Warranty
