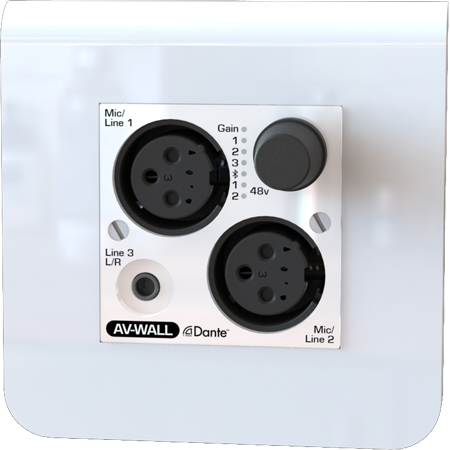

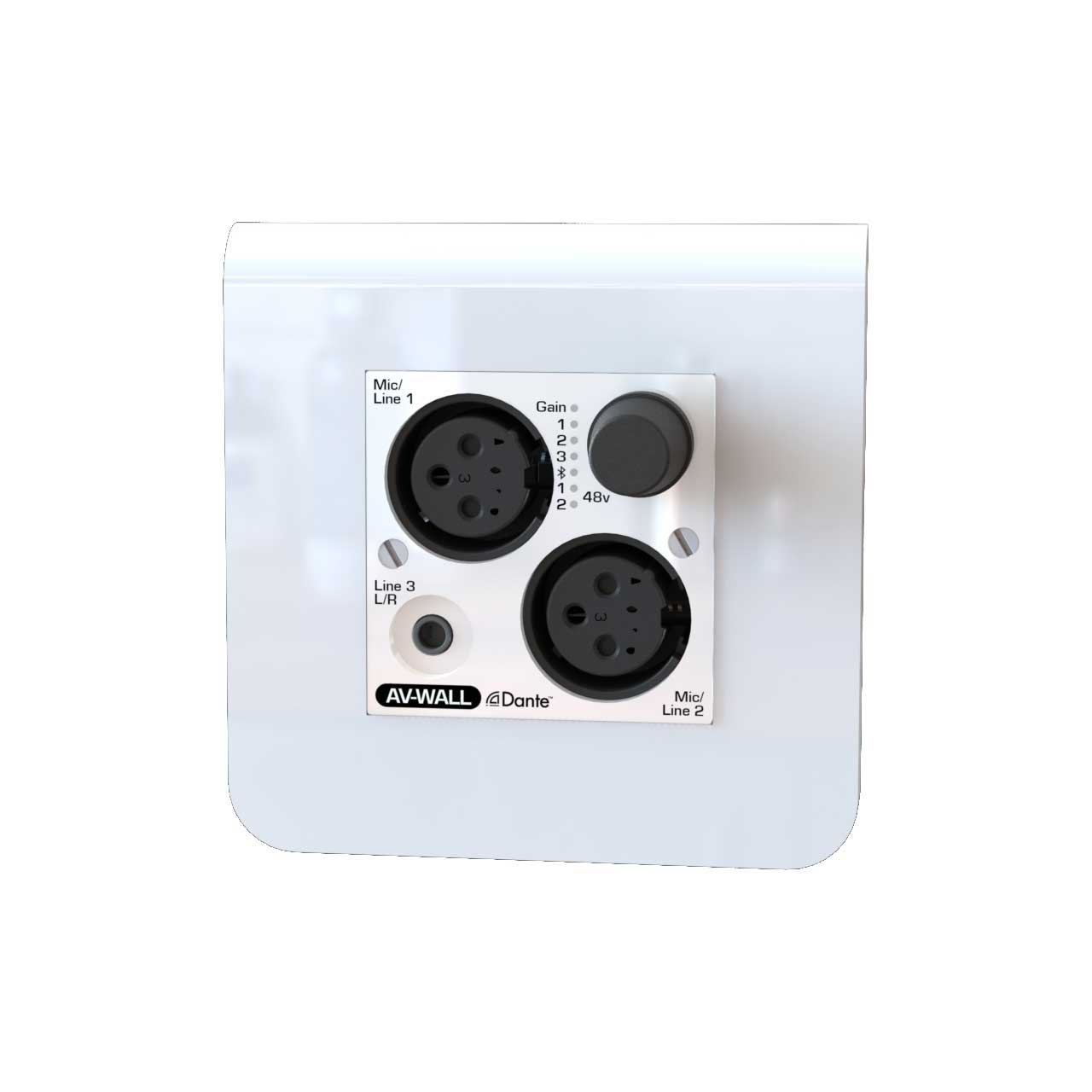

AuviTran AV-WALL-DT4i 2 XLR-F Mic/Line Inputs Wall Plate Plus Dante Stereo 3.5mm Minijack Line In

AV-WALL-DT4I - Overview

• Features:

  • 2x or 4x Dante channel transmitters

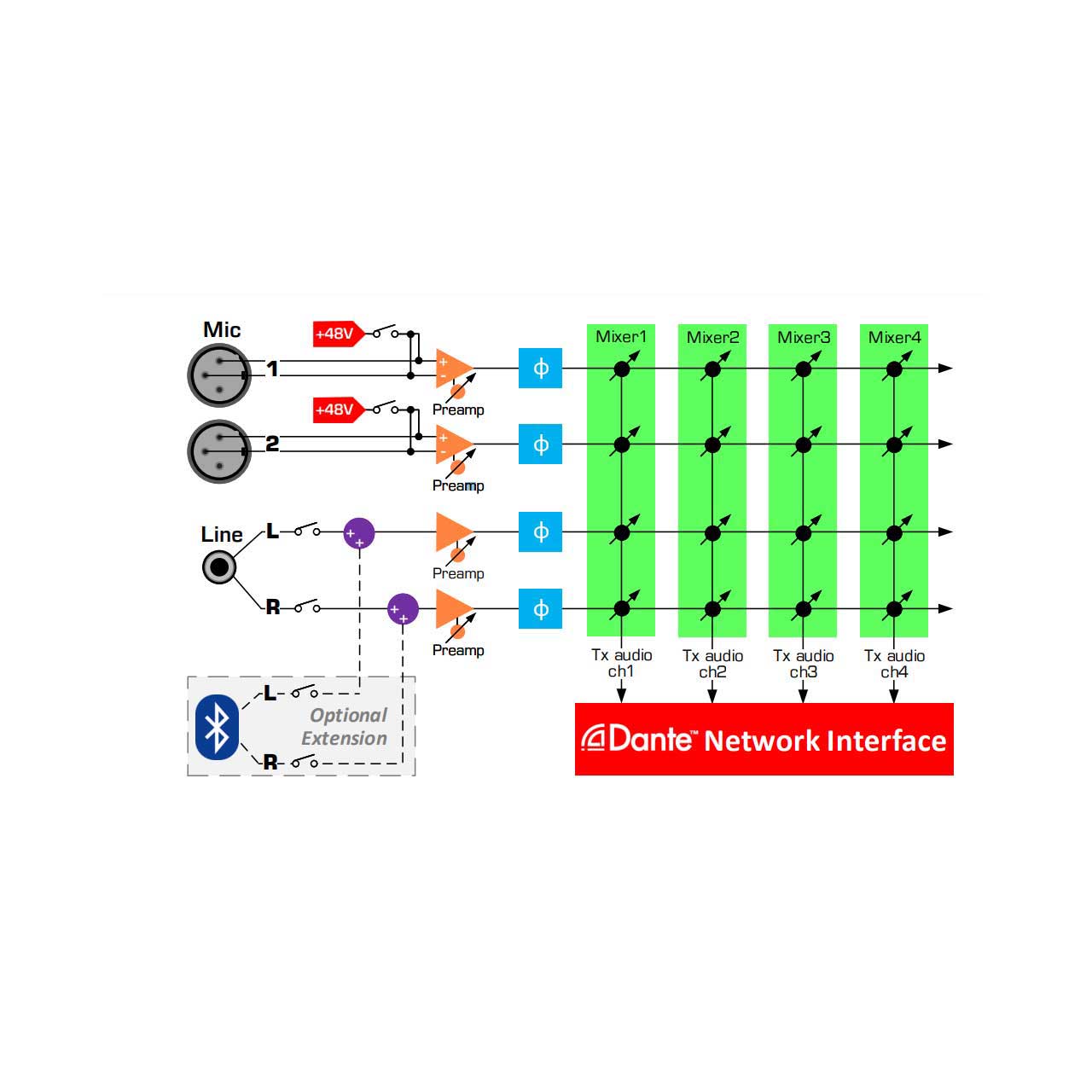

  • 4x Internal input mixers (1, 2, L, R) on DT4i
  • Remote or local controlling
  • Compact size - Fits into a single-gang junction box (45x45mm)
  • RJ45 connector for power and control
  • +48 V phantom power for Mic / Line inputs on DT4i


• Specifications:

  • General

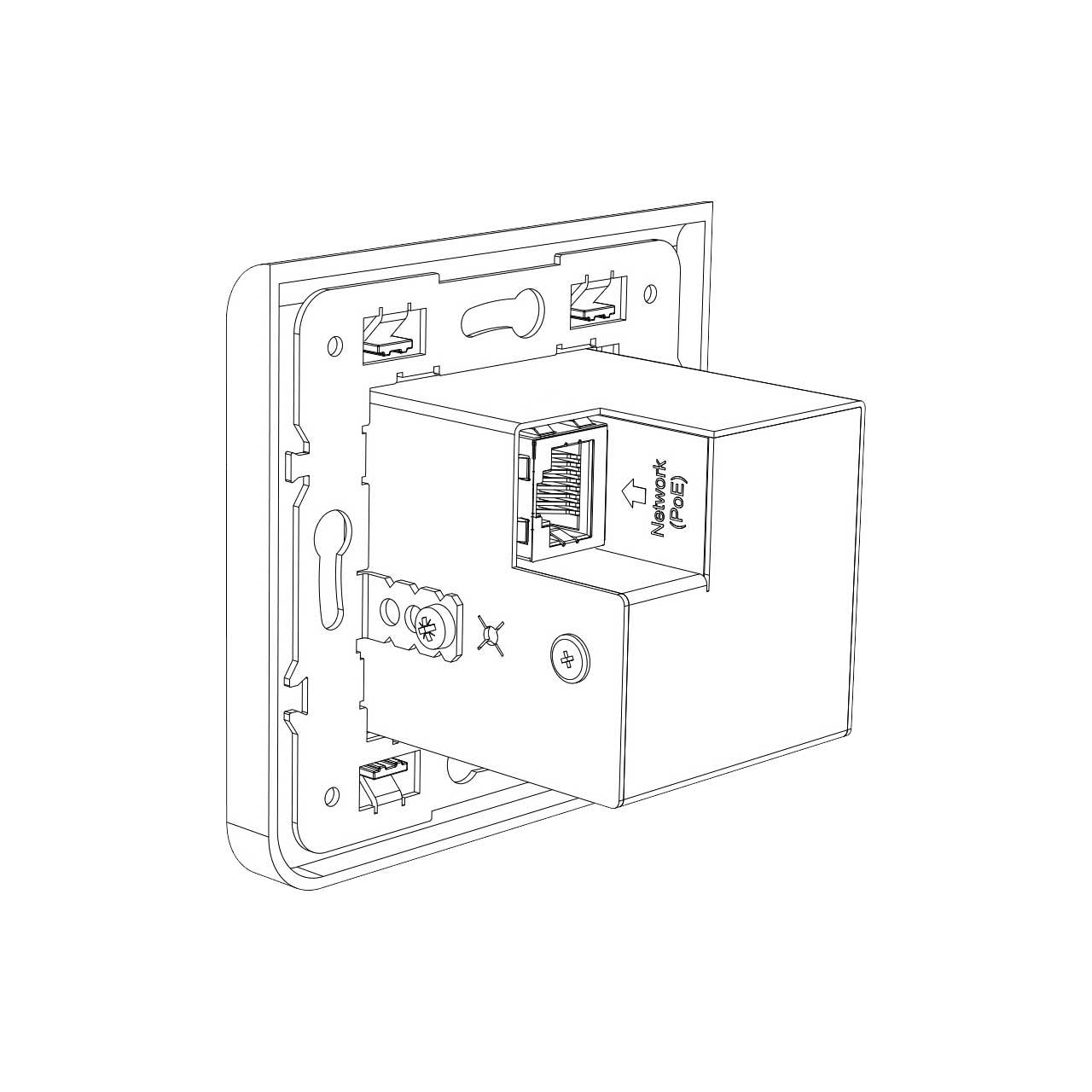

  • Dimensions: Depth in Wall (HxLxW): 1.93 x 1.85 x 1.81 In (49 x 47 x 46mm) - Central part: 1.77 x 1.77 x 1.97 In (45 x 45 x 50mm) Fits in 1 gang box - Wall plate size may vary depending on the region.
  • Power Supply: PoE 802.3af compliant through RJ45. Maximum consumption 5.5W.
  • Sampling, A/D: 44.1 / 48 / 88.2 / 96 kHz on 24 or 32 Bits
  • Inputs: 2x XLR for line inputs 1-2, a stereo 3.5mm minijack for line inputs 3-4 an optional stereo Bluetooth can be connected to AV-WALL-DT4i
  • Local Control: Rotary push button on AV-WALL-DT4i only

    XLR (Balanced)
  • Input Sensibility: +24dBu to -40dBu
  • Input Impedance: 3.5 kω
  • E.I.N.: -111dBu @R=150ω, G=+64dB
  • Dynamic Range: >101dB A-weighted
  • THD+N @1KHz, G=0dB : <-91dB (0.0028%)
  • Freq. Response @G=0: 20Hz-20kHz (+0 /-1.2dB)
  • Phantom Power: +48V controlled per channel

    MINI-JACK (Unbalanced)
  • Input Sensibility: +12dBu to -28dBu
  • Input Impedance: 10 kω
  • E.I.N.: -97dBu @R=20ω ,G=+40B
  • Dynamic Range: >100dB A-weighted
  • THD+N @1KHz, G=0dB: <-89 dB (0.0035%)
  • Freq. Response @G=0: 20Hz-20kHz (+0 /-0.8 dB)
  • Phantom Power: +48V controlled per channel
