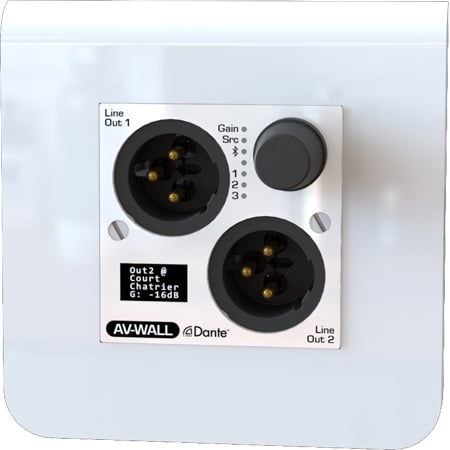

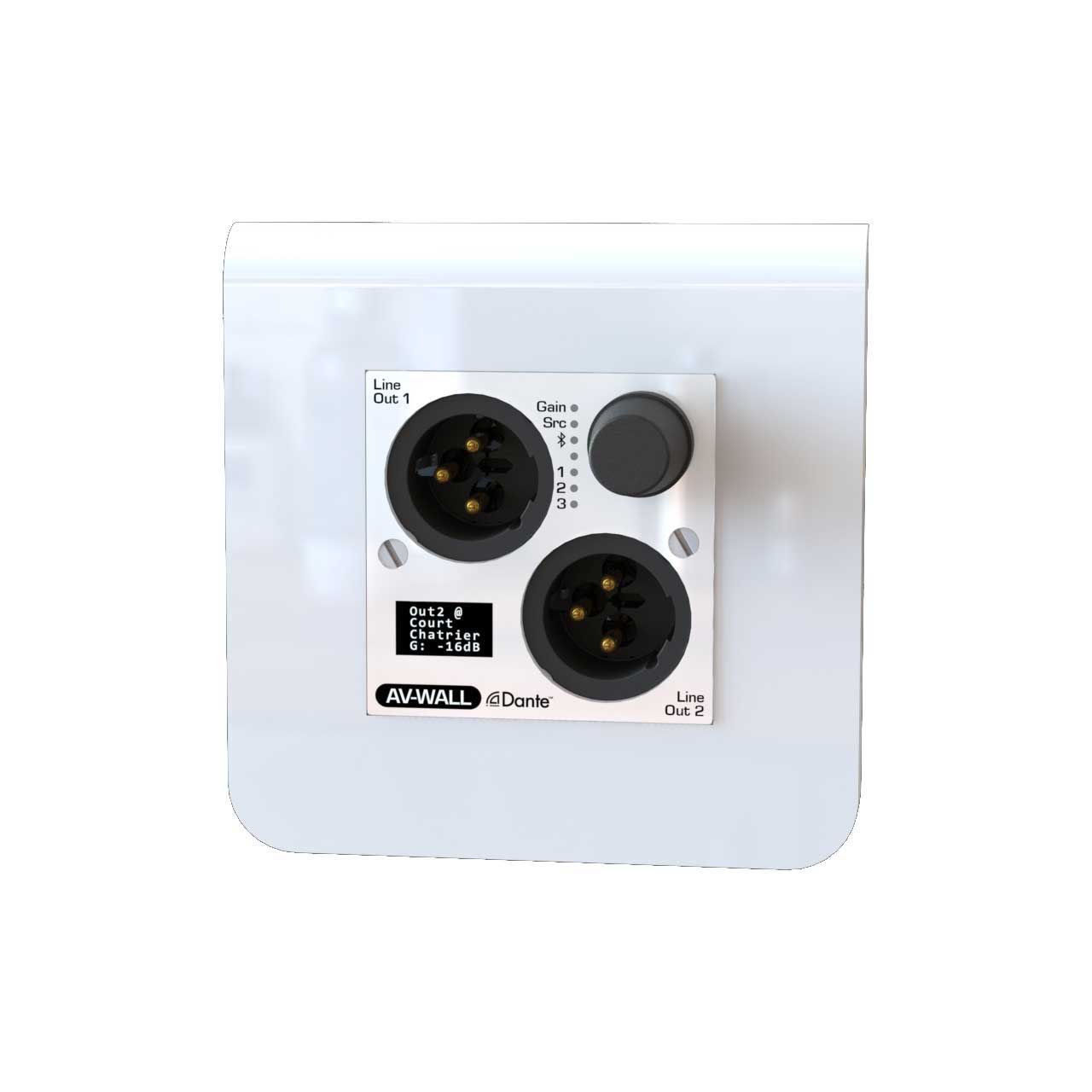

AuviTran AV-WALL-DT4o-LE 2 XLR-M Balanced Outputs Wall Plate with Stereo Out via 3.5mm Minijack from Dante

AV-WALL-DT4O-LE - Overview

• Features:

  • Simple Bluetooth device pairing
  • Remote or local controlling options
  • Compatible with most known portable Apple and Android devices
  • Fits into a single-gang junction box (measures only 45x45mm)

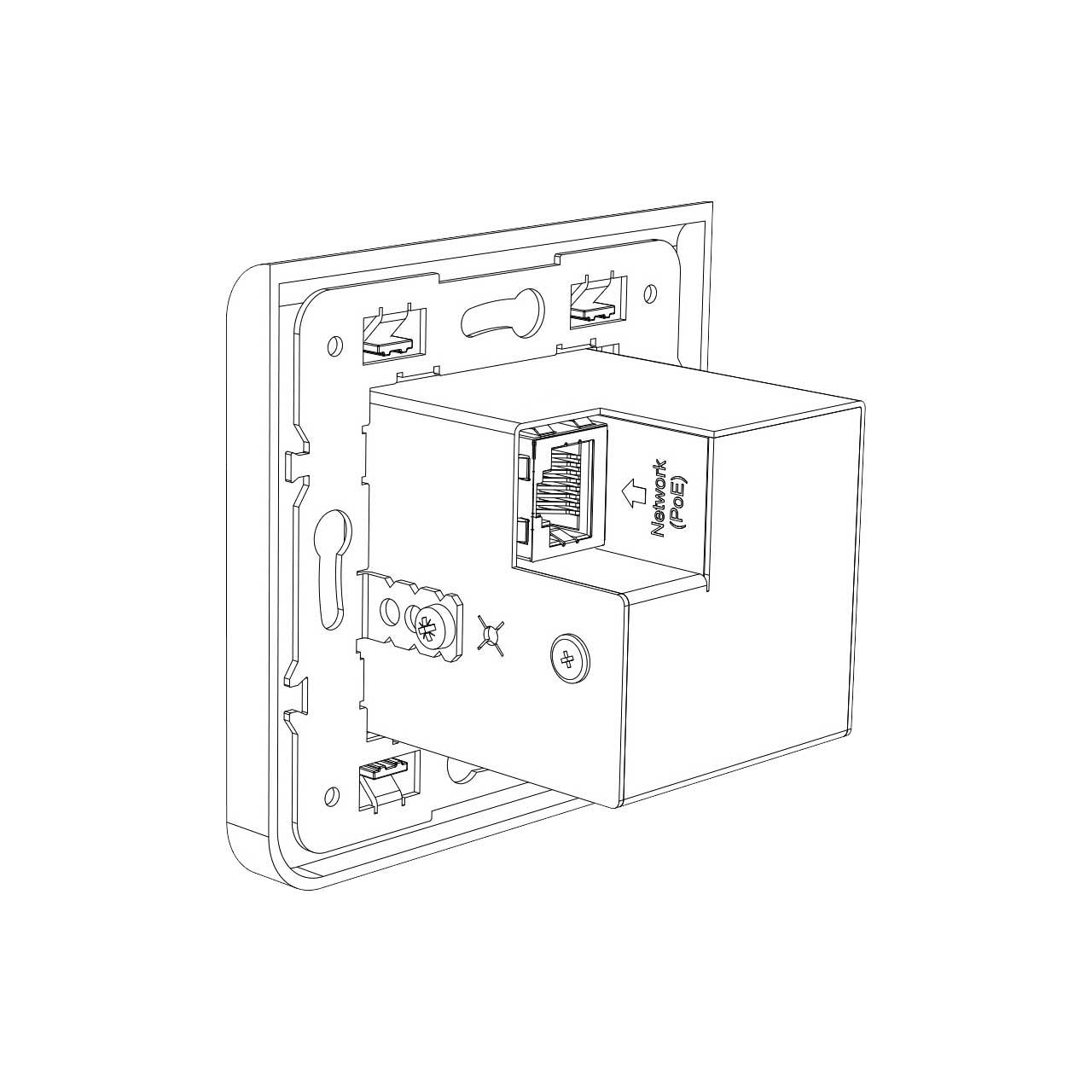

  • RJ45 connector for power and control
  • 2x male XLR analog line out connectors
  • OLED screen for direct Dante source selection
  • Easy selection of pre-set Bluetooth channels


• Specifications:

  • General
  • Dimensions: Depth in Wall (HxLxW): 1.93 x 1.85 x 1.81 In (49 x 47 x 46mm) - Central part: 1.77 x 1.77 x 1.97 In (45 x 45 x 50mm) Fits in 1 gang box - Wall plate size may vary depending on the region.
  • Power Supply: PoE 802.3af compliant through RJ45. Maximum consumption 5.5W.
  • Sampling, A/D: 44.1 / 48 / 88.2 / 96 kHz on 24 or 32 Bits

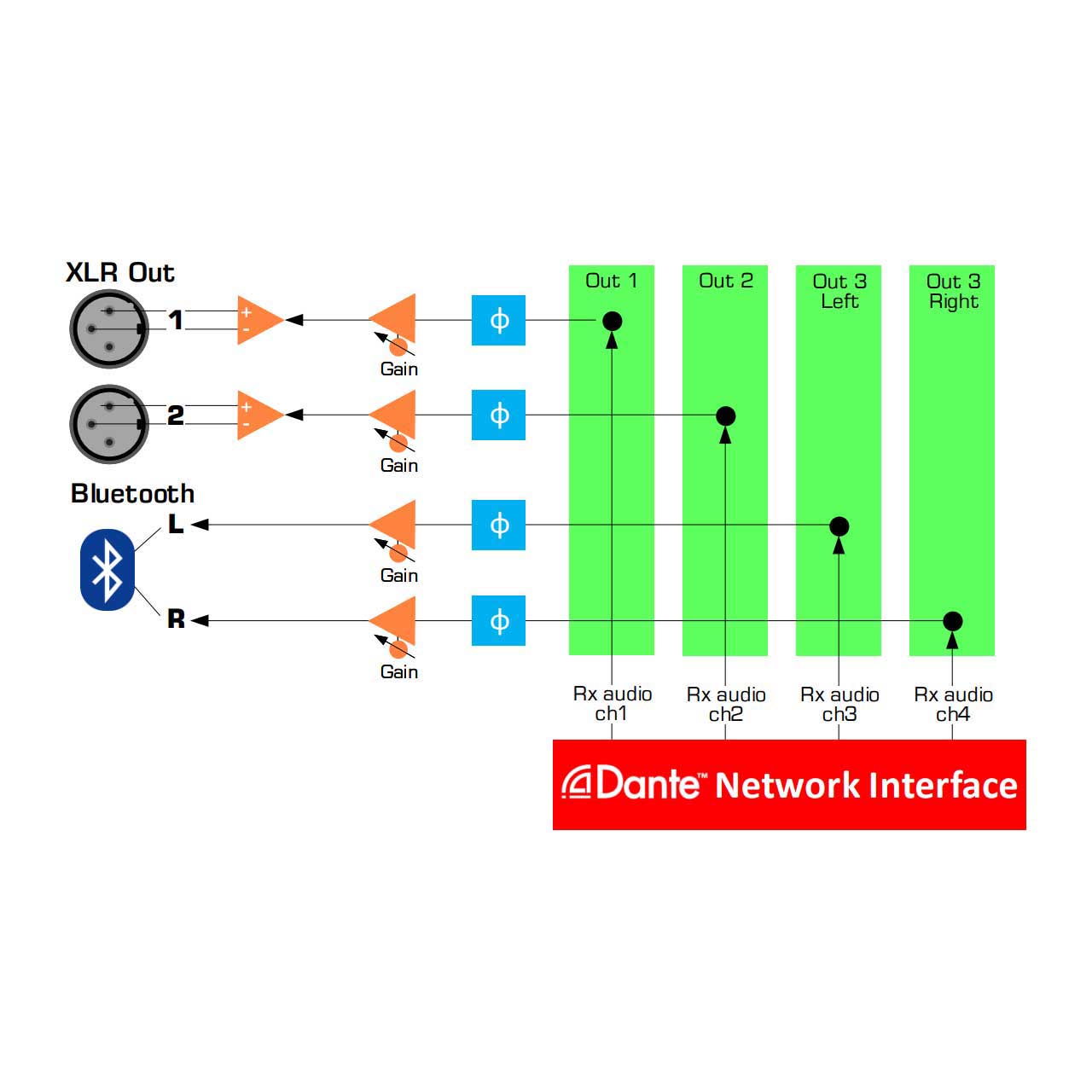

  • Outputs: 2x XLR for Line outputs 1-2, a stereo 3.5mm minijack on AV-WALL-DT4o-LE for line outputs 3-4

    XLR (Balanced)
  • Output Max Level: +24dBu
  • Output Impedance: <100 kω (balanced)
  • Dynamic Range @+24dBu: >106dB A-weighted
  • THD+N @1KHz, G=0dB: <-92 dB (0.0025%)
  • Freq. Response @G=0: 20Hz-20kHz (+0 /-2.5dB)

    Mini Jack (Unbalanced)
  • Output Max Level: +18.7dBu
  • Output Impedance: 16 to 600 ω (unbalanced)
  • Dynamic Range @+24Bu: >104dB A-weighted
  • THD+N @1KHz, G=0dB: < -91 dB (0.0028%)
  • Freq. Response @G=0: 20Hz-20kHz (+0 /2dB)
  • Max Power: 250mW (@ 0.05% THD+N 1KHz, 32 ω load)
