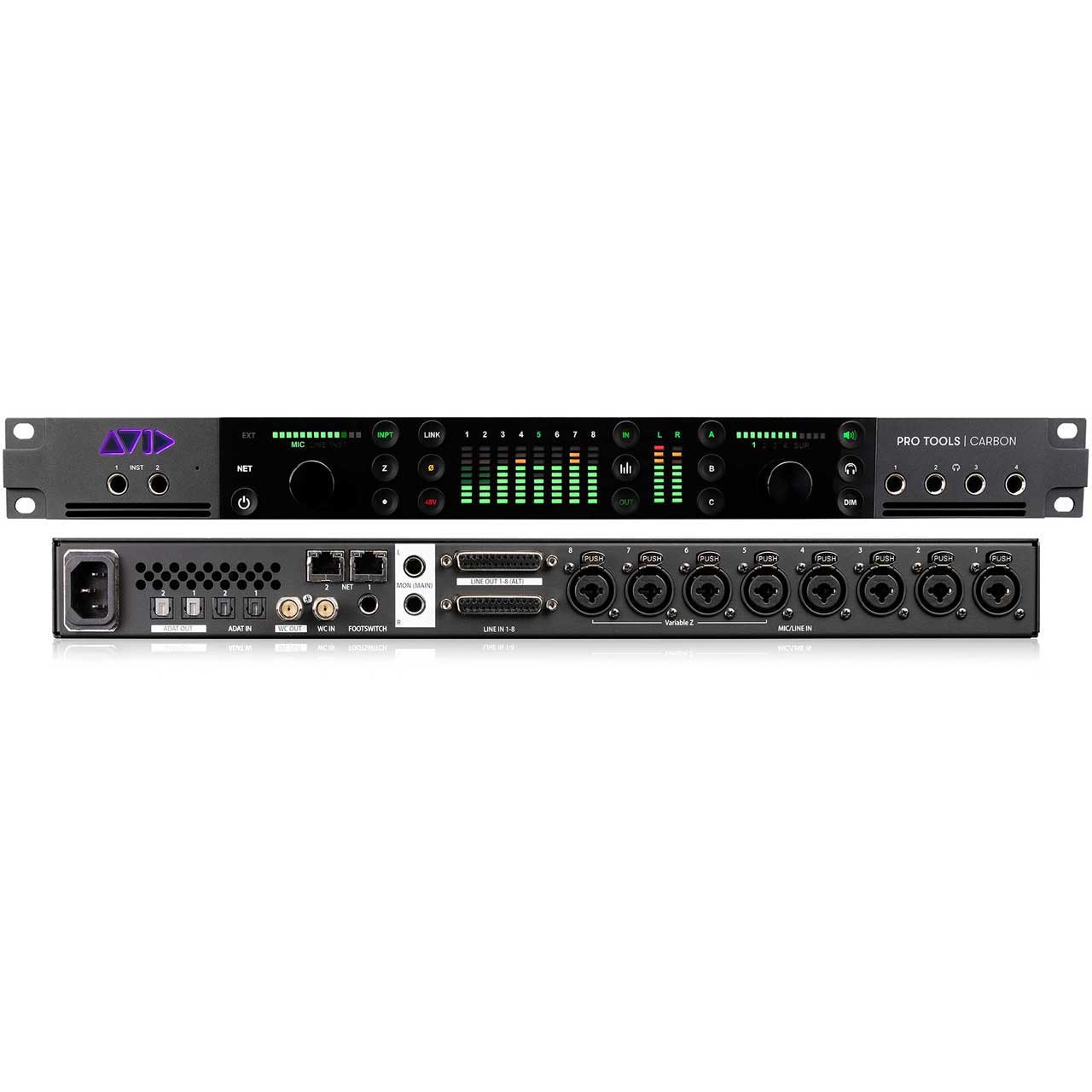

Avid 9935-73106-00 Carbon 1RU Ethernet Audio Interface with Pro Tools Software

ITEM #: AVID-PT-CARBON MFG #: PT-CARBON

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$4,199.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


PT-CARBON - Overview

Built to capture brilliance. And ready for yours.
With superior sound quality and intelligent software integration, Pro Tools | Carbon removes barriers to creativity, so you can bring out the best in your performance and capture it beautifully. Whether using a single interface or a Carbon Expanded system with Pro Tools | Carbon Pre, you can bring the power and sound of their flagship Pro Tools | HDX system anywhere you want to record.

Power and simplicity that drive your creative spark
With HDX DSP acceleration under the hood and deep Pro Tools integration, Carbon enables you to record, edit, and mix in a single application without bouncing between software. Create in the moment, free from technical hassles. And focus on the music you're making-not what you're making it with.

Fast, intuitive, and fully integrated
Move effortlessly between tracking and mixing-without messing with buffer settings. The magic is in the Hybrid Engine. Toggle any track into DSP mode, and the Hybrid Engine seamlessly moves your entire live signal path to use real-time AAX DSP plugins for recording. Toggle a track back, and it automatically switches to use the AAX Native versions of your plugins, giving you the freedom to adjust plugins as the track evolves.

Get the Ultimate toolset
Pro Tools | Carbon comes with a Pro Tools Ultimate Perpetual license, providing the complete advanced toolset, plus a massive collection of plugins, loops, and sounds. And with Carbon turbocharging the experience, you can act on inspiration the instant it strikes.

Plug into an inspired sonic palette
Shape your sound with a full range of AAX plugins-from warm, dimensional analog emulations, to cutting edge processors that define modern music making. In addition to the 120+ plugins that come with Pro Tools Ultimate Perpetual, Carbon includes a premium collection to get you started from the biggest brands in the business.

  • Specifications:

    • Simultaneous I/O: 25 x 34
    • Audio resolution: Up to 32-bit, 192 kHz
    • Mic preamps: 8
    • Phantom power: +48V
    • Integrated monitoring and talkback: Yes
    • Form factor: 1U rack
    • Dimensions (H x W x D): 1.8 x 19 x 13.5 inches (45 x 482 x 343 mm)
    • Weight: 17.3 lbs (7.8 kg)
    • Connectivity: 2 AVB Ethernet ports for host connection and expansion
    • Maximum I/O expansion: Pro Tools | Carbon supports up to two Pro Tools | Carbon Pre interfaces for up to 24 mic/line inputs and 24 line outputs

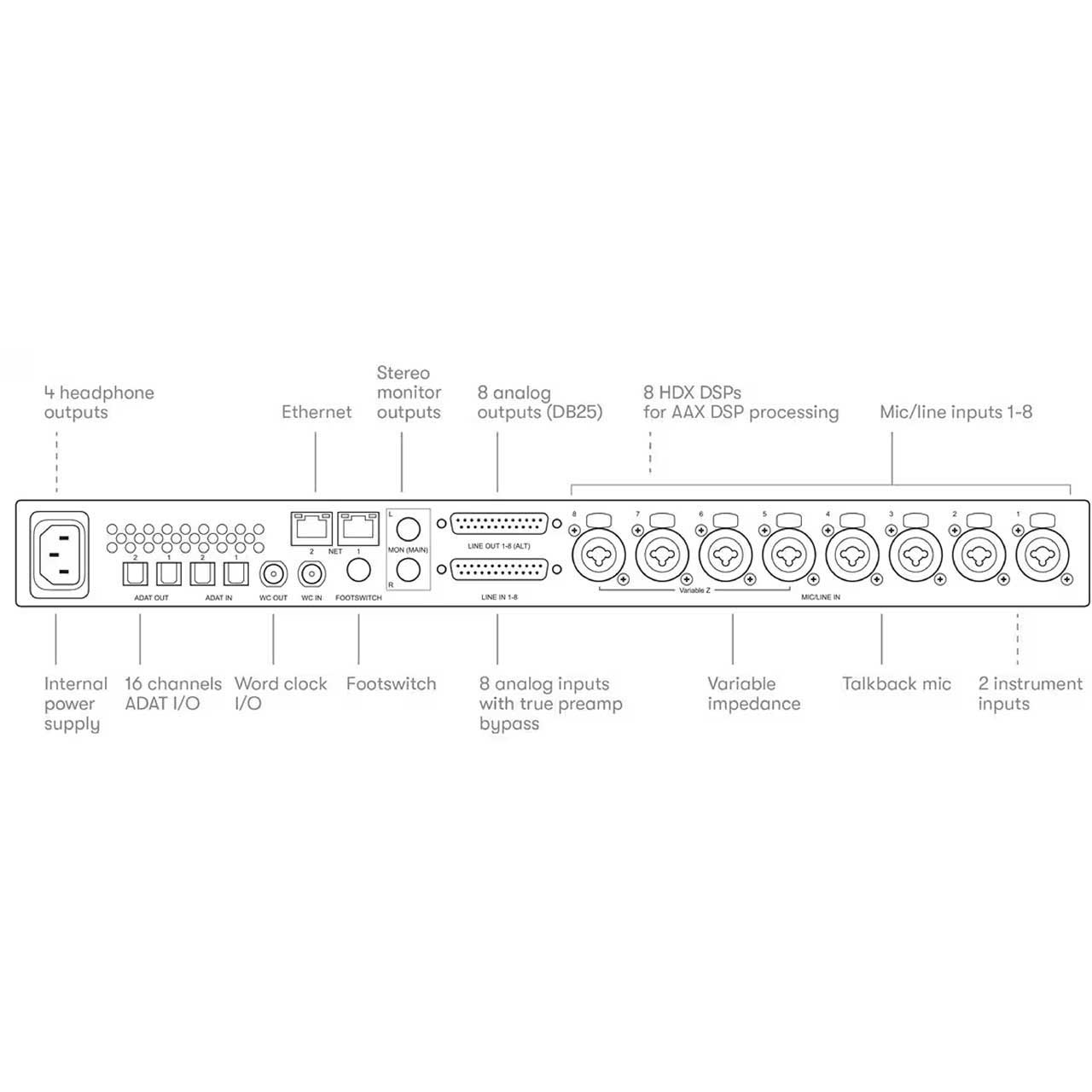

      Inputs and outputs
    • Analog inputs:
      8 balanced XLR/TRS mic/line inputs with Variable Z (impedance) on inputs 5-8, remote controllable from Pro Tools- learn more
      2 unbalanced Variable Z 1/4-inch TS instrument inputs
      8 balanced line inputs (DB25)
    • Analog outputs:
      8 balanced line outputs (DB25)
      2 balanced 1/4-inch TRS monitor outputs
    • Digital inputs: ADAT: 16 channels @ 44.1-48 kHz, 8 channels @ 88.2-96 kHz, 4 channels @ 176.4-192 kHz
    • Digital outputs: ADAT: 16 channels @ 44.1-48 kHz, 8 channels @ 88.2-96 kHz, 4 channels @ 176.4-192 kHz
    • 4 stereo 1/4-inch TRS headphone outputs
    • Other I/O:
      Word Clock I/O
      Footswitch input

    • A/D conversion
    • Mic preamps: Dynamic Range: 126 dB (A-weighted), THD+N: -105 dB (0.00056%)
    • Frequency Response: 20 Hz-20 kHz, ±0.1 dB, EIN: -129 dB (A-weighted)
    • Line inputs: Dynamic Range: 125 dB (A-weighted), THD+N: -106 dB (0.0005%), Frequency Response: 20 Hz-20 kHz, ±0.1 dB
    • Line inputs (True Bypass): Dynamic Range: 126 dB (A-weighted), THD+N: -113 dB (0.00022%), Frequency Response: 20 Hz-20 kHz, ±0.1 dB
    • Instrument inputs: Dynamic Range: 125 dB (A-weighted), THD+N: -103 dB (0.0007%), Frequency Response: 20 Hz-20 kHz, ±0.1 dB

      D/A conversion
    • Line outputs: Dynamic Range: 120 dB (A-weighted), THD+N: -110 dB (0.0003%), Frequency Response: 20 Hz-20 kHz, ±0.1 dB
    • Monitor outputs: Dynamic Range: 120 dB (A-weighted), THD+N: -110 dB (0.0003%), Frequency Response: 20 Hz-20 kHz, ±0.1 dB
    • Headphone outputs: Power: 100 mW into 300 Ohm; 200 mW into 32 Ohm, Dynamic Range: 116 dB (A-weighted), THD+N (32 Ohm): -87 dB (0.0045%), THD+N (300 Ohm): -100 dB (0.001%), Frequency Response: 20 Hz-20 kHz, ±0.1 dB

      DSP acceleration

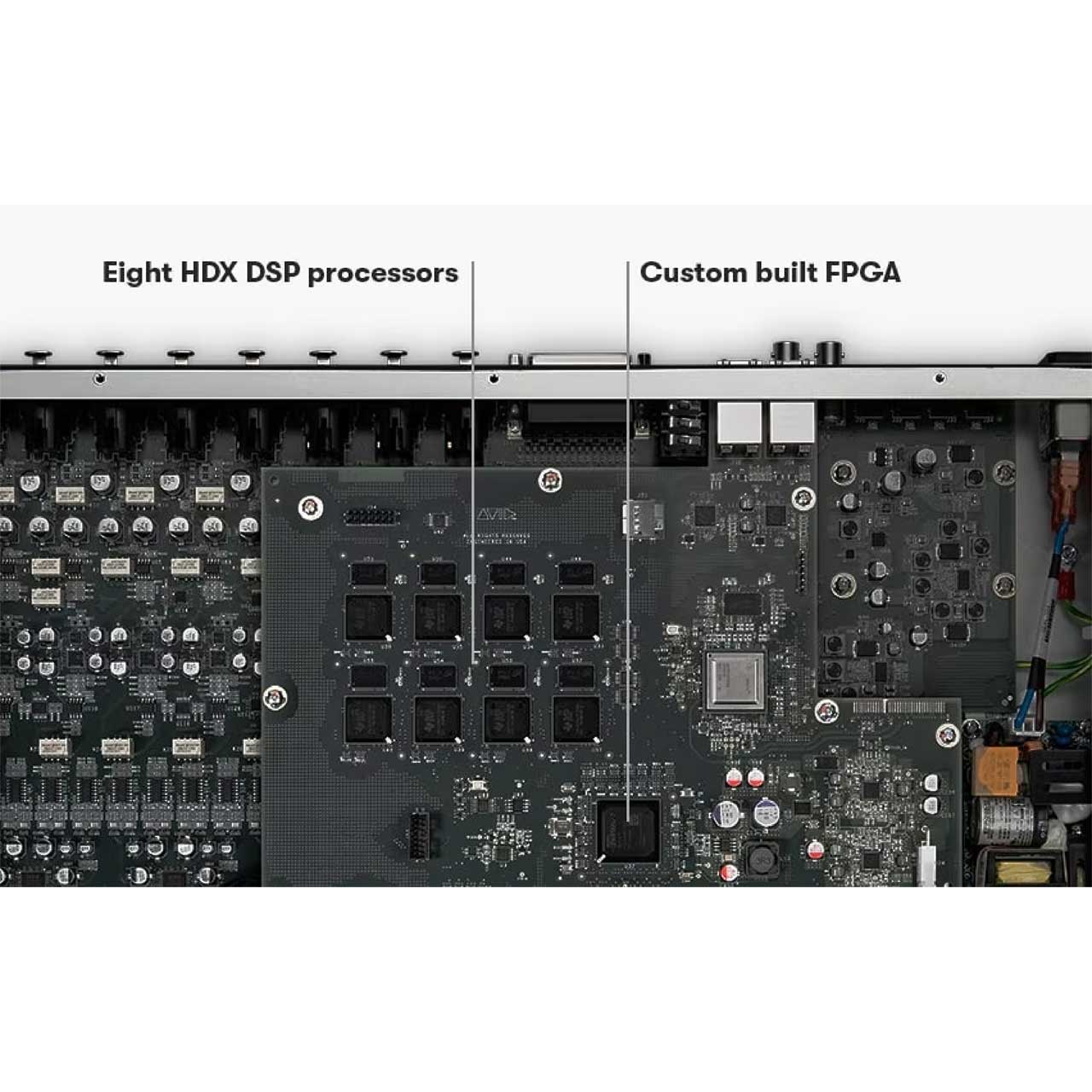

    • HDX DSP: 8 HDX DSP processors (2.8 GHz aggregated processing)

  • Item Includes:

    • 1x Pro Tools | Carbon audio interface
    • 1x Pro Tools Ultimate perpetual license and software bundle with 1-year Software Updates + Support Plan
    • 1x Carbon premium plugin bundle
    • 1x Power cable
    • 1x Ethernet cable
    • 1x Rackmount screws and desktop feet
    • 1x Registration card
