AVMATRIX PVS0403U Portable 4-Channel SDI & HDMI Video Switcher with 10.1-Inch FHD SDI/HDMI Monitor

ITEM #: AVMX-PVS0403U MFG #: PVS0403U

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$899.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PVS0403U - Overview

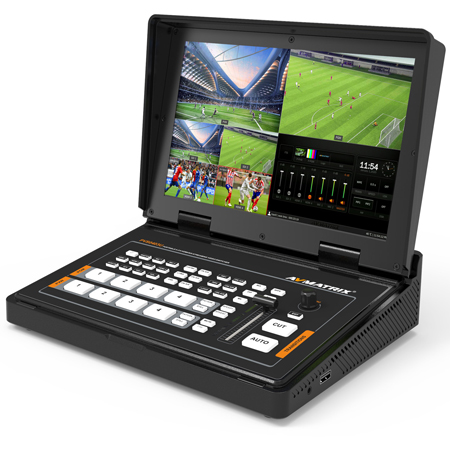

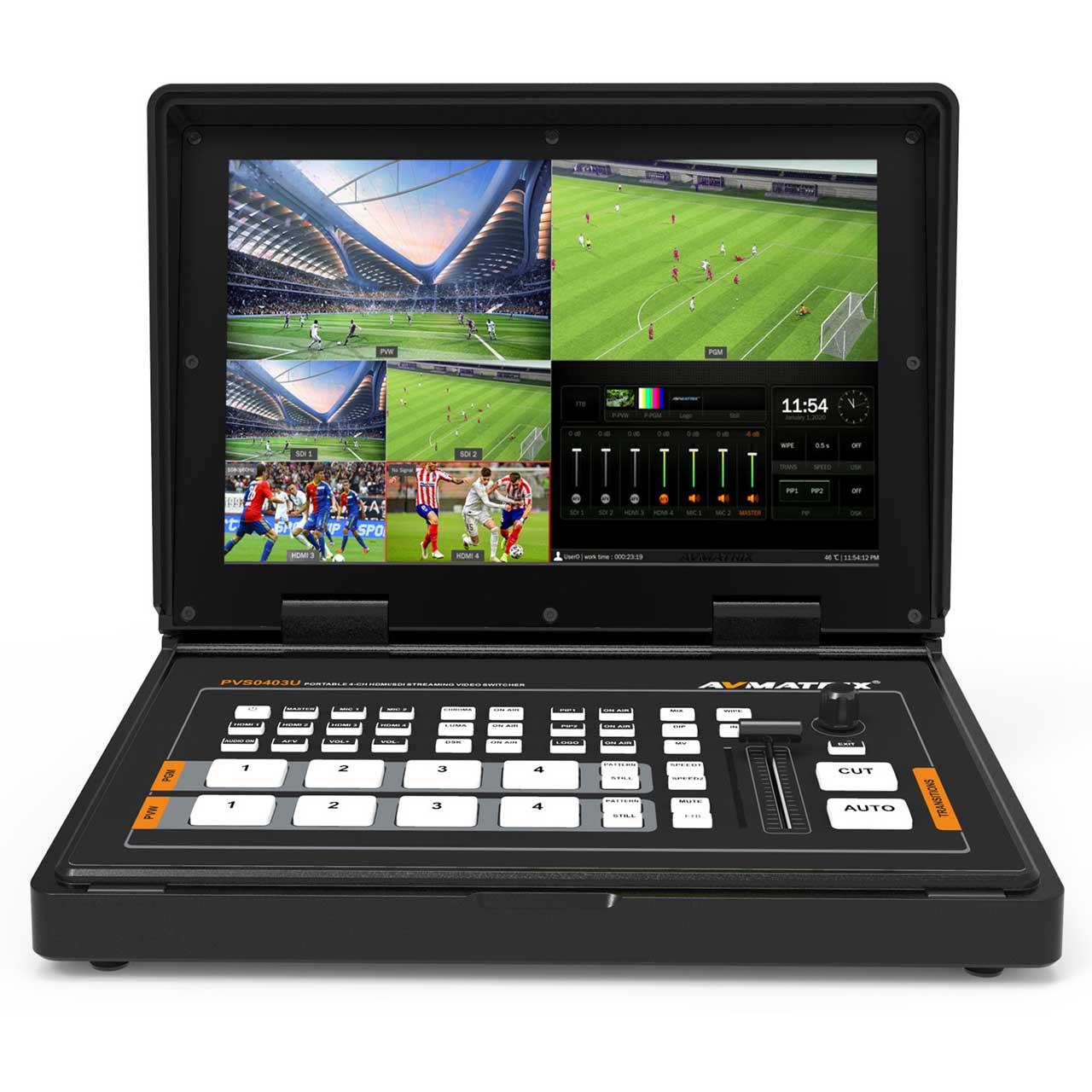

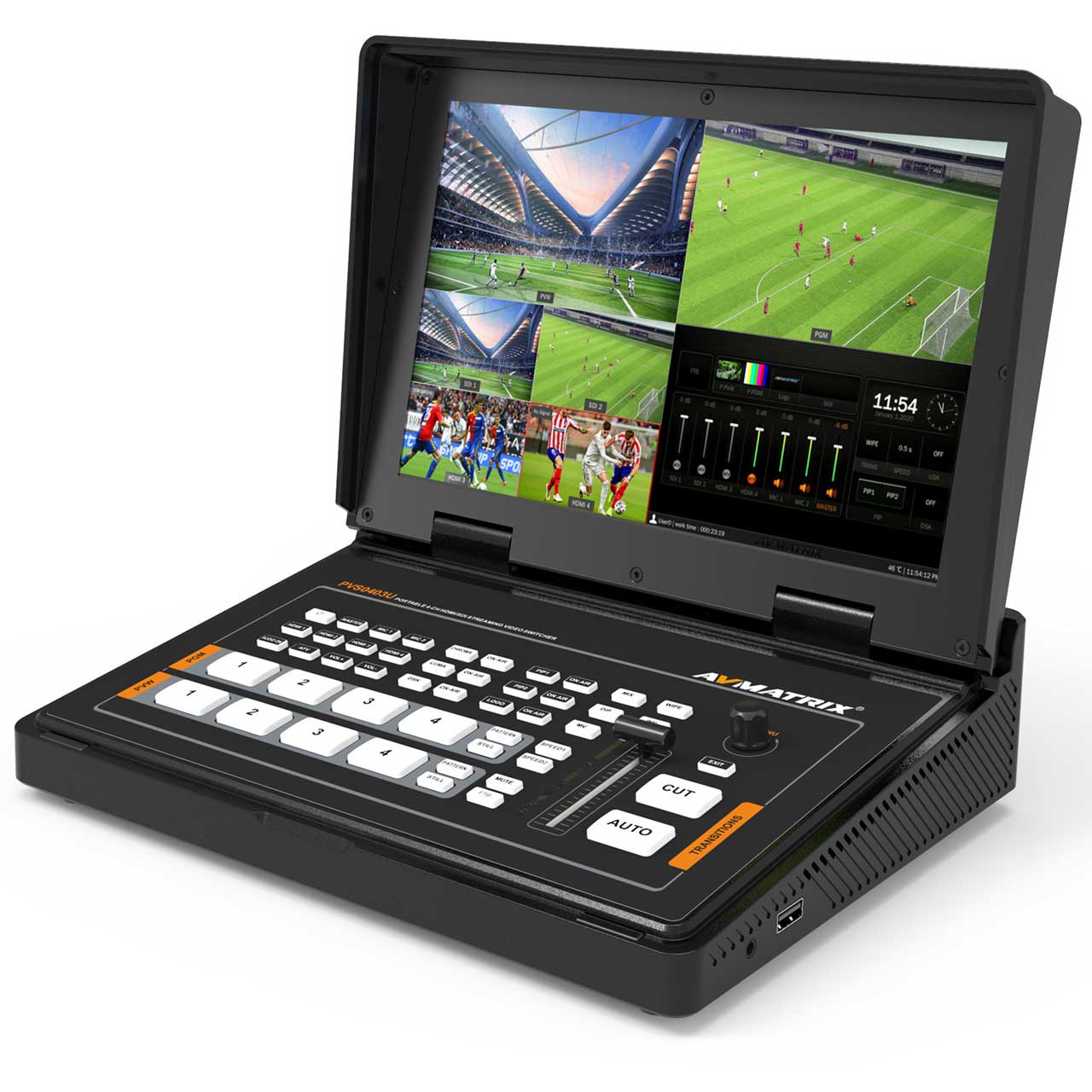

The AVMatrix PVS0403U is a 4-channel HDMI & SDI multi-format video Switcher with a 10.1" FHD IPS LCD monitor. It supports various functions including video switching, audio mixing, PGM/Multiview/AUX out, different transition effects, Luma Key Chroma Key, DSK, LOGO, PIP/POP, media library, pattern and color generator, etc. Inputs support multi-format, PGM output can be scaled, compatible with a variety of equipment. The unit supports stream performances and presentations on PC through the USB-C port. User can also customize different settings and import or export the configuration quickly for various scenarios. It's a powerful and professional video switcher for your choices.

  • Features:

    • 2x channel auto-detected HDMI inputs and 2x SDI inputs
    • 2x HDMI PGM output,1x HDMI multiview out, 1x USB type-C output
    • AUX output configurable and assignable
    • 10.1" FHD IPS LCD monitor
    • USB for capturing and streaming on PC
    • Upstream Key: Luma key, Chroma key, 2x PIP/POP
    • Downstream key and LOGO overlay
    • T-bar/Auto/Cut transitions; various effects: WIPE (11x2 patterns)/MIX/DIP
    • Audio Mixer: 2x SDI, 2x HDMI embedded audio and 2x MIC/line In; audio delay available
    • Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
    • LAN port for PC software remote control
    • FTB/MUTE/STILL/GPIO for tally

  • Specifications:

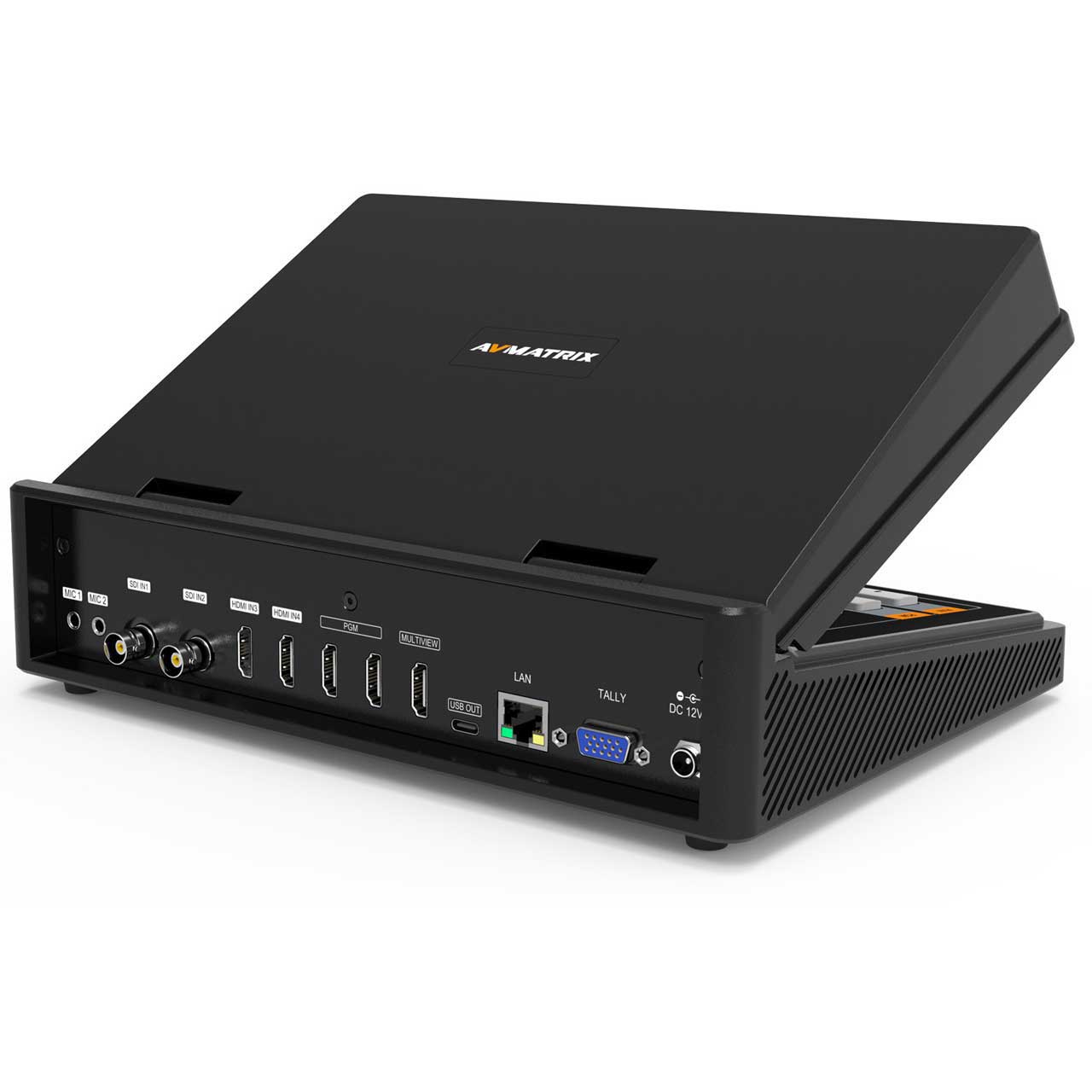

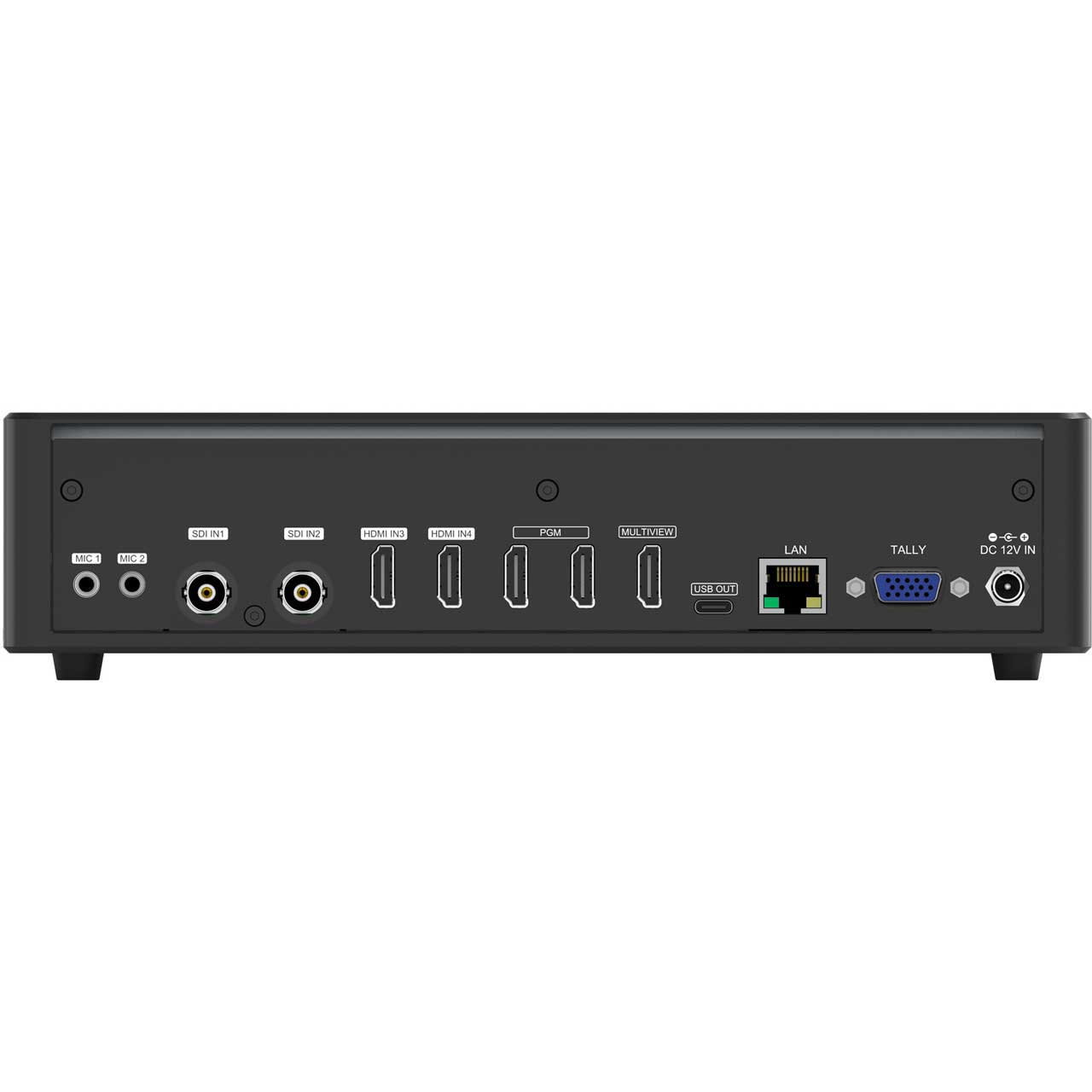

    • Video In:
      - 2x HDMI
      - 2x SDI
    • Video Out:
      - 2x HDMI type-A PGM
      - 2x HDMI type-A Multiview
      - 1x USB2.0 type C
    • Audio in: 2x MIC/Line level (3.5mm stereo audio)
    • PC Control Port: 1x LAN (For PC remote control)
    • Media Library: 1x USB-A (USB disk port for image import and firmware upgrade)
    • Tally Port: 1x DB-15
    • Power In: 1x DC 12V
    • Power:
      - Wide Voltage: 7~24V
      - Operating Power: 12W (12V 1.8A)
    • Dimensions (LxWxD): 10.29" x 7.63" x 2.28" (261.4mm x 193.9mm x 58mm)
    • Weight: 3.6lbs (1.6kg)
    • Temperature:
      - Working: -4°F - 140°F (-20°C - 60°C)
      - Storage: -22°F - 158°F (-30°C - 70°C)

  • Item Includes:

    • 1x AV Matrix PVS0403U

  • Warranty:

    • 2-Year Warranty

  • GTIN:

    6971118001682
