Blackmagic Design SWATEMMINICEXTISOG2 ATEM Mini Extreme ISO G2 HDMI Broadcast Switcher - HDMI/XLR/MADI & 10G Ethernet

ITEM #: BMD-ATEMMEXISOG2 MFG #: SWATEMMINICEXTISOG2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,195.00

Availability: Preorder
iAvailability Description Popup


SWATEMMINICEXTISOG2 - Overview

Introducing Low Cost, Multi Camera, Live Production with Advanced Broadcast and Live Streaming Features

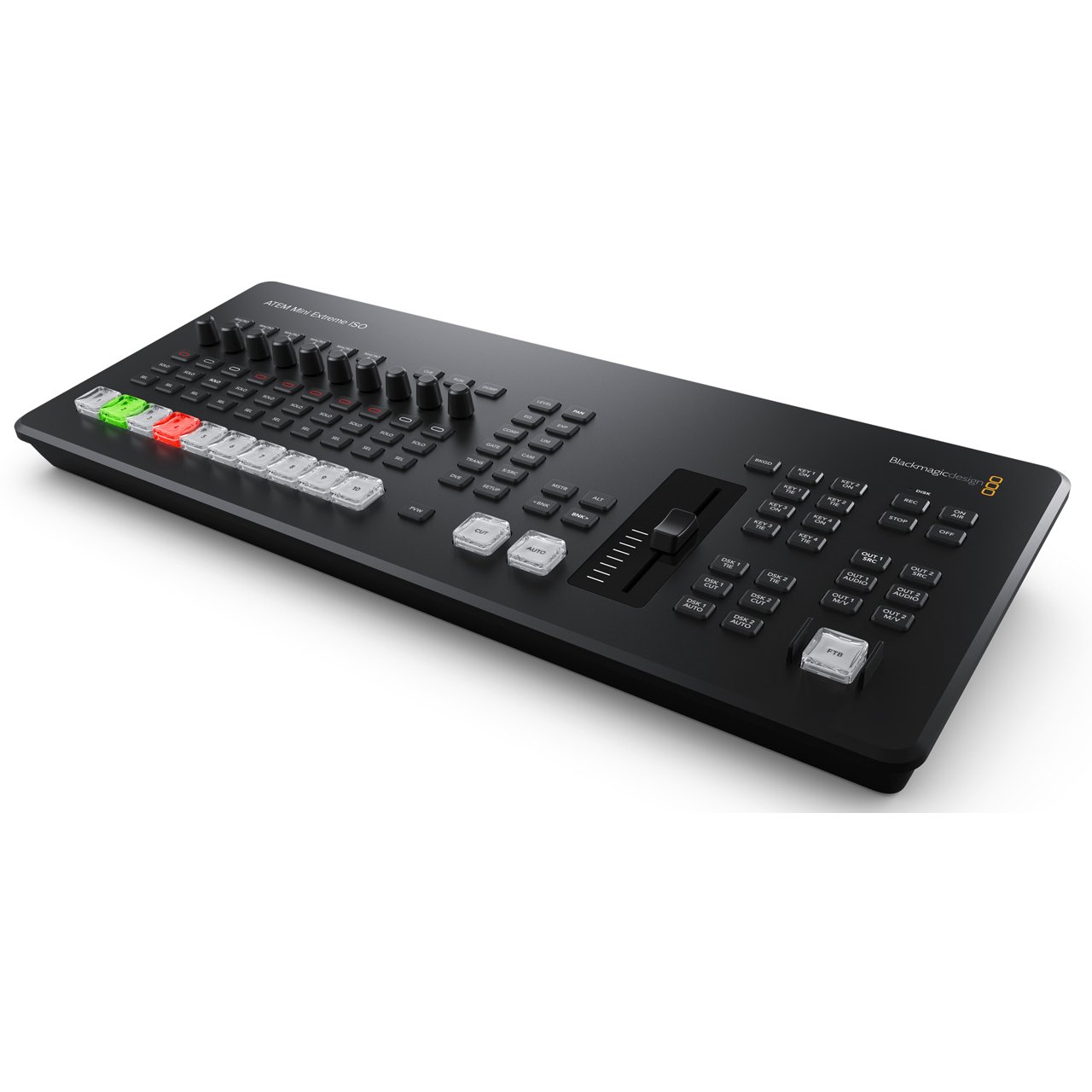

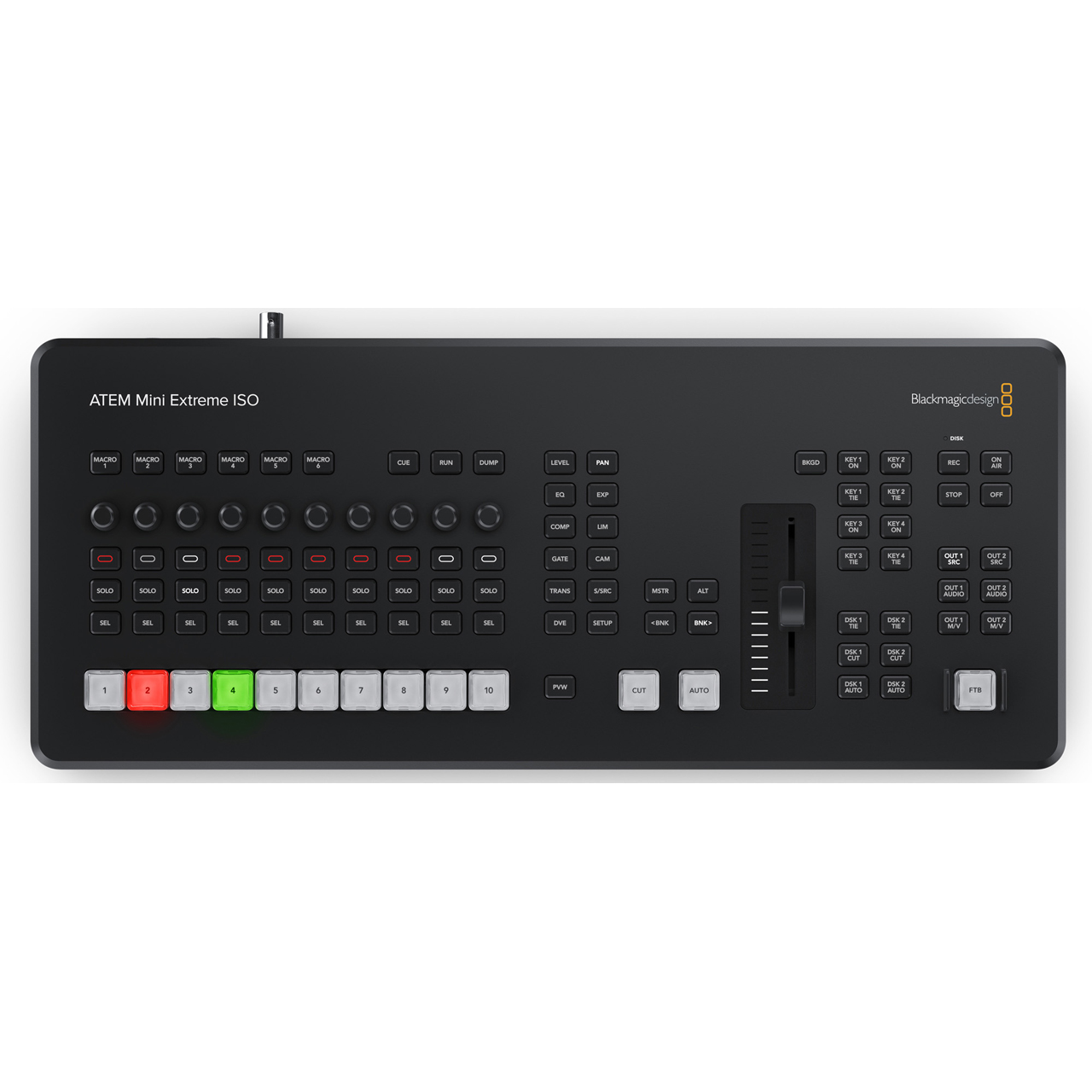

The Blackmagic Design ATEM Mini Extreme ISO G2 is a powerful yet compact live switcher for building a high-end broadcast studio. Get an expanded professional style control panel with built in streaming, 8 standards converted HDMI inputs, 3 independent HDMI outputs, built in streaming engine, multi-view, CFexpress and Thunderbolt for record/playback. There is also 10G Ethernet for fast network storage access, XLR audio inputs, USB webcam, DVE, chroma key, media player and ISO recording of all 8 video inputs.

ATEM Mini switchers make it easy to create professional multi camera productions for live streaming to YouTube and business presentations using Zoom or Teams! Simply connect ATEM Mini and you can switch live up to 8 high quality video camera inputs for dramatically better quality images. You can use the built in DVE for exciting picture in picture effects, perfect for commentary! Plus, ATEM Mini is loaded with video effects and secret broadcast features you can use to produce high end work! ATEM Mini supports SRT streaming for low latency and secure streaming. You can even sync your recording to Blackmagic Cloud, so you can edit your live production with DaVinci Resolve anywhere in the world!

Faster Video Production Plus Live Streaming
Live production is the fastest way for you to complete a finished program, which you can also simultaneously stream via YouTube to a live global audience. ATEM Mini has a built in hardware streaming engine that works with both RTMP and SRT streaming protocols, so you can live stream to all popular social media platforms and without any extra streaming software required! ATEM Mini features up to 8 HDMI inputs, depending on the model, that you can use to set up multiple camera angles such as wide shots and close ups. Then you can connect to an HDMI computer with PowerPoint slide shows, websites and gaming consoles.

Connect up to 8 Independent Cameras
With 4 or 8 HDMI inputs depending on the model, you can connect multiple cameras for different views. Video cameras with HDMI outputs are better quality than simple webcams as they use higher quality lenses and have better low light sensitivity. All video sources will re-sync to the switcher if they operate at different video standards so you don't have to worry about connecting video devices as they all just work! Cameras with HDMI often support interchangeable lenses so you can change to wide angle lenses for wide shots and zoom lenses for close ups.

  • Features:

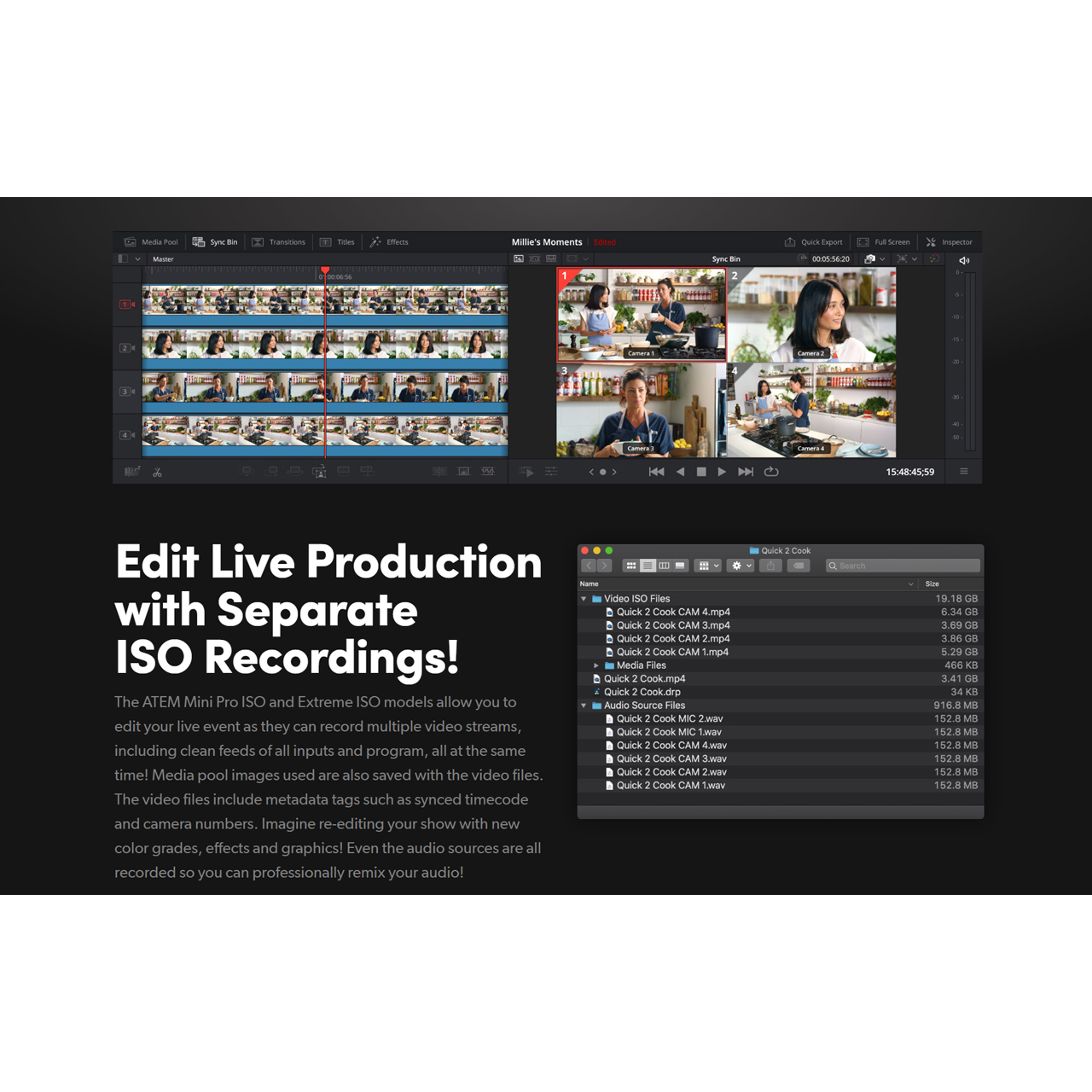

    • Edit Live Production with Separate ISO Recordings!
    • Edit Live Production in DaVinci Resolve
    • Add Exciting Video Effects
    • Work with Professional Microphones
    • Automatically Converts Any HDMI Input Format
    • Secret Broadcast Features Built In!
    • Includes Free ATEM Software Control Panel

  • Specifications:

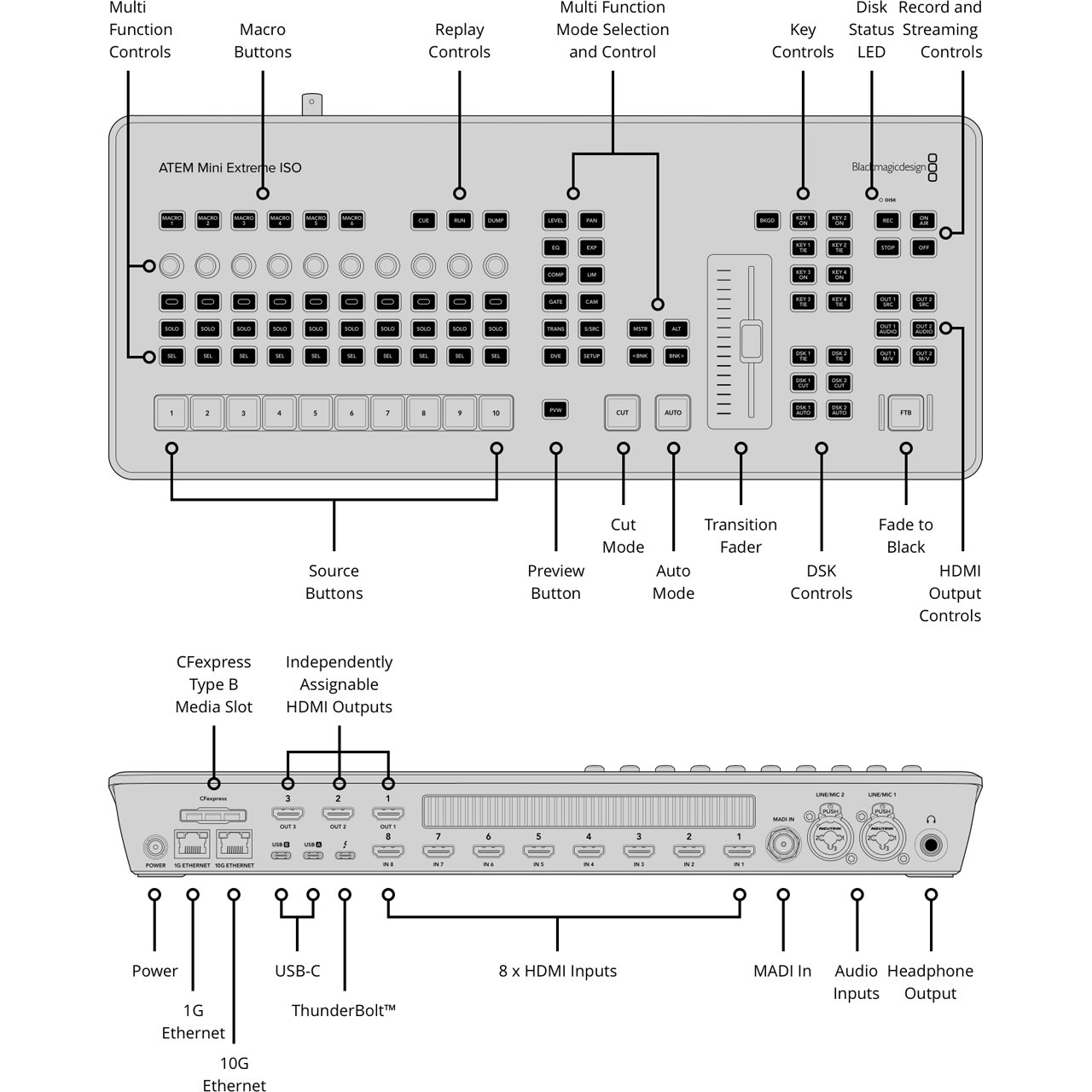

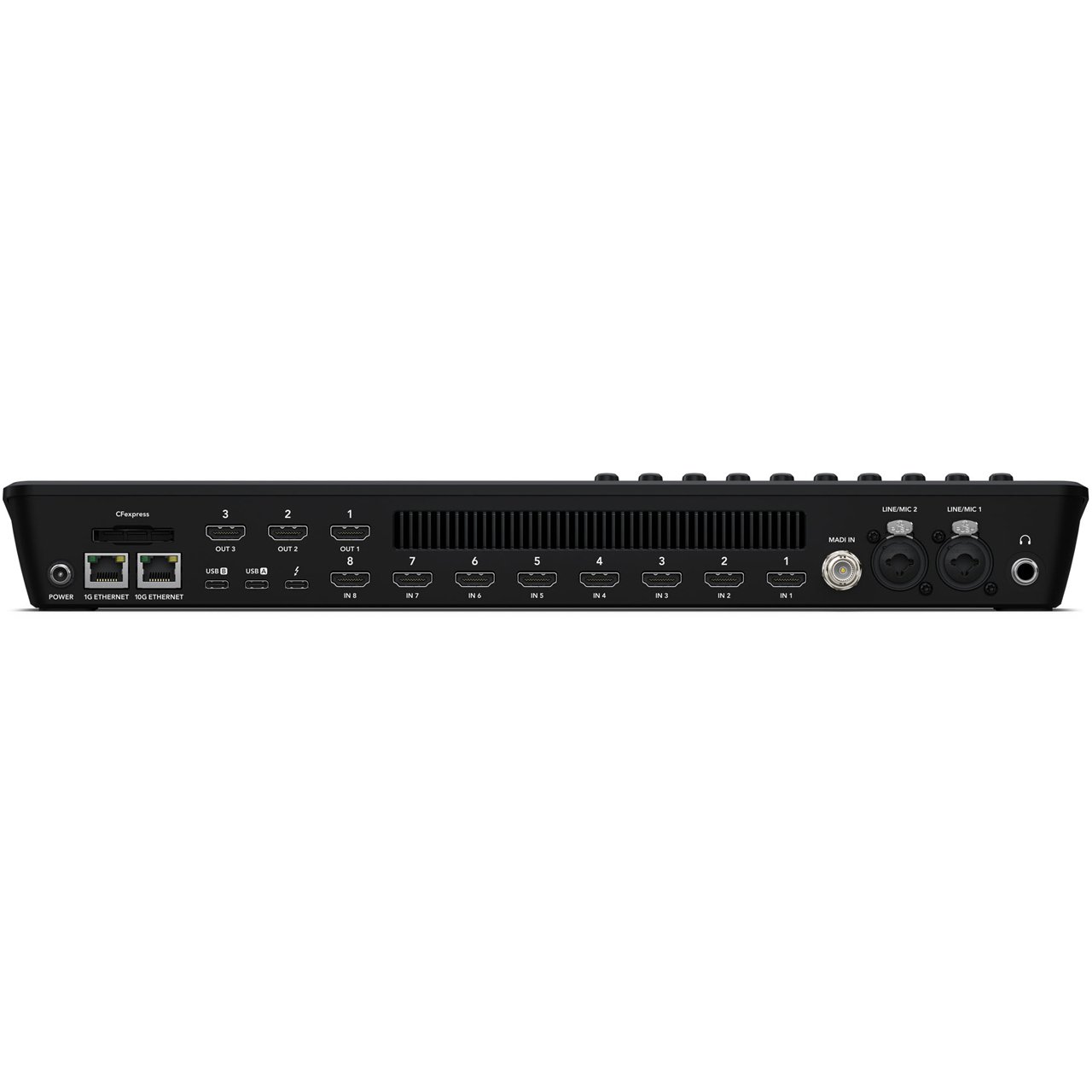

      Connections
    • Total Video Inputs: 9
    • Total Outputs: 4
    • Total Aux Outputs: 4
    • SDI Rates: 1.5G, 3G
    • HDMI Video Inputs:
      - 8x HDMI type A, 10-bit HD switchable
      - 2-ch embedded audio
    • HDMI Video Outputs: 3
    • HDMI Program Outputs: 3
    • Total Audio Inputs:
      - 2x XLR Combo with phantom power
      - 1x BNC 32 Ch MADI digital audio
    • Total Audio Outputs: 1x 6.35mm headphone jack
    • Video Input Re-Sync: On all 8 HDMI inputs and remote sources
    • Frame Rate and Format Converters: On all 8 HDMI inputs and remote sources
    • Webcam Output: 2x USB-C supporting 720p or 1080p at PGM frame rate
    • Total Multi Views:
      - 1x HDMI
      - 1x Webcam
    • Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network
    • Internal Timecode Generator: Yes
    • Tally Output: On Blackmagic HDMI and remote cameras
    • Ethernet:
      - 1x 1G Ethernet for simple streaming, control panels and internet connection
      - 1x 10G Ethernet connection for recording
    • Computer Interface:
      - 1x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection
      - 1x Thunderbolt for fill key video out, video input, ethernet to storage, and power

      Standards
    • HD Video Input: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
    • HD Video Output: 1080p23.98, 1080p24, 1080p25,1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    • Video Streaming: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    • Video Sampling: 4:2:2 YUV
    • Color Precision: 10-bit
    • Color Space: Rec 709
    • HDMI Input Resolutions from Computers:
      - 1280 x 720p 50Hz, 59.94Hz and 60Hz
      - 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz
      - 1920 x 1080i 50, 59.94Hz and 60Hz
    • Colorspace Conversion: Hardware based real time

      Audio
    • Audio Mixer:
      - 26 input x 2-ch mixer. (8 HDMI+16MADI+XLR+Thunderbolt)
      - Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel
      - Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
    • Analog Input: Balanced stereo XLR combo connectors
    • Analog Input Delay: Up to 8 frames
    • Mic Plug In Power: +48V phantom power

      Recording
    • Direct Recording Video and Audio:
      - CFExpress slot for recording
      - Network Recording
      - USB-C Recording
    • Video Recording:
      - 8x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
      - 1x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
    • Audio Recording: 26x 2-ch audio inputs recorded as separate 24-bit 48kHz .wav files. Including 1x analog 2-ch audio input, 8x Input source 2 channel embedded audio inputs and 32x MADI audio channels.

      Media Player
    • Media Players: 2
    • Channels: Fill and key for each Media Player
    • Media Pool Still Image Capacity: 20 with fill and key
    • Media Pool Still Image Format: 200 frames in 1080 HD
    • Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF
    • Media Pool Video File Format: TGA Sequence
    • Media Pool Audio File Format: WAV, MP3 and AIFF

      Processing
    • Audio Mixer:
      - 58 Channel mixer
      - Selectable On/Off/Audio-FollowVideo
      - Level and Peak metering
      - Master gain control
      - 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter

    • Power Requirements: 1x External 12V power supply

      For full list of Specifications, please see the Attachments.

  • Item Includes:

    • 1x ATEM Mini Extreme ISO G2
    • 1x External 12V DC power supply

  • Warranty:

    • 1 Year Limited Warranty
