ATEM Camera Control Panels are professionally built broadcast camera control units that extends the software features in ATEM Software Control to add high quality physical buttons and controls that are much faster to use. ATEM Constellation supports camera control when used with the Blackmagic Design Studio Cameras, URSA Mini Pro and URSA Broadcast cameras for full remote camera control. The control panel lets a single person monitor and adjust a wide range of camera parameters such as black levels, gain, color balance, shutter speed and more. This leaves your camera operators free to focus on more important tasks such as framing and shot composition. Plus it works with all ATEM switcher models!

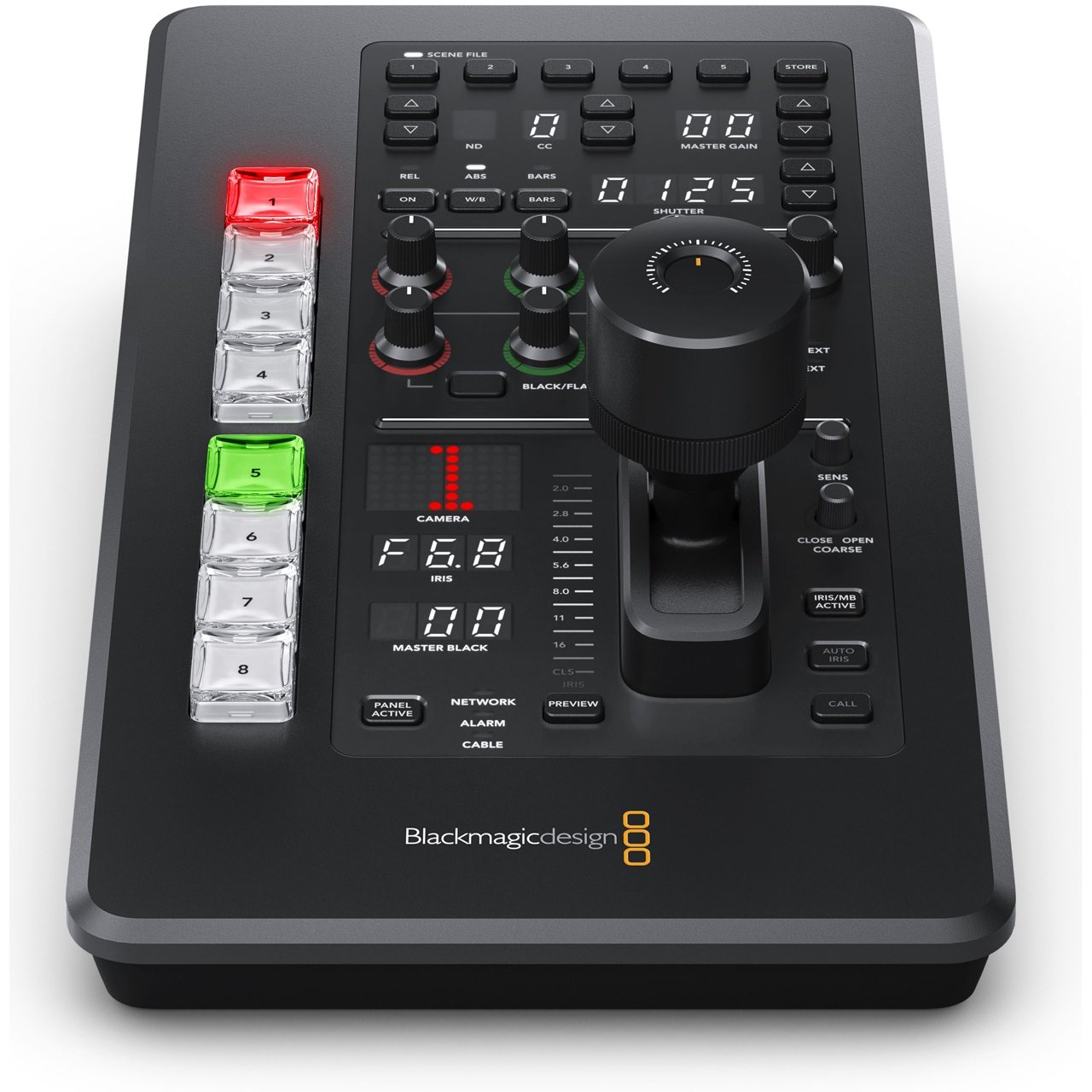

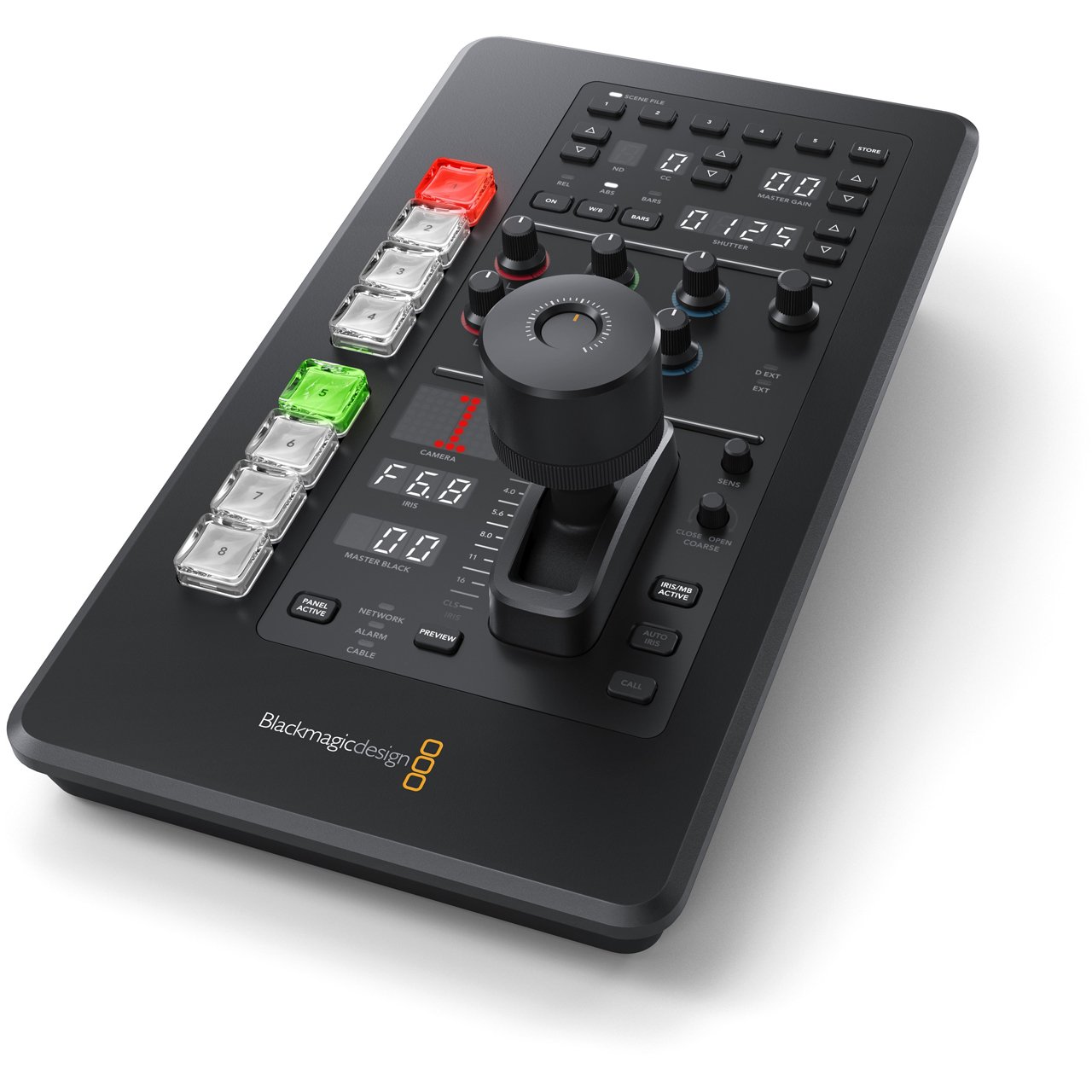

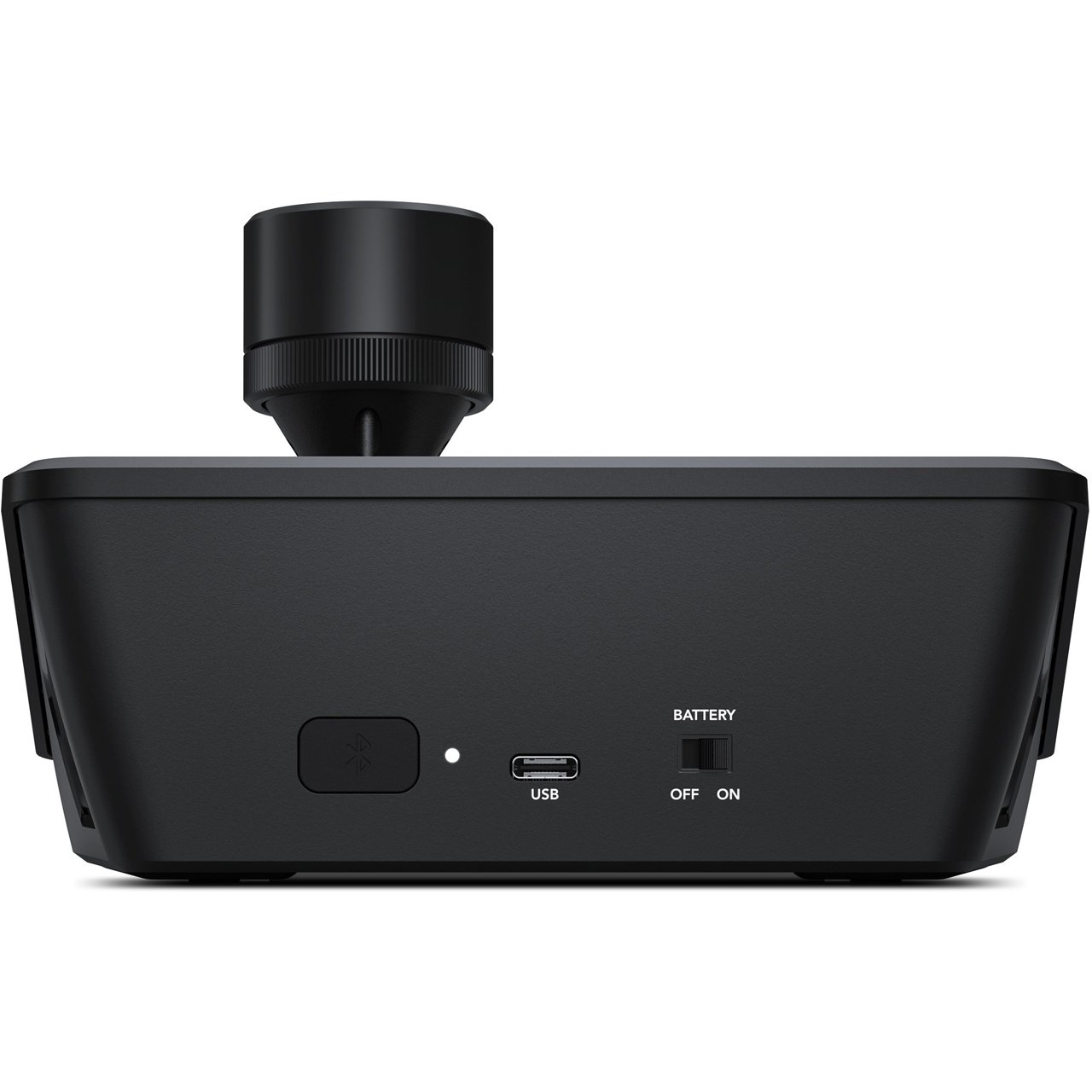

The Blackmagic Design ATEM Micro Camera Panel is a portable camera panel with high end broadcast CCU controls. Control iris, pedestal, shutter, white balance, master gain, RGB balance and more for up to 8 cameras from a single panel. Connects to ATEM Software Control via Bluetooth or USB-C.
Works with Blackmagic Design Studio, URSA Mini and Broadcast Cameras
ATEM Constellation works with the latest Blackmagic Design SDI cameras that have studio camera features that you can remotely control! This means you get remote camera control, tally indicators and a DaVinci color corrector built in. All control is via the switcher aux output connection to the camera PGM SDI input, allowing you to broadcast control commands from the switcher to the camera with a single SDI cable! That means you can remotely control settings in the camera plus focus, iris and zoom on supported lenses. Pocket Cinema Cameras include a DaVinci primary color corrector so you get more than simple CCU controls as you can also do a full color grade in the camera for a cinematic look!

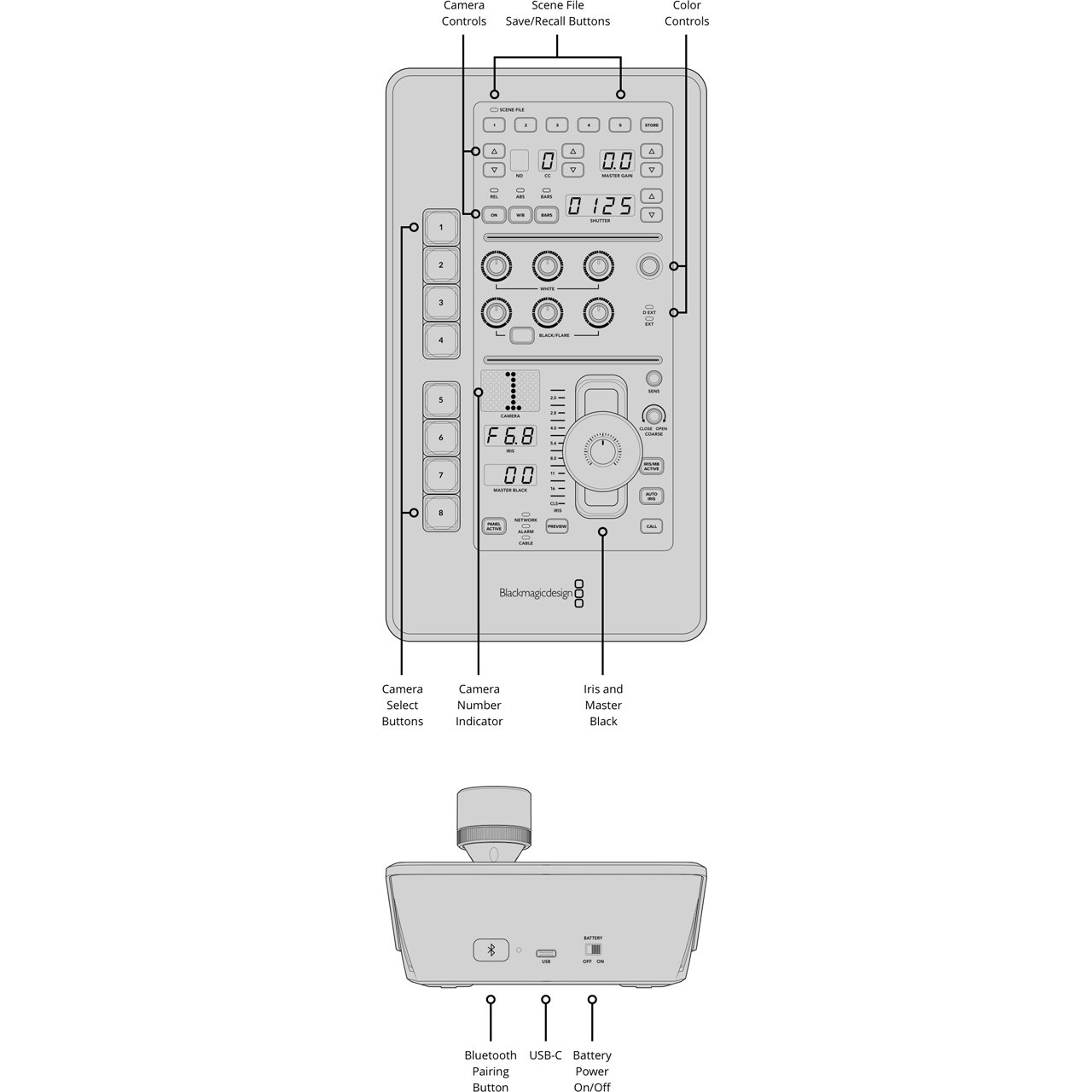

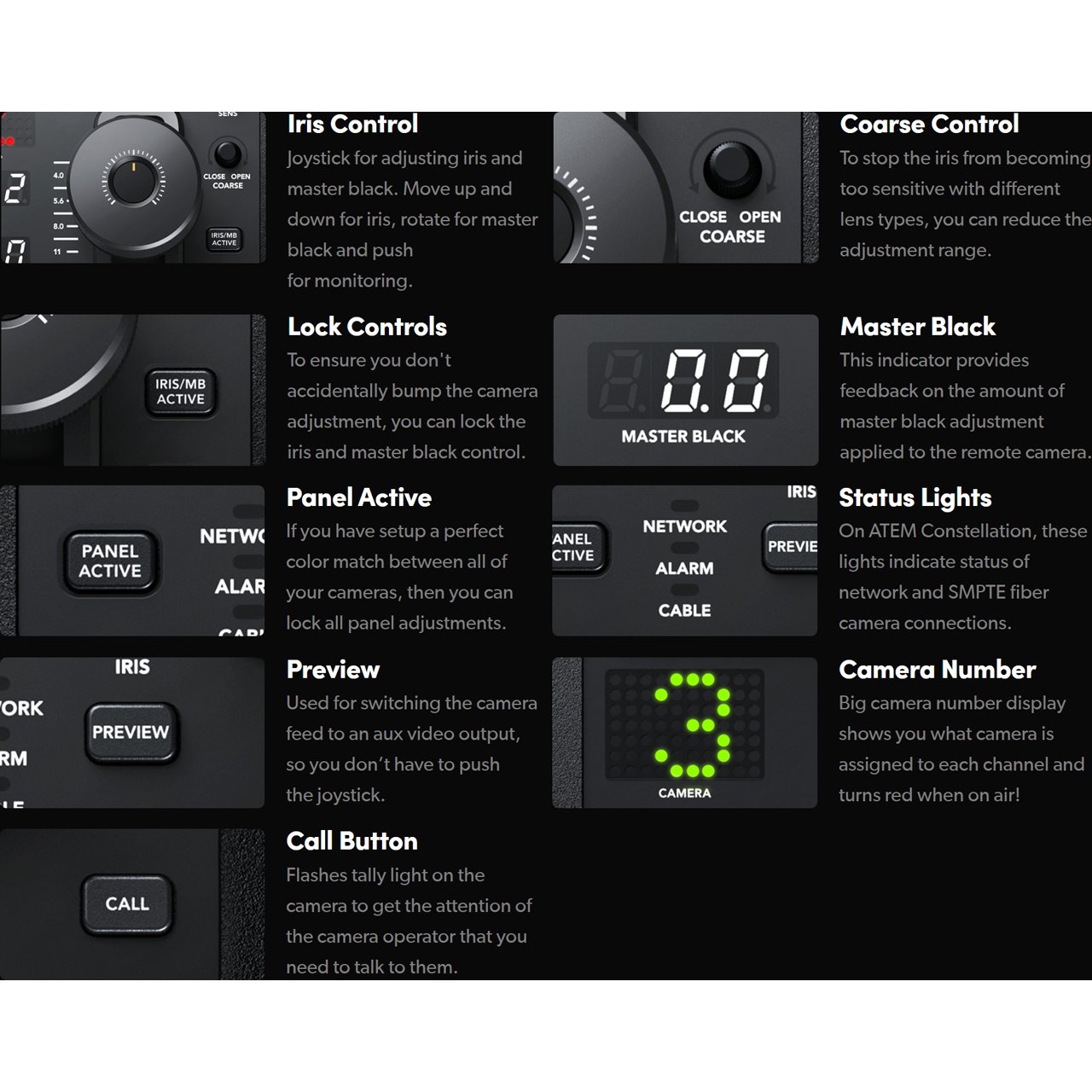

Scene and Camera Controls
The top section on each camera control has settings for changing camera settings, plus it lets you save and recall scene presets. Getting remote access to important camera settings is vital when you are working in conditions where the light can change during your job such as daylight, and with these settings you can quickly adjust cameras based on changes in the scene. Controls in this section include master gain, ND filters, white balance, shutter speed and more!
