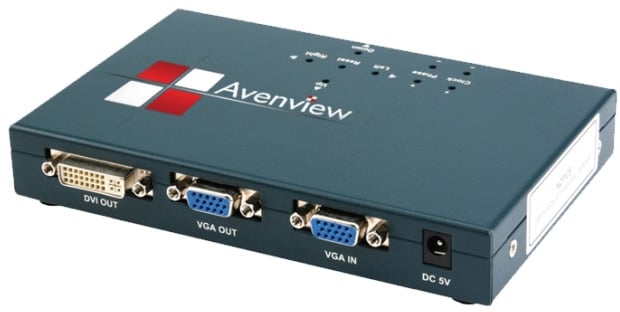

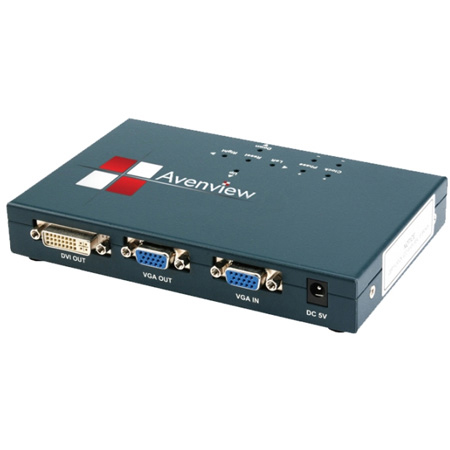

Avenview C-VGA-DVI VGA to DVI Converter

C-VGA-DVI - Overview

• Features:

  • Converts VGA to DVI Signal
  • Output Connector: DVI 24 pin (female), 15 pin D-sub (female)
  • Input Connector: 15 pin D-Sub
  • Compatible with DVI Standard by DDWG
  • Manual screen control key for corresponding to versatile resolution
  • Supports up to WUXGA(1920X1200)@60Hz and 1080p(1920x1080) and
  • UXGA, WSXGA+, SXGA,XGA, SVGA, VGA resolution


• Specifications:

  • INPUT
  • 1 x Analog VGA (15 pin D-sub female)

    OUTPUT
  • 1 x DVI Digital Single Link (24 pin female)
  • 1 x Analog VGA (15 pin D-sub female)

    VIDEO BANDWIDTH
  • 1.65Gbps (Single Link)

    Clock Frequency
  • 25Mhz - 165Mhz

    DVI
  • Version 1.0

    Output Signal
  • TMDS

    DVI Connector
  • Type A 24 Pin Female

    Support Resolution
  • VGA,SVGA,XGA,SXGA,WSXGA+,UXGA,1080P,WUXGA

    VGA Connector
  • 15 Pin Female

    Power Adaptor
  • 5V DC (110-220V 60HZ)

    Power Consumption
  • 2.3 watts (UXGA 1 Output)

    Size
  • 162(W) x 26.7(H) x 104(D) mm
  • (6.4" x 1.1" x 4.1") inch
  • Weight 500 g (1.1 lbs)

    OPERATING TEMPERATURE
  • 32?- 104?F (0? to 50?C)

    STORAGE TEMPERATURE
  • -4? - 140?F (-20? ~ 60?C)

    RELATIVE HUMIDITY
  • 30-80% RH (no condensation)


• Item Includes:

  • 1 x C-VGA-DVI
  • 1 x Power Adpater
  • 1 x User's Manual


• GTIN:

  0606825936236
