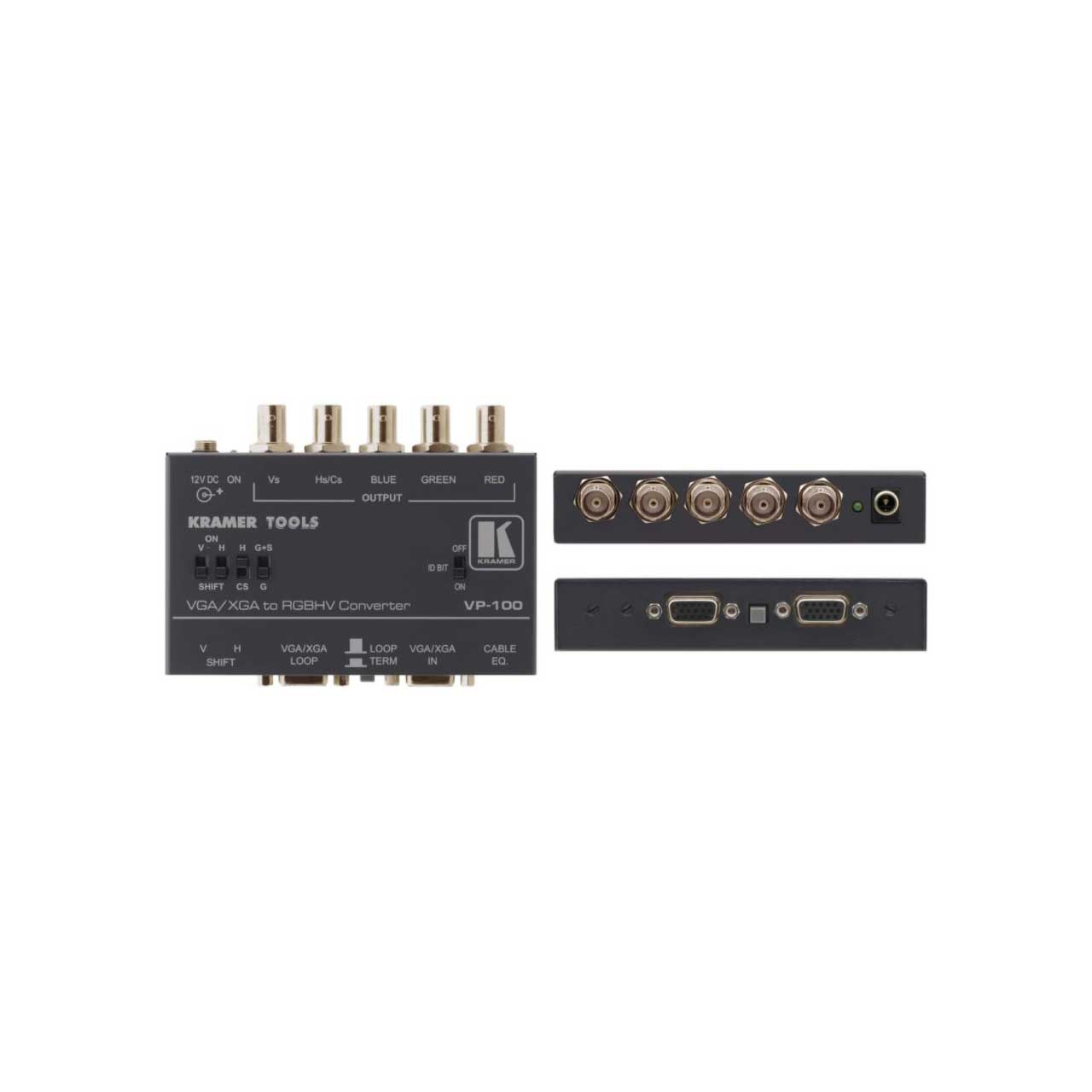

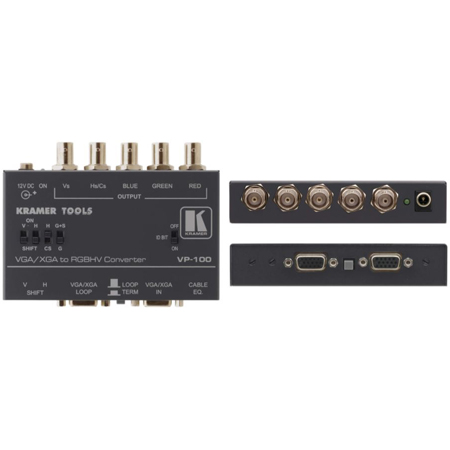

Kramer VP-100 Computer Graphics Video to RGB/HV/S Format Converter 350MHz

KRAMER VP-100 - Overview

VGA/UXGA - 15-pin HD

• Features:

  • High Bandwidth - 350MHz (-3dB).
  • Control - H/V sync shift & sync selection.
  • Looping Input.
  • Selectable Input Signal Termination.
  • ID Bit Control.
  • EQ (Peaking) Control.
  • Active Line Amplification Circuitry.


• Specifications:

  • INPUT
  • 1 analog red, green, blue signals: 0.7Vpp/75Ω, H & V sync, TTL level, with loop on 15-pin HD (F) connectors

    OUTPUTS
  • 1 analog red, green (with or without composite sync), blue signals: 0.7 Vpp/75Ω
  • H & V syncs: TTL level (Hi-Z load) or analog level (75Ω load) on BNC connectors
  • 1 composite sync: TTL levels (Hi-Z load) or analog level (75Ω load)

    VIDEO BANDWIDTH (-3DB)
  • 350MHz

    DIFF. GAIN
  • 0.07%

    DIFF. PHASE
  • 0.03Deg

    K-FACTOR
  • 0.05%

    VIDEO S/N RATIO
  • 71dB

    CONTROLS
  • Cable EQ, H & V sync shift, G/sync on green switch, Hs/Cs switch, ID bit switch, input termination switch

    EQ. CONTROL
  • 0 to +9.7dB @5MHz

    POWER CONSUMPTION
  • 12V DC, 60mA


• Item Includes:

  • VP-100 Converter
  • Power Supply
  • Mounting Bracket


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063026776
