Avenview SC-HDM2-T4KHD HDMI 2.0a Re-Timer / EDID Recorder with HDCP 2.2 Support

ITEM #: AVW-SC-HDM2T4KHD MFG #: SC-HDM2-T4KHD

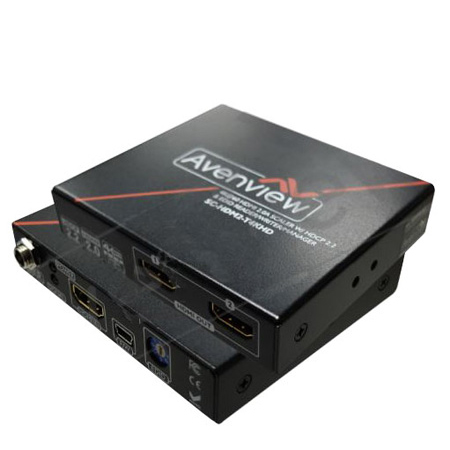

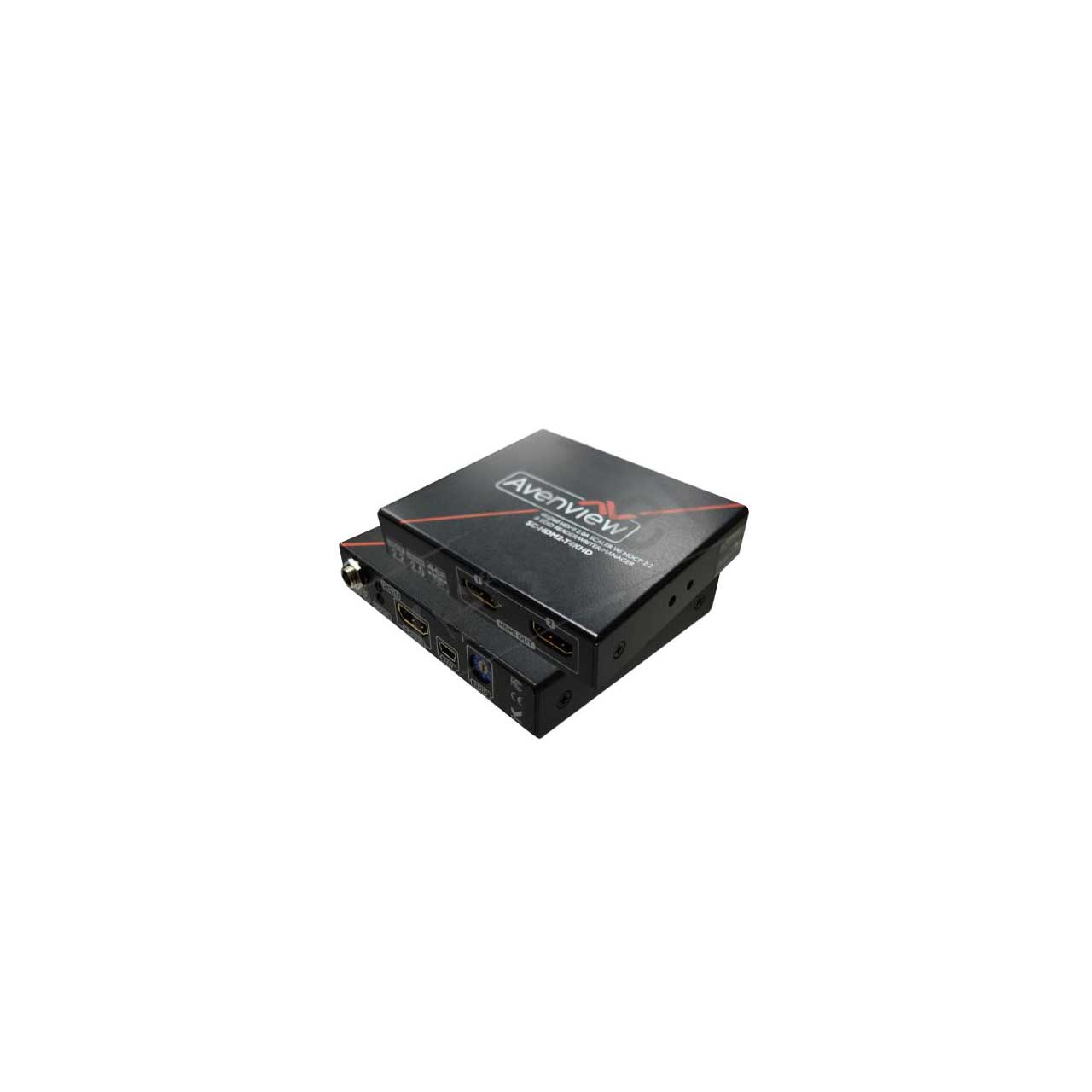

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Avenview Corp
Free Shipping with $49 Minimum Order

Our Price:

$299.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SC-HDM2-T4KHD - Overview

The SC-HDM2-T4KHD scaler with HDMI 2.0a and HDCP 2.2 Support is a device that can solve EDID (Extended Display Identification Data) information problems within any system design when different devices with varying resolutions are connected. Great for interfacing the latest game systems with 4K displays! With its own control software supplied the user can simply store and recall a default EDID information, also supporting EDID Re-timer / EDID Recorder setting in non-volatile memory and supports HDCP handshaking. Perfect for gamers interfacing current gear with

SC-HDM2-T4KHD allows HDMI source to boot directly from EDID Reader/Writer/Re-timer mode. This feature allows the user to easily remove the monitor at any time while installing SC HDM2-T4KHD between HDMI source and monitor. Also using the control software user can read, store and modify the EDID of any HDMI/DVI display upload the modified EDID to displays.

The SC-HDM2-T4KHD has the abilty to handle many different chroma sampling such as 4:2:0, 4:2:2 and 4:4:4.

  • Features:

    • HDMI 2.0a compliant
    • Supports 4K2K@60 4:4:4 8bits
    • Supports HDR, which is 4K2K@60 4:2:0 10bits
    • HDCP 2.2 compliant
    • Supports resolution upscaling from 1080p to 4K2K or downscaling from 4K2K to 1080p (No frame rate conversion)
    • Supports HDMI signal bypass
    • Simultaneous HDMI output
    • Able to read and store the EDID of displays (monitors or projectors)
    • Able to overwrite the EDID into the EDID Reader/Re-timer or the HDMI displays
    • Built-in default EDID
    • Able to maintain HDMI/DVI video resolution
    • Re-synthesizes input HDMI stream and maintains or improves signal integrity
    • 1080i and 720p scaling not supported. 1080i and 720p bypass supported
    • PC Software required to assign HDMI ports to upscale, downscale or bypass


  • Specifications:

    • SUPPORTED RESOLUTION:
    • HDR 4K2K@24/25/30/50/60 (3840x2160)(4:2:0 10bits) /
    • 4K2K@24/25/30/50/60 (3840x2160) (4:4:4 8bits),
    • 1920x1080p@24/25/30/50/60, bypass only: 720x480p, 720x576p, 1280x720p
    • HDMI COMPLIANCE: HDMI 2.0a
    • INPUT PORTS: 1x HDMI, 1x mini-USB
    • OUTPUT PORTS: 2x HDMI
    • HDCP VIDEO COMPLIANCE: 2.2
    • HDMI CONNECTOR: Type A [19-pin female]
    • DIGITAL AUDIO SUPPORT: 5.1/7.1 Lossless Dolby TrueHD and DTS-HD Surround Sound
    • USB CONNECTOR: Type mini-USB
    • FLASH EEPROM: 256 bytes [non-volatile]
    • CONTROL: USB
    • HDR SUPPORT: Yes
    • EDID MODES: 7 Adjustable Modes

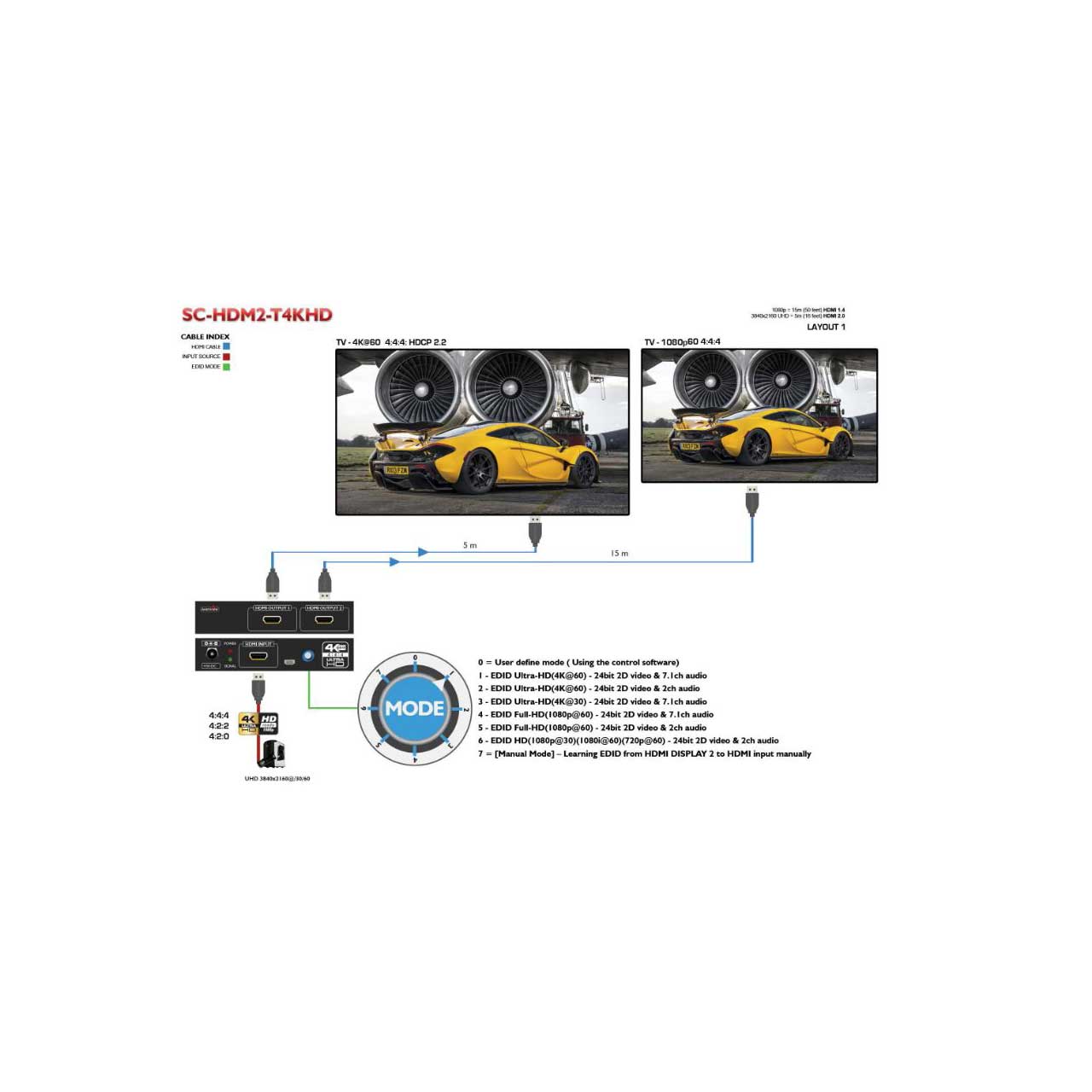

    • HDMI OUT OPTIONS:
    • OUTPUT 1: Bypass - Upscale to 4K
    • OUTPUT 2: Bypass - Downscale to 1080p
    • VIDEO BANDWIDTH: Single-link 600MHz [18Gbps]
    • CHROMA SAMPLING 4:2:0, 4:2:2 and 4:4:4
    • POWER SUPPLY: 5V 2A
    • POWER CONSUMPTION: 4 W
    • DIMENSIONS (L X W X H): 3.7" x 3.2" x 1"
    • WEIGHT: 0.6 lbs

      ENVIRONMENTAL
    • OPERATING TEMPERATURE: 32° ~ 104°F (0° to 40°C)
    • STORAGE TEMPERATURE: -4° ~ 140°F (-20° ~ 60°C)
    • ESD PROTECTION : Human body model - ±8kV (air-gap discharge) & ±4kV (contact discharge)
    • RELATIVE HUMIDITY: 20~90% RH (no condensation)
