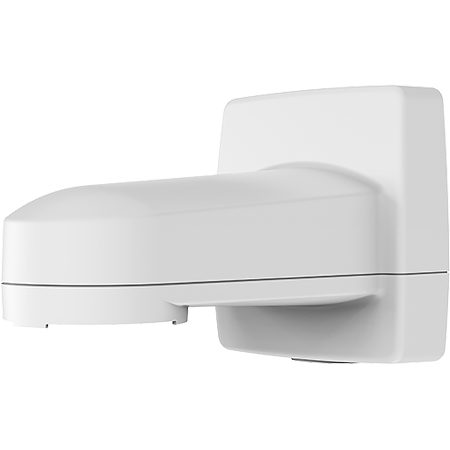

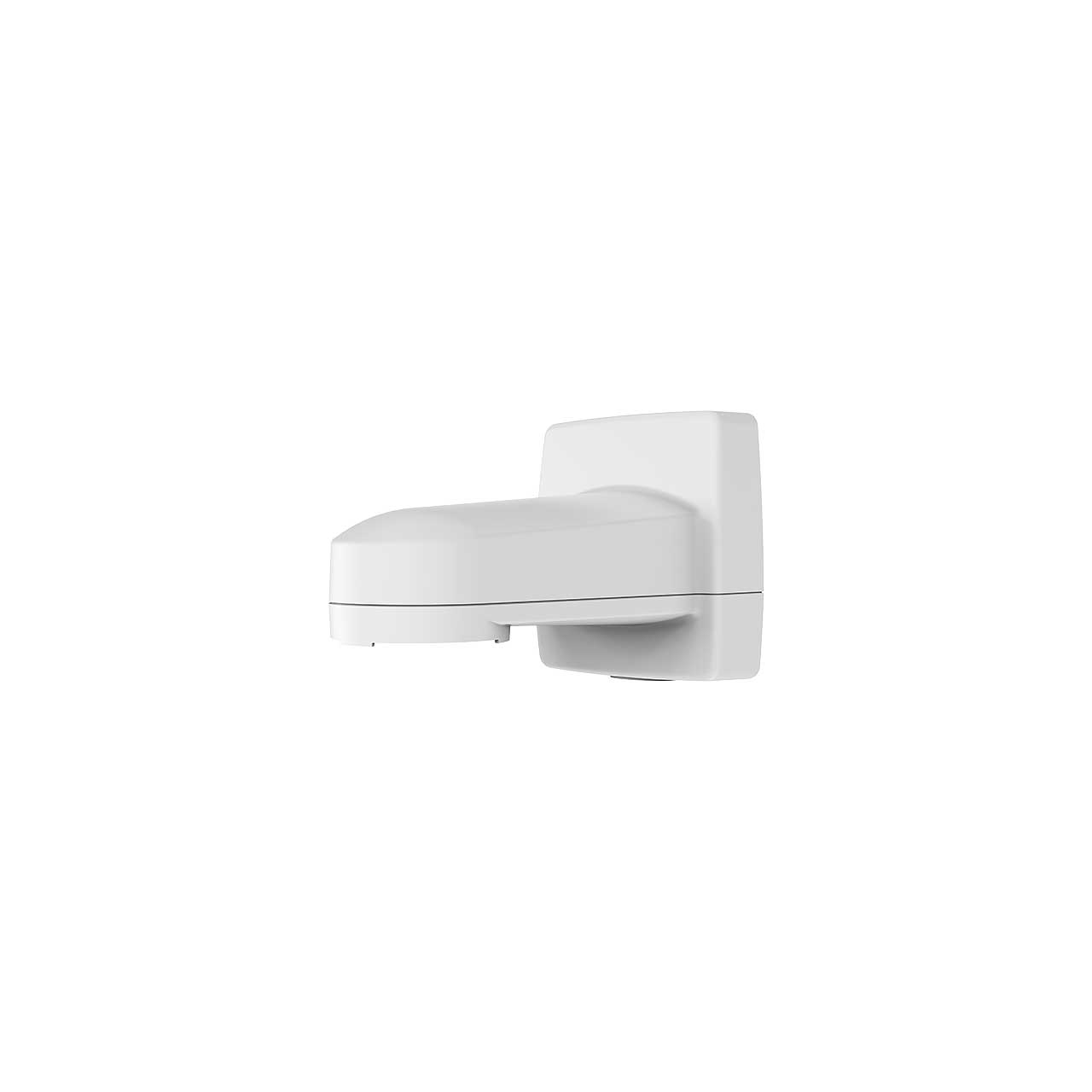

Axis T91L61 Wall and Pole Mount for AXIS PTZ Cameras

ITEM #: AXIS-T91L61 MFG #: T91L61

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AXIS-T91L61

T91L61 - Overview

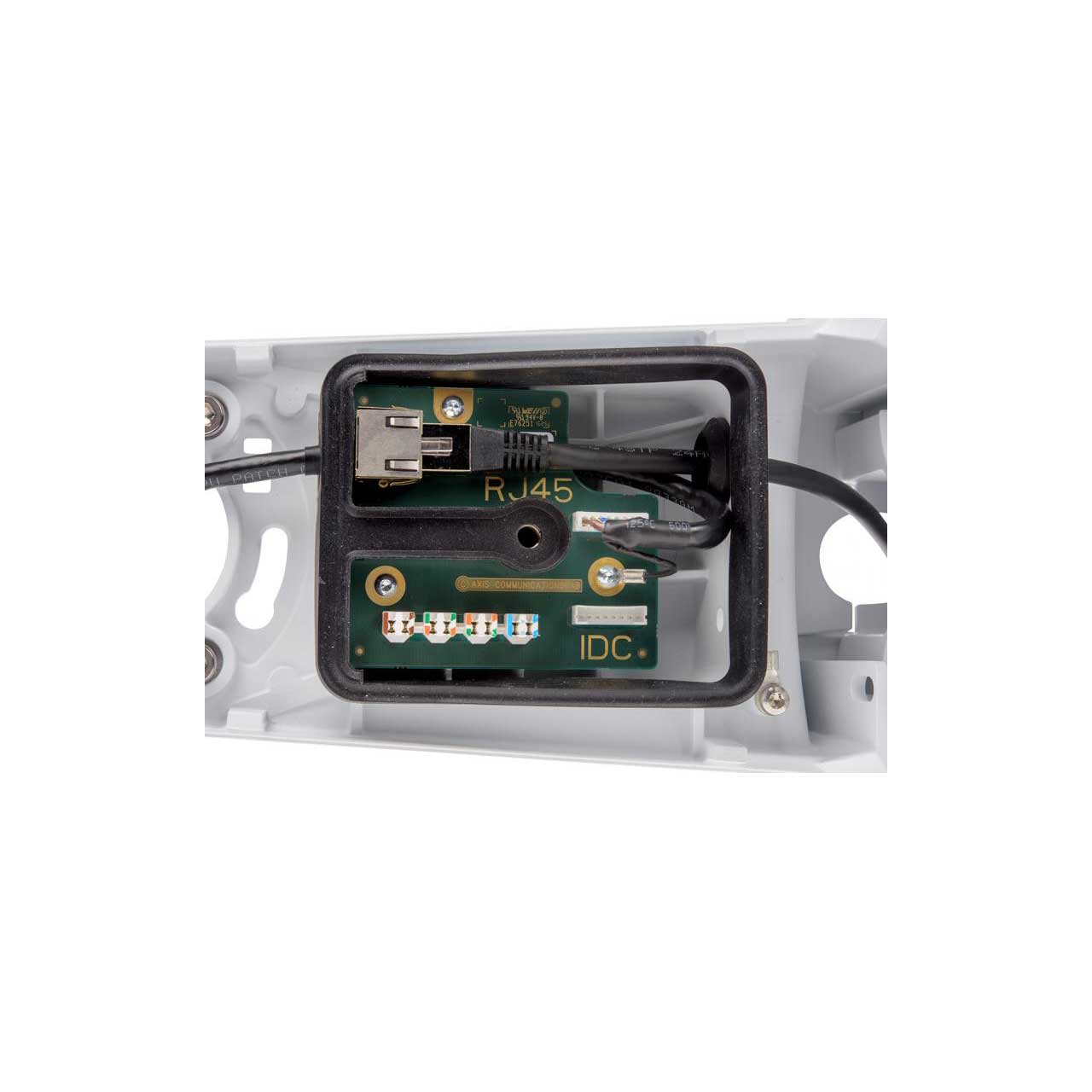

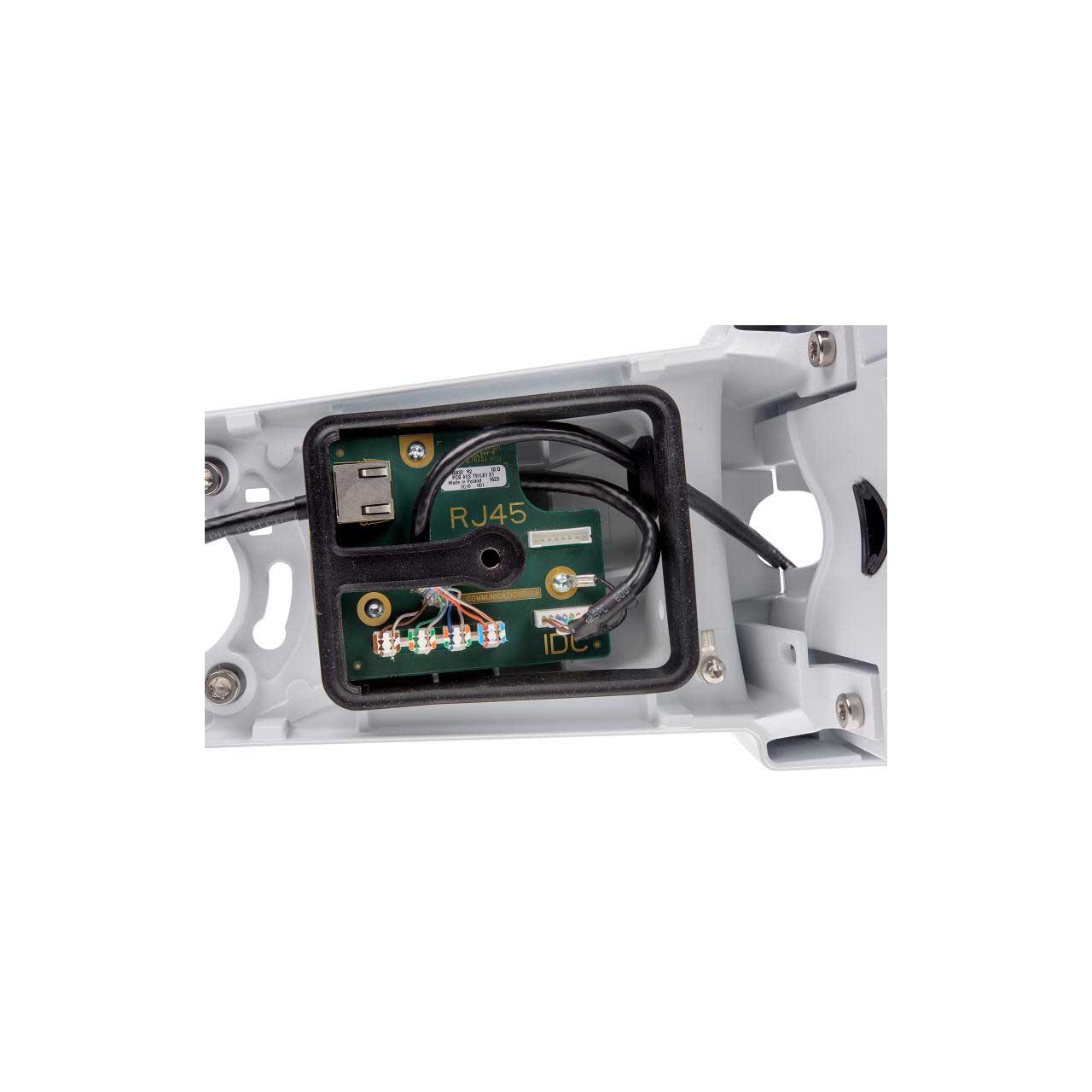

Versatile connection with RJ45 or IDC
AXIS T91L61 Wall-and-Pole Mount gives the installer a choice of using either RJ45 or IDC (insulation-displacement contact) connector for the installation. It comes with a built-in cable with an Ethernet IP66 RJ45 connector, which facilitates the installation and prevents water and dust to enter the network camera.

Flexible installation
Thanks to its impact-resistant and outdoor proven material, AXIS T91L61 Wall-and-Pole Mount suits both indoor and outdoor environments. Flipping the mounting bracket makes it possible to turn AXIS T91L61 from a wall mount to a pole mount (AXIS Steel Straps TX30 are required). The mount is also suitable for corner mounting with an optional accessory.

  • Features:

    • Versatile connection with IDC connector
    • Built-in IP66 RJ45 connector
    • For wall and pole mounting
    • Protection against impact, water, dust, and corrosion


  • Specifications:

    • Supported products: AXIS Q60 Series, AXIS Q61 Series, AXIS P55 Series, AXIS P56 Series, AXIS Q37 Series
    • Casing Material: Powder-coated aluminum casing
    • Color: White NCS S 1002-B
    • Sustainability: PVC free
    • Connectors Out: IP66 RJ45 Ethernet (male), In: RJ45 Ethernet (female), IDC
    • Environment: Indoor, Outdoor
    • Operating conditions: -58 °F to 149 °F, Humidity 10-100% RH (condensing)
    • Storage conditions: -40 °F to 149 °F
    • Approvals Safety: IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, Environment - IEC 60721, IEC 60721-4 Class 4M3, MIL-STD 810G 509.5, IP66,, NEMA 250 Type 4X, RoHS, WEEE, Impact IEC 62262 IK10
    • Dimensions: 11 x 7 x 6 in
    • Weight: 4 lb
    • Maximum load: 66 lb
    • Cable routing: Back: Cable hole, Bottom: 3/4" Conduit entrance


  • Item Includes:

    • 1x Axis T91L61 Wall and Pole Mount for AXIS PTZ Cameras


  • Warranty:

    • 3-year warranty
