Azden SGM-3500L Broadcast Spec 9.75 Inch Shotgun Microphone - Hypercardioid Pickup - Ultra-Low Noise

ITEM #: AZ-SGM-3500L MFG #: SGM-3500L

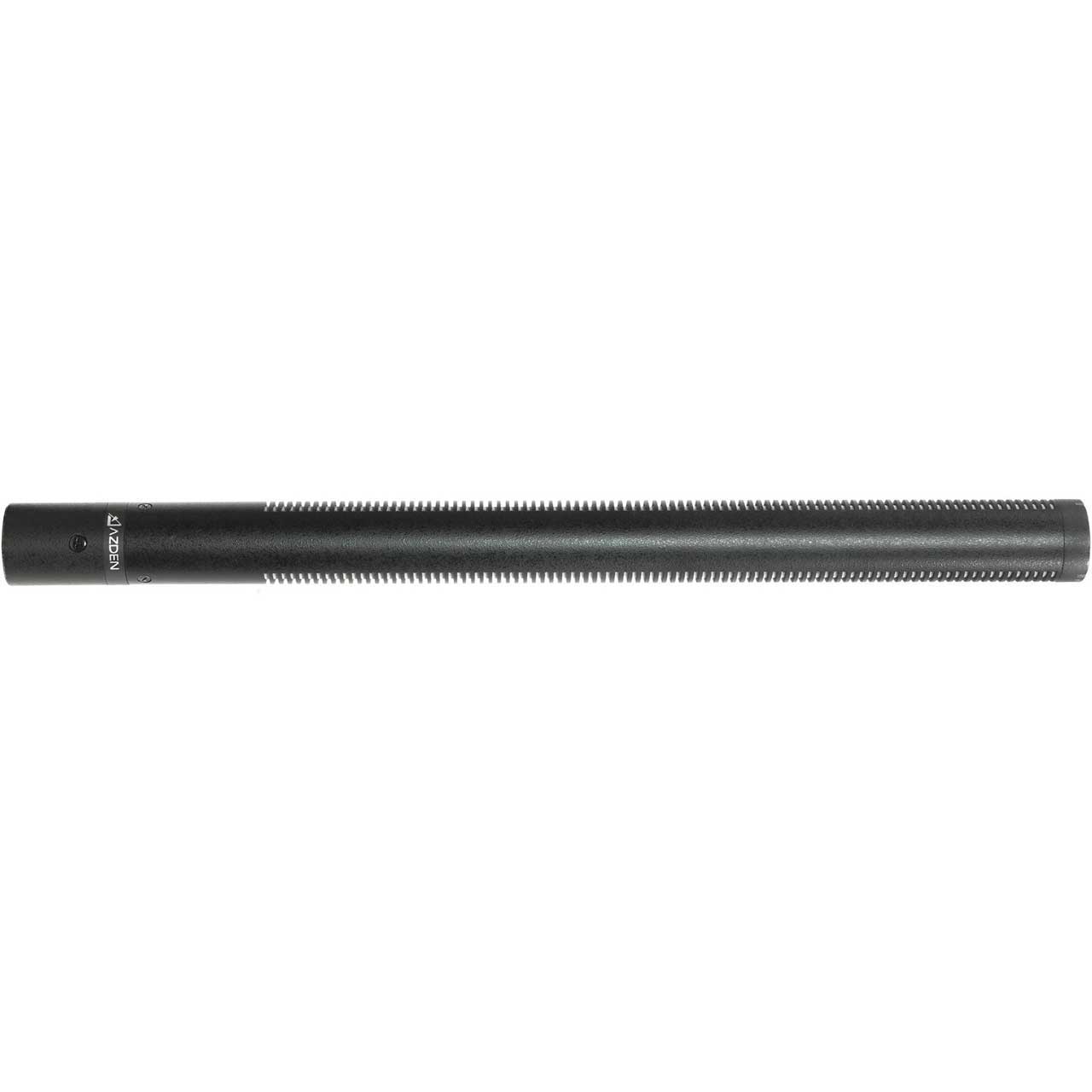

Primary Image

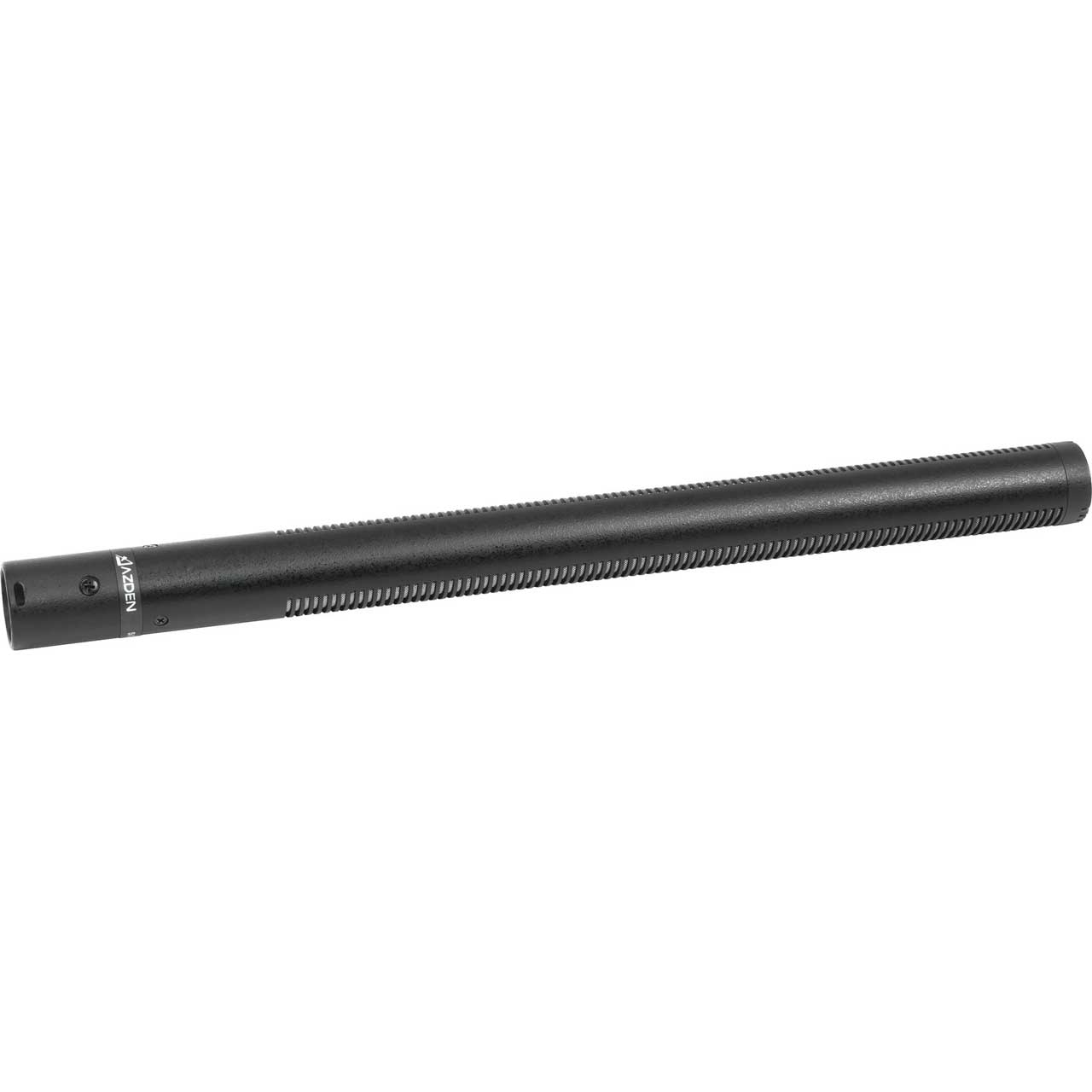

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AZ-SGM-3500L

SGM-3500L - Overview

Measuring nearly 10" in length, the SGM-3500L's long interference tube creates an exaggerated directional pickup pattern for extreme off-axis sound rejection, especially at the higher frequencies. This quality makes it exceptionally well suited for boom pole work in professional video production.

Extremely Low Self-Noise
The 3500 series boasts an ultra-low noise floor at 13 dB (A weighted), for crystal clear audio.

Tuned for Speech Capture
Frequency response is boosted in the area of 5 kHz to 10 kHz where speech articulation is most present.

All Metal Brass Body
Provides optimal RF rejection and durability.

Gold-plated XLR Connector
To ensure a good connection and a high resistance to corrosion.

High Sensitivity Mic Element
Captures a level of detail and nuance beyond any other Azden microphone.

Wide Frequency Response
From 40 Hz to 20,000 Hz with roll off at the first octave to avoid low frequency noise.

10 Year Warranty
Backed by Azden's longest warranty term, unmatched by other microphones in this class.

Focused Directionality
The SGM-3500 at 7" long offers a supercardioid polar pattern, while the longer SGM-3500L offers a more focused hypercardioid polar pattern.

  • Features:

    • Extremely Low Self-Noise
    • Tuned for Speech Capture
    • All Metal Brass Body
    • Gold-plated XLR Connector
    • High Sensitivity Mic Element
    • Wide Frequency Response
    • Focused Directionality

  • Specifications:

    • Mic Element: Condenser
    • Freq. Response: 40 Hz - 20 kHz
    • Polar Pattern: Supercardioid
    • Sensitivity: 3500: -31 dB, 3500L: -28 dB, at 1 kHz (0 dB = 1 V/Pa)
    • Noise Floor: 13 dB (A weighted)
    • Dynamic Range: 118 dB
    • Impedance: 120 ? (at 1 kHz)
    • Max Input SPL: 130 dB SPL (1 kHz at 1% T.H.D.)
    • S/N Ratio: 82 dB (1 kHz at 1 Pa)
    • Power Requirement: 48 V DC Phantom (±4 V )
    • Connector: 3-pin XLR
    • Dimensions: 3500: 180 mm x 19 mm (7.08" x 0.75"), 3500L: 247 mm x 19 mm (9.72" x 0.75")
    • Weight: 3500: 140 g (5.0 oz), 3500L: 170 g (6.0 oz)
    • Accessories: hard shell case, mic clip, windscreen

  • Item Includes:

    • 1x SGM-3500L Shotgun Microphone

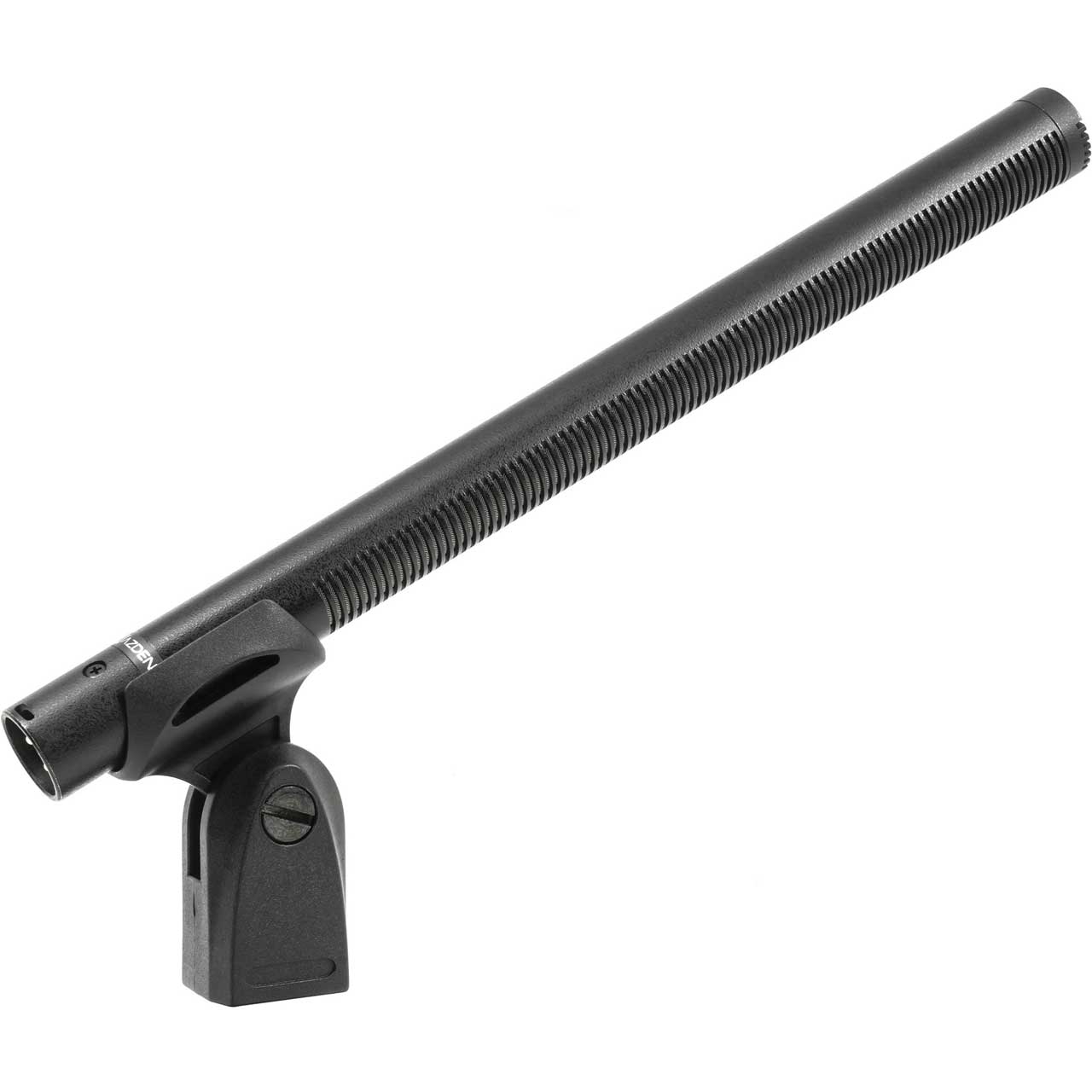

    • 1x Mic Clip
    • 1x Carrying Case
    • 1x Windshield

  • Warranty:

    • 10 Years

  • GTIN:

    0095528730027
