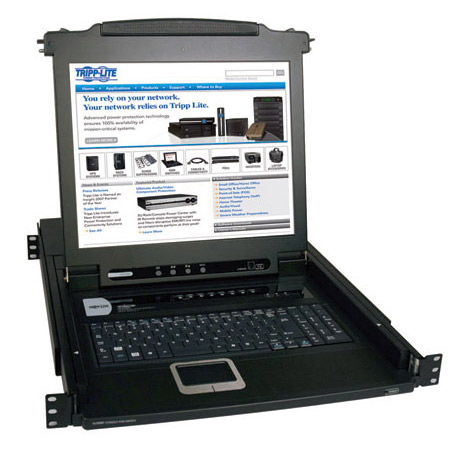

Tripp Lite B020-008-17 8-Port Console KVM Switch with 17 Inch LCD

B020-008-17 - Overview

• Features:

  • Control multiple computers from one keyboard, mouse, and monitor
  • Combines an 8 port KVM switch, keyboard/numeric keypad, 17" LCD monitor and touchpad in a 1U rack-mount drawer
  • Daisy-chain multiple B022-016 16 port KVM switches to control up to 504 computers
  • Does not require software or complicated set-up procedures
  • Select a port by using using the On-Console push buttons, On-Screen Display (OSD) or keyboard hot key commands
  • Offers autoscan feature
  • Multi-level password security to ensure only those with authorization can access connected computers/servers
  • 2 LEDs per port; one indicates when the computer is connected and powered-on, the other indicates when the computer has been selected
  • Control PS/2 or USB computers/servers using P774-Series (PS/2) and P776-Series (USB) KVM Cable kits
  • Includes an extra HD15 and (2) PS/2 ports on the rear of the unit, which allows for connection of a Tripp Lite B050-000 IP Remote Access Unit or an external console
  • Hot pluggable; add or remove computers without having to power down the switch
  • Auto-sensing of station position on daisy chained installations; no need for manual DIP switch setting, front panel LED indicates station position
  • Port names automatically reconfigured when station sequence is changed
  • Windows Server 2008 and Win7 compatible
  • Firmware upgradeable
  • 17" LCD display supports Video resolutions of up to 1280 x 1024 DDC2 B
  • 1 Year Limited Warranty
  • Power Consumption: 120V 60Hz 22.8W; 230V 50Hz 24W
  • Supports Windows 2000, XP, Vista and Linux operating systems


• Specifications:

  • Control an entire network in just 1U rack space; includes keyboard, 17" LCD screen, touch pad, numeric keypad, and 8-port KVM switch
  • Superior Video Quality: 1280 x 1024
  • Two levels of password protection (administrator/user)
  •
    Daisy-chain additional B022-016 KVM switches to control up to 504 servers
  • Connect to either a USB or PS/2 computer/server using P774-Series (PS/2) and P776-Series (USB) KVM Cable kits
  • Optional console port for IP connection
  • Supports Windows 2000, XP, Vista and Linux operating systems


• Item Includes:

  • 8 Port Console KVM Switch w/17" LCD
  • 6 ft. PS/2 KVM Cable Kit
  • 6 ft. USB KVM Cable Kit
  • C13 to 5-15P power cord
  • RJ11 to DB9 Firmware upgrade cable
  • Owners Manual CD


• System Requirements:

  • PS/2 or USB computer
  • (1) P774-Series (PS/2) or P776-Series (USB) KVM Cable kit is required for each connected computer/server
  • Supports Windows 2000, XP, Vista and Linux operating systems


• GTIN:

  0037332125385
