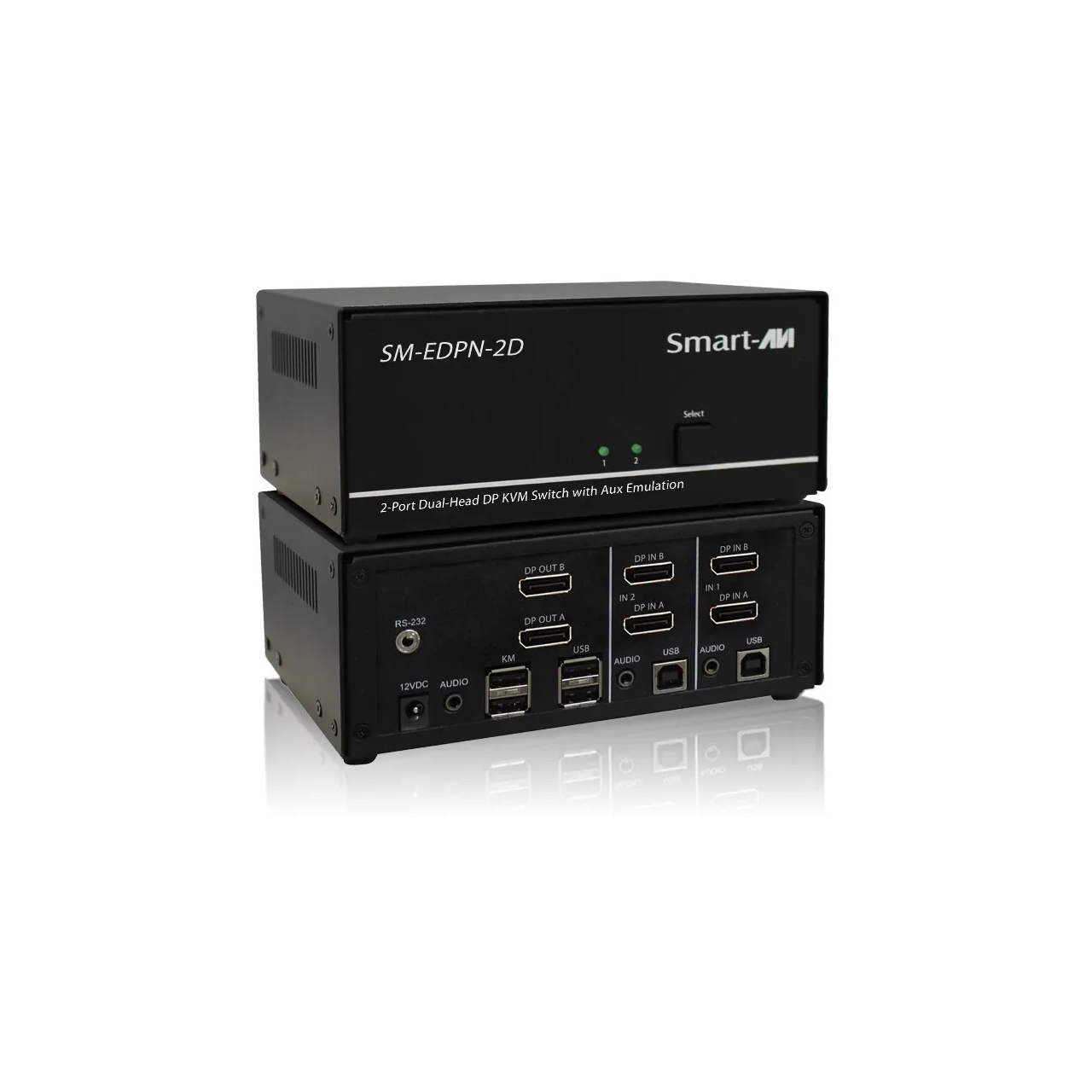

Smart-AVI SM-EDPN-2D Dual Head 2-Port UHD 4k@60 DP KVM Switch with EDID Aux Emulation

SM-EDPN-2D - Overview

• Features:

  • EDID (AUX) Emulation: Window and Monitor Configurations remain intact when switching channels .
  • Supports resolutions up to 3840 x 2160 @ 60 Hz.
  • Supports USB keyboard and mouse emulation.
  • Supports additional USB 2.0 devices like printers, scanners, web cameras and more.
  • Flash upgradeable firmware.
  • Stereo Audio support.

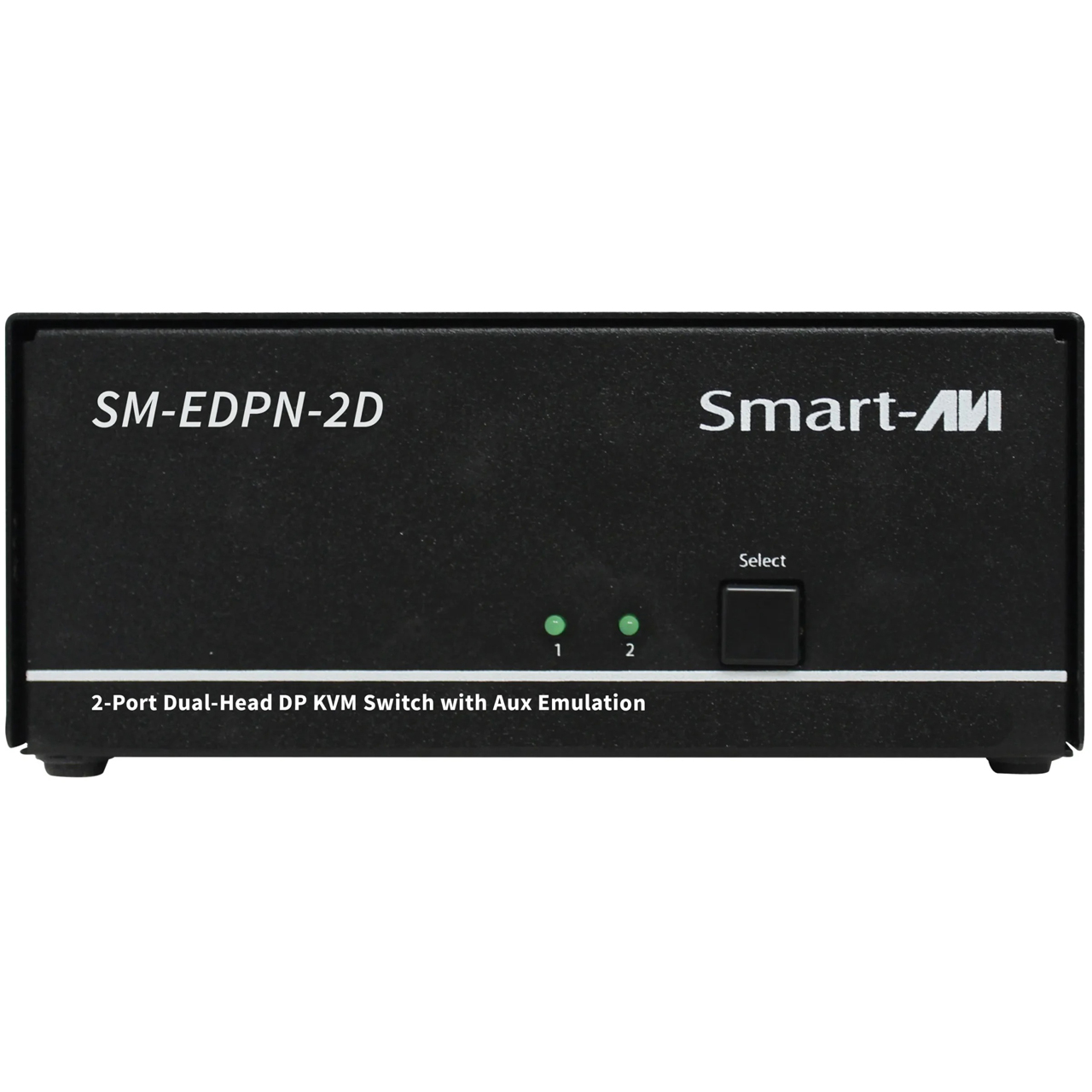

  • Front panel keys for manual port selection.
  • Hot-key commands for quick port selection.
  • RS-232 for serial communication.
  • Independent (asynchronous) switching of KVM and peripheral USB/audio ports. Users can listen to audio from one computer while working on a different computer, or scan a document and save it on another computer.
  • Supports all major Operating Systems like Windows, Mac, Linux, Sun, Unix, DOS, etc..


• Specifications:

  • Video
  • Format: DisplayPort
  • Input Interface: (4) DisplayPort
  • Output Interface: (2) DisplayPort
  • Resolution: 3840 x 2160 @ 60 Hz
  • Color Mode: 24-bit
  • DDC: 5 volts p-p (TTL)
  • Input Equalization: Automatic
  • Input Cable Length: Up to 20 ft.
  • Output Cable Length: Up to 20 ft.
  • Data Rate: 1.65Gbps per color
  • Console Monitors: Supports both digital and analog monitors

    Audio
  • Input Interface: (4) 3.5 mm Stereo Audio
  • Output Interface: (1) 3.5 mm Stereo Audio
  • Impedance: 600 Ohm
  • Frequency Response: 20 Hz to 20 kHz
  • Nominal Level: 0-1.0 V
  • Common Mode: Rejection at 60 dB

    Software Compatibility
  • Operating Systems: Operates with virtually any OS including Windows, DOS, Linux, Unix, Sun, Mac, etc.

    USB
  • Signal Type: USB 2.0, 1.1, and 1.0 w/ internal hub
  • Input Interface: (4) USB Type B
  • Output Interface: (2) USB 1.1 Type A for KVM Devices/(2) USB 2.0 Type A Transparent

    Control
  • Front Panel: Push Buttons with LED Indicators
  • RS-232: Via Control @ 115200 bps
  • Hot Keys: Via Keyboard

    Other
  • Power: External 100-240 VAC/12VDC2A @ 24W
  • Dimensions(WxHxD): 4 x 3 x 6.5 In (101.6 x 76.2 x 165.1 mm)
  • Weight: 2.15 lbs (.98 kg)
  • Approvals: UL, CE, ROHS Compliant
  • Operating Temperature: +32 to +104°F (0 to +40°C)
  • Storage Temperature: -4 to 140°F (-20 to +60°C)
  • Humidity: Up to 80% (No Condensation)
  • Emulation: Video, Keyboard and Mouse


• Item Includes:

  • 1x SM-EDPN-2D Unit
  • 1x Power Adapter
  • 1x User Manual


• Warranty:

  • 1 Year Warranty
