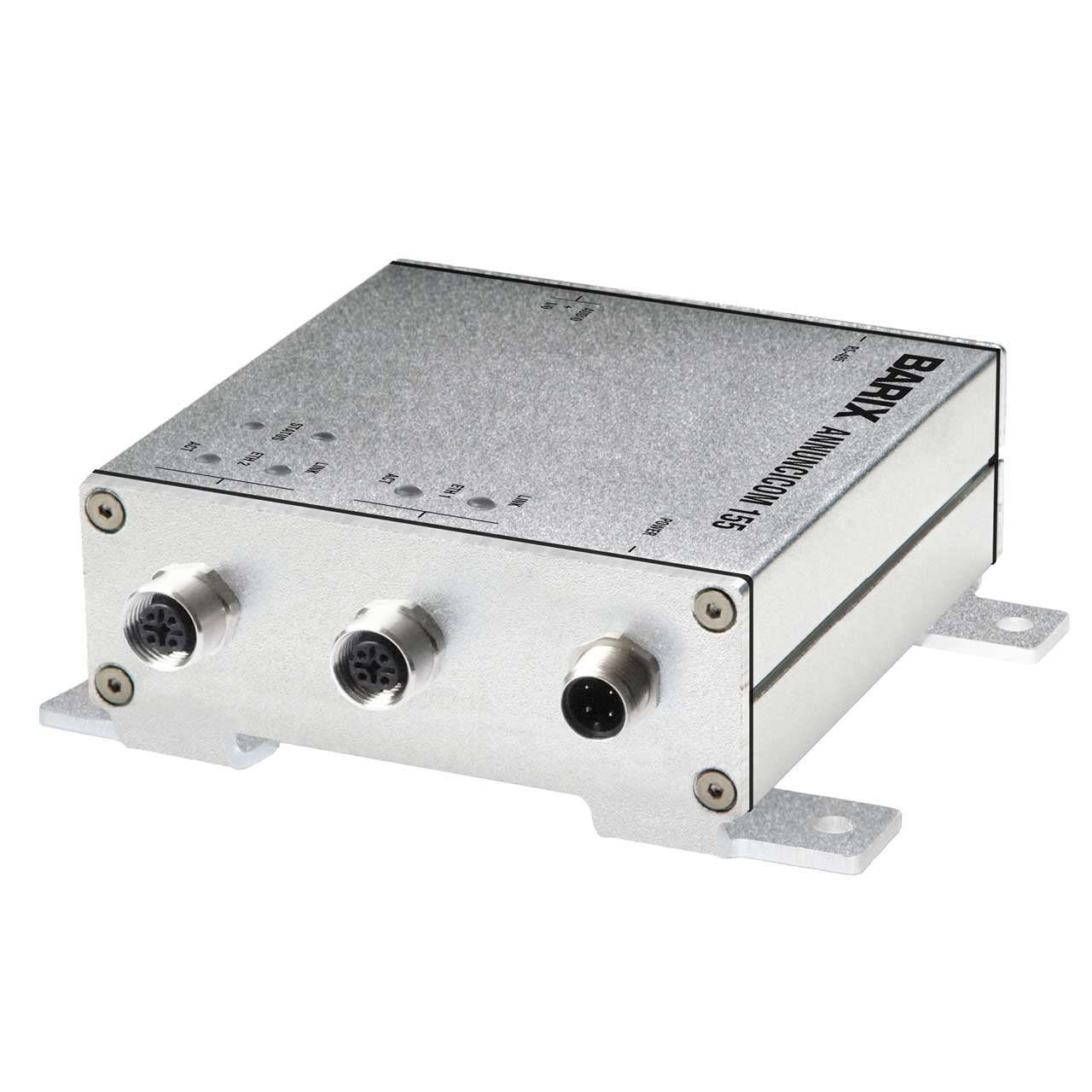

Barix Annuncicom 155 IP Paging and Intercom Device

2010.9098 - Overview

• Features:

  • MP3, G.711, PCM Encoding and Decoding
  • Audio Level Supervision with SNMP Trap generation
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Microphone Input
  • Line Level Output
  • Amplified Output 5W (8Ohm)
  • Contact Closure Input (2)
  • Current sourcing LED Output (1)
  • RS-485 Serial Port (1)
  • Dual Ethernet
  • Supervised Speaker/Mic and Control Interface
  • IP65 rated, EN50155: Railway applications - Electronic equipment used on rolling stock
  • Temperature range (-40..+70‘C)
  • Supply Voltage (18..28VDC)


• Specifications:

  • Electrical
  • 24 to 48 VDC Ý 30%, <60 V, 16 Watt max.
  • M12 "A" connector (male)
  • Ethernet
  • 2x 10/100Mbps auto, MDI/MDI-X, Link & Activity LEDs
  • per
  • interface, Internal switch, Protocols: TCP/IP, UDP, RTP,
  • SIP, DHCP,
  • M12 "D" connector (female)
  • RS-485
  • 300..230‘400 Baud asynchronous, 7/8 bit
  • +12V, 100mA, fused supply output to external devices
  • M12 "A" connector (female)Line Out
  • max. 11 dBm @ 600 Ohm, max. 12 dBu (FS), unloaded
  • Output impedance 40..45 Ohm, 14 mWatt max
  • Values @ 600 Ohm: Freq. response 20 Hz .. 20 kHz
  • (-3dB),
  • Dynamic range 80dB, SNR -80dB, THD <0.15%
  • (-3dBFS)*
  • Output level software controllable
  • Speaker Out
  • 5.5 Watt RMS max @ 8 Ohm
  • Values @ 8 Ohm: Freq. response 10 Hz .. 15 kHz
  • (-3dB),
  • Dynamic range 82dB, SNR -82dB, THD <0.1%
  • (-3dBFS)*
  • Output level software controllable
  • Microphone Input
  • Electret mic, supervised bias power (2.4..4 VDC)
  • Frequency response 50Hz ..20kHz (-3dB)*
  • Dynamic range 70dB, SNR -70dB, THD <0.05%
  • (-3dBFS)*
  • input sensitivity software controllable
  • Audio Formats
  • MP3, encoding/decoding up to 192/320kbps
  • PCM 16bit @8, 16, 22.05, 24, 32, 44.1, 48 kHz
  • G.711, uLaw, aLaw (sample rates same as PCM)
  • Discrete I/O
  • 2 fully supervised inputs
  • 1 LED driver output, current limited
  • internal temperature sensor
  • 2 status LEDs (red/green)

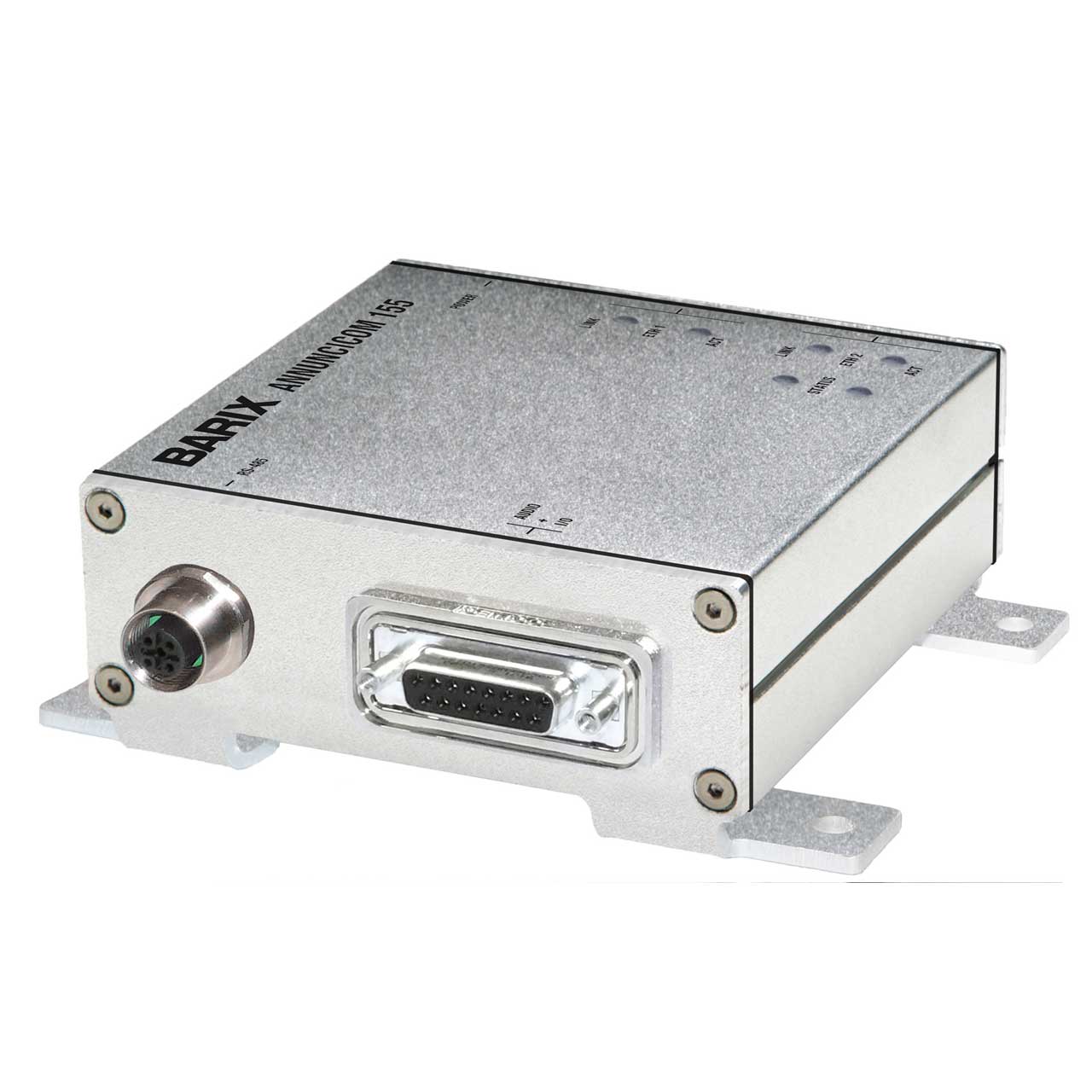

  • Panel Interface
  • Sub-D 15 connector, all audio and I/O signals
  • MechanicalAluminum case, 460 g, with mounting wings
  • Min. mounting space incl. plugs (W x D x H)
  • 230 x 138 x 47 mm (9 x 5.43 x 1.85 inch)
  • Dimensions (W x D x H)
  • 130 x 108 x 38 mm (5.12 x 4.25 x 1.5 inch)
  • MTBF
  • Calculated acc. to MIL217F at 40 ÝC
  • Min. 80 000h at "ground mobile" environment
  • Min. 225 000h at "ground fix" environment
  • calculation 110 000h (according to IEC62380 at
  • max.85ÝC)
  • * depends on used codec, best results @48kHz PCM

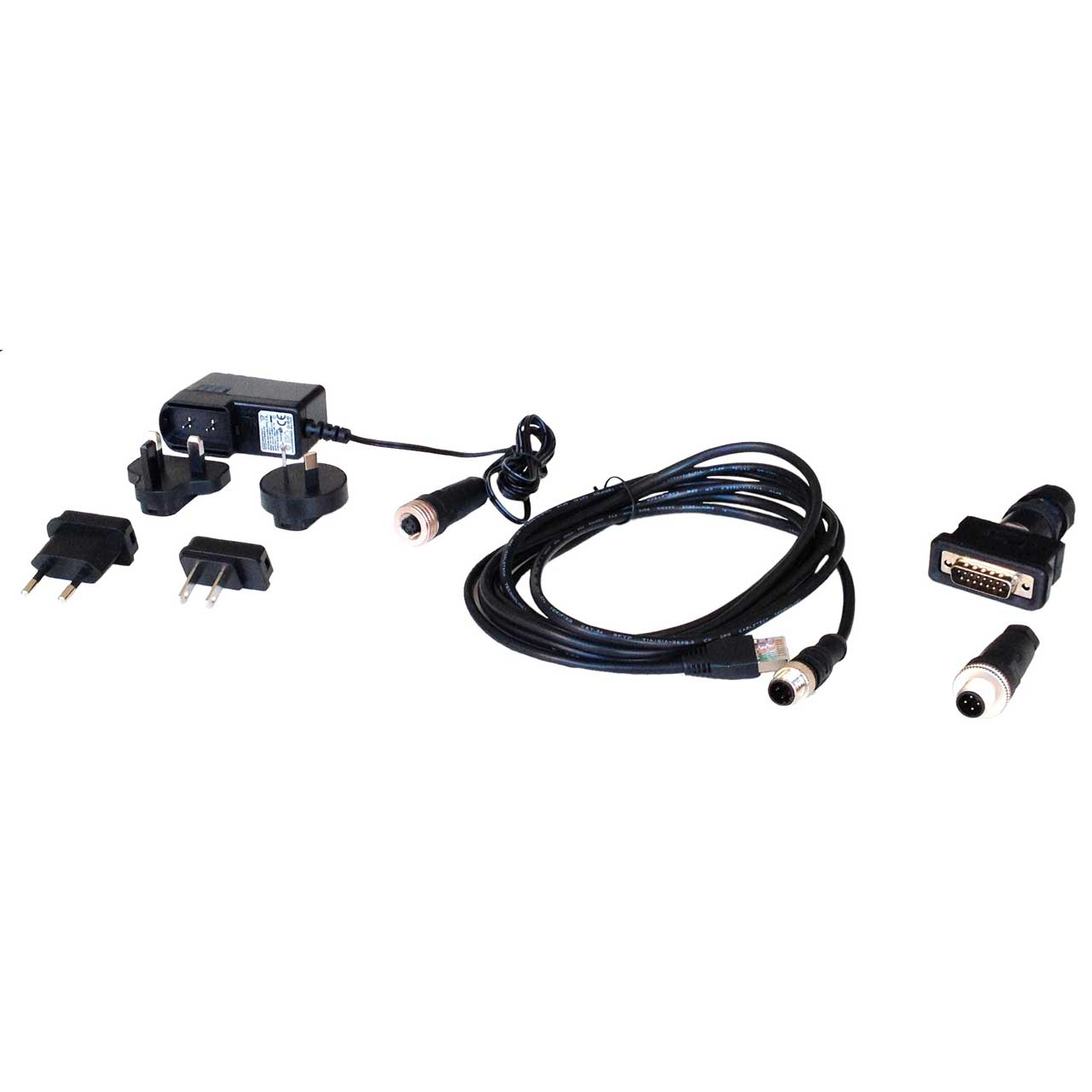

• Item Includes:

  • Annuncicom 155, quick install guide


• GTIN:

  7640113550981
