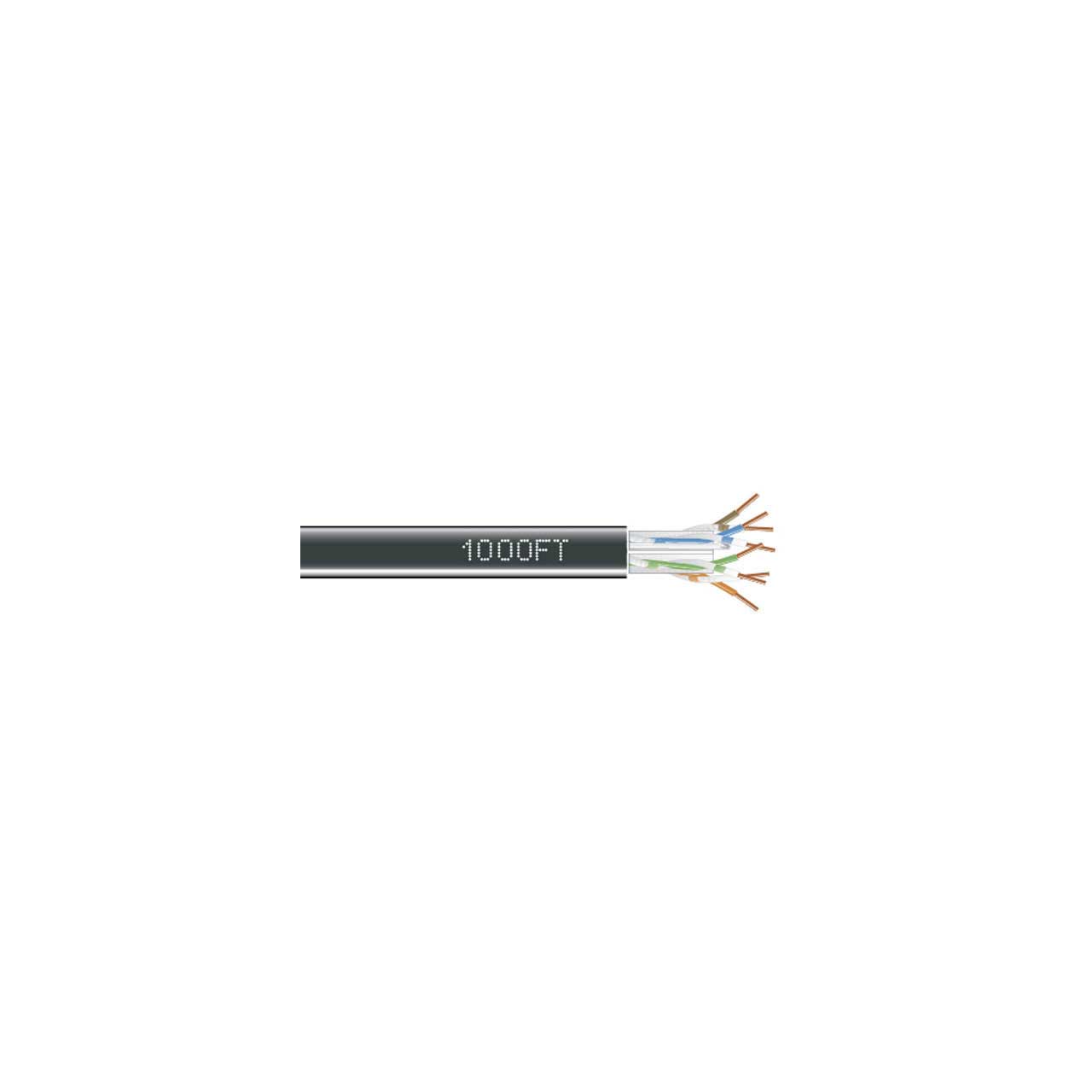

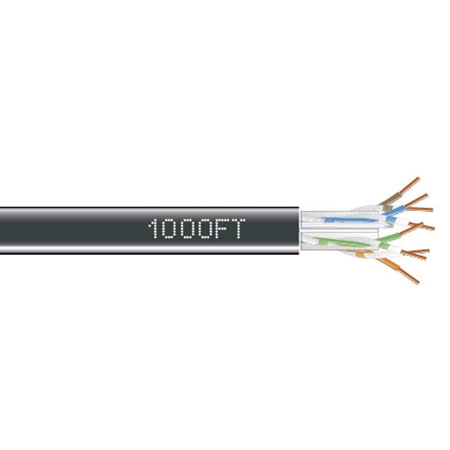

Black Box EYN880A-PB-1000 GigaTrue 550 CAT6 - 550-MHz Solid Bulk Cable - 4-Pair - Pull Box - 1000 Foot - Black

EYN880A-PB-1000 - Overview

• Features:

  • Guaranteed to meet or exceed ANSI/TIA/EIA-568-B.2-1 Category 6 and ISO/IEC 11801, Class E requirements
  • Every master spool is tested for electrical performance

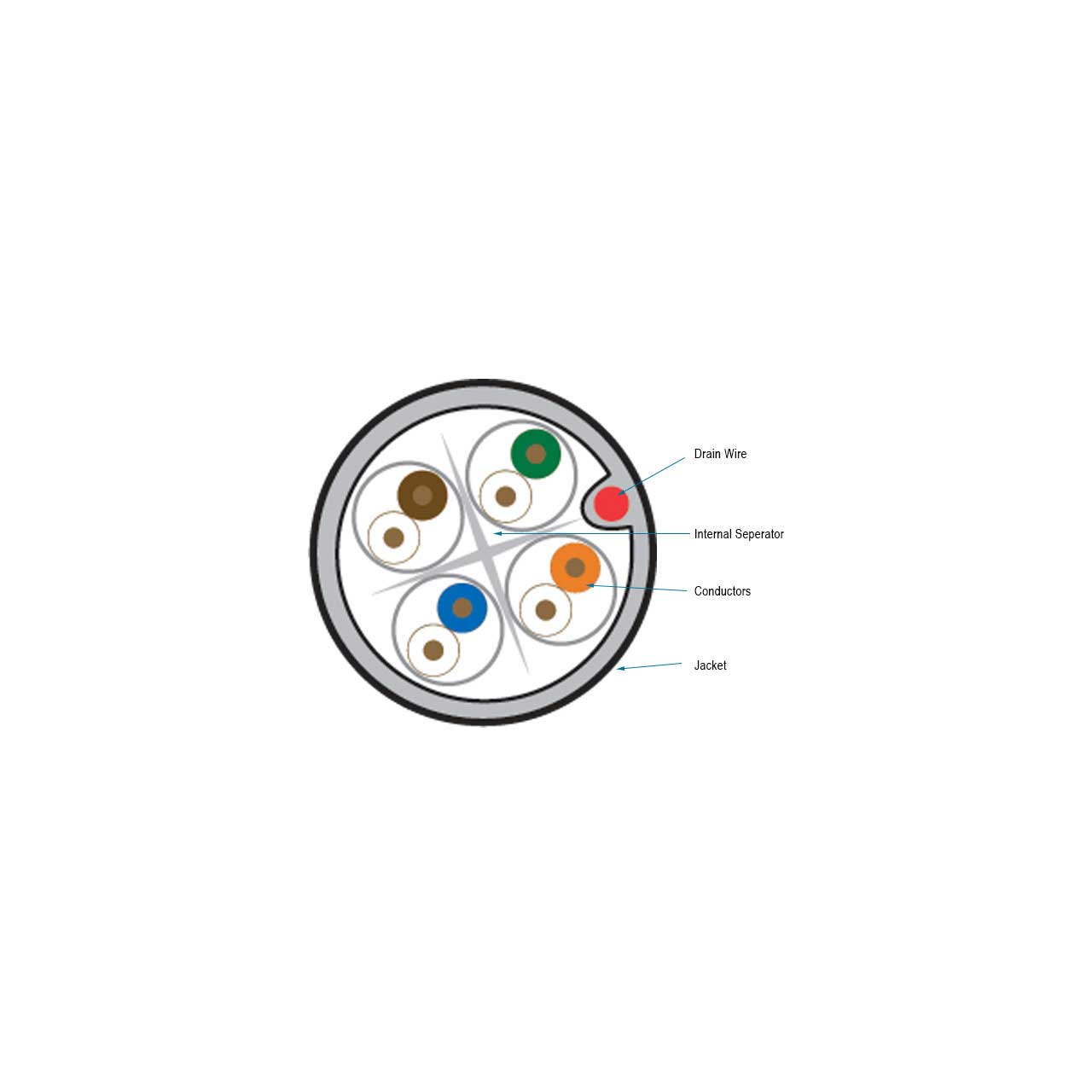

  • Round cable features cross-web design for strength and performance
  • Supports full- and half-duplex operation
  • Features flame-retardant PVC jacket and polyolefin insulation
  • Cable is marked in two-foot increments so you always know how much you have left


  • This product works with:
  • GigaStation High-Density Multimedia Patch Panels
  • GigaTrue CAT6 Patch Panels
  • GigaTrue CAT6 Jacks
  • GigaTrue2 CAT6 Jacks


• Specifications:

  • ACR (Minimum): 29.9 dB at 100 MHz
  • Attenuation (Maximum): 19.4 dB/100 m at 100 MHz; 49.9 dB/100 at 550 MHz
  • Characteristic Impedance: 1-550 MHz; 100 +/-15 ohms
  • Conductor: 23 AWG, solid, bare copper
  • Delay Skew (Maximum): 25 ns/100 m
  • ELFEXT (Minimum): 29.8 dB at 100 MHz; 15 dB at 550 MHz
  • Input Impedance: 1-250 MHz; 100 +/-15 ohms
  • NEXT (Minimum): 49.3 dB at 100 MHz; 38.2 dB at 550 MHz
  • PS-ACR (Minimum): 29.9 dB at 100 MHz
  • PS-ELFEXT (Minimum): 26.8 dB at 100 MHz; 12 dB at 550 MHz
  • PS-NEXT (Minimum): 47.3 dB at 100 MHz; 36.2 dB at 550 MHz
  • Return Loss (Minimum): 20.1 dB at 100 MHz; 14.9 dB at 550 MHz
  • Velocity of Propagation (Minimum): 62.2% at 550 MHz
  • Color: Black
  • Jacket: PVC


• GTIN:

  0609385473562
