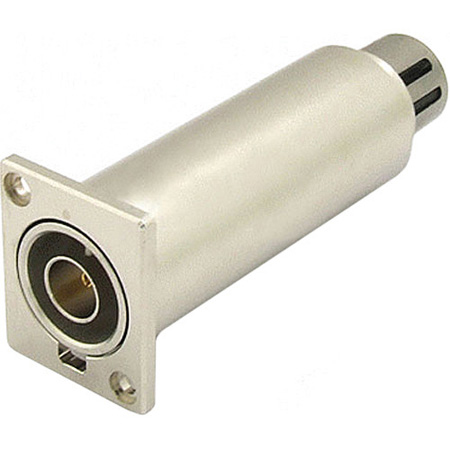

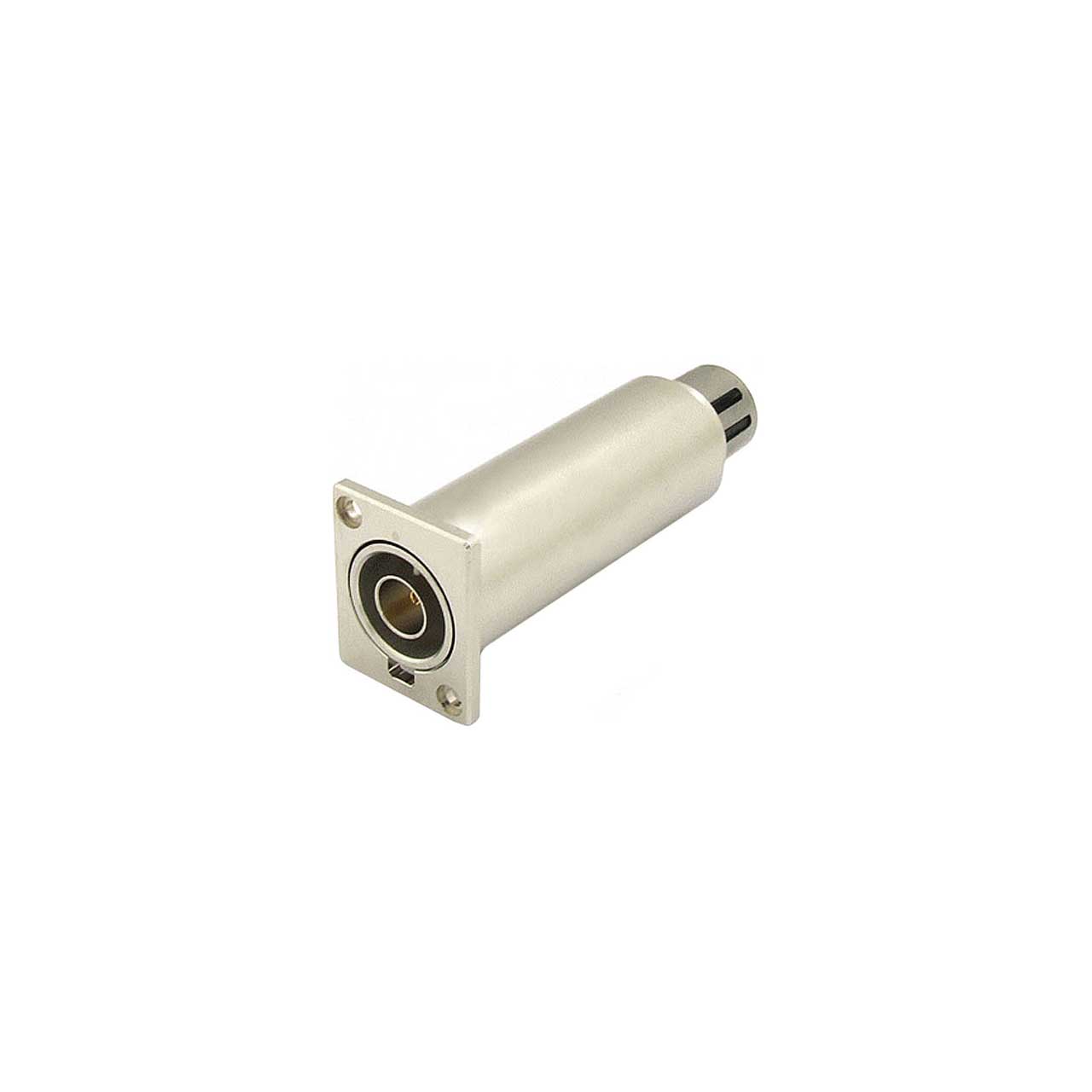

Canare BCJ-TRC-XP3F Digital Audio Impedance Transformer Panel Mount BNC- XLR(F)

ITEM #: BCJ-TRB-XP3F MFG #: BCJ-TRB-XP3F

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Canare
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$62.70

Our Price:

$49.99

Quantity Pricing

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

BCJ-TRB-XP3F - Overview

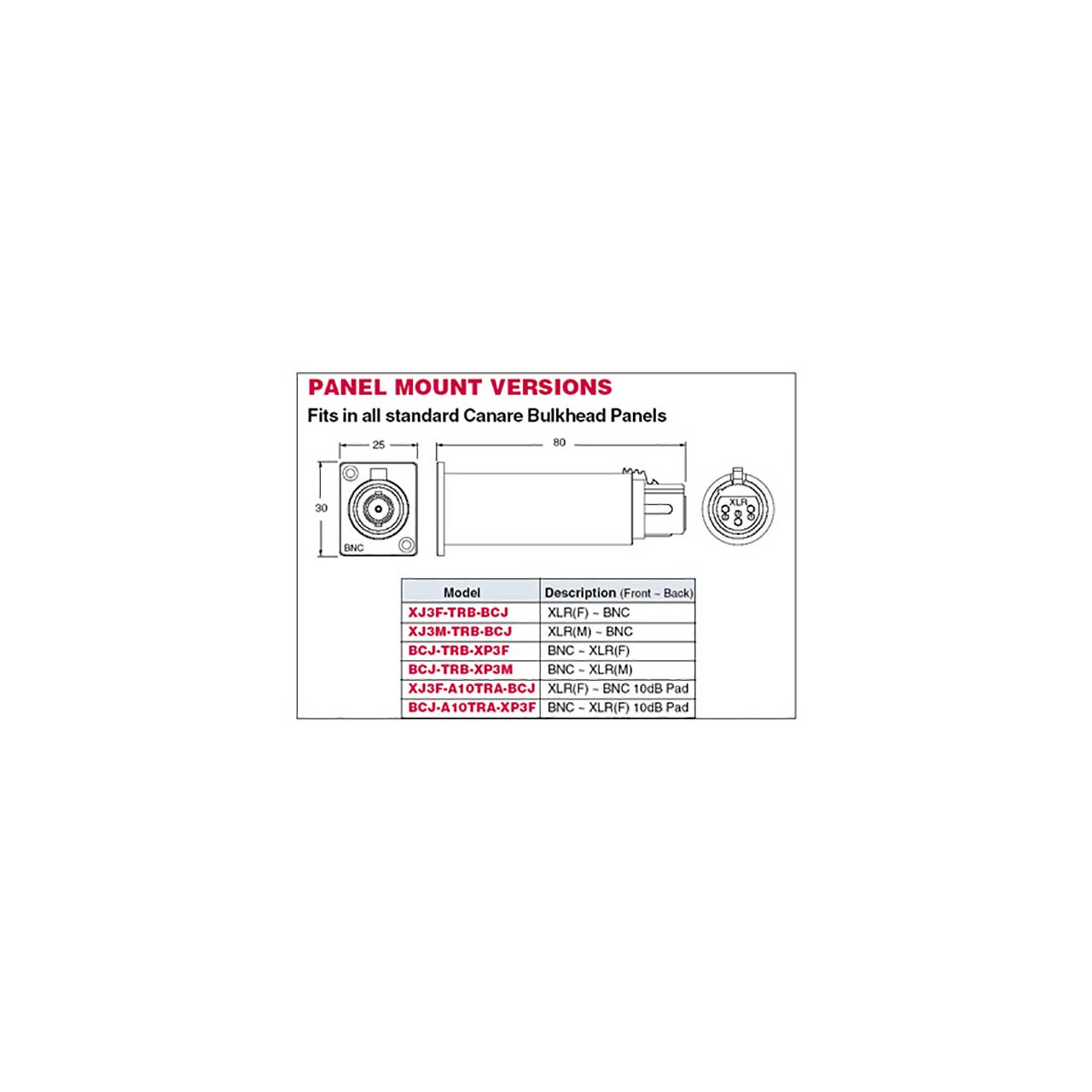

110 - 75 ohm Impedance TransformerPanel Mount Version

  • Features:

    • SMPTE 276M and AES3 Transmission Standard
    • Coaxial transmission of 2 Channel Digital Audio
    • Allows longer cable runs than 110 ohm twisted pair
    • AES/EBU Signal distribution using Canare 75 ohm Video Patchbays
      APPLICATIONS:
    • Post Production Suites
    • Recording Studios
    • AES/EBU Digital Audio Routing
      GENERAL SPECIFICATIONS
    • Bandwidth: 0.1 - 6MHz
    • Maximum Voltage: 5Vp-p
    • VSWR: <1.1
    • Insertion Loss: <0.3dB
    • 110 ohm Port (Balanced): XLR3 Female 1-Shell, 2-Hot, 3-Cold
    • 75 ohm Port (Unbalanced): Canare 75 ohm BNC Receptacle
