99-0461100 - Overview

Low Smoke & Halogen Free

Kramer's BC-UNIKat/LSHF-100M reel-box cable is a unified CAT6a cable that handles all Pro AV and IT signals. Over four individually screened twisted pairs, this U/FTP CAT6A cable runs Kramer's DGKat™ technology, 4K HDBaseT™ technology or LAN applications and ensures optimal signal performance.

Perfect for:
Structure cabling for horizontal and building backbone cable.
IT, LAN, HDBaseT and Ethernet installations.
Ideal for 10GbE and legacy speed applications.
IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt.

  • Features:

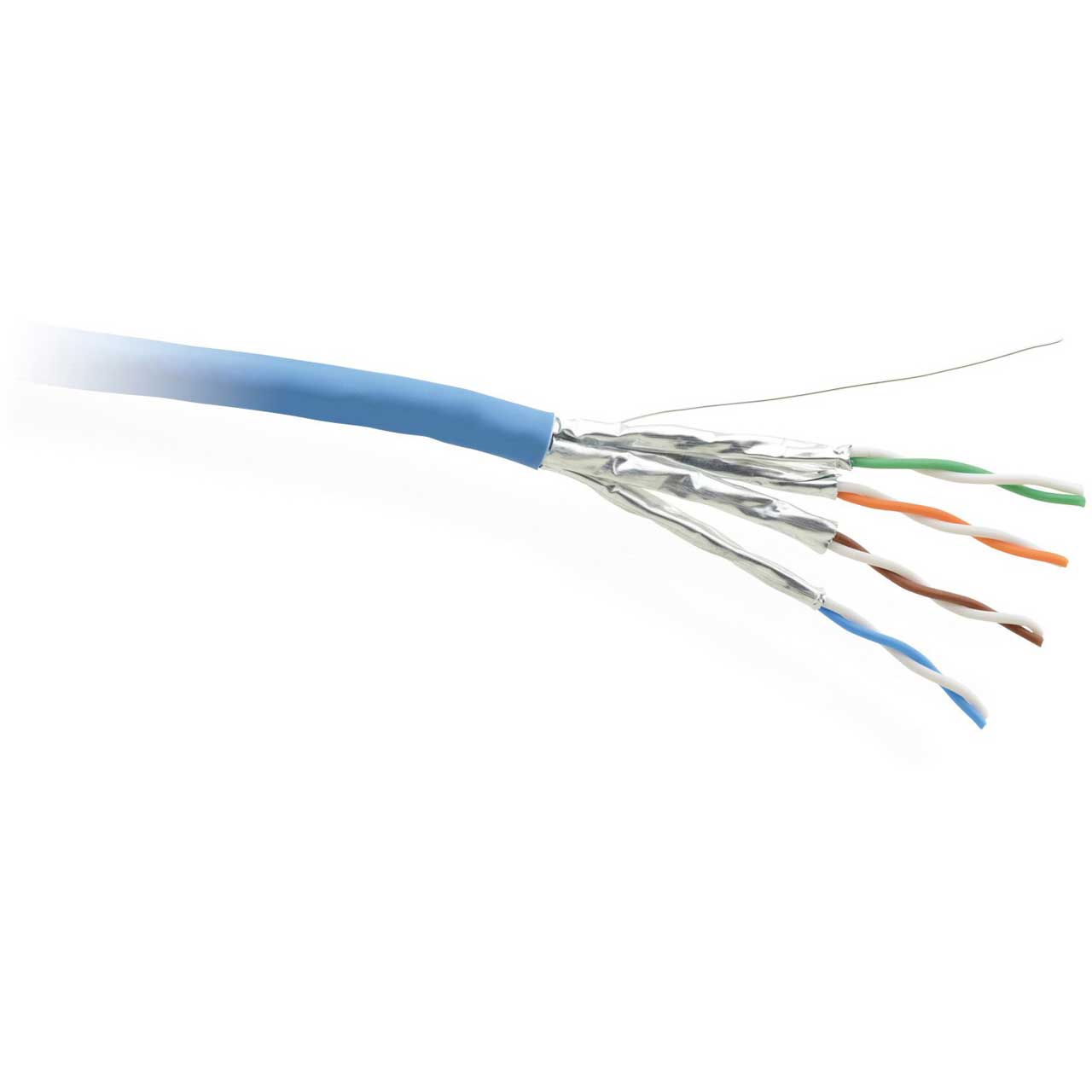

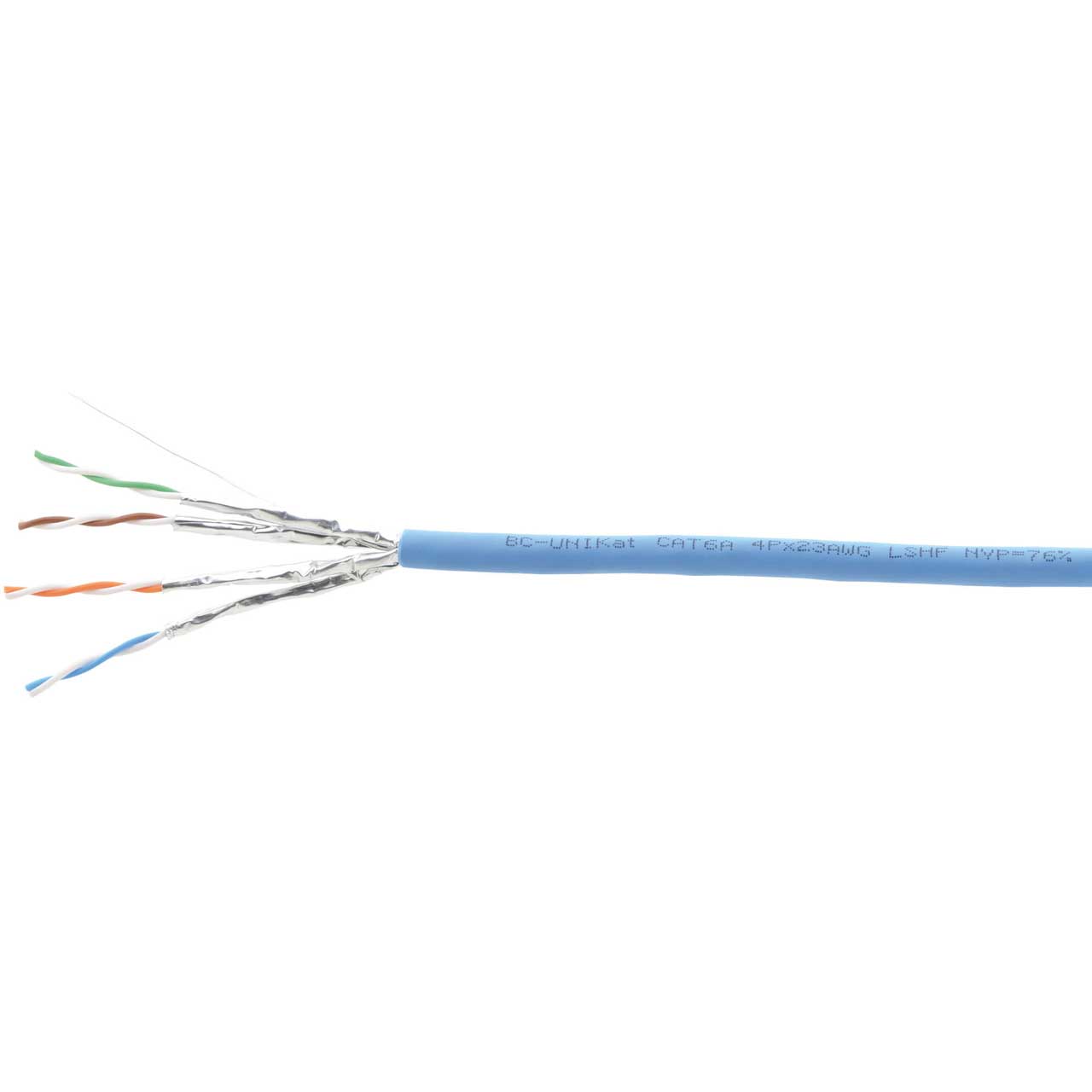

    • Quality Construction - 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded outer jacket.
    • Optimized for Kramer Hardware - Use with any of Kramer's wide range of twisted pair digital transmitter-receiver sets. Terminate with shielded transmitter-receiver sets (DGKatT and HDBaseT) and shielded RJ-45 connectors.
    • HDBaseT Recommended - www.hdbaset.org/hdbaset-recommended-cables/.
    • Reaction to Fire Classification - Dca-s2,d1,a1 (optional: B2ca-s1,d1,a1).
    • RJ-45 Connector - The larger diameter 23AWG twisted pair cable requires a suited RJ-45 connector. Kramer recommends the K-LAN CON-RJ45-3.
    • Length - Available in reel boxes of 100m (328ft) & wooden drums of 305/500m (1000/1640ft).


  • Specifications:

    • CONDUCTORS
    • Size: 4x2x23AWG
    • Material: Annealed copper
    • Diameter: 0.56mm ±0.01mm

      INSULATION
    • Material: Skin/Foam/Skin HDPE
    • Diameter: 1.33mm ±0.10mm
    • Color Code: White/Blue, White/Orange, White/Green, White/Brown

      SCREENING
    • Material: Alu/PET per pair (Alu side out)

      DRAIN WIRE
    • Material: Tinned copper
    • Diameter: 0.4mm ±0.01mm

      JACKET
    • Material: LSHF
    • Color: Blue RAL 5012
    • Thickness: =0.5mm
    • Diameter: 7.2mm ±0.2mm

      ELECTRICAL
    • Impedance: 1-100MHz: 100Ω ±15Ω, 100-250MHz: 100Ω ±20Ω, 250-500MHz: 100Ω ±25Ω
    • Propagation Velocity (NVP): 76%
    • Voltage Rating: 60V
    • Delay Skew: <45ns
    • Mutual Pair Capacitance: =42pF/m
    • Capacitance Unbalance Pair/ground: =1500pF/km
    • Conductor DC Resistance: <79.8Ω/km
    • Pair Resistance Unbalance DC: <1.5%
    • Dielectric Strength: 2.5kV DC (2s)
    • Insulation Resistance (500V): >5000MΩ/km

      USAGE AND ENVIRONMENTAL
    • Storage / Transport / Installation Temperature: 0°C to +50°C
    • Operation Temperature: -20°C to +60°C

      MECHANICAL
    • Maximum Pulling Tension: : 100N
    • Bending Radius - Installed: 50mm
    • Bending Radius - During Installation: 60mm

      STANDARDS COMPLIANCE - EC VERIFIED
    • Electrical: EIA/TIA 568A, ISO/IEC 11801
    • Fire Performance: IEC 60332-1
    • Smoke Density: IEC 61034
    • Halogen Free: IEC 60754
    • RoHS: 2011/65/EU

      STANDARDS COMPLIANCE
    • Reaction to Fire Classification: Dca-s2,d1,a1 (optional: B2ca-s1,d1,a1)


  • Item Includes:

    • BC-UNIKat/LSHF-100M


  • Warranty:

    • Lifetime Warranty


  • GTIN:

    7291063080051
