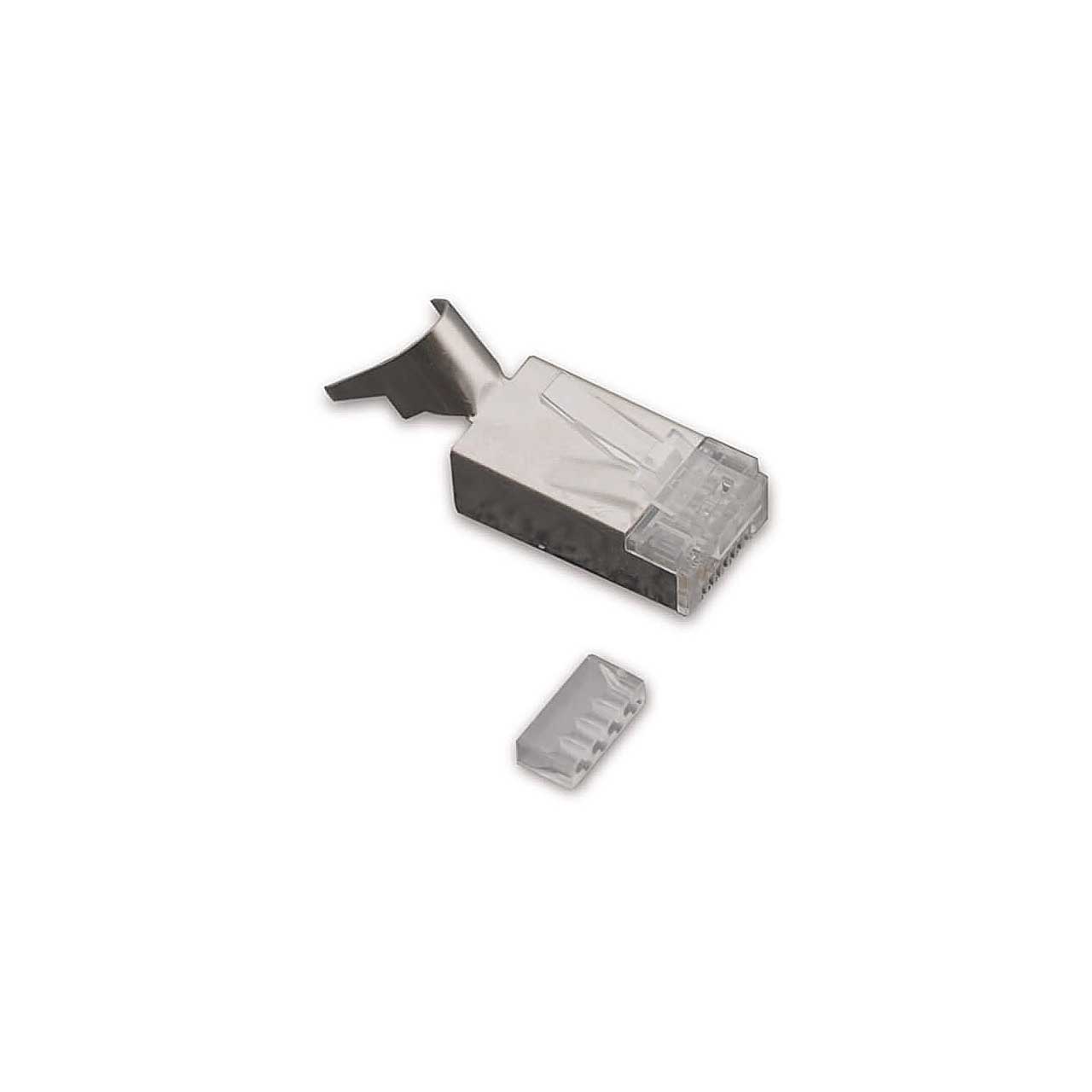

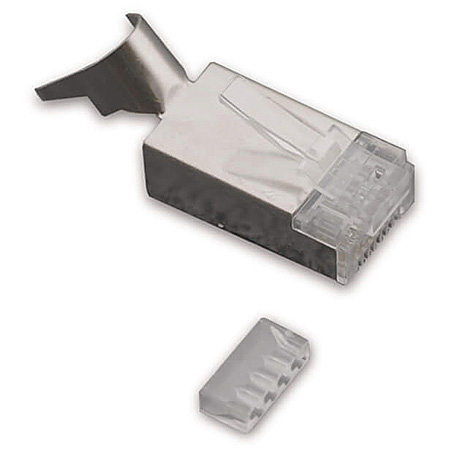

Kramer CON-RJ45-3 Crimp Style RJ45 Connectors for CAT6 - 10 Pack

CON-RJ45-3 - Overview

• Features:

  • Designed for 24AWG to 23AWG twisted pair cables
  • Overall cable insulation diameter - 1.40mm to 1.50mm


• Specifications:

  • Maximum current / Voltage:
  • 1.5A.


  • Contact resistance:
  • <20m ohm.


  • Insulation resistance:
  • >500M ohm.

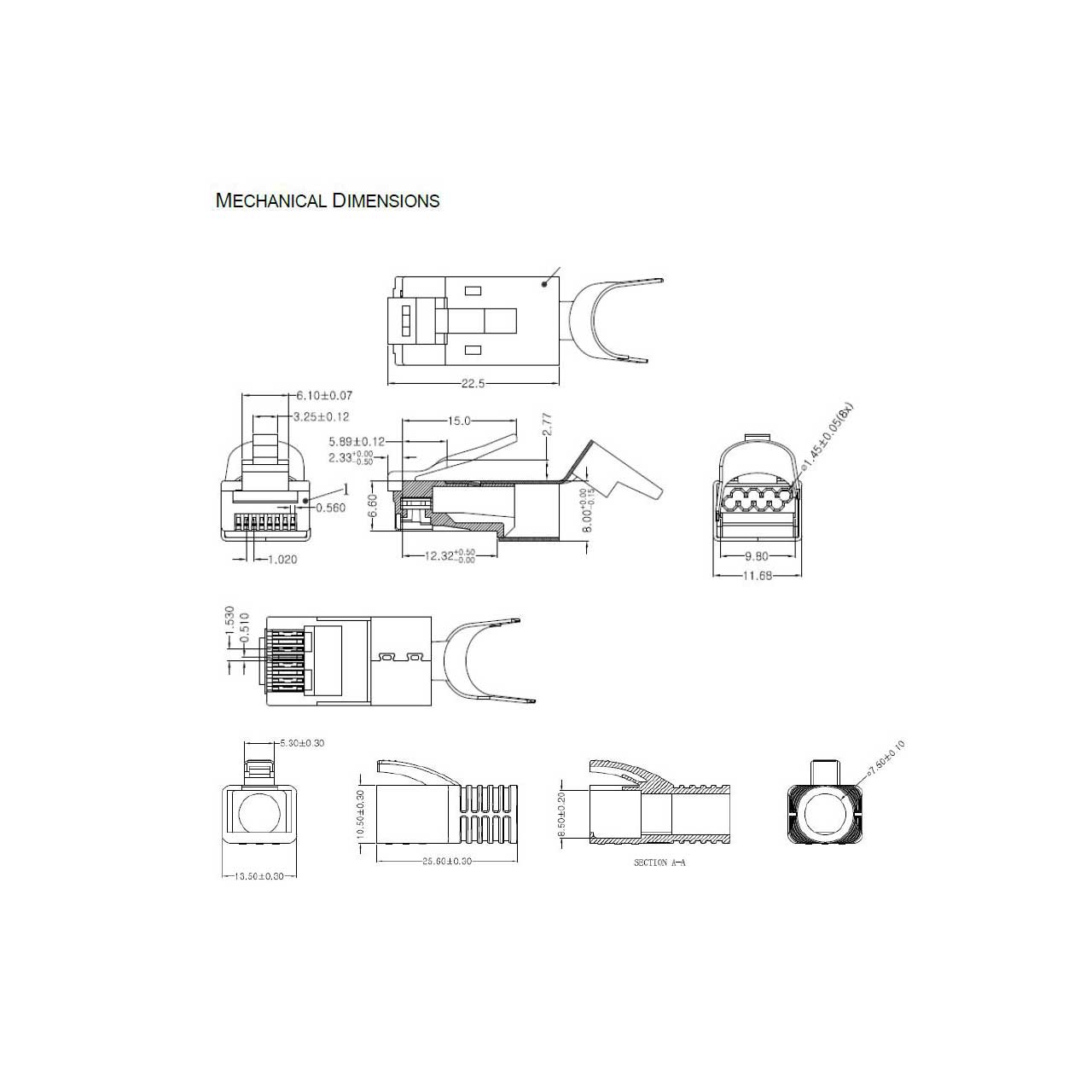

  • Mechanical dimensions compliance:
  • IEC 60606-7/FCC 68.500 22.5/11.68/8.0+0.00-0.15.


  • Cable-to-plug tensile strength:
  • 20LBs(89N) min.


  • Durability:
  • 2000 mating cycles.


  • Housing material:
  • Polycarbonate (PC.).


  • Shield material:
  • Per MIL-G-45204C.


  • Contact material:
  • High strength copper alloy [JIS C5191R-H(PBR-2)].


  • Contact plating:
  • 100 micro-inches nickel under plated & Gold selected.


  • Operating temperature:
  • -40 ~+125 °C.


  • Cable OD (min/max):
  • 7.0-8.5.


  • Insulation OD (min/max);
  • 1.40-1.50.


  • Conductor structure:
  • Solid.


  • Conductor AWG:
  • AWG26-AWG23.


  • Weight:
  • 2.812g.


• Item Includes:

  • CON-RJ45-3 Connectors - 10 Pack


• Warranty:

  • Standard 1 Year Warranty


• GTIN:

  7291063081799
