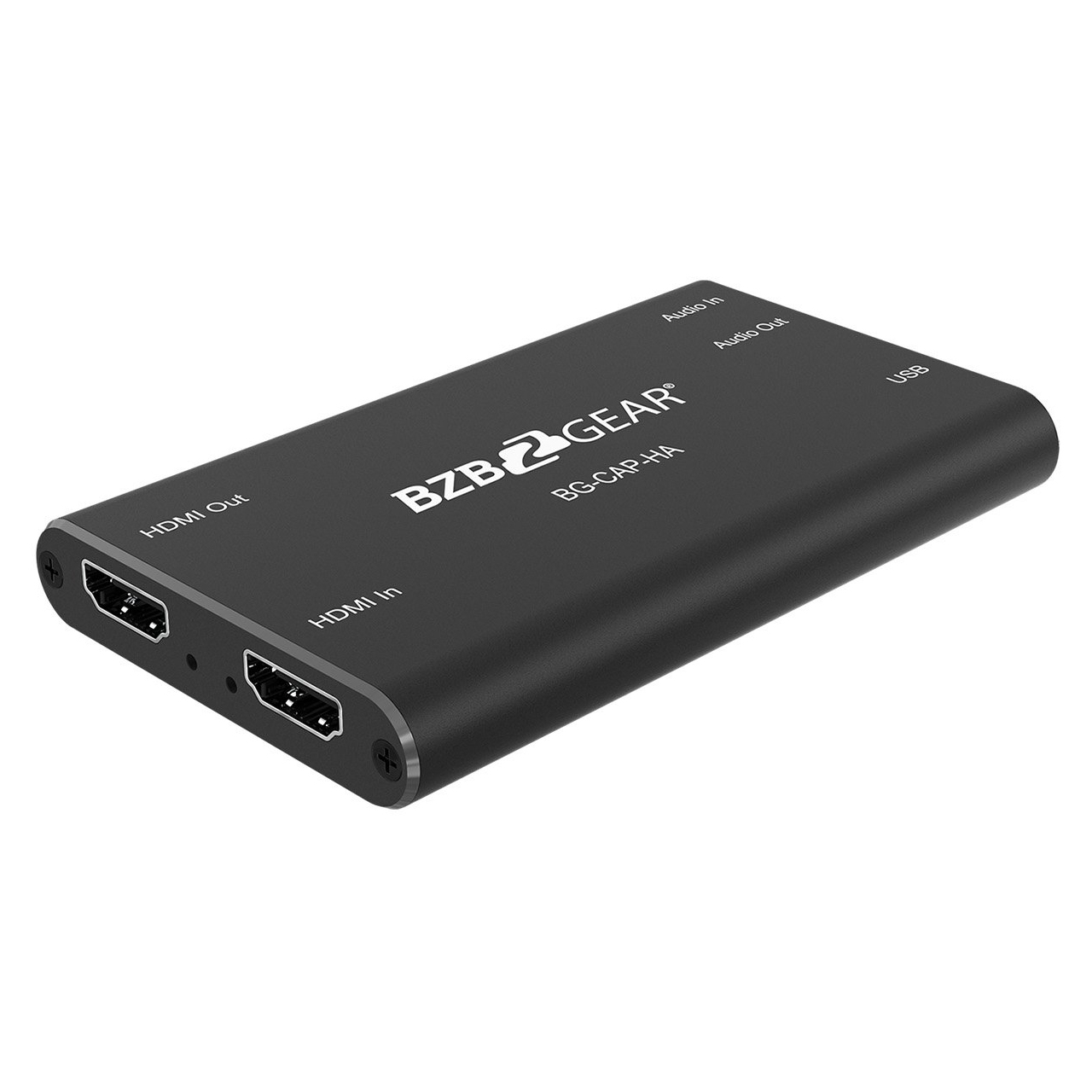

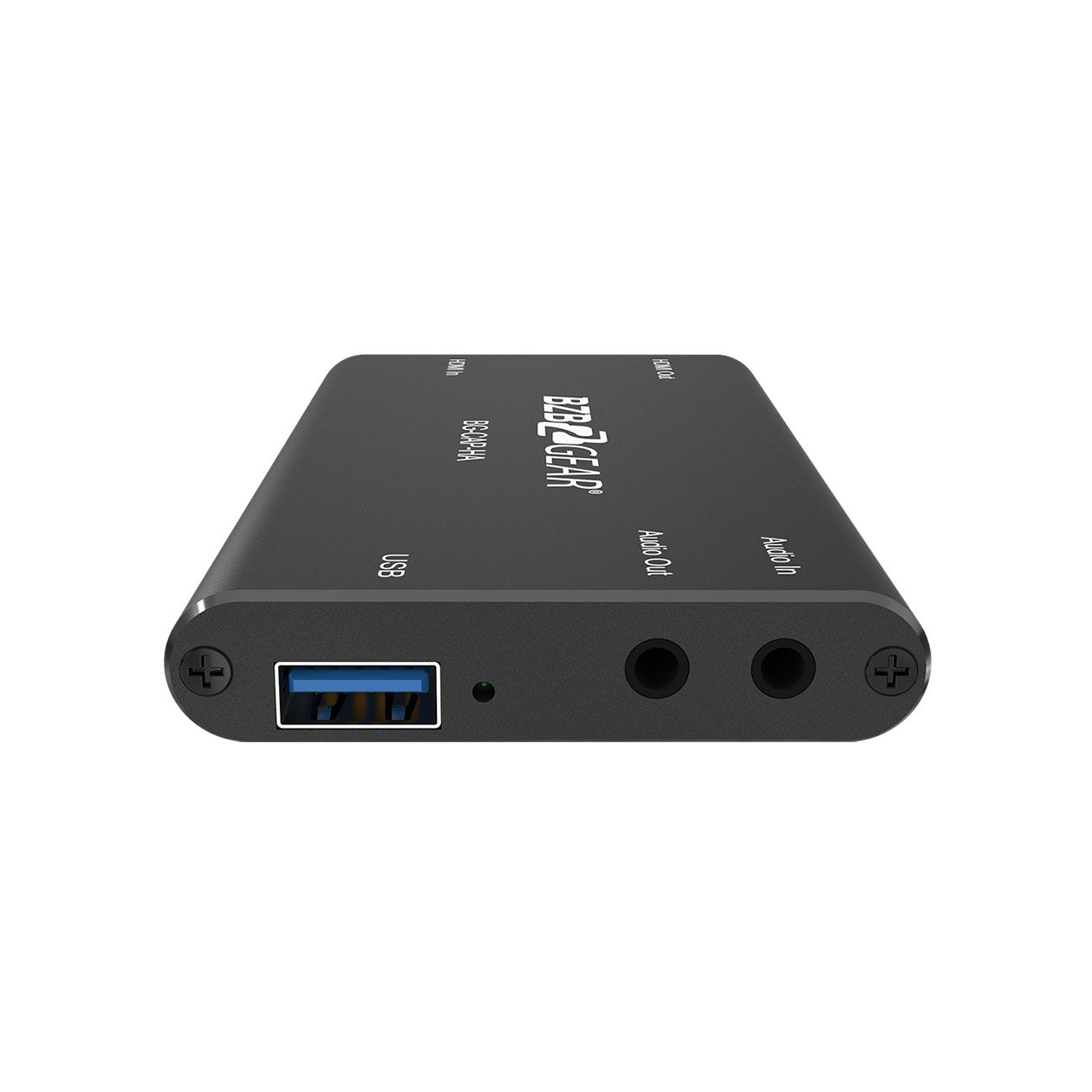

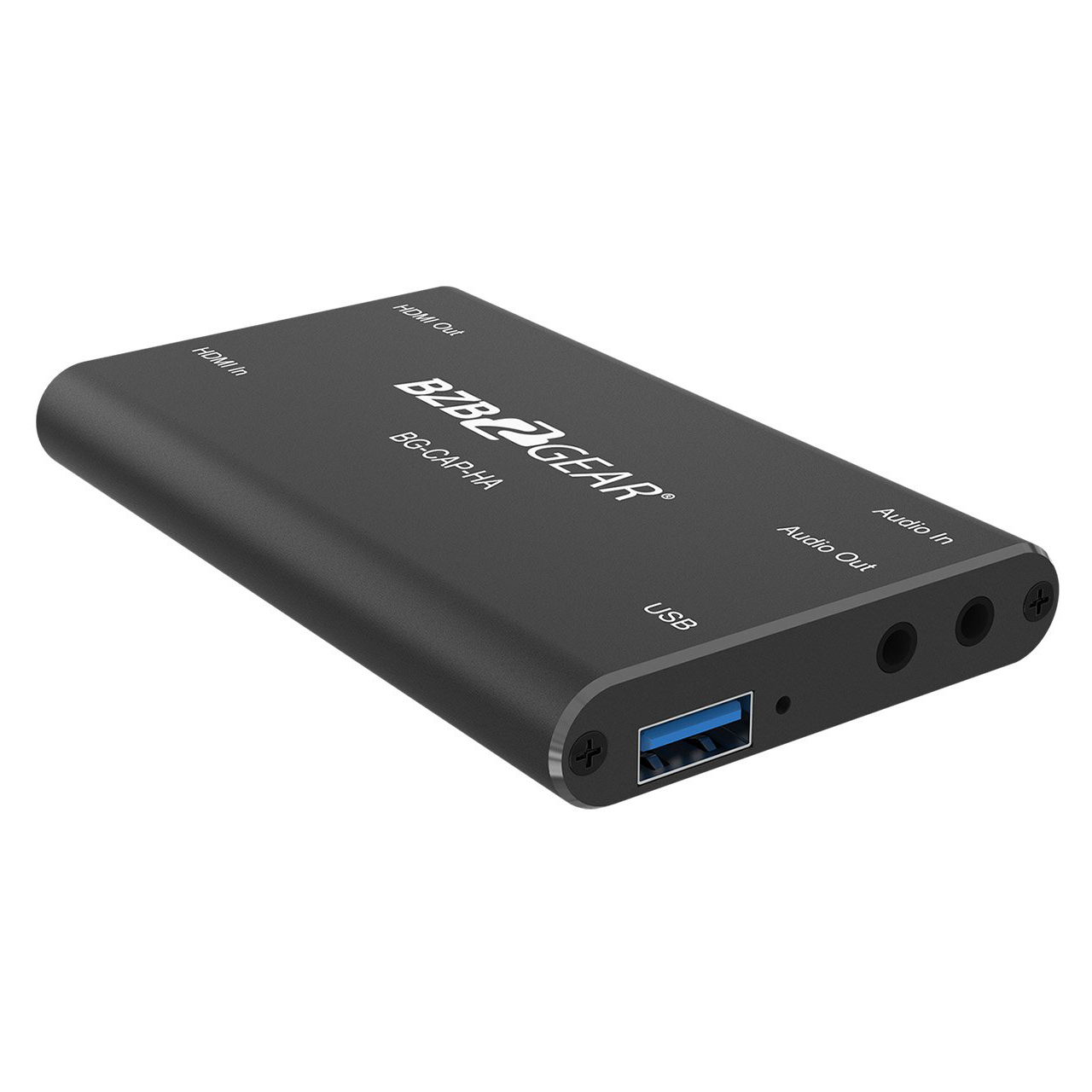

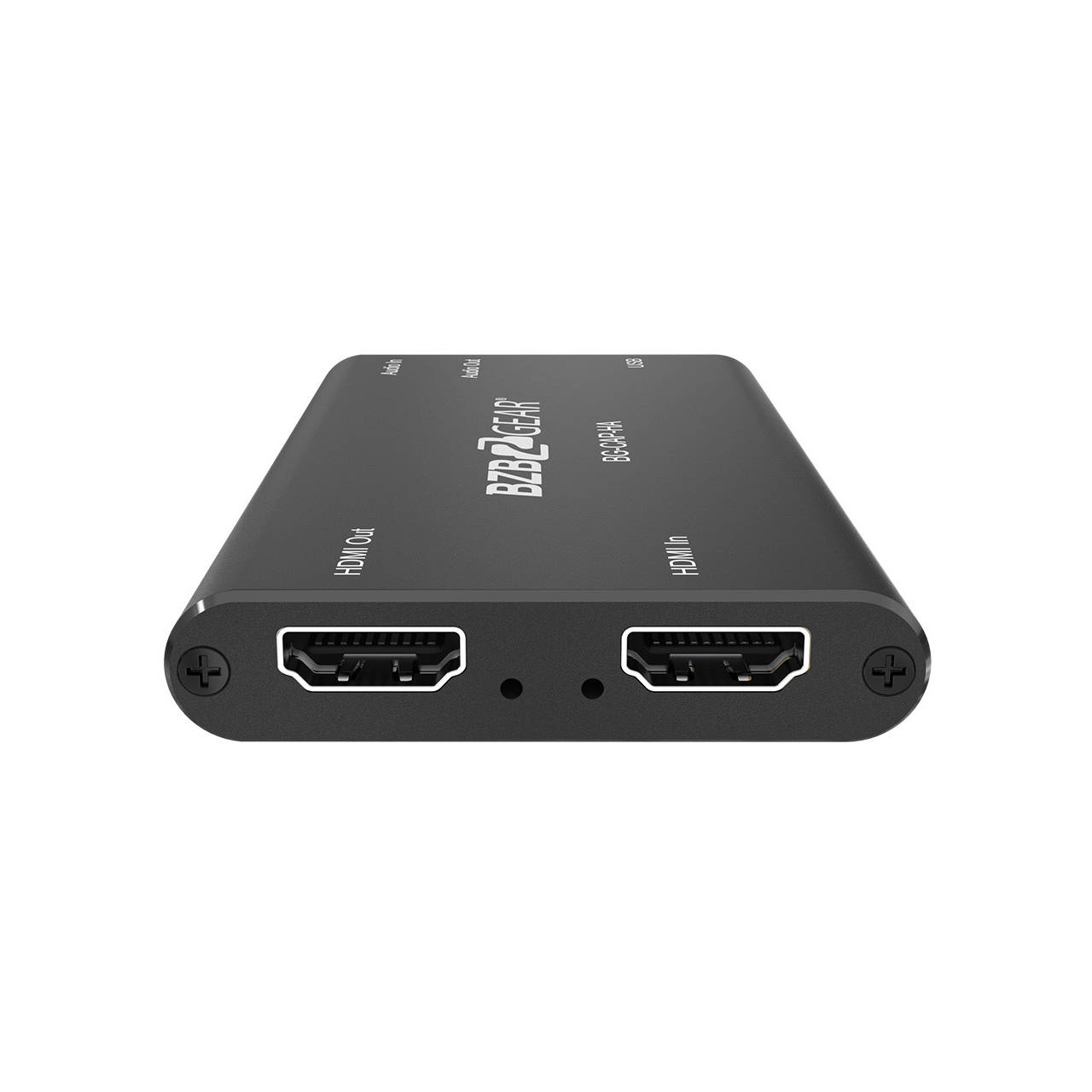

BZBGEAR BG-CAP-HA USB 3.0 1080P60Hz FHD Powered HDMI Capture Card

ITEM #: BG-CAP-HA MFG #: BG-CAP-HA

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$49.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    BG-CAP-HA - Overview

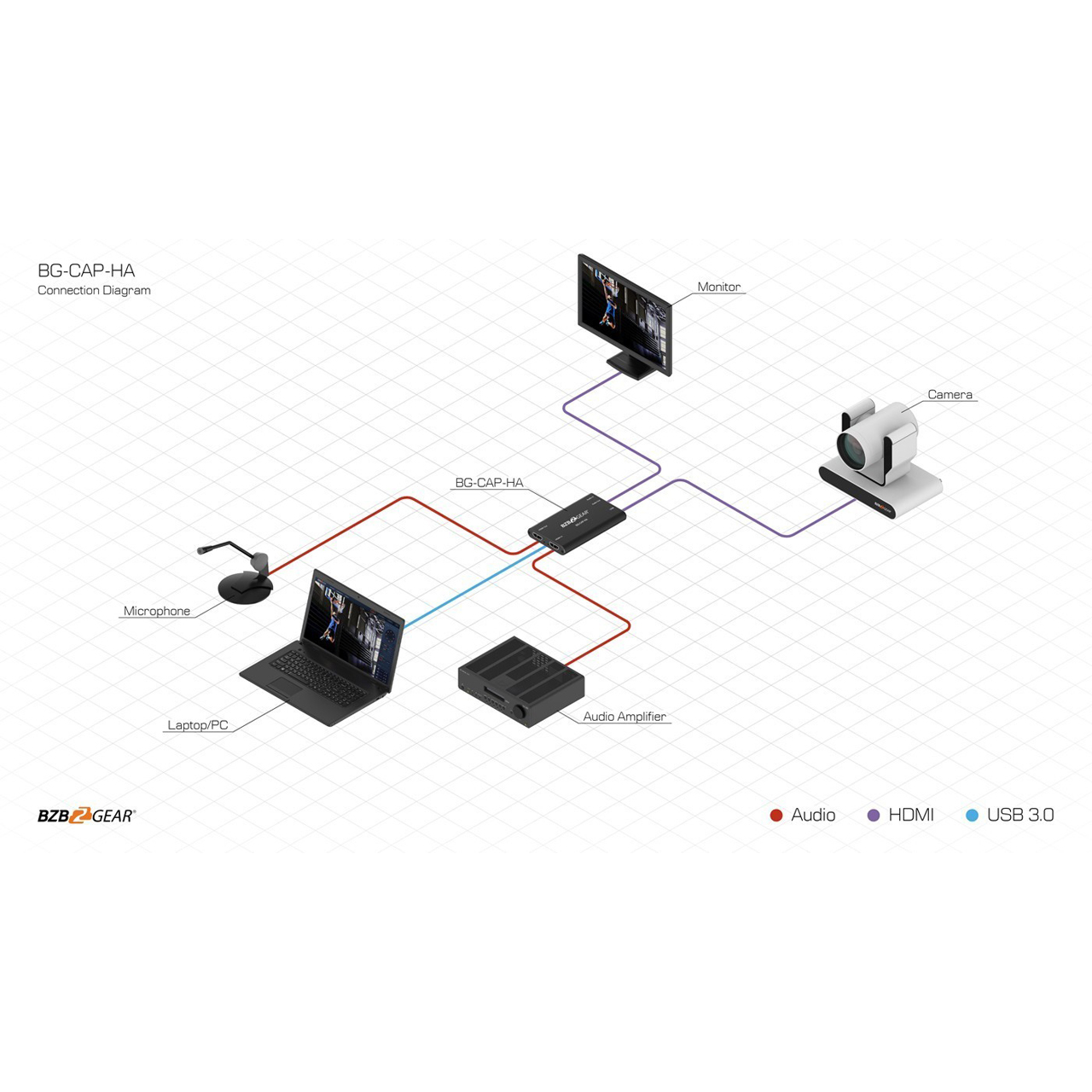

    The BZBGEAR BG-CAP-HA is a 4K capture device designed to convert an HDMI source to a USB 3.0 output for recording, editing, and/or streaming from a PC or Mac. This unit receives audio and video at resolutions up to 4K@60Hz 4:4:4 HDR10 with an output resolution of 1080P@60Hz. Either it is live video streaming setup for the interview, or streaming of gaming process with voice over, or conference room setup with camera and microphone - this device will do the job. Featuring an HDMI loop-out for a local display, it is also equipped with 3.5mm audio input and output ports that provide audio embedding or de-embedding for connecting microphone or external audio system.The USB 3.0 cable also supplies power to the unit, eliminating the need for a power supply. The BG-CAP-HA is HDCP compliant and will not capture protected content.

    • Features:

      • Loop-Out HDMI Loop-out to live view captured images
      • Portable Ideal for recording presentations on the go
      • USB Data Transfer
      • Stereo Audio Stereo audio input/output for connecting mics and local audio
      • Easy to Use Simple for anyone to learn
      • Compatibility Supports Mac OS, Windows, and a wide array of third-party applications
      • 1080P@60Hz Resolution

    • Specifications:

      • Technical
      • Input Connector:
        - 1x Type-A HDMI
        - 1x 3.5mm jack
      • Output Connector:
        - 1x Type-A HDMI
        - 1x Type-A USB
        - 1x 3.5mm jack
      • HDMI Standard: 2.0
      • HDMI Input Resolution: Up to 4K@60Hz 4:4:4, HDR10
      • HDMI Output Resolution: Up to 4K@60Hz 4:4:4, HDR10
      • USB Output Color Space: YUV2, RGB
      • HDMI Audio Format: LPCM 7.1 audio, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS:X, and DTS-HD Master Audio pass-through
      • Microphone Audio Format: PCM 2.0
      • Headphone Audio Format: PCM 2.0
      • OS Support: Windows, Mac OS X, Linux
      • Video Capture Format:
        - HDMI Source: 4K@60Hz 4:4:4, 1080p@60Hz 4:4:4, 720p,480,576
        - Captured Video by USB: 1080p@60Hz/720p, 1080p@60Hz/720p, 720p, 480, 576

        Physical
      • Operation Temperature: 23°F - 131°F (-5°C - 55°C)
      • Storage Temperature: -13°F - 158°F (-25°C - 70°C)
      • Relative Humidity: 10% - 90%, Non-condensing
      • Dimension (WxHxD): 4" x 0.51" x 2.4" (102mm x 13mm x 61mm)
      • Weight: 0.17lbs (75g)

    • Item Includes:

      • 1x BZBGEAR BG-CAP-HA USB 3.0 Powered HDMI Capture Device
      • 1x User Manual

    • Warranty:

      • 3 Year Limited Warranty

    • GTIN:

      0850023208217


    BG-CAP-HA - Required Accessories
