ViewZ VZ-215LED-HDR 21.5 Inch Broadcast SDI Monitor - 1000nits - 1080p Resolution - 3G-SDI/HDMI/VGA/AV

VZ-215LED-HDR - Overview

• Features:

  • HDR (HDMI) PQ supported
  • 3G-SDI 1 input and output loop-through
  • Center Marker, Safety Area
  • 1000 cd/m2 High Brightness
  • Multiple Video Interface (3G-SDI, HDMI, VGA and Analog Video)
  • VESA Mount 75x75mm & 100x100mm
  • 21.5" 10bit/3G-SDI Monitor
  • HDR 101% Rec.709 color space
  • 2ch Audio Level Meter


• Specifications:

  • Display
  • Screen Size: 21.5"
  • Max Resolution: 1920 x 1080 (Full HD) IPS pixel
  • Pixel Pitch: 0.24825mm x 0.24825mm
  • Brightness: 1000 cd/m² (Typical)
  • Contrast Ratio: 1500:1
  • Aspect Ratio: 16:9
  • Viewing Angle (H/V): 170°/170°
  • Display Color: 16.7 M
  • Color Space: 101% Rec. 709
  • HDR: ST2084 300/1000/10000/HLG

    Interface
  • 3G-SDI In/Out: 1/1 (Loop-through)
  • HDMI (1.4) In: 1
  • VGA In: 1
  • USB: 1

    Audio
  • Built-In Speaker: 1W x 2
  • SDI: 16ch 48kHz 24 bit
  • HDMI: 8ch 24 bit
  • Ear Jack: 3.5mm - 2ch 48kHz 24 bit

    Dimensions & Weight

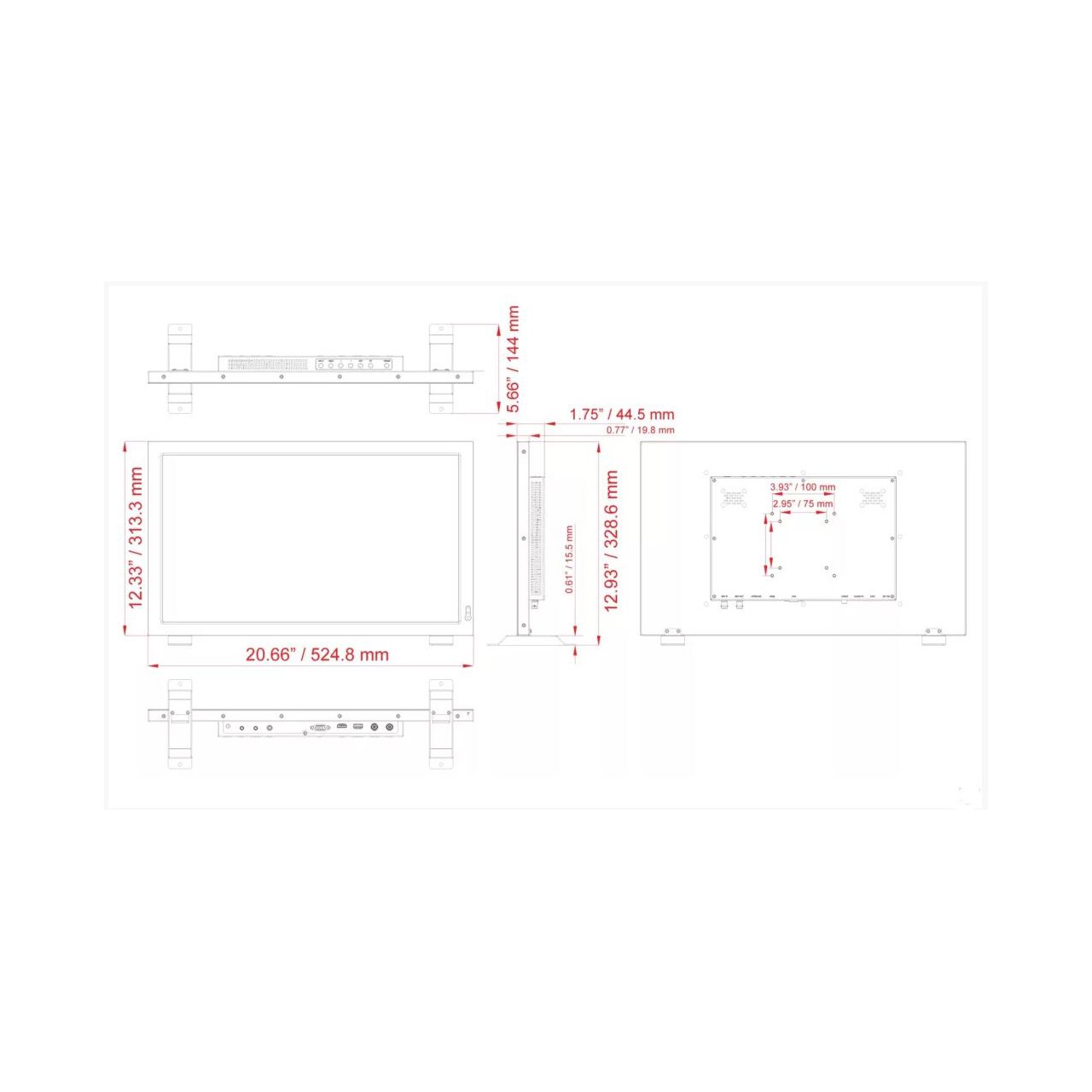

  • Outline Dimensions (WxHxD): 20.66" x 12.33" x 0.78" (524.8mm x 313.3mm x 19.8mm)
  • Net Weight: 10.56lbs (4.8kg)

    Input Format
  • SD-SDI/HD-SDI/3G-SDI (Level A&B): 1080p (24/25/30/50/60p), 1080i (50/60p), 720p(50/60p)
  • HDMI: 2160p (24/25/30p), 1080p (24/25/30/50/60p), 1080i (50/60p), 720p(50/60p)

    General Summary
  • Power - Electrical Ratings: DC 12V - 24V
  • Power - Consumption: = 36W (15V)
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Operating Humidity: 90% RH for 240 hrs, TA=+ 140°F (60°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Battery Plate: V-mount/Anton Bauer Mount (Option)


• Item Includes:

  • 1x 12V DC Adapter
  • 1x Manual
  • 1x VGA Cable
  • 1x HDMI A/A Cable
  • 1x AV Cable
  • 1x Rack Mount Bracket Set
  • 1x Desktop Stand Set


• Warranty:

  • 2 Years
