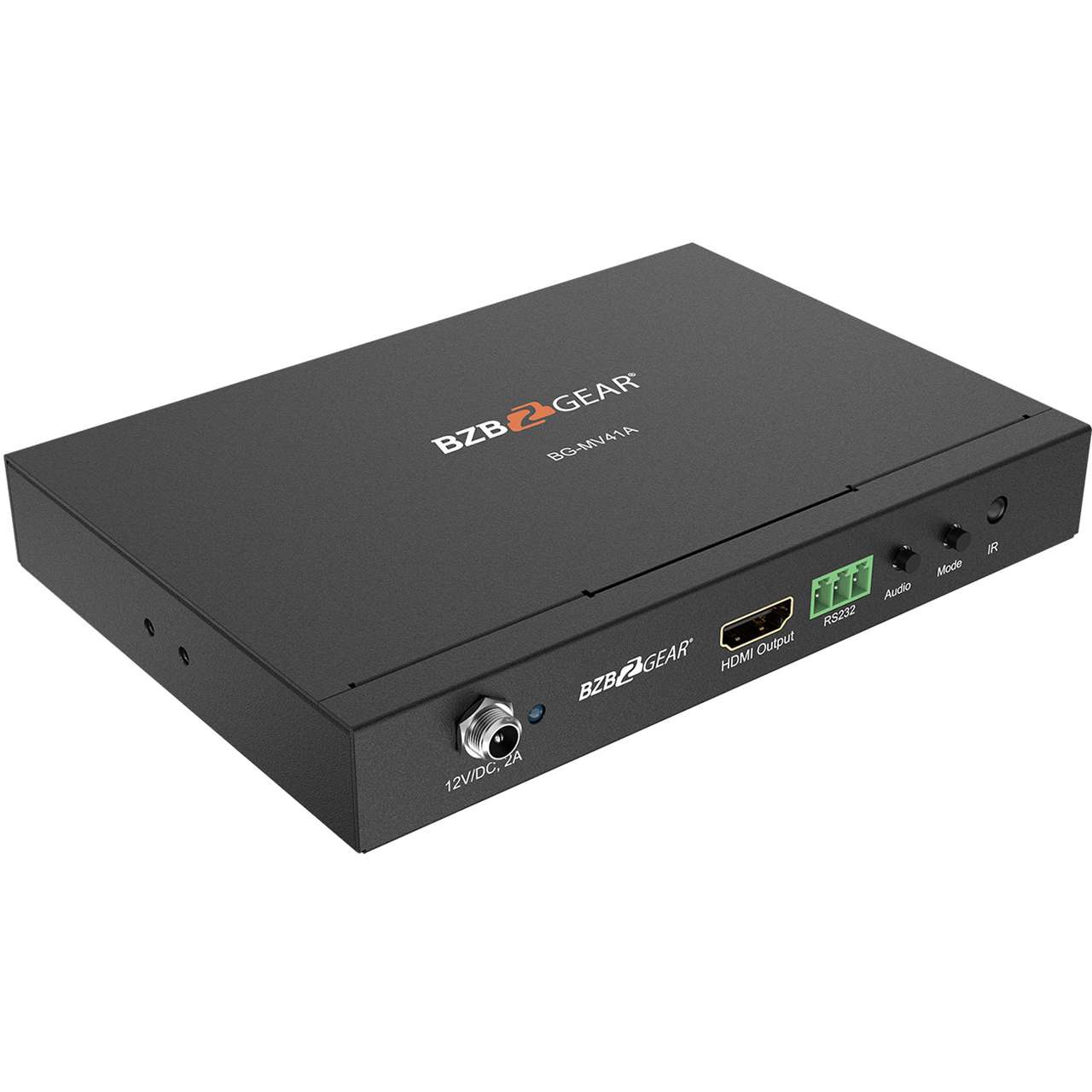

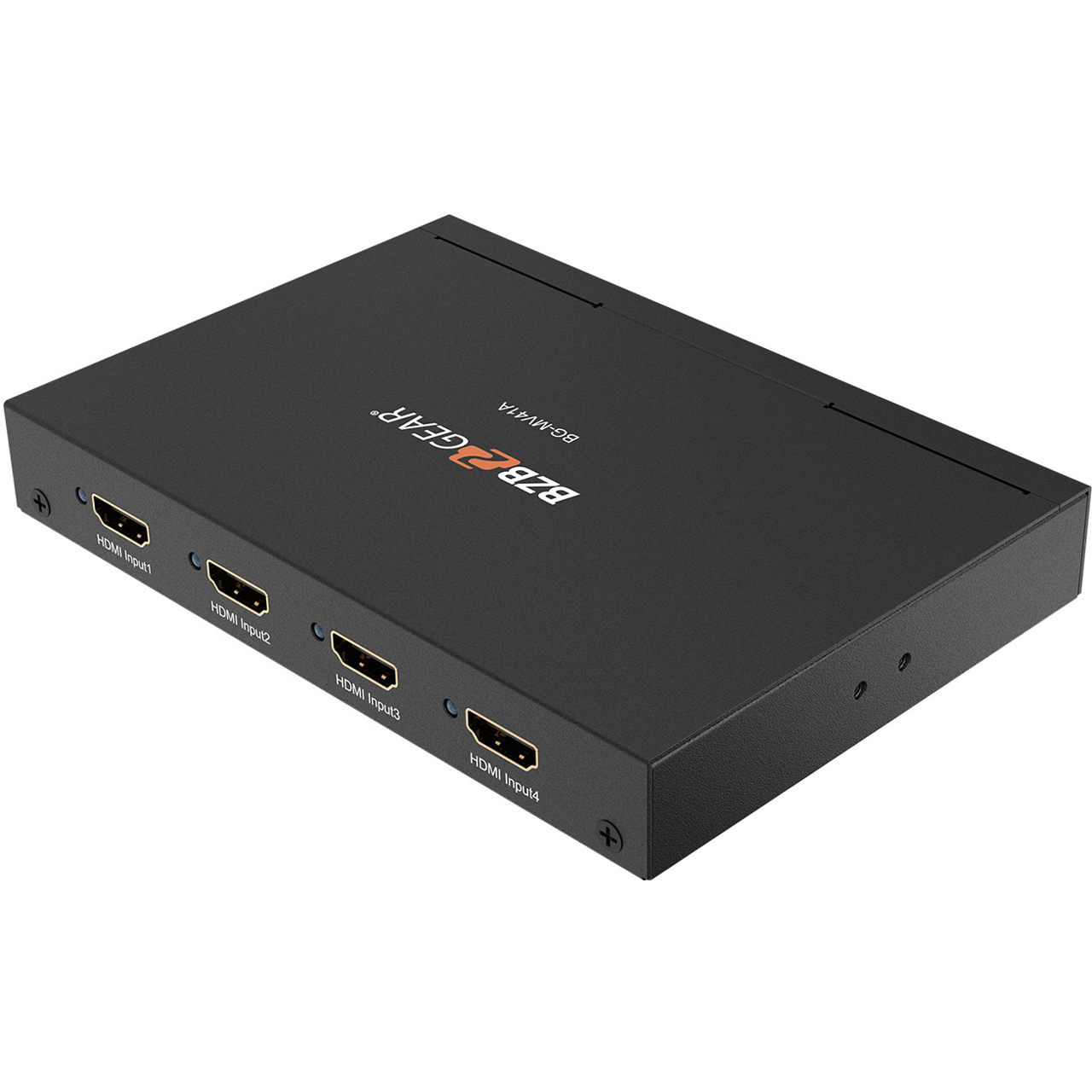

Introducing the BZBGEAR BG-MV41A, a versatile 4x1 HDMI Switcher Scaler and Multiviewer with IR/RS232 capabilities. This device empowers users to connect up to four HDMI sources, offering simultaneous display or seamless full-screen switching, supporting resolutions up to 1080p@60Hz. It's ideal for various applications, including conference rooms, presentations, industrial workstations, and surveillance systems, providing customizable layouts, audio signal toggling, and multiple control options to enhance the viewing experience.
Connectivity & Picture

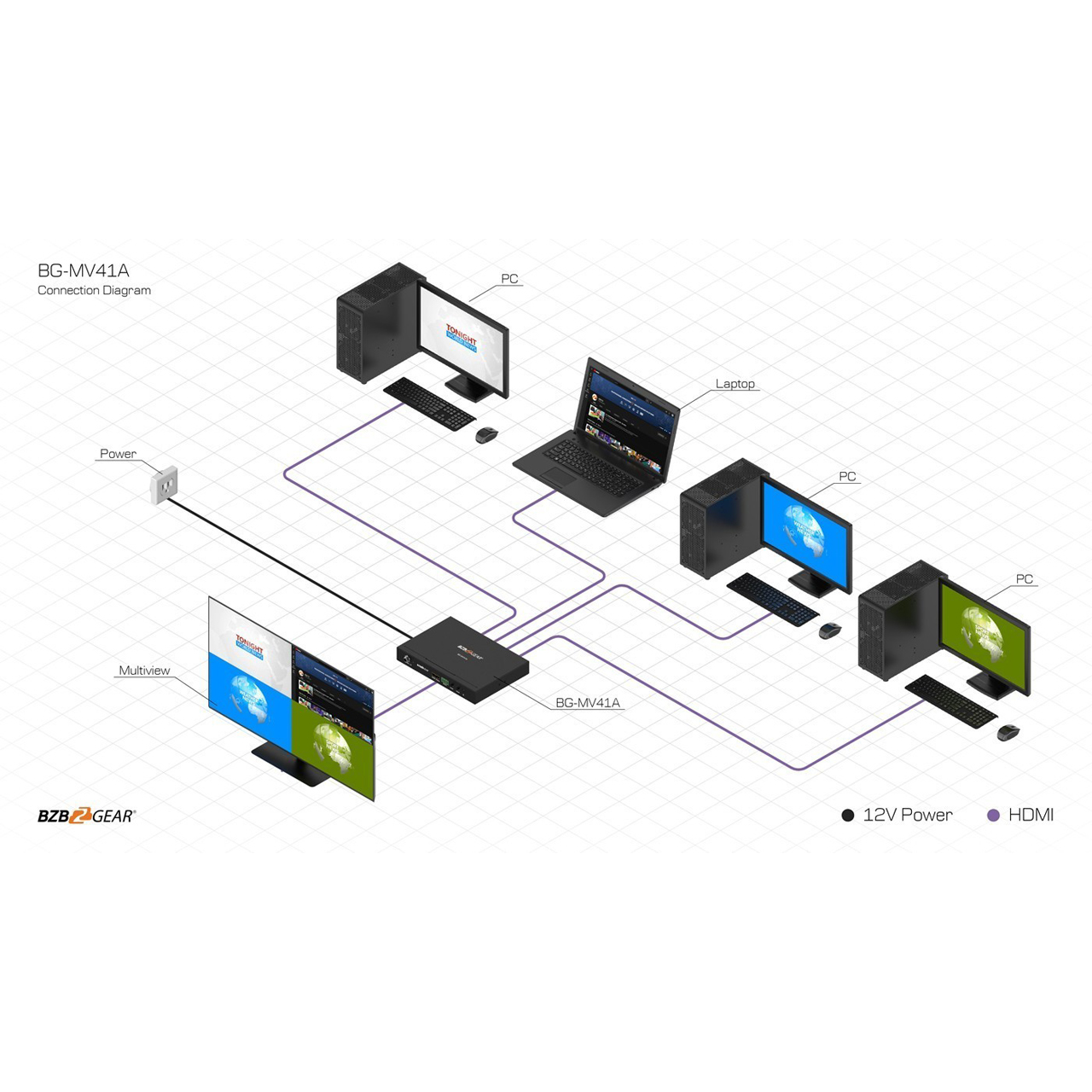

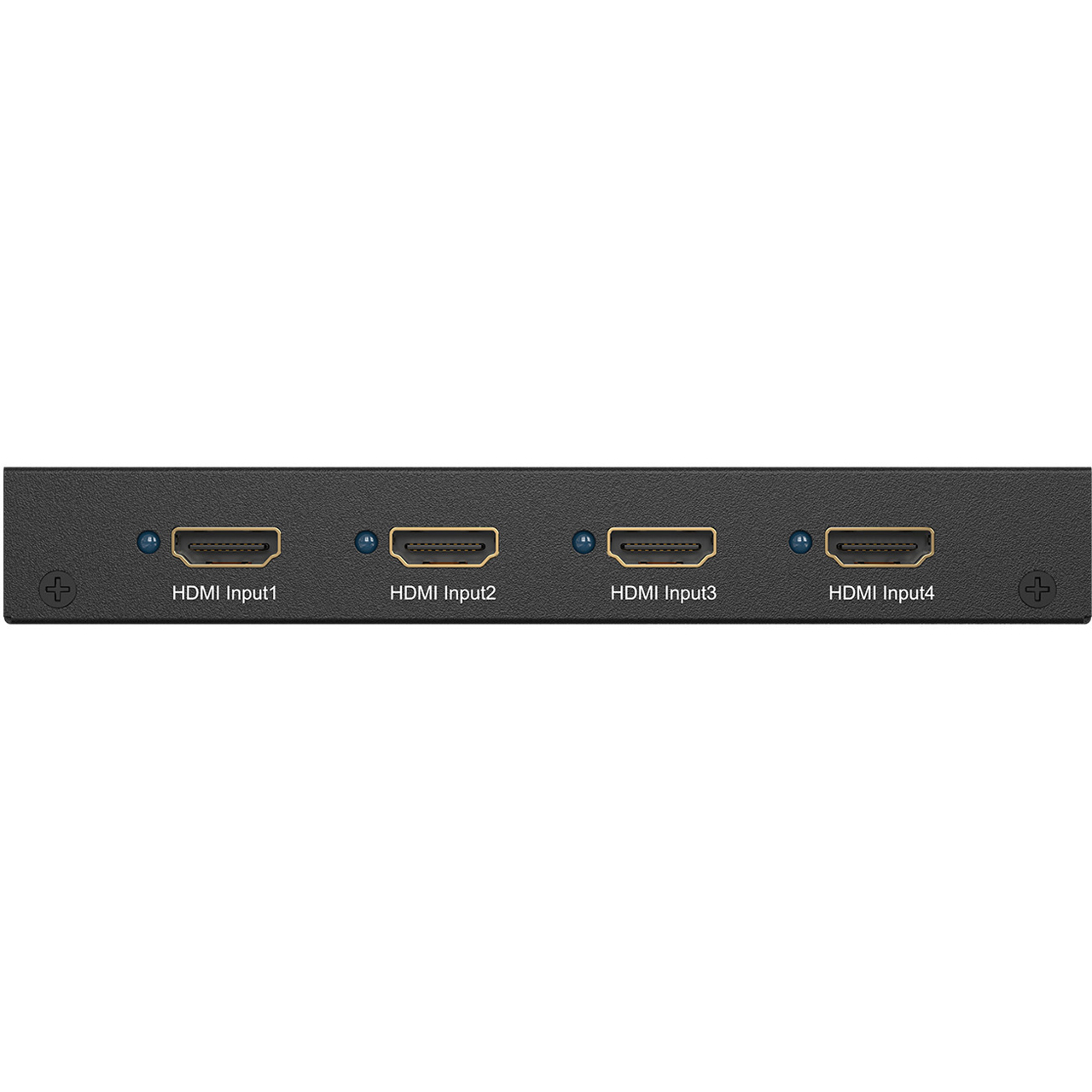

With four HDMI inputs and one HDMI output, users can display up to four devices on one screen. These sources can be shown simultaneously or can be seamlessly switched between while in full-screen mode. This device is compliant with HDMI 1.3a and HDCP 1.2. The BG-MV41A supports image upscaling and downscaling. This minimizes conflict when using multiple sources with varying resolutions on a single screen. With supported resolutions reaching up to 1080p@60Hz, this switcher provides professional quality for viewers.
Control

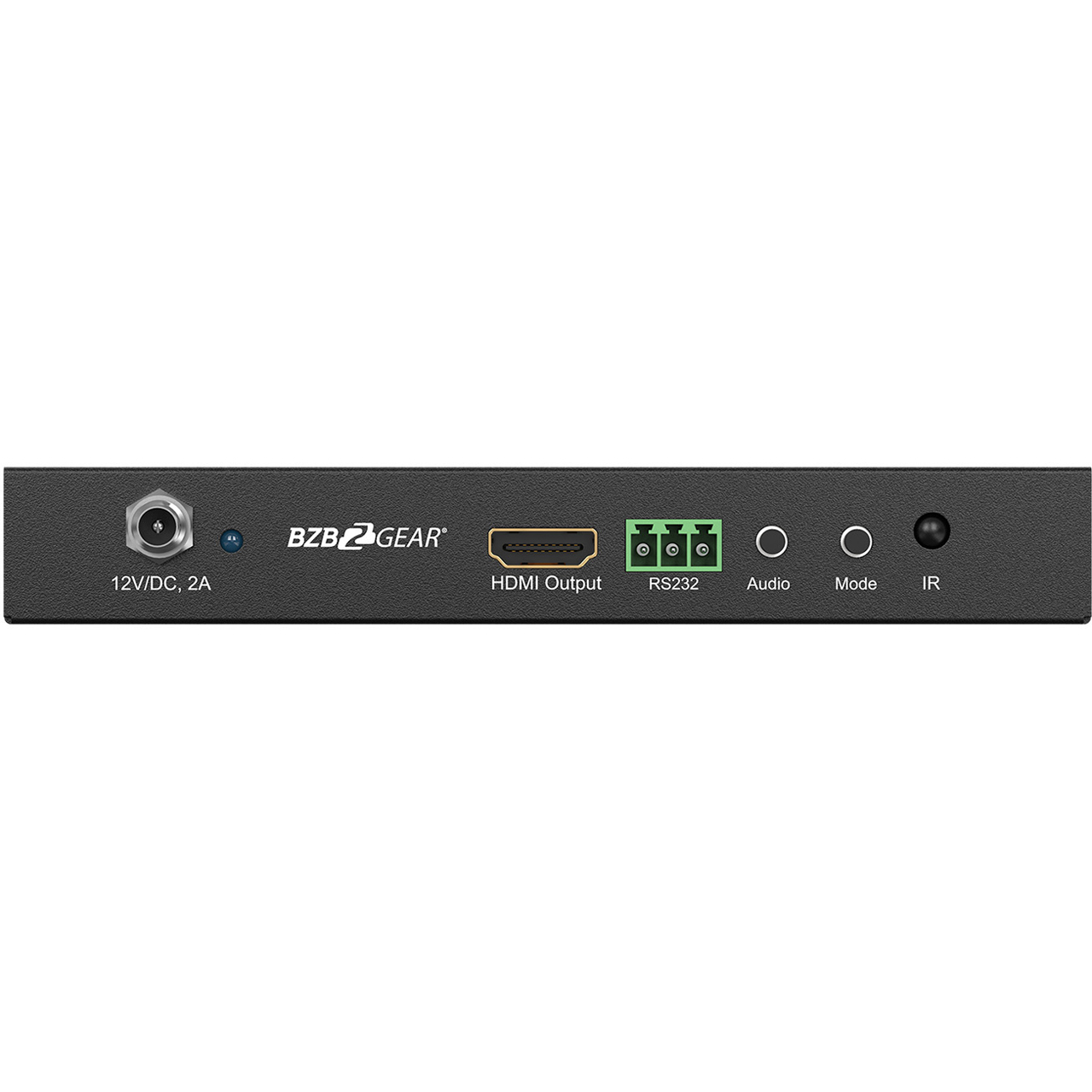

When using multi-view, various layouts are available for users to customize the way they display video sources. There are five layouts to select from - including full screen mode for switching between HDMI sources. The device also features buttons on the front panel for easy operation. An audio push button can be used to toggle between the audio signals from each of the HDMI inputs. For remote control, IR remote and RS232 control options are available. Thanks to the advanced control options, the BG-MV41A is a great choice for different applications due to its versatility. Security camera setups may work best with multi-view, while conference room presentations will likely favor full screen orientations. Whatever the application needed, the BG-MV41A is ready for the task.
