BZBGEAR BG-MVS4X4-4KL 4x4 4K UHD HDMI Video Wall Processor and Seamless Matrix Switcher

ITEM #: BG-MVS4X4-4KL MFG #: BG-MVS4X4-4KL

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BG-MVS4X4-4KL - Overview

The BZBGEAR BG-MVS4X4-4KL 4K60 4:4:4 HDMI matrix is a versatile high-speed matrix switcher and video wall processor with multiple applications. This system can be configured for two different output modes, serving as a 4x4 seamless matrix switcher or as a 2x2, 4x1, or 1x4 video wall solution, among other possibilities. Additionally, it is equipped with a web browser interface module for convenient control and configuration when used either as a standalone device or in conjunction with a third-party control system. Control options include front-panel push buttons, an IR remote control, RS-232 interface, and TCP/IP connectivity.

  • Features:

    • Compliant HDMI 2.0b, HDCP 2.2 and HDCP 1.4
    • 2 Operational Modes 4x4 Matrix (seamless switch), Video wall (2x2, 4x1 or 1x4 etc configuration)
    • Audio Formats Support LPCM, DD, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
    • Advanced EDID management Seamless communication between sources and displays
    • Web Interface Module For control and configuration of Matrix

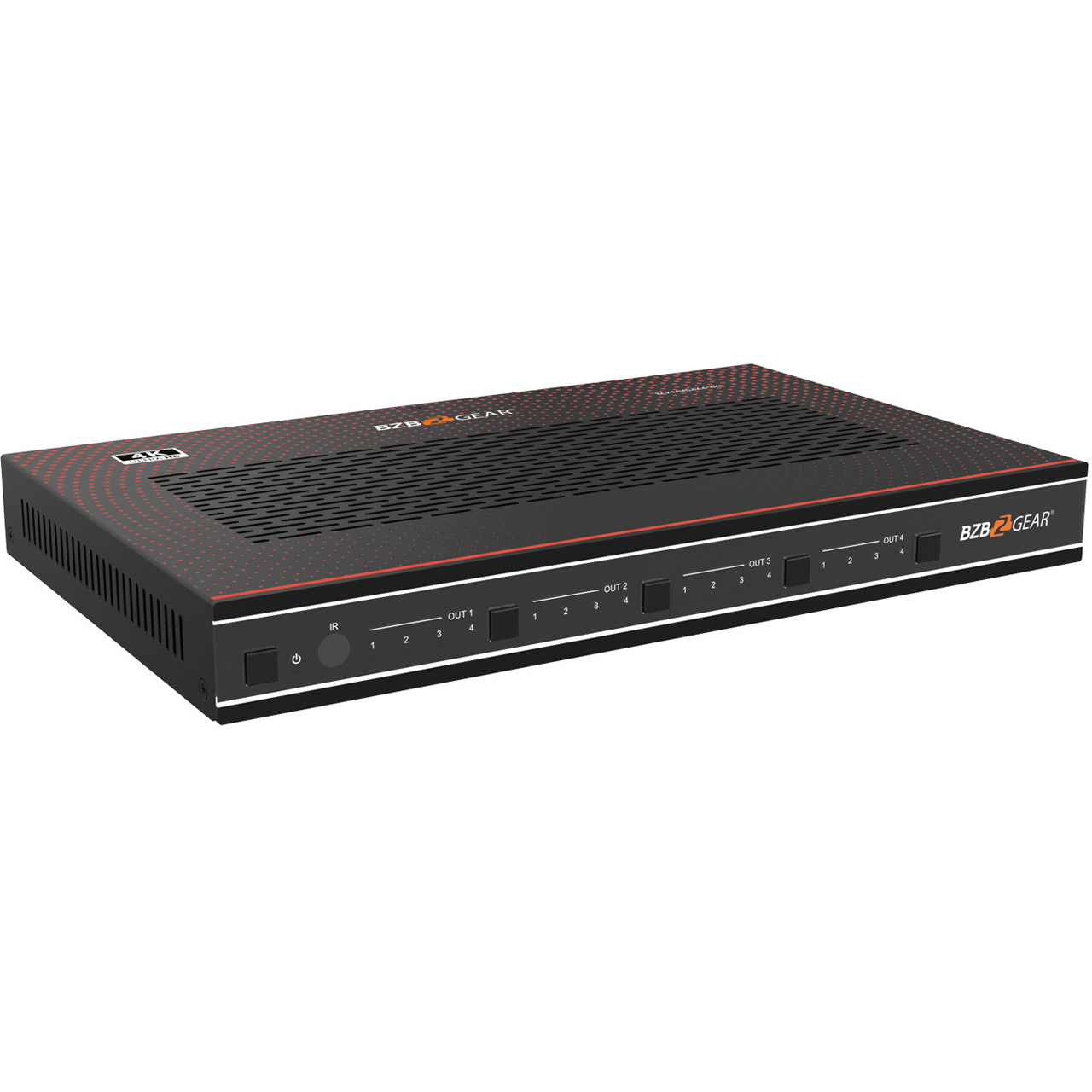

    • Control Options Control via front panel, IR, RS-232, and TCP/IP
    • Seamless video switching Video inputs support all industry standard video resolutions

  • Specifications:

    • Technical
    • HDMI Compliance: HDMI 2.0b
    • HDCP Compliance: HDCP 2.2/1.4
    • Video Bandwidth: 594MHz/18Gbps
    • Video Resolutions Input: VGA-WUXGA (up to 1920x1200@60Hz), 480i-4K (3840x2160@60Hz 4:4:4, 4096x2160@60Hz 4:4:4)
    • Output: 4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50, 3840x2160p30, 1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50, 1920x1200p60rb, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60, auto
    • Color Space: RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0
    • Color Depth: 8/10/12-bit
    • IR Level: 12Vp-p
    • IR Frequency: 38KHz
    • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio

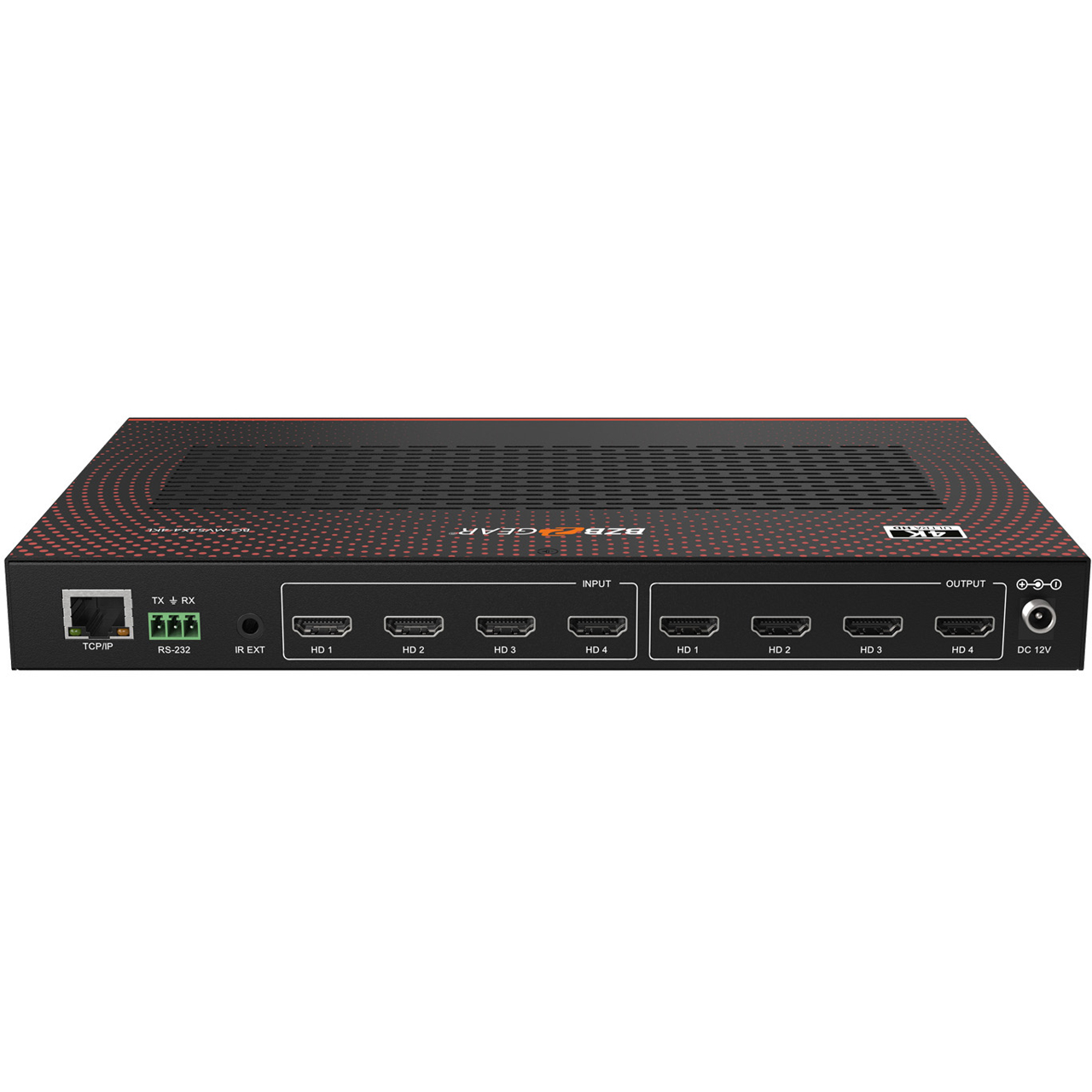

      Connection

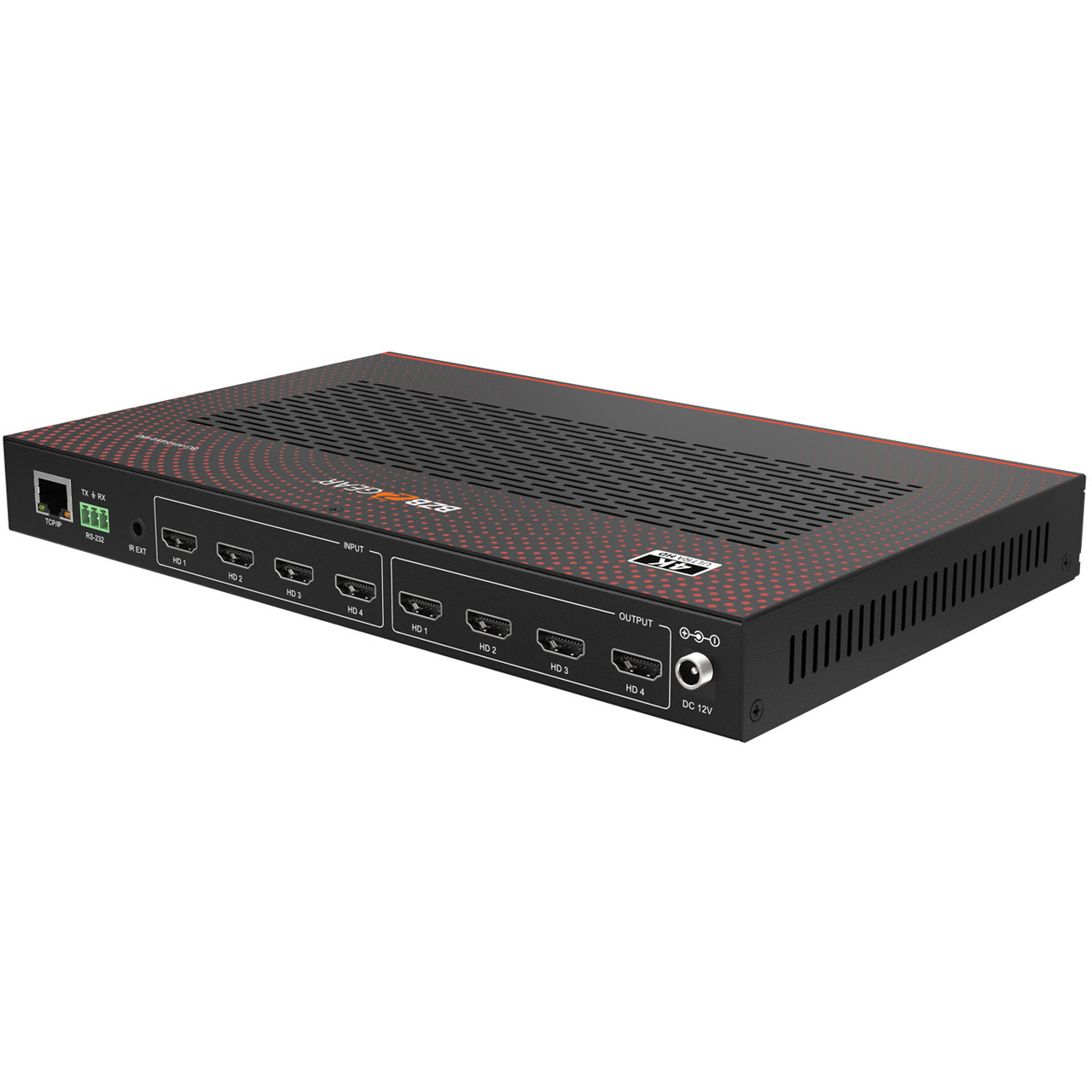

    • Inputs: 4x HDMI Type A (19-pin female)
    • Outputs: 4x HDMI Type A (19-pin female)
    • Control:
      - 1x RS-232 (3pin-3.81mm phoenix connector)
      - 1x TCP/IP (RJ45)
      - 1x IR EXT (3.5mm Stereo Mini-jack)

      Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions (WxDxH): 11" x 6.5" x 1.2" (270mm x 166mm x 30mm)
    • Weight: 2.6lbs (1165g)
    • Power Supply Input: AC 100 - 240V 50/60Hz Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified) Power Consumption 19.56W (Max)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (non-condensing)

  • Item Includes:

    • 1x BZBGEAR BG-MVS4X4-4KL 18Gbps 4x4 Seamless Matrix
    • 1x Matrix IR Remote
    • 1x 3pin-3.81mm Phoenix Connector (male)
    • 1x 20-60KHz IR Wideband Receiver Cable (1.5 meters)
    • 2x Mounting Ear
    • 4x Machine Screws (KM3*4)
    • 1x 12V/2.5A Locking Power Adapter
    • 1x User Manual

  • Warranty:

    • 5 Year Limited Warranty

  • GTIN:

    0850050134473
