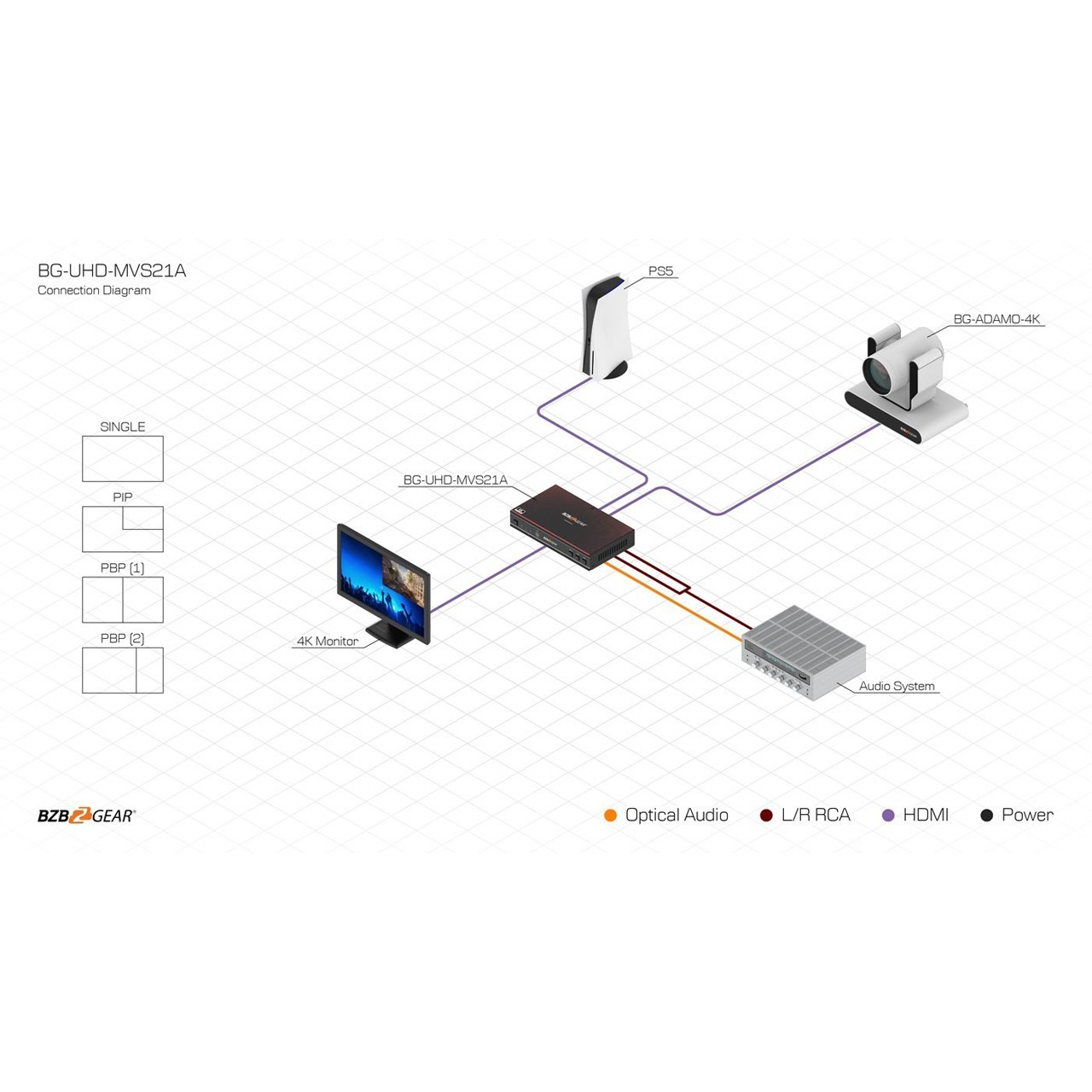

The BZBGEAR BG-UHD-MVS21A 4K@60 2x1 Multiviewer Seamless UHD Video Switcher is designed to allow you to display multiple video sources at 4K resolution on a single screen. It combines two video signals and allows you to manage each input, create combinations of the two inputs, and adjust their positions on the display. Besides instant switching between 2 sources the BG-UHD-MVS21A has the ability to display the two video inputs in a Picture-in-Picture (PIP) or Picture-by-Picture (PBP) mode. In PIP mode, one of the video inputs is displayed as a small inset window on top of the other input, which takes up the majority of the screen. In PBP mode, the two video inputs are displayed side-by-side, taking up equal or partial amounts of screen space.
Connectivity and Quality

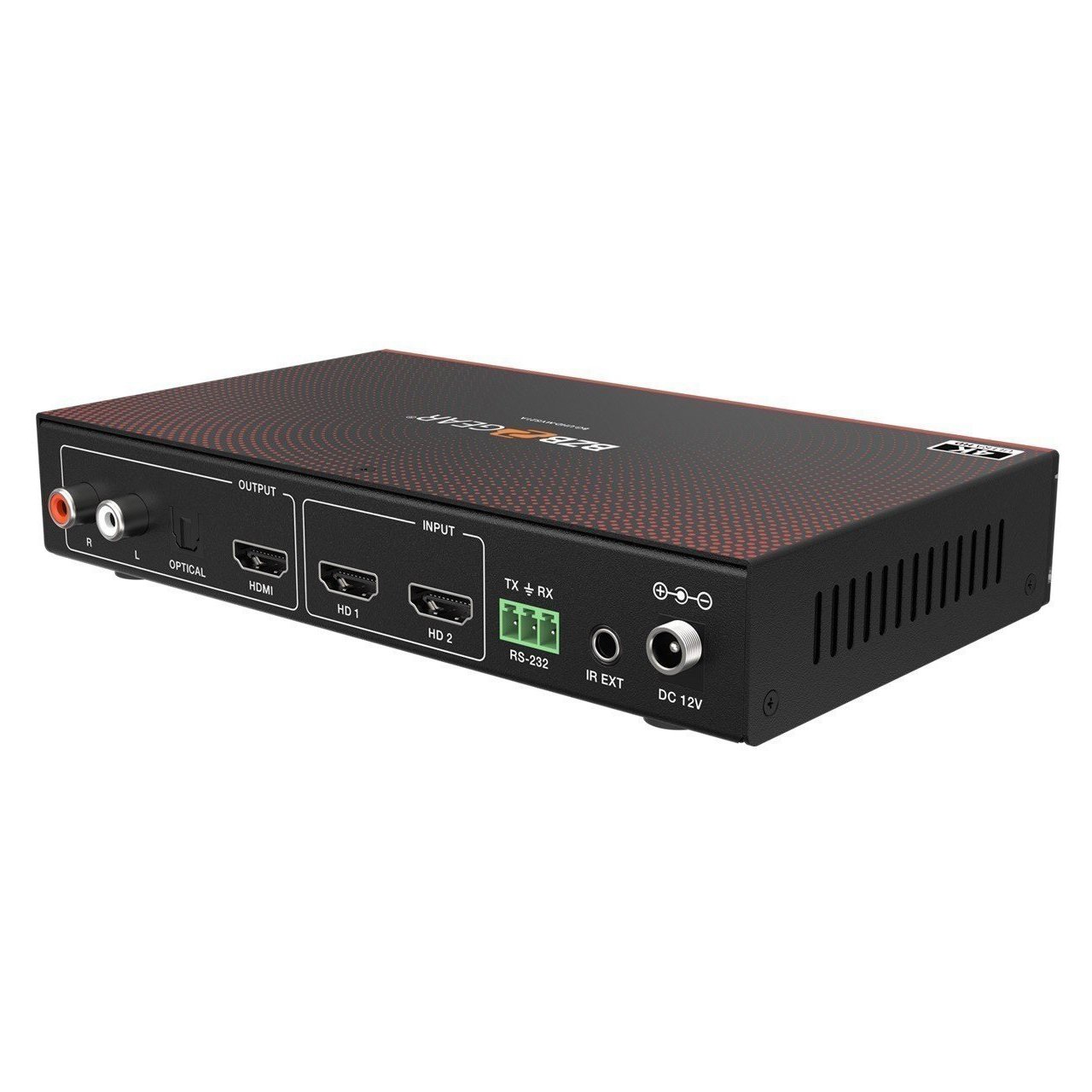

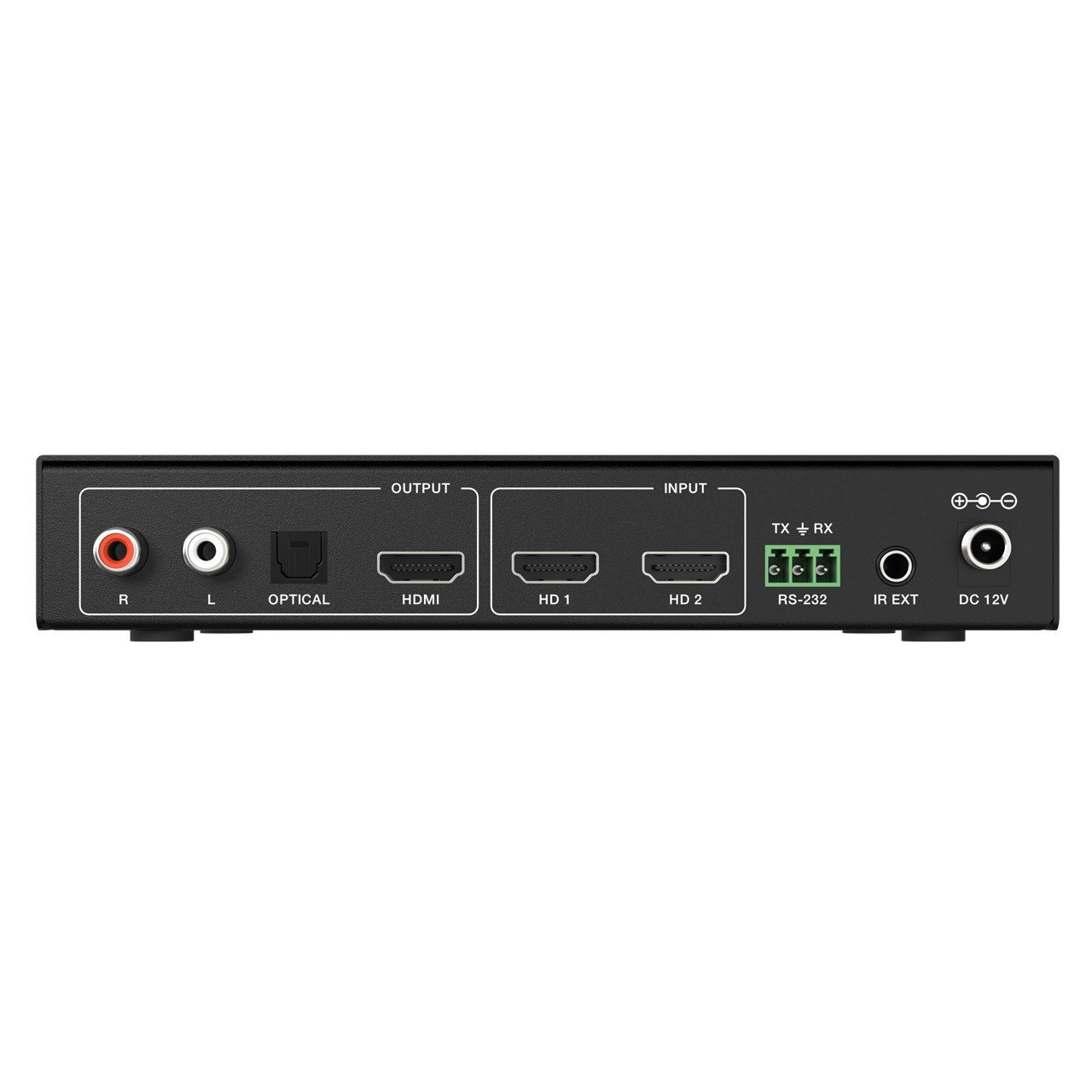

This device supports a wide range of input resolutions up to 4096x2160p 60Hz. It also could de-embed audio from any of the sources in different formats for your external audio system. Supported audio formats are LPCM, AC3, DD+, DTS, DTS- HD. User can control the volume of audio in LPCM format.
Control

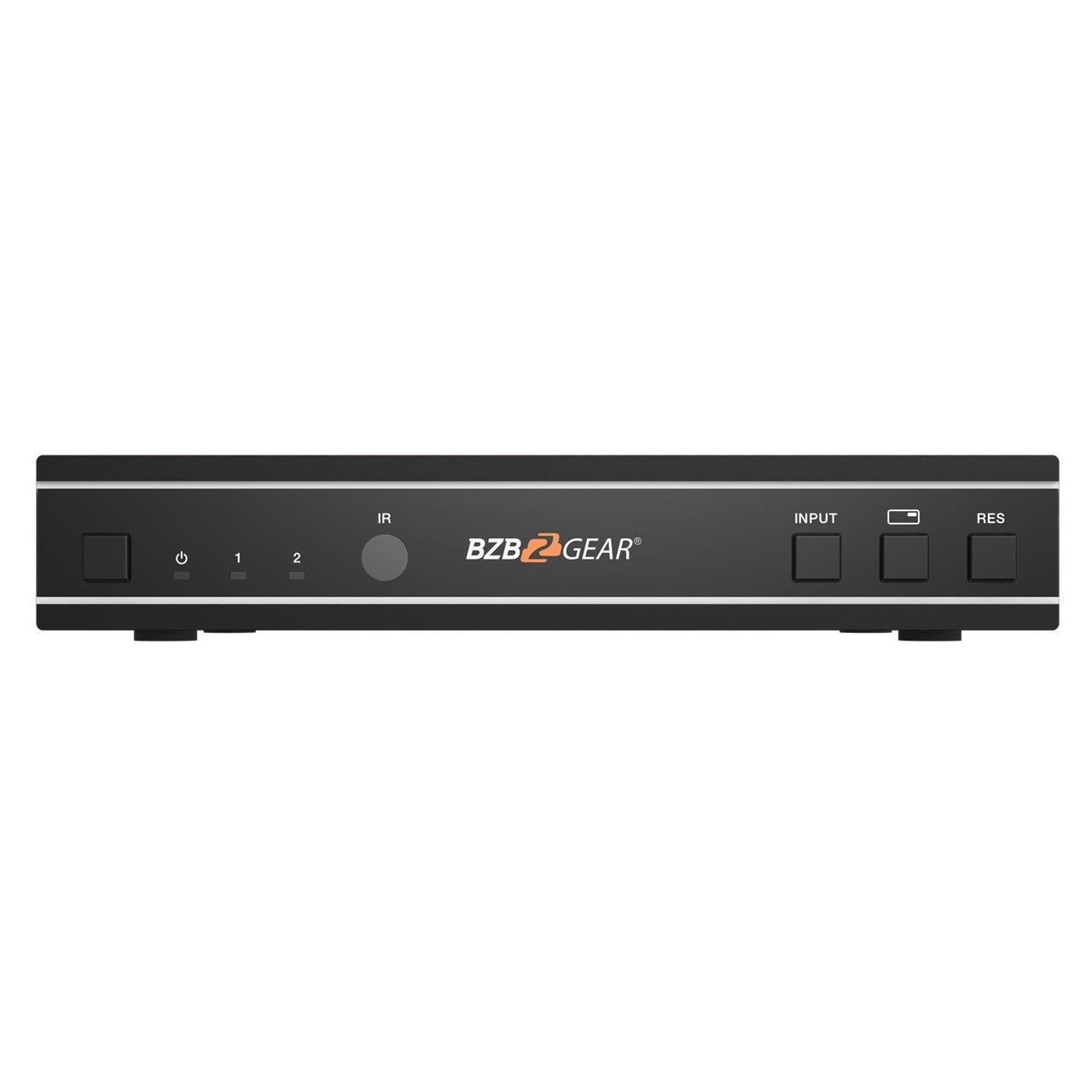

Multiple control options are available for the BG-UHD-MVS21A. It can be controlled through the front panel buttons, an IR remote, or RS-232 commands. EDID control is available through the RS-232 interface.
