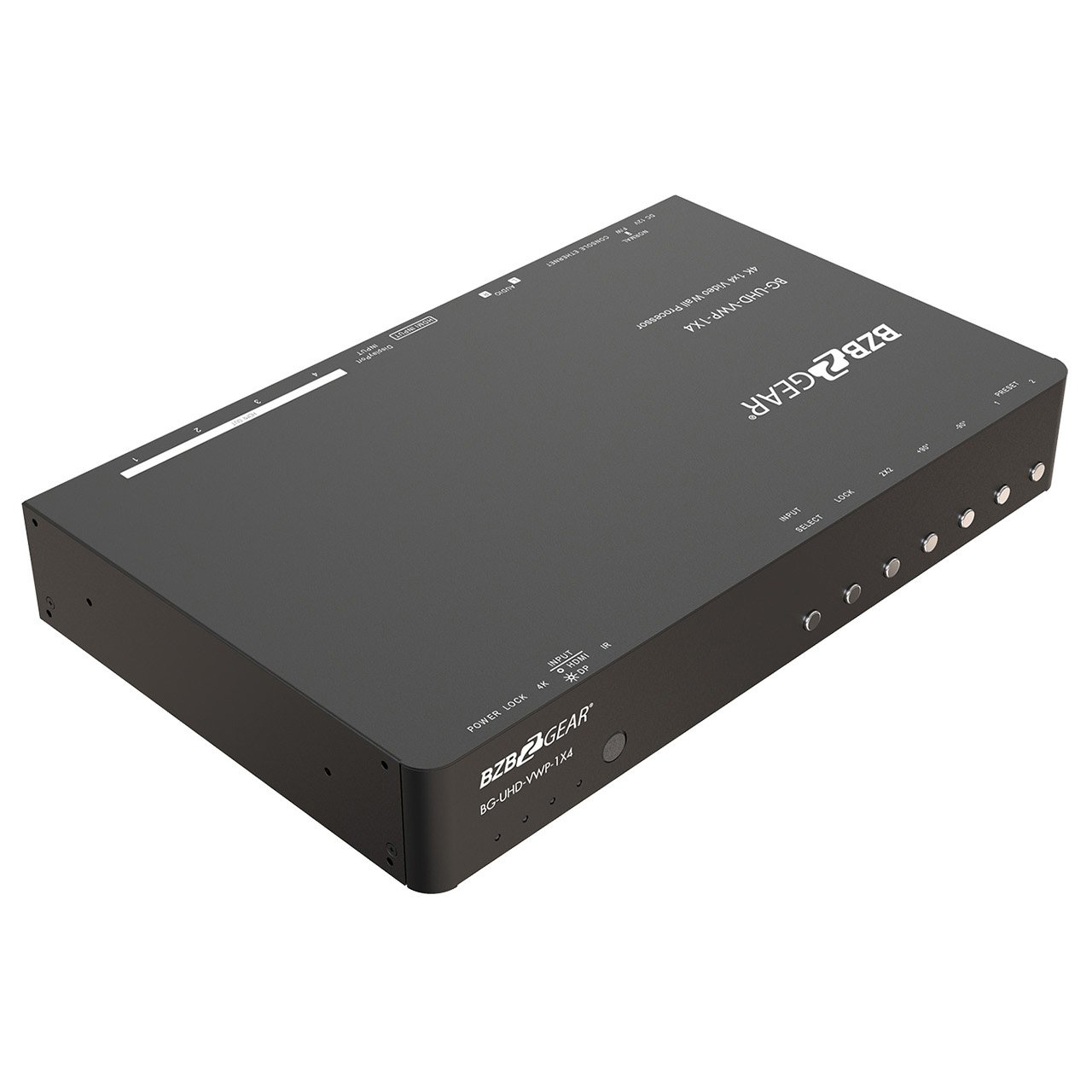

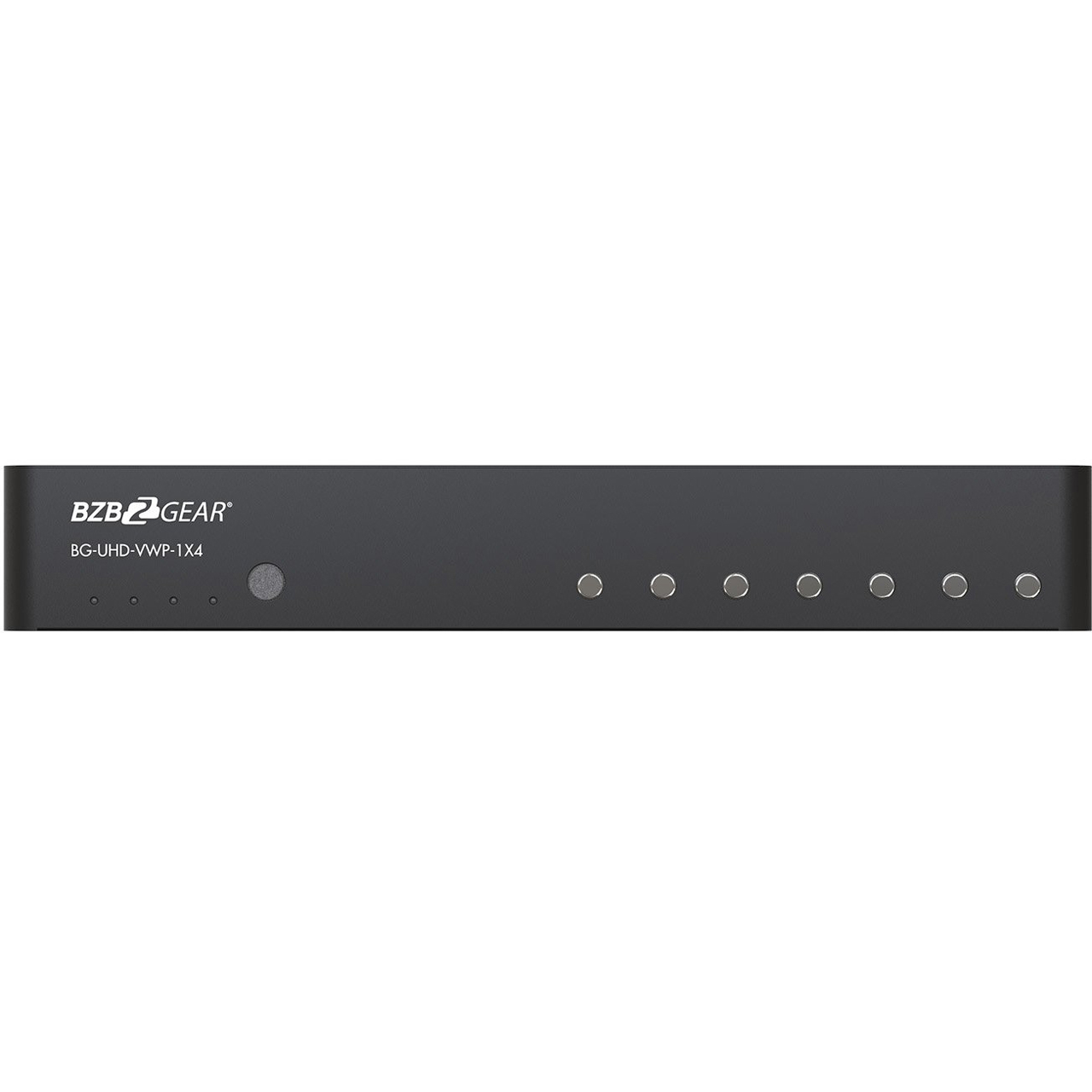

BZBGEAR BG-UHD-VWP-1X4 4-Port 4K UHD Video Wall Processor with Scaler Audio and 1x3/1x4/2x2/4x1 Layout

ITEM #: BG-UHD-VWP-1X4 MFG #: BG-UHD-VWP-1X4

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    BG-UHD-VWP-1X4 - Overview

    The BZBGEAR BG-UHD-VWP-1X4 4K 1x4 Video Wall Processor is a high-quality video processor that is perfect for multiple flat panel displays or projectors. It is is designed to support HDMI/DisplayPort signals up to 4K2K@60Hz 4:4:4, providing you with crisp, clear images that are ideal for digital signage, broadcasting, education, and surveillance systems. The embedded scaler technology ensures that video signals are converted to match the native resolution of monitors, flat panel displays, and projectors, while user-selectable output settings up to WUXGA (1920x1200) allow for customized display options. The BG-UHD-VWP-1X4 unit is extremely versatile and can be controlled via USB, push buttons, Ethernet, webGUI, and IR remote control. With the image parameters saved in flash memory, you can easily recall your preferred settings without the hassle of reconfiguring the unit every time. It is HDCP 2.2 compliant, ensuring that it is compatible with the latest content protection standards.With the ability to modify layouts to fit various applications, the BG-UHD-VWP-1X4 is an excellent choice for anyone looking for a powerful, cost-effective, and flexible video processor. Whether you're in the digital signage business or looking to upgrade your entertainment setup, this video wall processor is sure to exceed your expectations.

    • Features:

      • Accepts High Resolution Inputs - HDMI and DisplayPort, up to 4K2K@60Hz 4:4:4
      • Easy To Control - Options include front panel, LAN, IR, And USB Virtual Com
      • HDCP High-Bandwidth Digital Content Protection supported
      • Remote Access Control using IntriCloud Service
      • Compliant Ports - HDMI 2.0a And DisplayPort 1.2a Inputs
      • Scalability - Resize, position, and zoom each individual HDMI output

    • Specifications:

      • Technical
      • HDCP Compliance: Yes
      • Video Bandwidth:
        - Input: Single link 600MHz (18Gbps)
        - Output -Single-link 225MHz (6.75Gbps)
      • Video Support:
        - Input: 4K2K@60 (4:2:2 8bits)/4K2K@60 (4:4:4 8bits)
        - Output: 1920x1080@60/1920x1200@60
      • Video Format Support: HDMI/DisplayPort
      • Audio Support: Yes

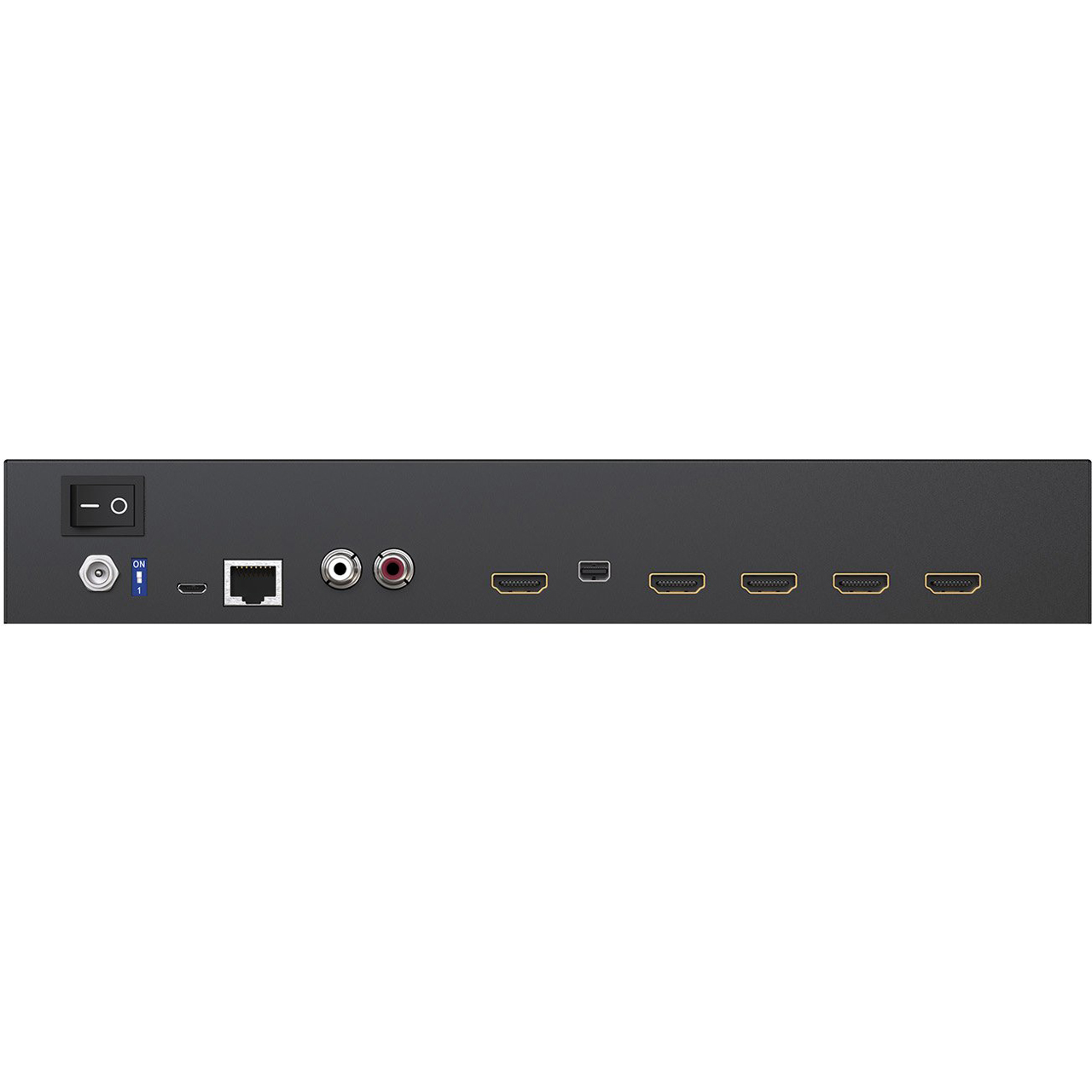

      • Input:
        - 1x HDMI
        - 1x DisplayPort
        - 1x USB
        - 1x RJ45
      • Output:
        - 4x HDMI
        - 1x Stereo
      • Control: IR remote control, Ethernet, USB (virtual), Front Panel, Cloud Control
      • Input: TMDS signal 1.2 Volts (peak-to-peak)
      • HDMI Connector: Type A (19-pin female)
      • Mini-USB Connector: Type A
      • RJ45 Connector: WE/SS 8P8C

        Mechanical
      • Housing: Metal case
      • Dimensions (LxWxH): 11.4" x 7" x l.7" (290mm x 180mm x 44mm)
      • Weight: 3.2lbs (1427g)
      • Fixedness: 1U rack-mount with ears and Wall hanging holes
      • Power Supply: 12V DC
      • Power Consumption: 12W
      • Operation Temperature: 32°F - 104°F (0°C - 40°C)
      • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
      • Relative Humidity: 20% - 90% RH (no condensation)

    • Item Includes:

      • 1x BZBGEAR BG-UHD-VWP-1X4
      • 1x User Manual
      • 1x 1U rack-mounting ear set
      • 1x 12V power supply
      • 1x Installation software CD
      • 1x IR Remote control (15 keys)

    • Warranty:

      • 5 Year Limited Warranty

    • GTIN:

      0850009357069
