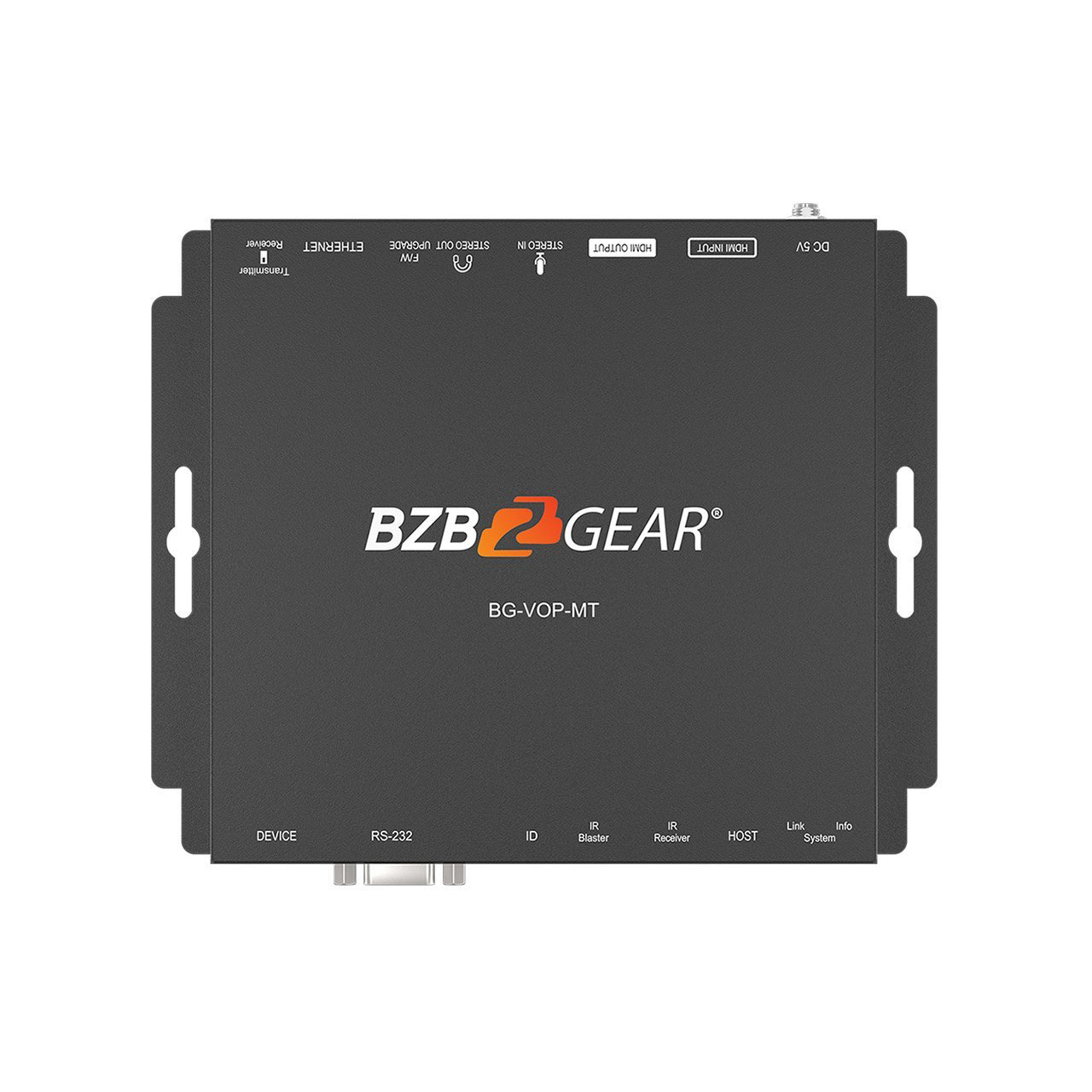

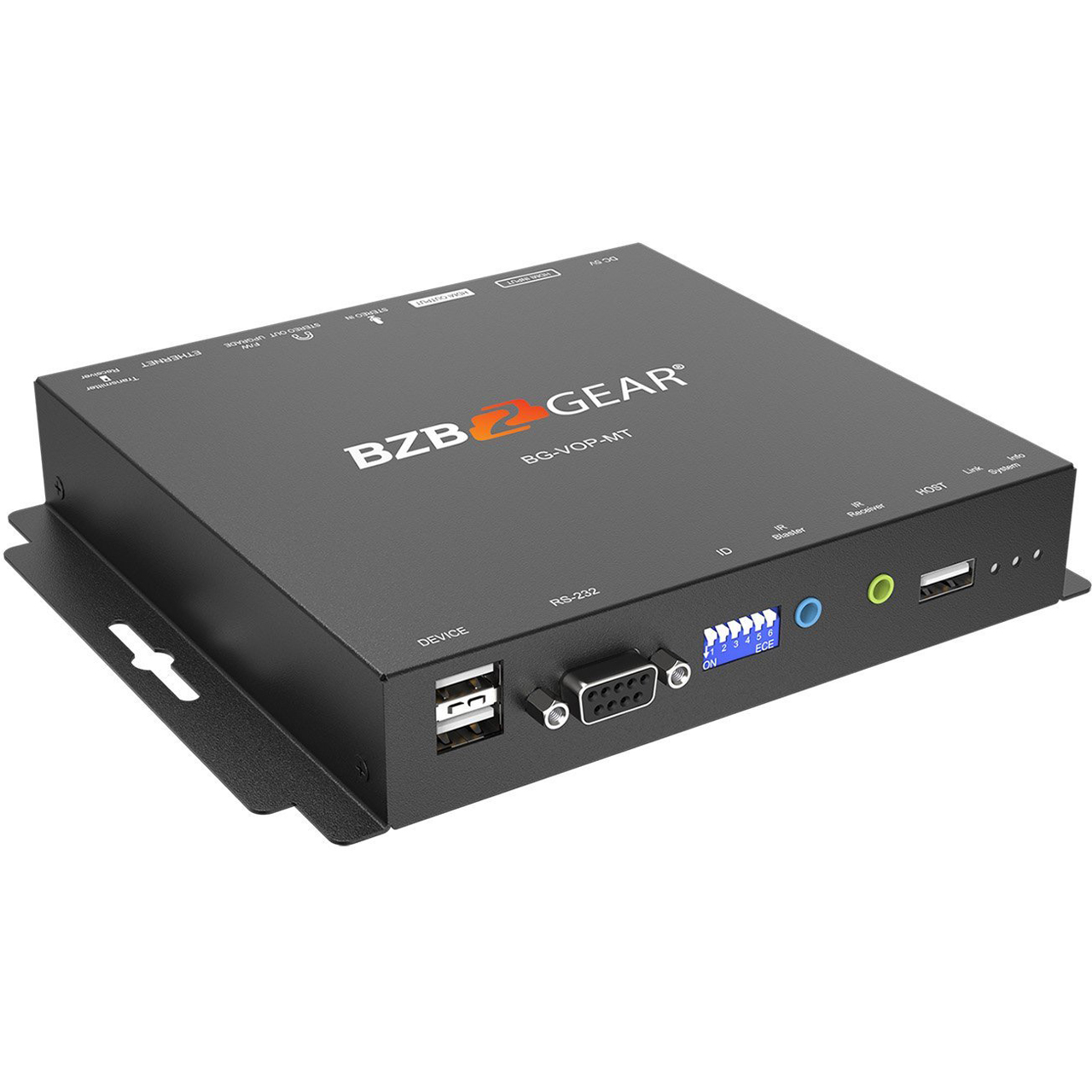

With the ability to function as a transmitter or receiver at the flip of the switch, this device is one of the easiest video over IP solutions to implement on the market. The BZBGEAR BG-VOP-CB controller can auto-discover each BG-VOP-MT on the network, making for a painless setup process. Unlike most other video over IP solutions from competing manufacturers, the BG-VOP-MT is TAA compliant, making this device an attractive choice for government use. It also provides a scalable solution so that you can easily add additional BG-VOP-MT units to your network at any time. This enables operators to create fully customized HDMI matrix switching over IP.
Connectivity

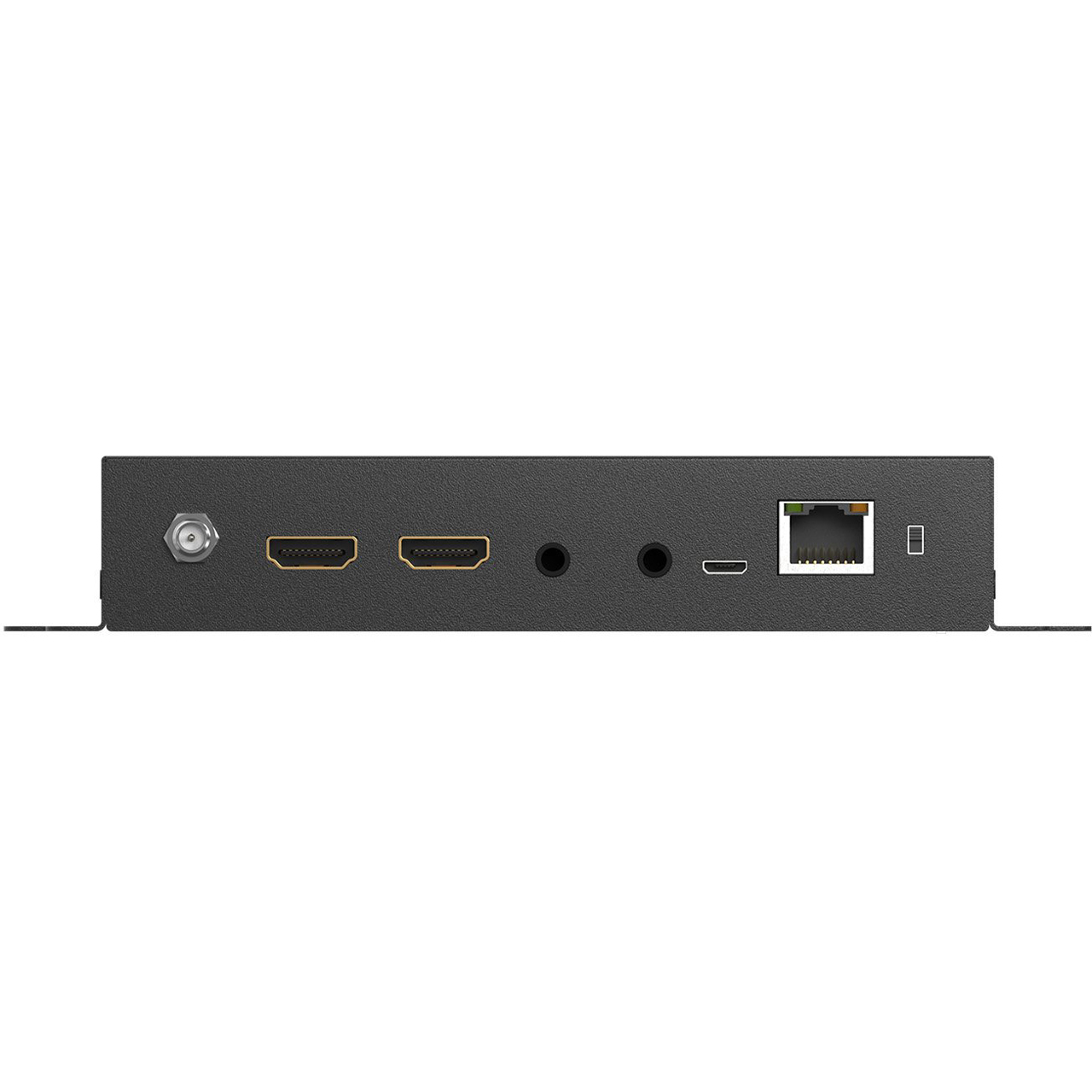

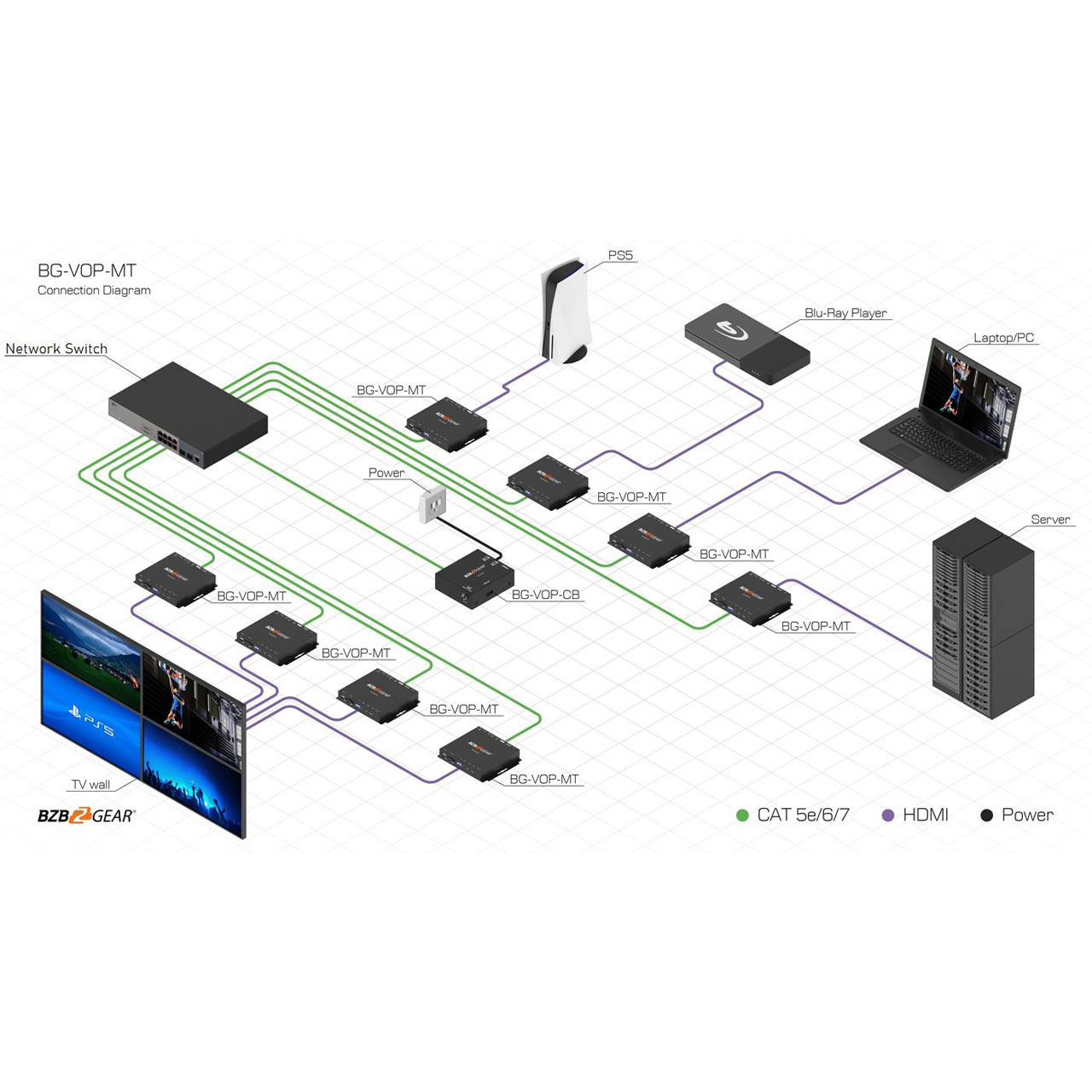

In order to function, the BG-VOP-MT Transceiver requires the BG-VOP-CB Smart Controller. Please review BZBGears AVoIP Network Switch Requirements Guide to ensure that your system works correctly. This device makes it possible to extend UHD sources from any HDMI source to any location with a LAN connection. Audio embedding and de-embedding is also supported for external audio devices. This transceiver is HDCP 2.2 compliant and supports PoE, bi-directional IR extension, and RS-232 extension. A USB 2.0 hub allows for KVM extension, enabling operators to expand the range at which they can use peripherals to interact with machines. This makes it possible to store computers in a separate area from where their users interact with them, improving workspace productivity, security, and data protection. It also can greatly improve the quality of presentations where the podium may be far from the operating computer. The BG-VOP-MT is a complete UHD video broadcasting solution for digital signage. Point to Point, Point to Many, and Multicasting are supported broadcasting formats, meaning that one HDMI source can be broadcast to as many displays as necessary. This also enables operators to create custom video walls. All settings can be adjusted via an easy to use web interface, and control can be achieved via the web interface or using our free downloadable iOS control app - BG-AVOIP-CONTROL. This transceiver is capable of being auto-addressed via the controller, or it can be addressed manually using its onboard DIP switches.
Storage and Ergonomics
This transceiver can fit well in many different environments, having dimensions of 180 x 142 x 28 mm (7" x 5.5" x 3.2" inches). It also supports custom rack mounts and features a wall-mountable chassis.
