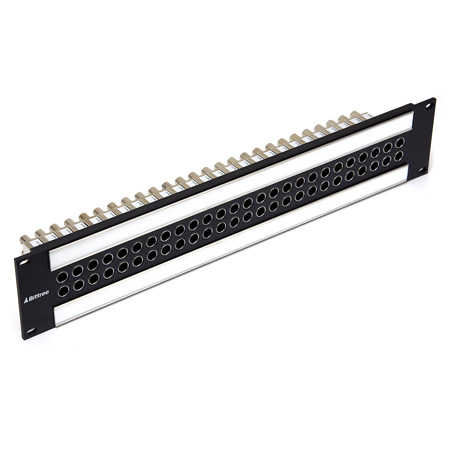

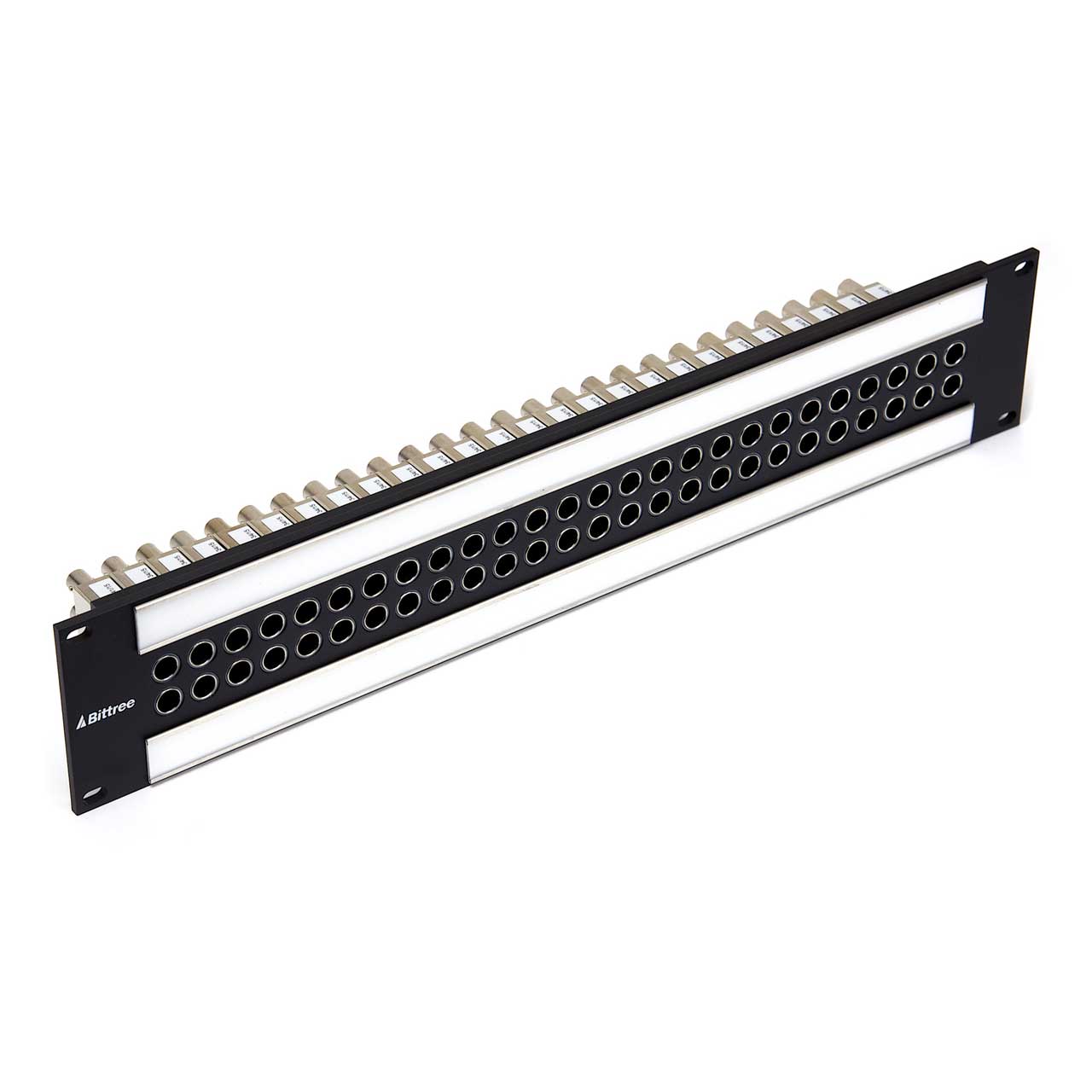

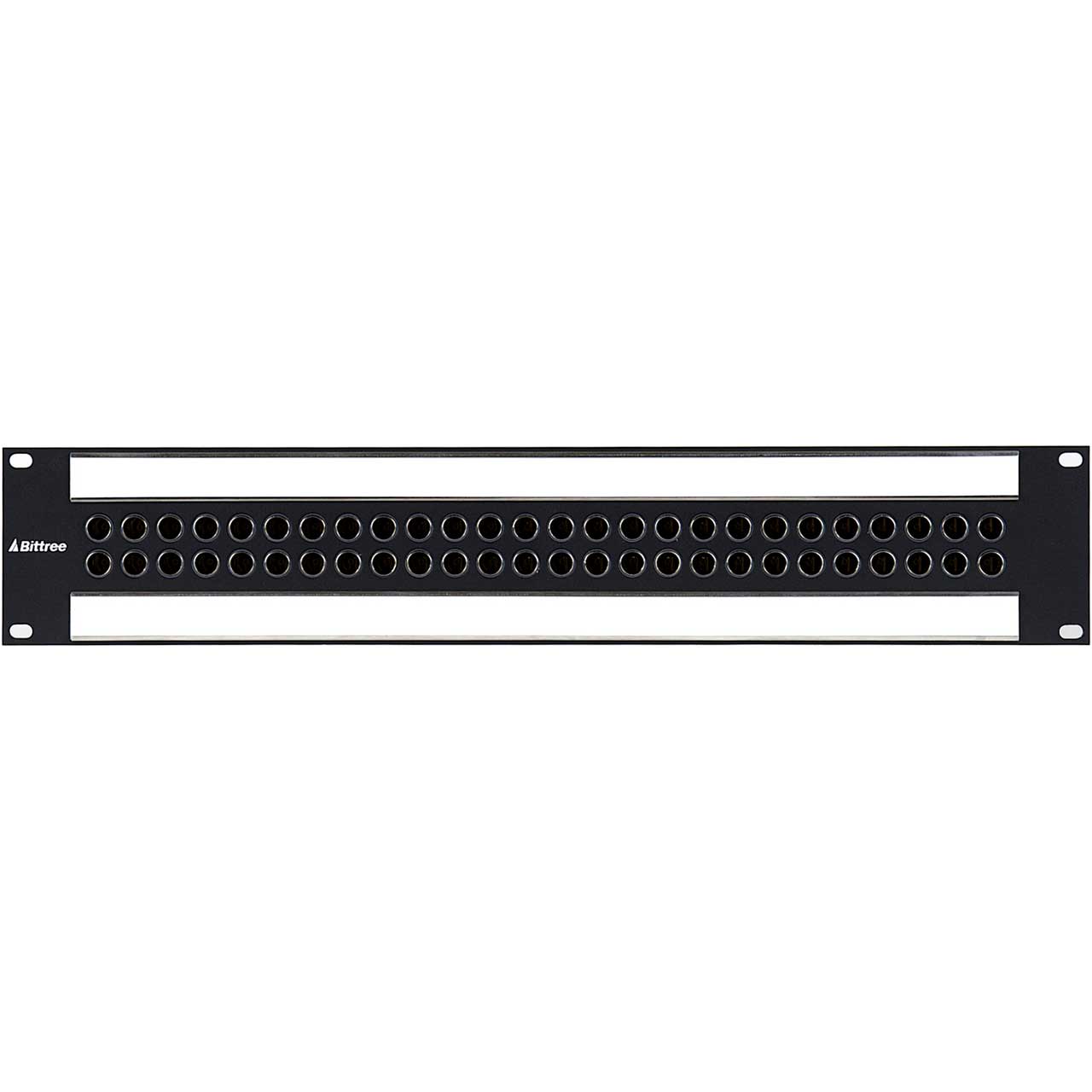

Bittree B52T-1WTHD WECO Low Density Patchbay - 2 Rows 26 Patch Points - 2RU - Non-Normalled - 75ohm Termination - 3G SDI

B52T-1WTHD - Overview

• Features:

  • High-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
  • SMPTE 259M, 292M and 424M compliant
  • True 75 ohm impedance with low return loss
  • 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
  • Rear-mounted jack modules
  • Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
  • 2 x DS870-10 Designation Strips - Stainless-steel sliders with white styrene and non-glare Lexan inserts

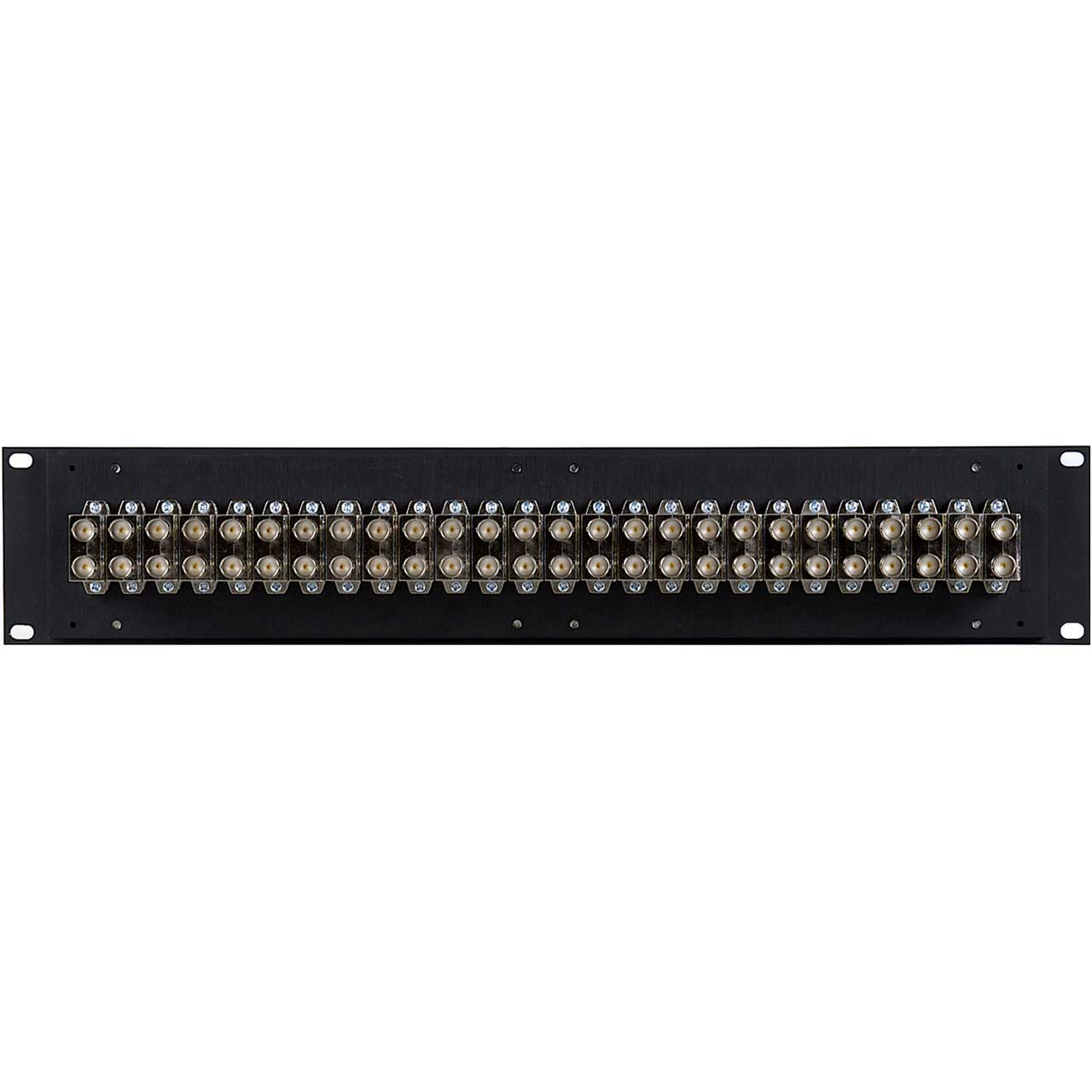

  • BNC Rear Interface


• Specifications:

  • Color: Black
  • Size: 2RU 1x24
  • Impedance: 75 ohm


• Item Includes:

  • 1x Bittree B52T-1WTHD Patchbay 2 Rows of 26 Patch Points - 2RU - Non-Normalled with 75ohm Termination - 3G SDI
