Belden 1213F CMP/Plenum Category 5E+ Premise Horizontal Cable (350MHz) 4-Pr - Black - 1000 Ft

Name: Belden 1213F CMP/Plenum Category 5E+ Premise Horizontal Cable (350MHz) 4-Pr - Black - 1000 Ft
Brand: Belden
SKU: BL-1213F-1000
Price: 879.00 USD
Availability: PreSale

ITEM #: BL-1213F-1000 MFG #: 1213F 0101000

Belden

Colors:

Colors

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,081.30

Our Price:

$879.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

1213F 0101000 - Overview

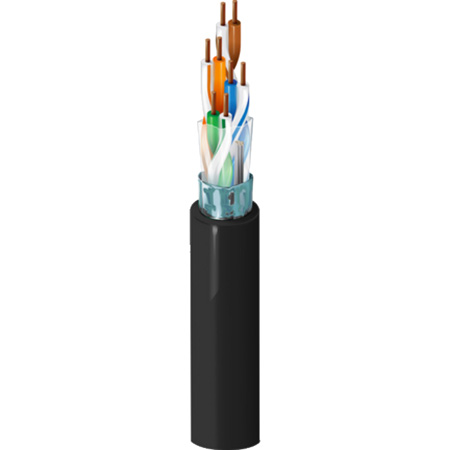

Belden 1213F is an AMX System optimized, Plenum-CMP Category 5E+ Premise Horizontal Cable (350MHz). It features 4 Pair, 24 AWG Solid Bare Copper Conductors, is F/UTP - Foil Shielded in a Flamarrest® PVC-LS Jacket.

Belden offers standard cables and custom combinations designed for use in a wide range of AV and control applications, such as AMX. These specialized products are optimized for all aspects of building management, including the monitoring of advanced control systems and the management of AV, environmental, lighting, shade, and climate control systems.

Applications
Premise Horizontal Cable
Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T
PoE++, PoE+, PoE
Noisy Environments

Features:
- 4-pair F/UTP Cable
- Exceeds Category 5e requirements as per ANSI/TIA/EIA-568-C.2 Standard
- Provides 160 MHz of bandwidth
- 100% coverage foil shield
- Protects your system from harsh EMI environments improving your data throughput
Specifications:
- Conductor AWG: 24
- Conductor Stranding: Solid
- Conductor Material: BC - Bare Copper
- Conductor Pairs: 4
- Insulation Material: FEP - Fluorinated Ethylene Propylene
- Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
- Max. Conductor DCR: 93.8 Ohm/km
- Outer Shield Type: Tape
- Outer Shield Material: Polyester + Bi-Laminate (Alum+Poly)
- Outer Shield Coverage: 100%
- Outer Shield Drainwire Type: 24 AWG (7x32) TC
- Outer Jacket Material: Flamarrest® PVC - Polyvinyl Chloride
- Outer Jacket Nom. and Overall Diameter: 0.235 in (5.97 mm)
- Outer Jacket Ripcord: Yes
- Max. DCR Unbalance: 3%
- Max. Capacitance Unbalance: 330 pF/100m
- Nom. Mutual Capacitance: 330 pF/ 15 pF/ft
- Frequency Delay[MHz]: 100 MHz
- Max. Delay: 537.6 ns/100m
- Max. Delay Skew: 45 ns/100m
- UL Voltage Rating: 300 V (CMP)
- UL Rating Temp: 75°C
- Operating Temp: -20°C To +75°C
- Installation Temp: 0°C To +50°C
- Storage Temp: -20°C To +75°C
- Max. Pull Tension: 25 lbs
- Bulk Cable Weight: 32 lbs/1000ft
- Environmental Suitability: Plenum, Indoor
- Sustainability: Product Lens, Environmental Product Declaration (EPD) Available
- Flammability / Fire Resistance: NFPA 262, UL 910 (Plenum), FT6, FT6, IEC 60332-1-2
- NEC / UL Compliance: 800, CMP
- CEC / C(UL) Compliance: CMP
- ICEA Compliance: S-90-661-2012
- IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3
- NEMA Compliance: NEMA WC-63.1
- Data Category: Category 5e
- TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
Item Includes:
- Belden 1213F Category 5e Cable - Black - 1000 Foot
Warranty:
- Limited 10 Year Warranty
GTIN:
0612825108863

1213F 0101000 - Recommended Accessories

Platinum Tools 100010C EZ-RJ45 CAT6 Connectors for Solid or Stranded Conductors - 50 Pack
PLAT-EZ6-50
Our Price: $33.39
Platinum Tools 100004C EZ-RJ45 Crimp Tool for RJ45 Connectors (Carded Tool)
PLAT-EZRJ45-B
Our Price: $58.90
Switchcraft EHRJ45P6S Shielded RJ45 Cat6 Feedthru Panel Mount
EHRJ45P6S
Our Price: $13.77
Platinum Tools 100036 Strain Relief for EZ-RJ45 Cat 6 Clear - 50 Pack
PLAT-100036
Our Price: $10.67
Platinum Tools 100023C EZ-RJ45 CAT5/5e/6 Shielded Connectors w/ External Ground - Solid or Stranded - 10 Pack
PLAT-100023C
Our Price: $18.99
Connectronics CAT-6 RJ45 8 Conductor Modular Female-Female Feedthru Coupler
RJ-RJ45CM-6
Our Price: $5.54

1213F 0101000 - Reviews

1213F 0101000 - Attachments

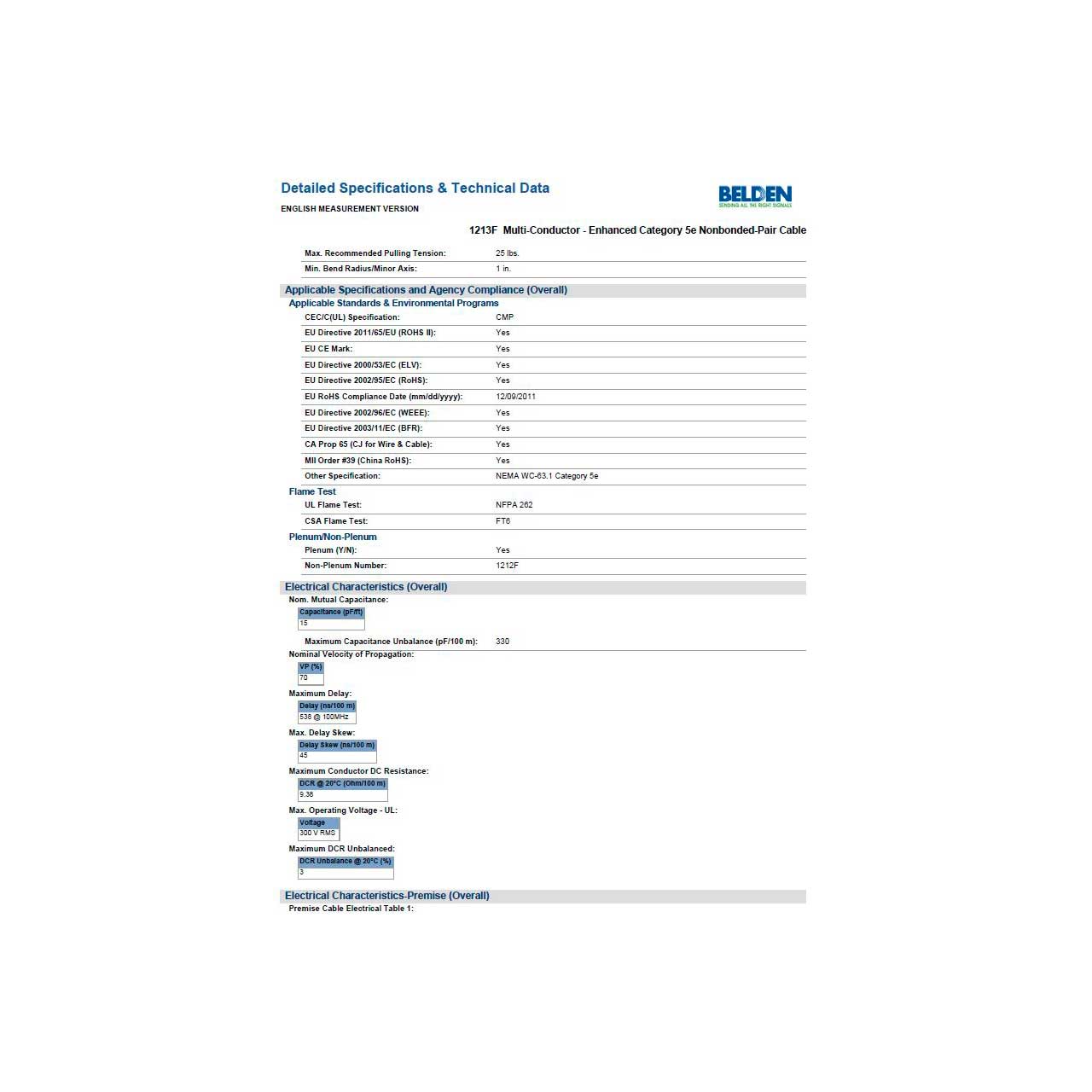

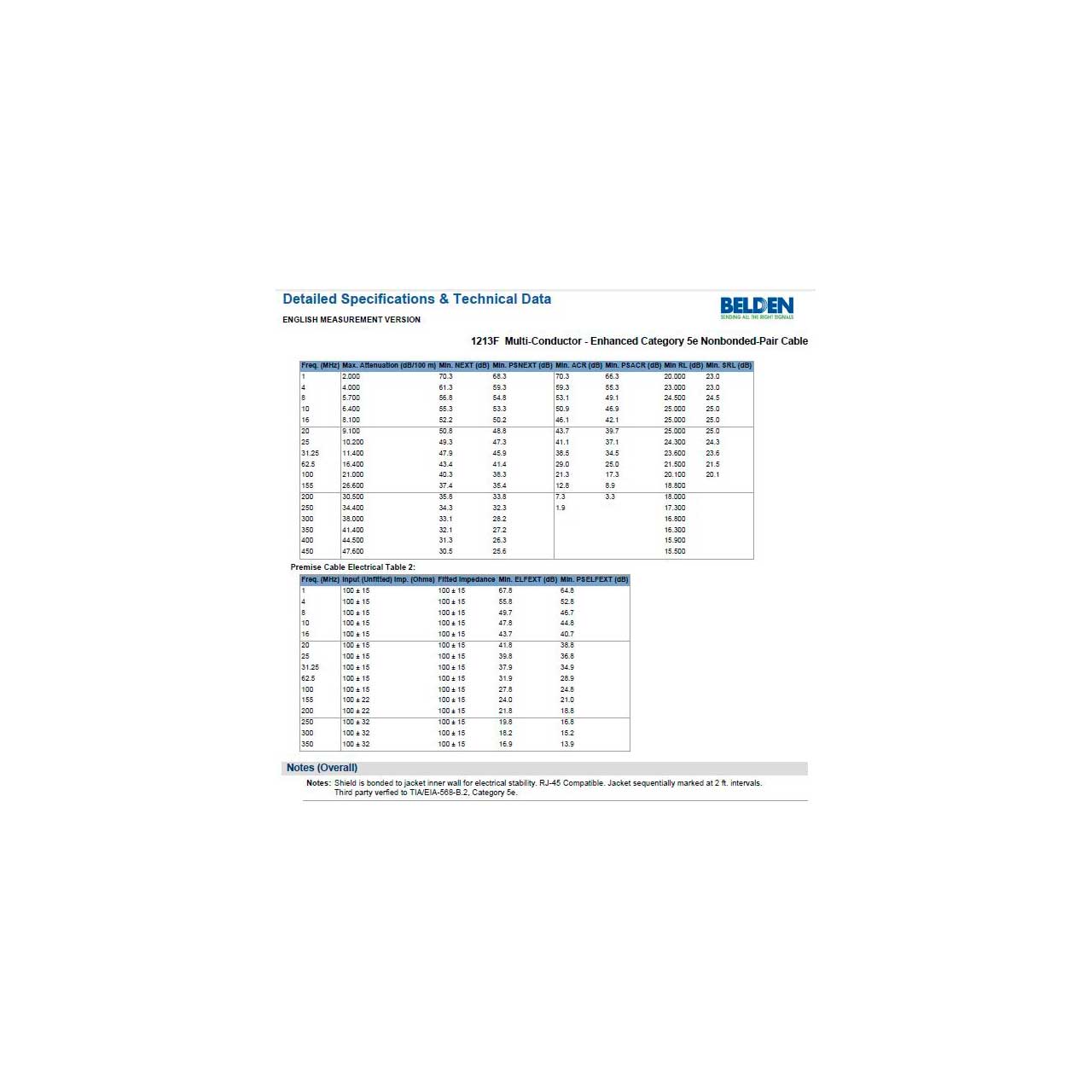

1213F Spec Sheet
