Belden 1266A CM-Rated Single Pair Analog Audio Cable Str TC/Shielded 2-22 AWG - Black - 1000 Foot

Name: Belden 1266A CM-Rated Single Pair Analog Audio Cable Str TC/Shielded 2-22 AWG - Black - 1000 Foot
Brand: Belden
SKU: BL-1266A-1000
Price: 403.30 USD
Availability: PreSale

ITEM #: BL-1266A-1000 MFG #: 1266A 0101000

Belden

Colors:

Colors

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$498.10

Our Price:

$403.30

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

1266A 0101000 - Overview

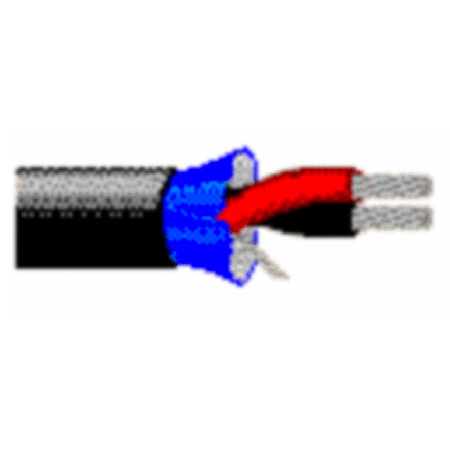

Belden 1266A is a CM-Rated Analog Audio Cable with 2-22 AWG stranded tinned copper conductors, polypropylene insulation with a Beldfoil® shield and a drain in a PVC jacket.

Belden's Analog Audio Cables allow for easier stripping and quicker installation, saving time and money. These cables are designed to ensure that audio signals deliver efficiently with Belden’s quality standards in mind.

Applications
Low voltage analog signals (4-20ma, 0-10v, ...)
Low voltage digital control (24v, …)
Line level audio
Computer communication
Panel wiring

Features:
- Easy Stripping: Foil shields bonded to the cable jacket support faster installation
- Rated for Many Applications: Audio Cables are CM, CMR and CMP rated
- Improved Performance: Shorting fold technique to maintain metal-to-metal contact
Specifications:
- Conductor Number of Pairs: 1
- Conductor Count: 2
- Conductor AWG: 22
- Conductor Stranding: 7x30
- Conductor Material: TC - Tinned Copper
- Conductor Nominal Diameter: 0.0285 in
- Insulation Material: PP - Polypropylene
- Insulation Nominal Diameter: 0.0485 in
- Insulation Nominal Wall Thickness: 0.01 in
- Conductor Color: Black & Red
- Outer Shield Type: Tape
- Outer Shield Material: Bi-Laminate (Alum+Poly)
- Outer Shield Material Trade Name: Beldfoil®
- Outer Shield Coverage [%]: 100%
- Outer Shield Drainwire Material: TC - Tinned Copper
- Outer Shield Drainwire Diameter: 0.024 in
- Outer Shield Drainwire AWG: 24
- Outer Shield Drainwire Construction n x D: 7x32
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nominal Diameter: 0.143 in
- Outer Jacket Nominal Wall Thickness: 0.02 in
- Nominal Conductor DCR: 15 Ohm/1000ft
- Nominal Conductor DCR Conductor Resistance: 15 Ohm/1000ft
- Nominal Outer Shield DCR: 18 Ohm/1000ft
- Nom. Capacitance Conductor to Conductor: 30 pF/ft
- Nom. Capacitance Conductor to Other Conductor to Shield: 54 pF/ft
- Nominal Inductance: 0.18 µH/ft
- Nominal Characteristic Impedance: 55 Ohm
- Max. Recommended Current [A]: 2.3 Amps per Conductor at 25°C
- UL Voltage Rating: 300 V RMS
- UL Temp Rating: 60°C
- Operating Temp Range: -20°C To +60°C
- Bulk Cable Weight: 14 lbs/1000ft
- Max. Pull Tension: 25 lbs
- Min Bend Radius/Minor Axis: 1.5 in
- Environmental Space: Indoor (Not Riser or Plenum)
Item Includes:
- 1266A CM Single Pair Analog Audio Cable 2-22 AWG - Black - 1000 Foot
Warranty:
- Limited 10 Year Warranty
GTIN:
0612825110040

1266A 0101000 - Recommended Accessories

Neutrik NC3FX Female 3-Pin XLR Connector - Nickel/Silver
NC3FX
Our Price: $3.71
Neutrik NC3MX Male 3-Pin XLR Connector - Nickel/Silver
NC3MX
Our Price: $3.30
Weller WE1010NA Digital Soldering Station with 70W Iron
WEL-WE1010NA
Our Price: $151.93
Kester 60/40 44 Rosin 031 Diameter 21AWG Solder Wire One Pound Roll
KS4460-21
Our Price: $65.15
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
Sescom 3 Channel Passive Balanced Audio Adapter Box over CAT5/6/7 - RJ45 to 3 Female XLR Connectors
SES-3XLRF-CATBX
Our Price: $171.95
Laird Super Tough Field Deployment-Ready Cat5e Cable w/ Belden 7923A - 10 Foot
TUFFCAT-10
Our Price: $29.95

1266A 0101000 - Reviews

1266A 0101000 - Attachments

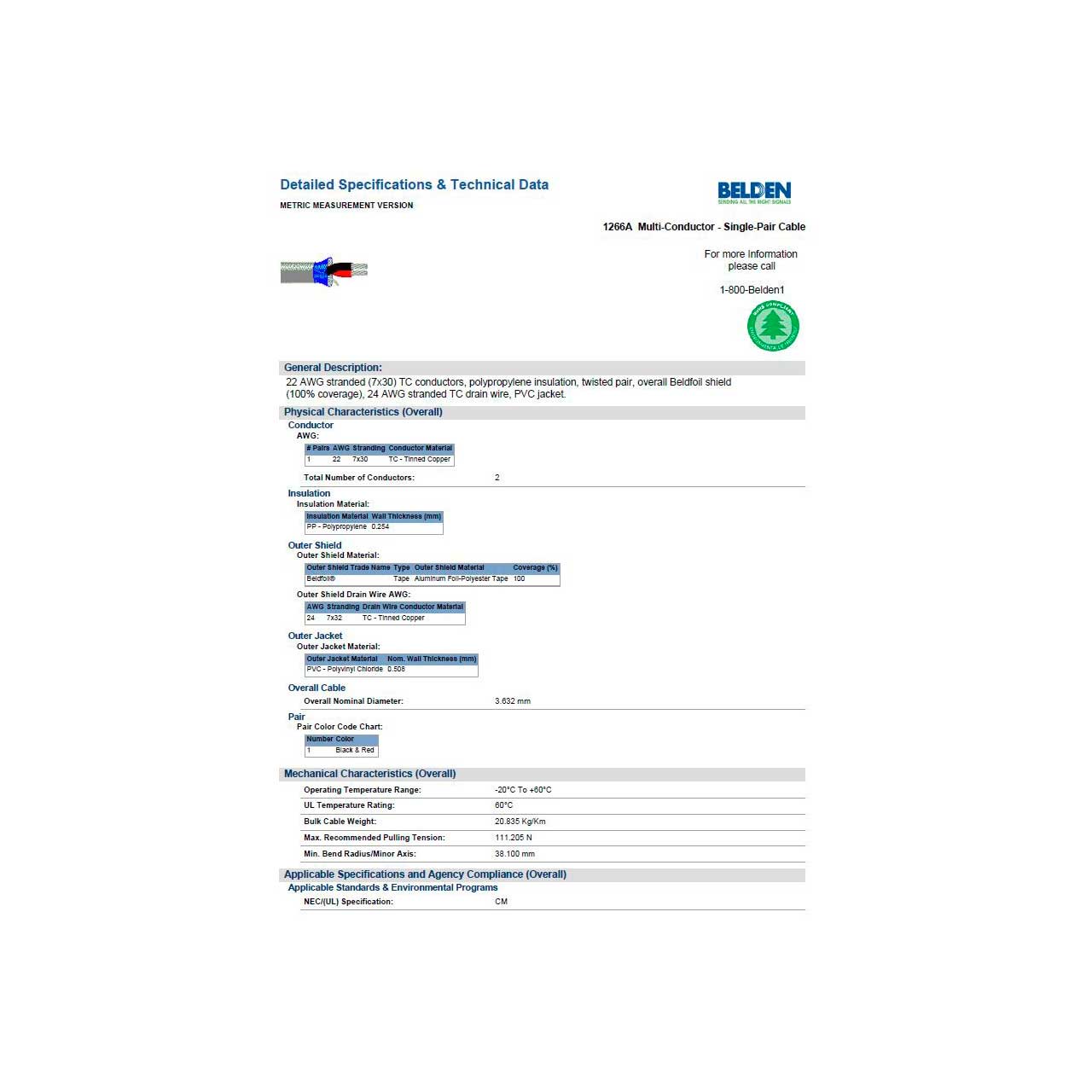

1266A Spec Sheet
