Belden 1300A Riser/Outdoor CAT5e Shielded - Wireless LAN Cable Oil/Sun Res 24AWG BC - Black - 1000 Ft

Name: Belden 1300A Riser/Outdoor CAT5e Shielded - Wireless LAN Cable Oil/Sun Res 24AWG BC - Black - 1000 Ft
Brand: Belden
SKU: BL-1300A-1000
Price: 679.00 USD
Availability: PreSale

ITEM #: BL-1300A-1000 MFG #: 1300A 0101000

Belden

Length:

Length

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$825.60

Our Price:

$679.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

1300A 0101000 - Overview

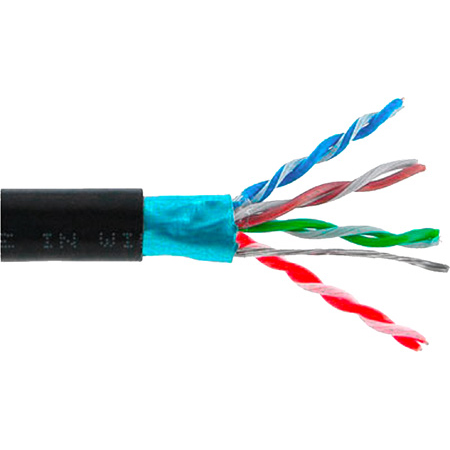

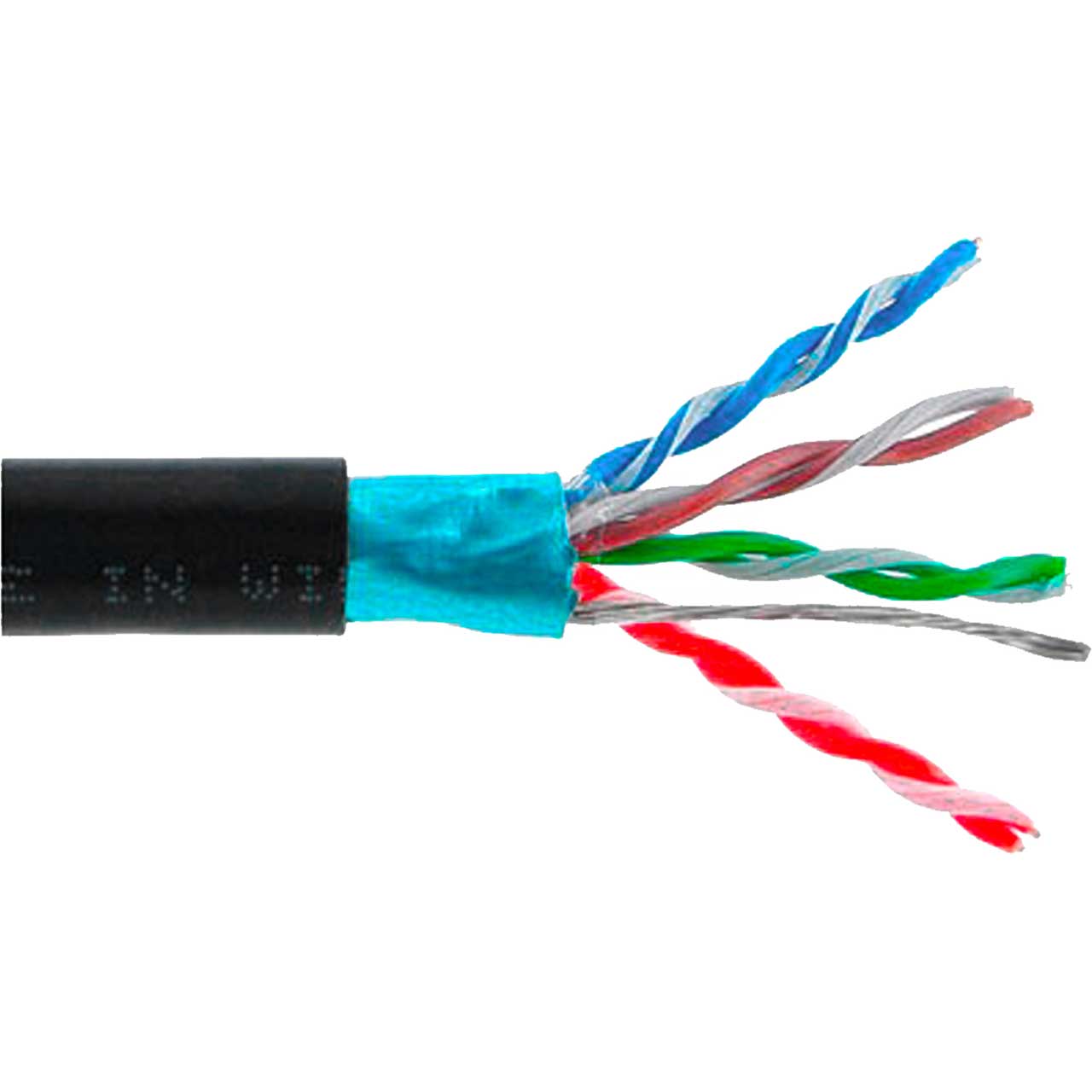

Belden 1300A is a Shielded(100MHz), Category 5e Cable that features 4 twisted pairs with 24 AWG solid bare copper conductors. It's riser rated with polyolefin insulation,
an overall Beldfoil® shield bonded to an oil and sun resistant PVC jacket. It also has a 24 AWG tinned copper drain wire and sequential marking at two foot intervals.

Applications
WI-FI
Wireless LAN
Outoor Antenna
Radio
Broadband
RF

Specifications:
- Conductor AWG: 24
- Conductor # Pairs: 4
- Conductor Material: Bare Copper
- Conductor Stranding: Solid
- Total Number of Conductors: 8
- Insulation Material: PO - Polyolefin
- Insulation Material Wall Thickness (in.): .010
- Outer Shield Material: Beldfoil® Aluminum Foil-Polyester Tape
- Outer Shield Material Coverage (%): 100%
- Outer Shield Drain Wire AWG: 24
- Stranding: 7x32
- Drain Wire Conductor Material: TC - Tinned Copper
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Overall Nominal Diameter: 0.265 in.
- NEC/(UL) Specification: CMR, CMX-Outdoor
- CEC/C(UL) Specification: CMG
Item Includes:
- 1300A Riser/Outdoor CAT5e Shielded - Wireless LAN Cable - Black - 500 Ft
Warranty:
- 10 Year Limited Warranty
GTIN:
0612825111078
