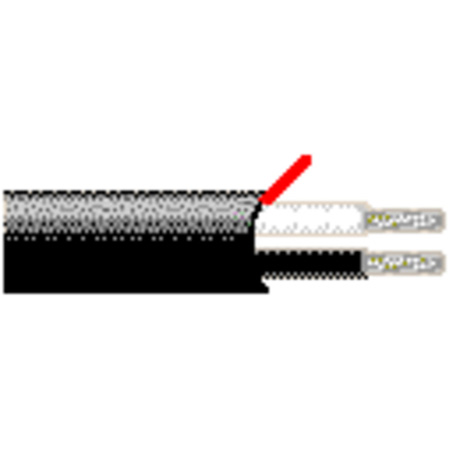

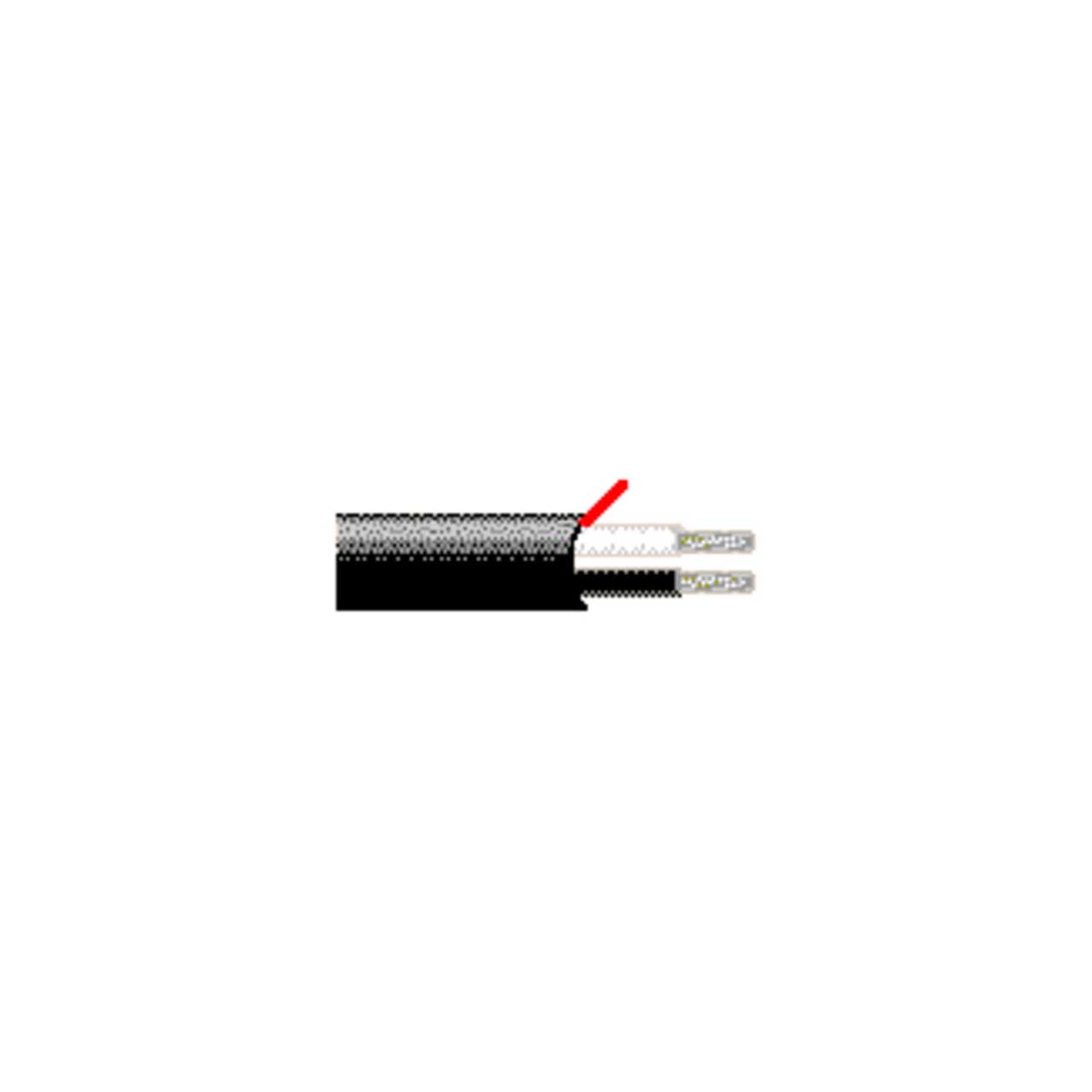

Belden 1314SB 14AWG Multi-Conductor Shipboard Speaker Wire and Cable - 1000 Foot Roll

1314SB 0101000 - Overview

• Specifications:

  • Conductors: 2
  • AWG: 14
  • Stranding: 41
  • Conductor Material: TC - Tinned Copper Unshielded
  • Outer Jacket Material: LSZH - Low Smoke Zero Halogen
  • UL Voltage Rating: 300 V (CMG-LS)
  • Nom. Conductor DCR: 2.42 Ohm/1000ft
  • Nom. Capacitance Cond-to-Cond: 29 pF/ft
  • Max. Current: 22 Amps per conductor @ 25°C
  • UL Rating Temp: 105°C
  • Operating Temp: -20°C to +105°C
  • Max. Pull Tension: 109.2 lbs
  • Bulk Cable Weight: 53 lbs/1000ft
  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
  • Flammability / Fire Resistance: UL1685 FT4 Loading, Limited Smoke, FT4, 1202, 60332-1, 60332-3-22 (Category A)
  • NEC / UL Compliance: Article 800, CMG-LS
  • CEC / C(UL) Compliance: CMG-LS
  • IEEE Compliance: Std. 45 clause 23
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)


• Item Includes:

  • 1x Belden 1314SB Multi-Conductor Speaker Wire and Cable - 1000 Foot Roll


• GTIN:

  0612825111771
