Belden 1794A 16 AWG High Density SMPTE 424M Digital Coax Cable - Yellow - 1000 Foot

Name: Belden 1794A 16 AWG High Density SMPTE 424M Digital Coax Cable - Yellow - 1000 Foot
Brand: Belden
SKU: BL-1794A-1000YW
Price: 1629.24 USD
Availability: PreSale

ITEM #: BL-1794A-1000YW MFG #: 1794A 0041000

Belden

List Price:

$2,319.60

Our Price:

$1,629.24

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

1794A 0041000 - Overview

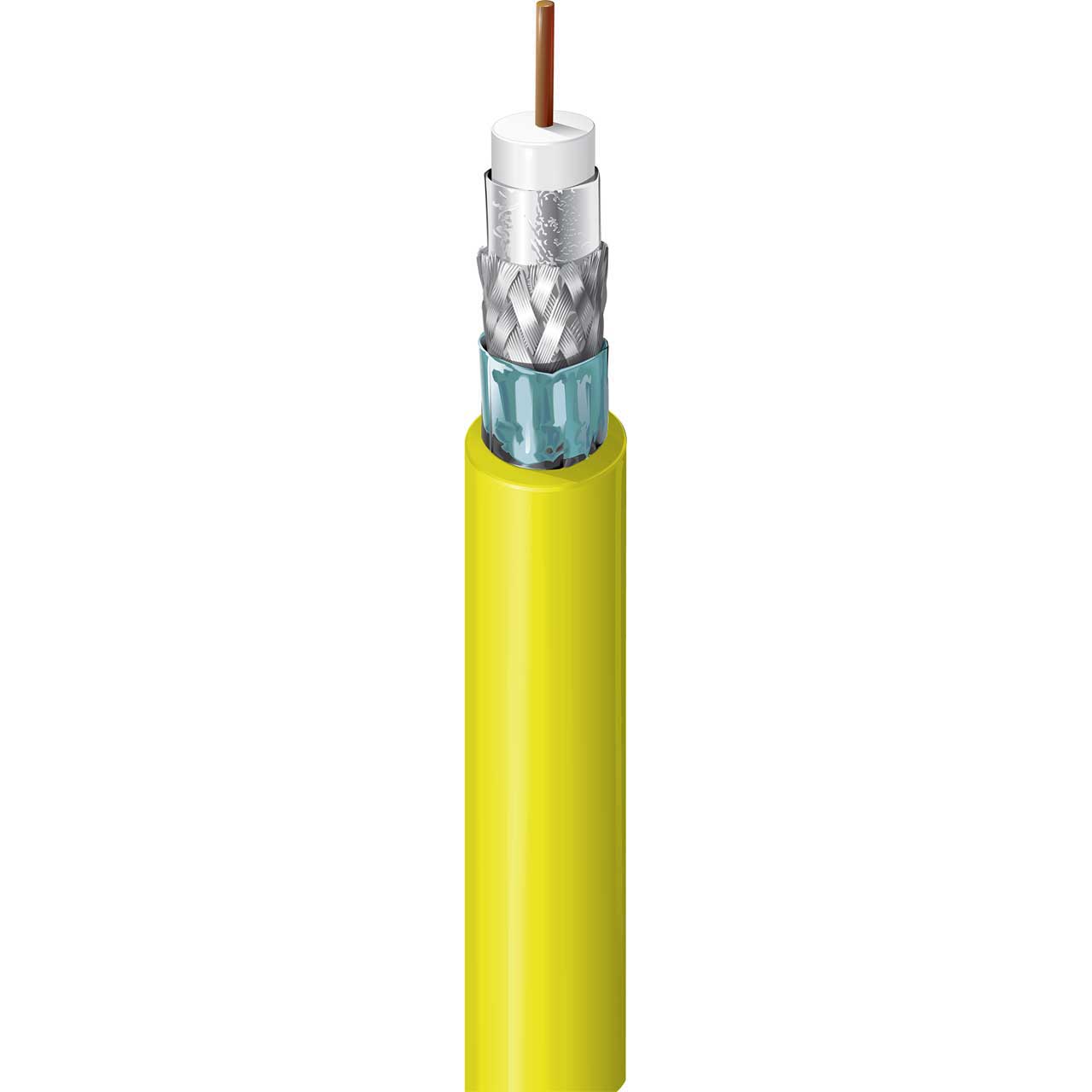

The 1794A 0041000 is a low loss serial digital coax cable featuring Riser-CMR, a 16 AWG solid bare copper conductor, a foam HDPE core, Beldfoil, +95% tinned copper braid, Duofoil, and a PVC jacket.

Specifications:
- Conductor: 18 AWG, Solid Stranding Bare Copper
- Insulation Material: Gas-injected
- Foam High Density Polyethylene
- Outer Shield Material: Aluminum Foil-Polyester Tape-Aluminum Foil Duofoil; Tinned Copper; Polyester Tape-Aluminum Foil (Beldfoil with shorting fold)
- Outer Jacket Material: Polyvinyl Chloride
- Capacitance: 16.1 pF/ft
- Nominal Conductor DCR: 4.0 Ohm/1000ft
- Nominal Outer Shield DCR: 1.9 Ohm/1000ft
- Nominal Characteristic Impedance: 75 Ohm
- Nominal Delay: 1.21 ns/ft
- Nominal Inductance: 0.091 µH/ft
  UL Voltage Rating: 300V RMS
  Operating Temp Range: -30°C To +75°C
- UV Resistance: Yes
- Bulk Cable Weight: 59 lbs/1000ft
- Max Recommended Pulling Tension: 111 lbs
- Min Bend Radius/Minor Axis: 3.25 in
- NEC/(UL) Specification: CMR
- CEC/C(UL) Specification: CMG
- CPR Euroclass: Eca
- RG Type: RG-7/U Type
- Series Type: Series 7
  Color: Yellow
GTIN:
0612825357544

1794A 0041000 - Recommended Accessories

Neutrik NBNC75BZV14 RearTWIST BNC Cable Connector for Belden 1794A
NBNC75BZV14
Our Price: $3.29
Allen Avionics HEC-2000 75 Ohm Hum Eliminator
HEC-2000
Our Price: $139.95
MuxLab 500700 HD-SDI Over CAT5 / CAT6 Extender Kit
MUX-500700
Our Price: $906.00
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
Black 12 Inch SoftCinch Velcro® Brand Polytie Cable Tie 25 Pack
3112-X-25
Our Price: $26.88
Belden 1794ABHD1 RG-7 6GHz 1-Piece BNC Compression Connector for 1794A RG-7 Cable - Purple Band
BL-1794ABHD1
Our Price: $3.65
Middle Atlantic Claw14 Wallmount Cable Hanger
CLAW14
Our Price: $31.95
Akro-Mils 10116 16 Drawer Plastic Frame Storage Cabinet
AKR-10116
Our Price: $43.95
Brady M210-LAB 210 Series Portable Label Printer - Multi-Line
BDY-M210-LAB
Our Price: $109.99
Pelican 1920B LED Flashlight - Black
PEL-1920
Our Price: $40.95
CAIG DN5S-6N DeoxIT Spray Contact Cleaner & Rejuvenator - Non Flammable
DN5S-6N
Our Price: $29.50
LSD 53-315 EZ Cut Template and Level for Electrical Box Installations
LSD-53315
Our Price: $17.21
Hosa CBT-500 Audio Cable Tester for XLR - Dante - RCA - I/4 Inch - speakON DIN - Ethernet & USB Type A & B cables
HOS-CBT-500
Our Price: $79.95
Cable Joe Clamp-On Roller Glide Cable Install Helper
CBL-JOE
Our Price: $138.95
Seco 90520 Gopher Pole 22 Foot Telescoping Wire Installation Tool
GO-POLE
Our Price: $199.00
Connectronics BF-BF BNC Female to Female Barrel 75 Ohm
BF-BF
Our Price: $2.38
Connectronics B-BFRA 75 Ohm BNC Female to Male Right Angle Adapter
B-BFRA
Our Price: $4.49
Securitytronix ST-ALLIN1-TEST2 7 Inch Touch Screen IP Camera Monitor and Tester with Li-ion battery
ST-ALLIN1-TEST2
Our Price: $795.00
Middle Atlantic RULER 16 Foot Tape Measure Includes Markings For Rack Spaces
RK-RULER
Our Price: $36.45
Paladin 1175 Pro-Grip Contour Cable Cutter
PAL-1175
Our Price: $22.48
Belden DBPSAKIT Tech Express Compression Tool Kit
BL-DBPSAKIT
Our Price: $248.36
Neutrik CS-BNC-RT Coax Cable Stripper for rearTWIST BNC Connector Assemblies
CS-BNC-RT
Our Price: $169.73
Neutrik DIE-R-BNC-PY Die for HX-R-BNC Crimp Tool
DIE-R-BNC-PY
Our Price: $250.10
Neutrik HX-R-BNC Crimp Tool for DIE-R- Series
HX-R-BNC
Our Price: $177.93

1794A 0041000 - Reviews

1794A 0041000 - Attachments

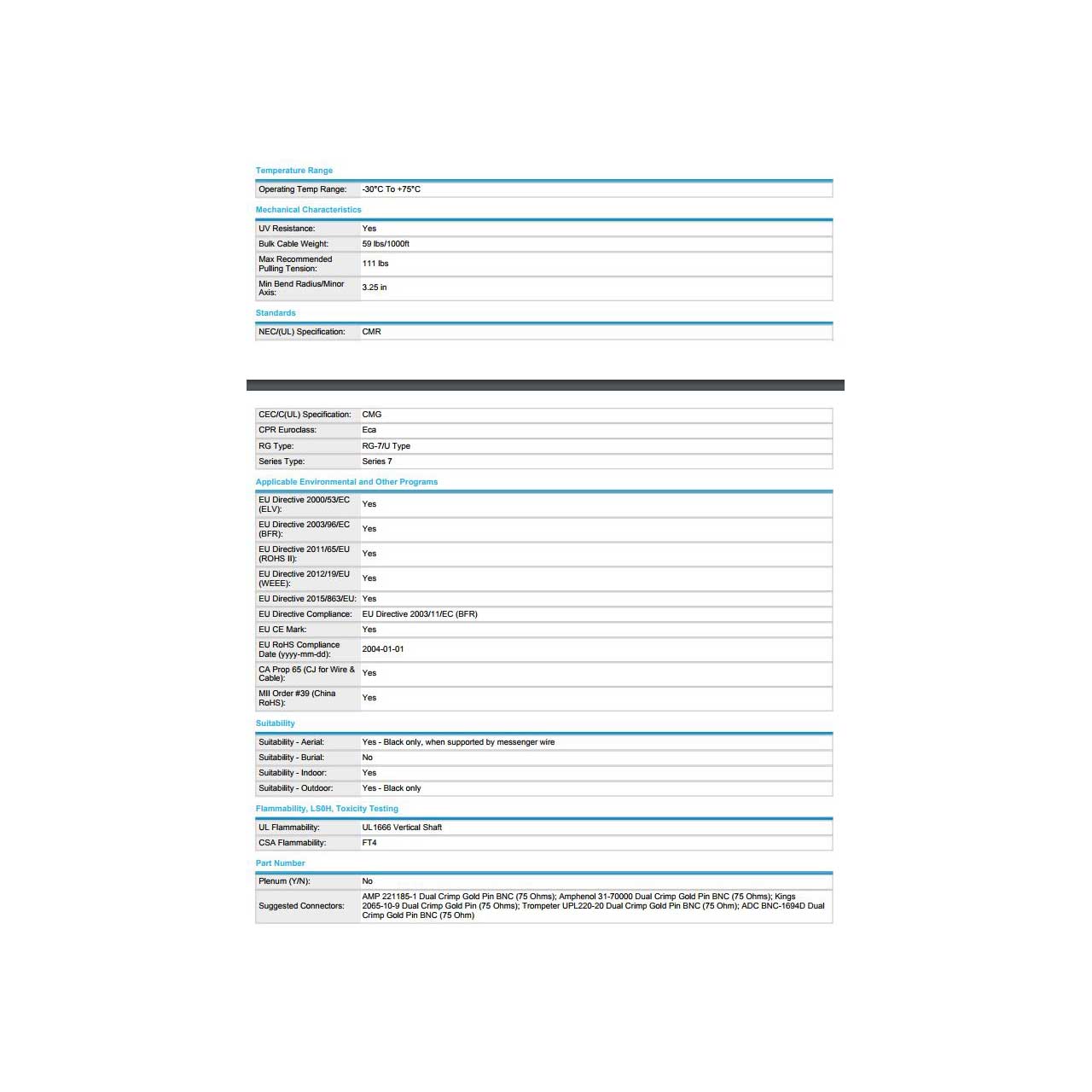

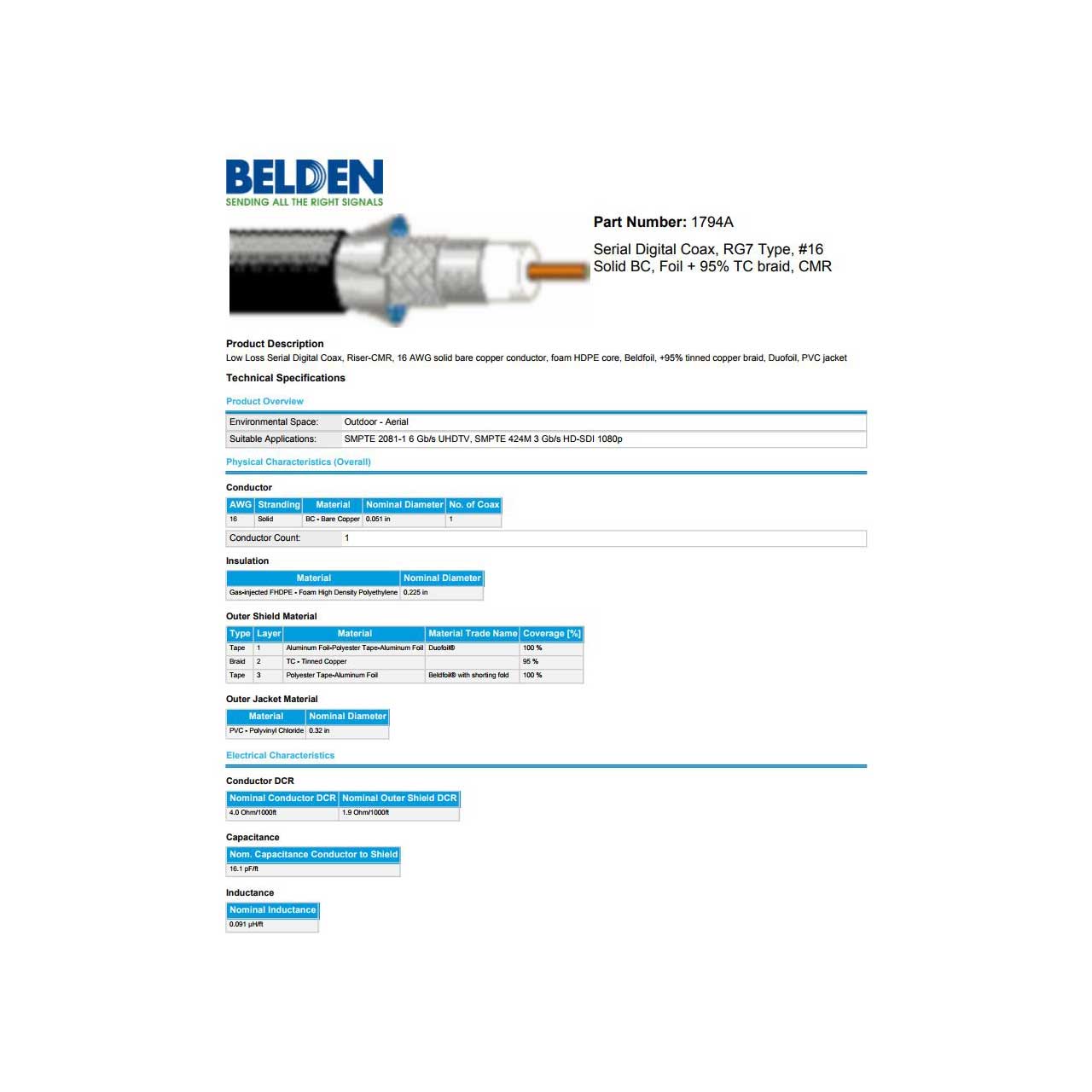

See Belden 1794A 0041000 Specifications (PDF)
