Belden 1805F CMG Rated 8pr Digital Audio Snake Cable Shld/TC 24AWG - Violet - 500 Foot

ITEM #: BL-1805F-500 MFG #: 1805F Z4B500

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

List Price:

$4,977.95

Our Price:

$4,380.35

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

1805F Z4B500 - Overview

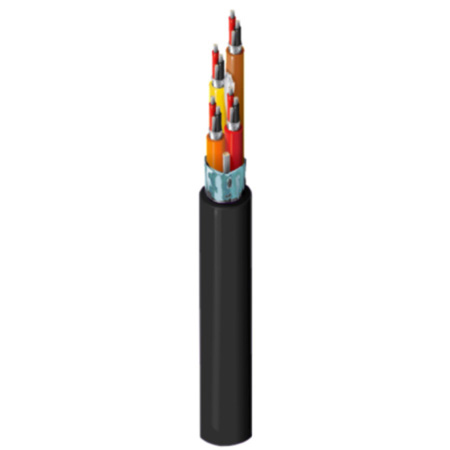

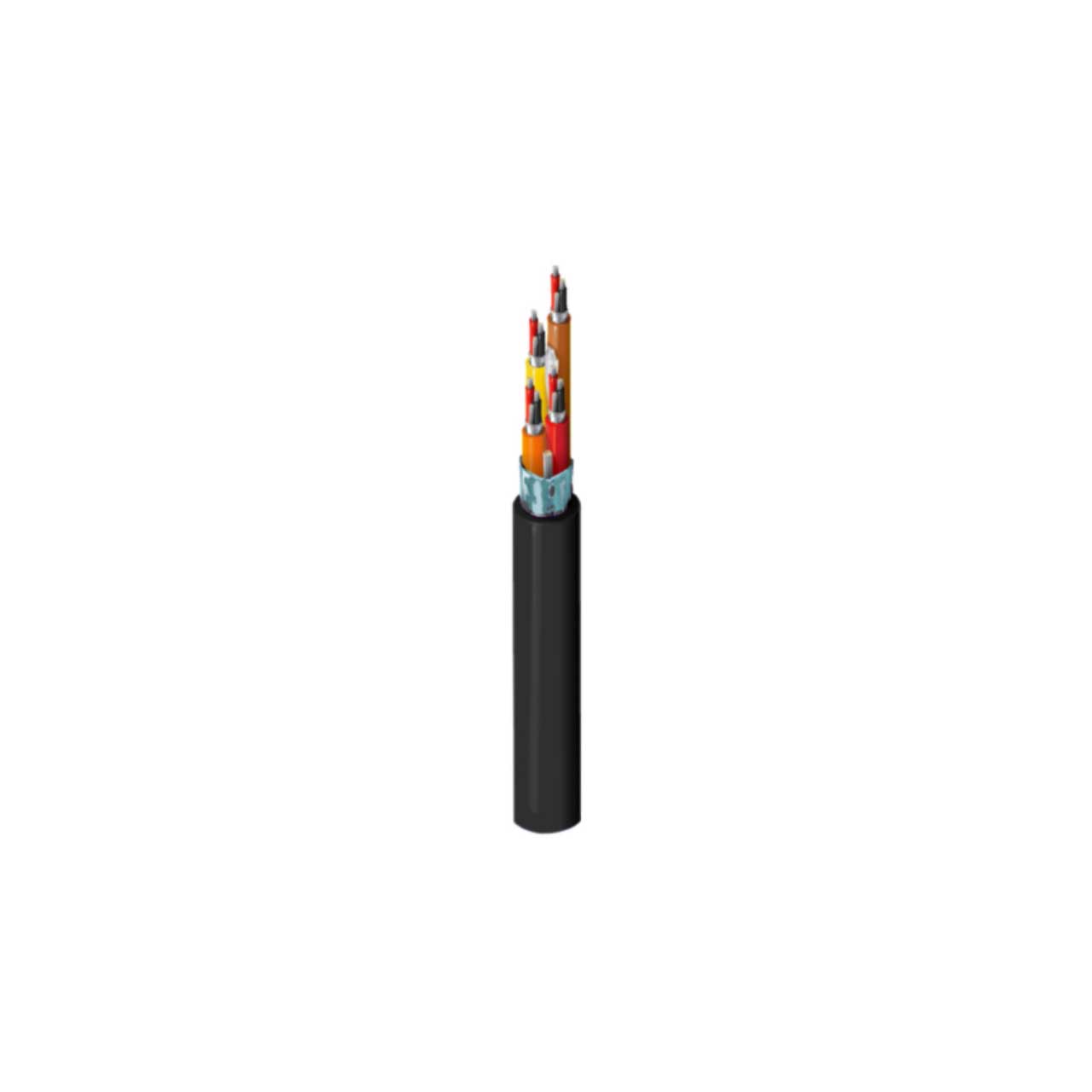

Belden 1805F is a Digital Audio Snake Cable with CMG-Rated, 8-24 AWG tinned copper pairs,Datalene® insulation, individually shielded with Beldfoil, numbered/color-coded PVC jackets, and flexible PVC jacket.

Belden offers a comprehensive selection of digital audio cables for professional recording applications, sound system installations and multi-channel audio applications. Digital Audio Cables from Belden can be used anywhere a traditional analog or digital shielded pair cables are used. These cables are also ideally suited for applications requiring small size, low weight and high-performance.

Applications
Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles
Live events or studio sound
Analog audio

  • Features:

    • Patented Bonded-Pair technology: For maximum ruggedness & consistent electrical performance during & following installation
    • Ready-to-use: Jacketed single pair cable eliminates inconvenient steps for faster installation times & deployment efficiencies
    • High impedance: Ensures low capacitance making them ideally suited as analog cables
    • Ruggedized: PVC jacket designed for flexibility

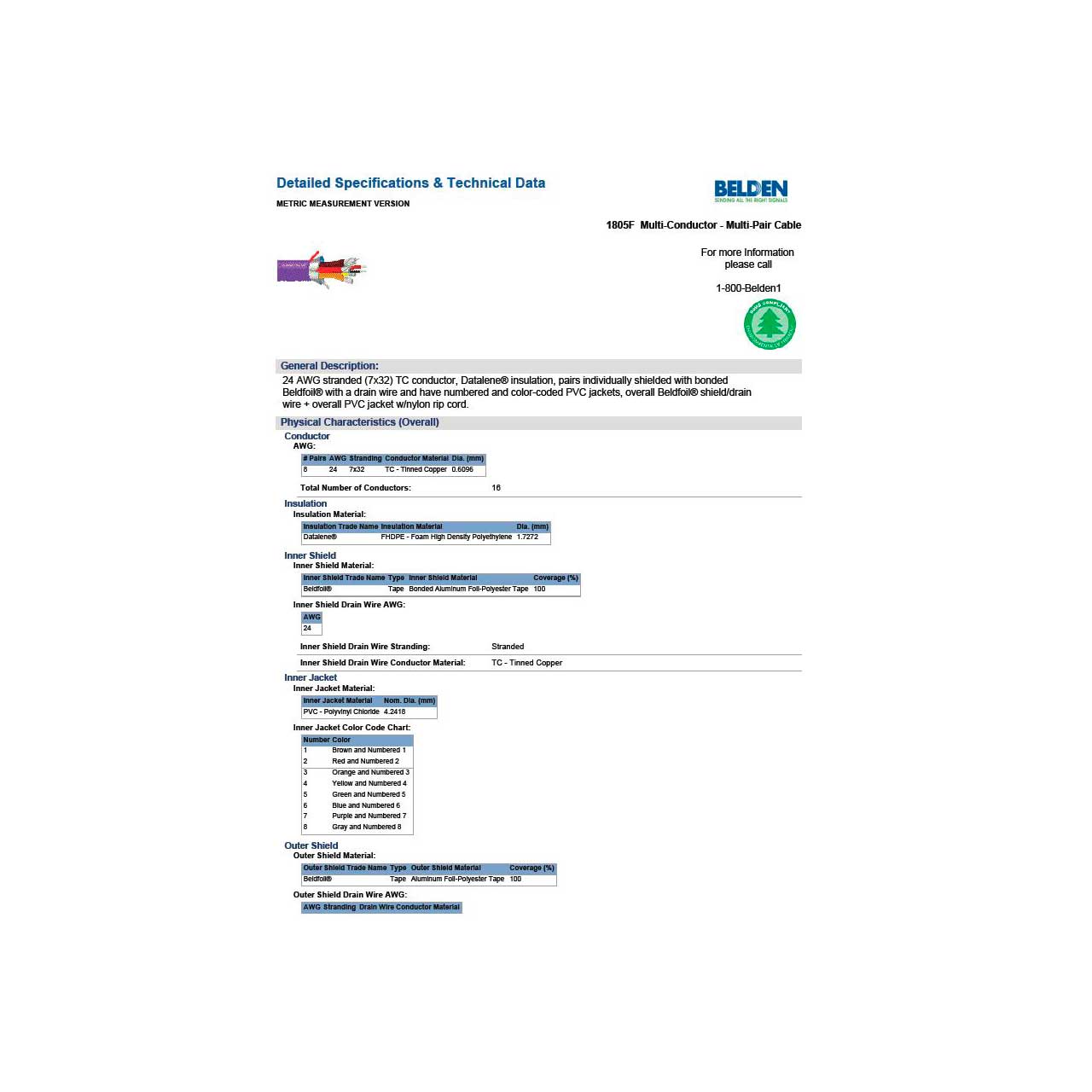

  • Specifications:

    • Conductor Count: 16
    • Conductor Stranding: 7x32
    • Total Number of Pairs: 8
    • Conductor Size: 24 AWG
    • Conductor Material: TC - Tinned Copper
    • Insulation Material: PE - Polyethylene (Foam)
    • Insulation Nominal Diameter: 0.068 in.
    • Inner Shield Material: 24 AWG Bonded Aluminum Foil-Polyester Tape (bonded to inner jacket) (Beldfoil®)
    • Inner Jacket Material: PVC - Polyvinyl Chloride
    • Outer Shield Material: Aluminum/Polyester (Beldfoil®) tape with Tinned Copper Drainwire
    • Outer Jacket Material: PVC - Polyvinyl Chloride

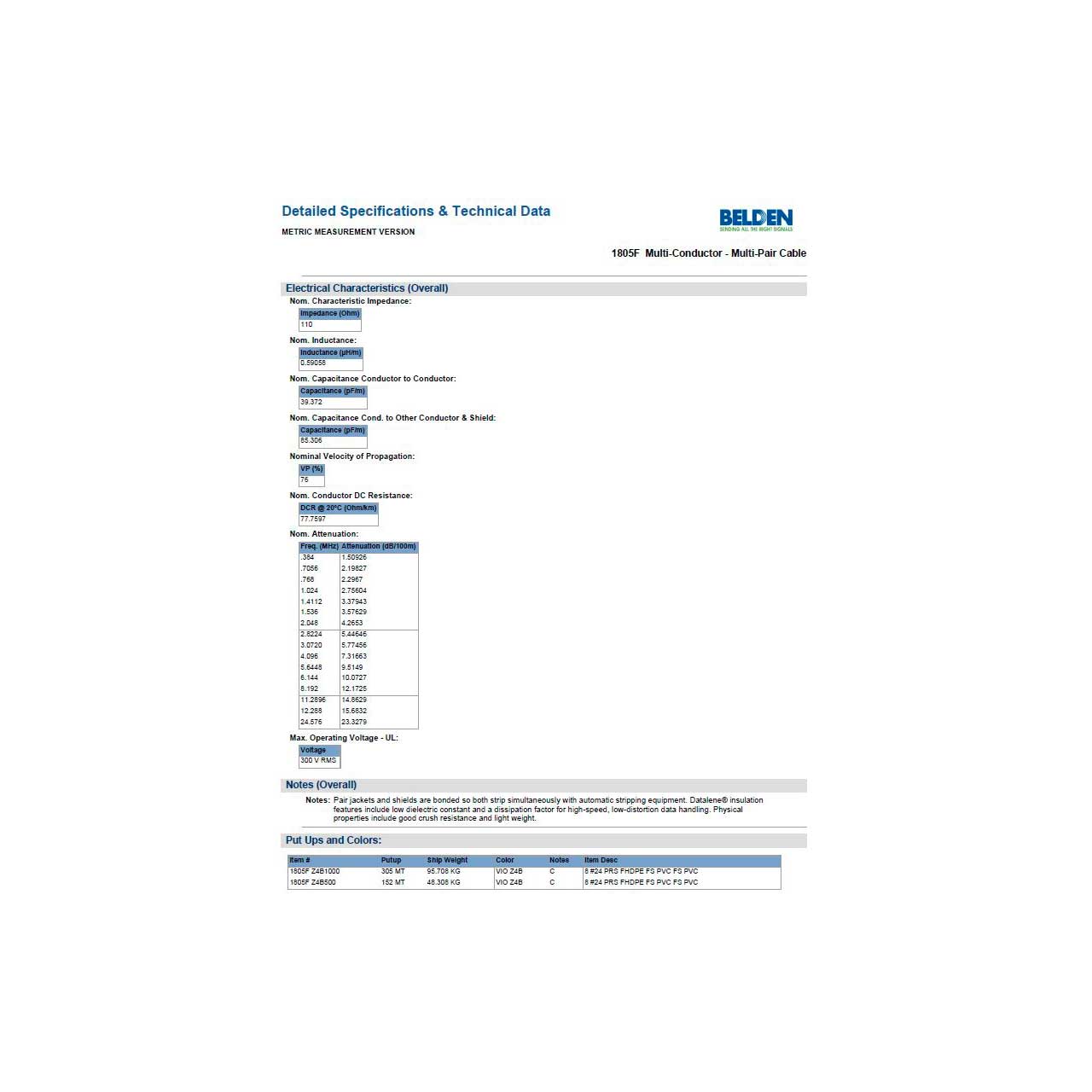

    • Nominal Conductor DCR: 23.7 Ohm/1000ft
    • Nominal Inductance: 0.18 µH/ft
    • Nominal Characteristic Impedance: 110 Ohm
    • UL Voltage Rating: 300 V RMS
    • UL Temp Rating: 60°C
    • Operating Temp Range: -30°C To +60°C
    • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
    • Flammability / Reaction to Fire: UL1685 FT4 Loading, FT4, 1202, IEC 60332-1-2
    • CPR Compliance: CPR Euroclass: Eca
    • NEC / UL Compliance: CMG
    • CEC / C(UL) Compliance: CMG


  • Item Includes:

    • 1805F CMG 8pr Digital Audio Snake Cable 24AWG - Violet - 500 Foot


  • Warranty:

    • 10 Year Limited Warranty


  • GTIN:

    0612825123187
