Belden 1812A Two-Conductor 24 AWG Low-Impedance Cable - Black - 1000 Foot

ITEM #: BL-1812A-1000 BK MFG #: 1812A B591000

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$1,688.00

Our Price:

$1,385.42

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

1812A B591000 - Overview

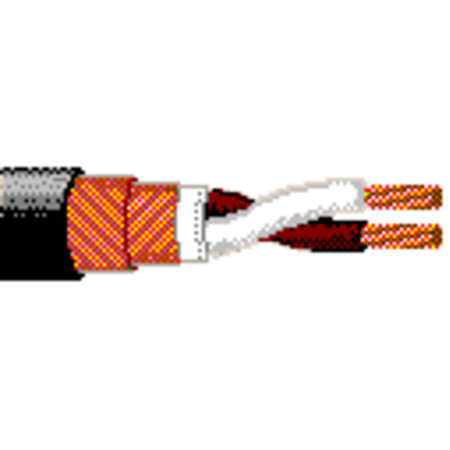

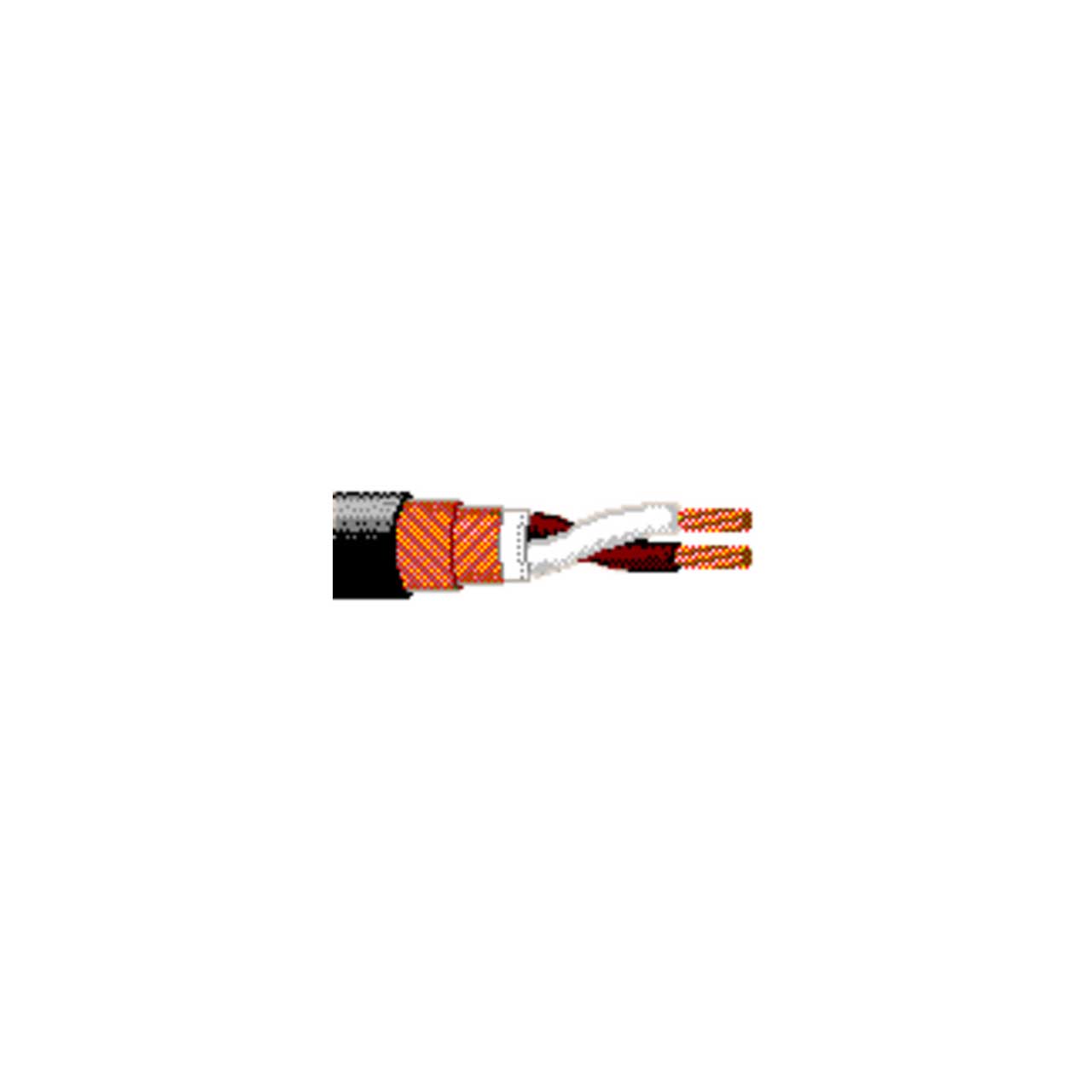

Belden 1812A 24 AWG stranded (42x40) high-conductivity BC conductors, PVC insulation, double bare copper spiral shield (95% coverage), PVC outer jacket.

  • Specifications:

    • AWG: 24
    • Stranding: 42x40
    • Material: BC - Bare Copper
    • Nominal Diameter: 0.024 in
    • Conductors: 2
    • Nominal Conductor DCR: 23.3 Ohm/1000ft
    • Nominal Conductor DCR Conductor Resistance: 23.3 Ohm/1000ft
    • Nominal Outer Shield DCR: 5.3 Ohm/1000ft
    • Nom. Capacitance Conductor to Conductor: 33 pF/ft
    • Nom. Capacitance Conductor to Other Conductor to Shield: 54 pF/ft
    • Nominal Inductance: 0.196 uH/ft
    • Non-UL Voltage Rating: 100 V RMS
    • Non-UL Temp Rating: 60°C
    • Operating Temp Range: -30°C To +60°C
    • Bulk Cable Weight: 30 lbs/1000ft
    • Max. Pull Tension: 10 lbs
    • Min Bend Radius/Minor Axis: 2.25 in
    • Environmental Space: Indoor (Not Riser or Plenum)


  • GTIN:

    0612825123347
