Belden 2183P CMP-LP/Plenum 4K UHD Ethernet Media Cable for HDBaseT 4-Pr 12AWG - Black - 1000 Foot

ITEM #: BL-2183P-1000BK MFG #: 2183P 0101000

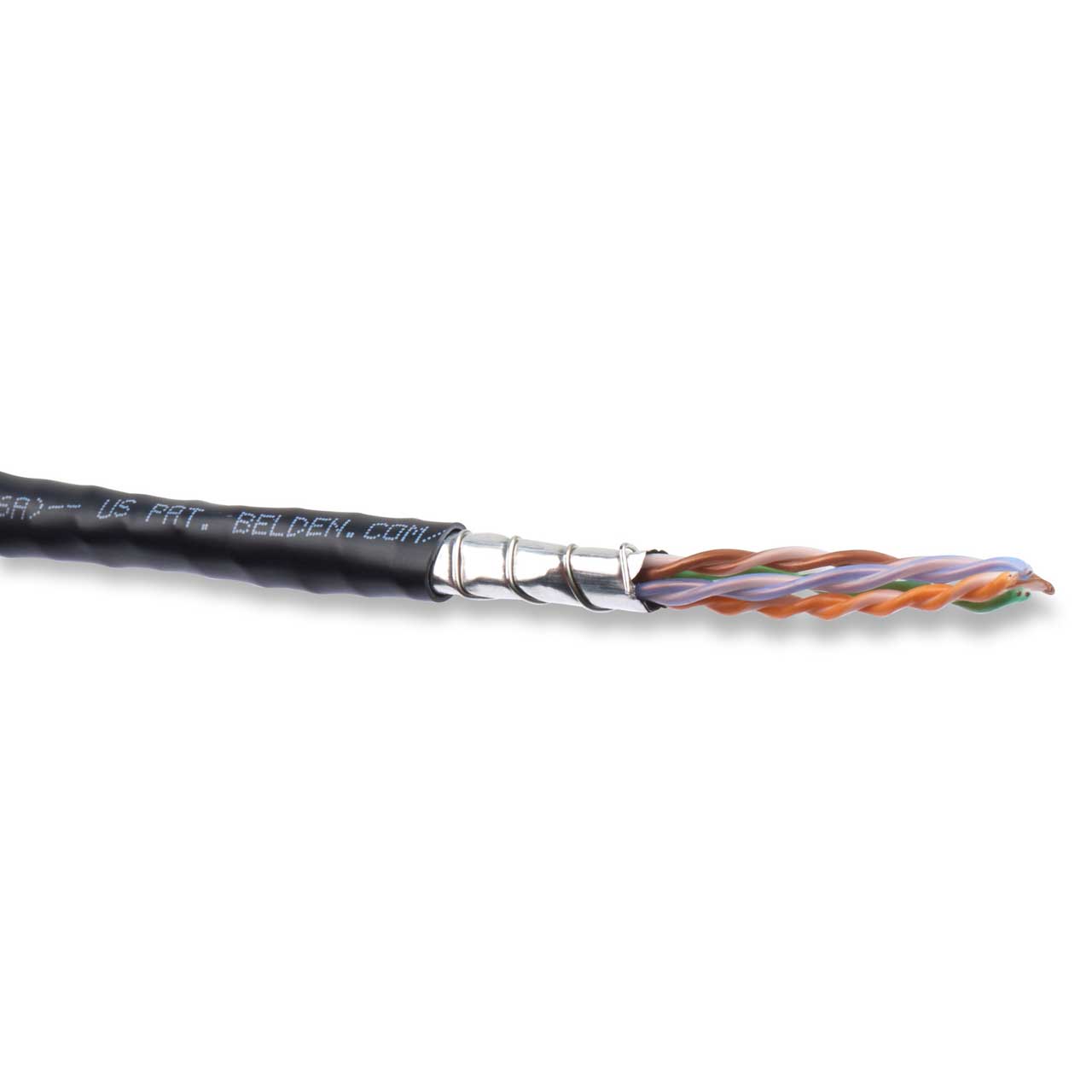

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$2,042.10

Our Price:

$1,686.72

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

2183P 0101000 - Overview

UL 4299 Power Over HDBaseT (PoH) certified

Belden 2183P is a CMP-LP(0.6A)/Plenum F/UTP 4K UHD HDBaseT Ethernet Media Cable. It designed for HDBaseT applications with 4 Pair 23 AWG Solid Bare Copper Conductors, FEP Insulation and a Helical TC Drain with Ripcord in a Flamarrest® Plenum CMP-LP (0.6A) Jacket.

Belden's 4K UHD Media Cables are designed to deliver 4K content over HDBaseT up to 100 m with support for HDBaseT 5Play and are UL 4299 Power Over HDBaseT (PoH) certified.

To support requirements for higher resolutions and more bandwidth, Belden has a full line of broadcast commercial-grade video cables to support 4K HDBase-T. Regardless of the application, Belden ensures reliable signal integrity and exceptional quality. No other cable manufacturer has invested in this technology like Belden has, so no other manufacturer can assure you performance like Belden.

Applications
HDBaseT
Full 5-Play
4K (UHD/DCI)
POH, POE

  • Features:

    • 100% shielding provides protection from noise interference with AV signal
    • Single overall shield construction saves significant termination time
    • UL Limited Power (LP) rated to 0.6A per conductor
    • Interoperable with leading manufacturers' AV equipment
    • Up to 25% smaller than Category 7a
    • Easy to bend and fit into small spaces
    • Resistant to rigors of installation with Bonded-Pair, durable shield and helical drain
    • Designed and tested specifically for optimal 4K UHD performance


  • Specifications:

    • Conductor Element: Pair(s) 4
    • Conductor Material BC: - Bare Copper
    • Conductor Size: 23 AWG
    • Conductor Stranding: Solid
    • Insulation Element: Pair(s)
    • Insulation Material: FEP - Fluorinated Ethylene Propylene
    • Insulation Nom. Thickness: 0.010 in (0.25 mm)
    • Insulation Nom. Insulation Diameter: 0.0435 in mm
    • Insulation Color Code: Western Electric (Modified)
    • Outer Shield Type: Tape
    • Outer Shield Material: Bi-Laminate (Alum+Poly)
    • Outer Shield Coverage: 100%
    • Outer Shield Drainwire Type: 26 AWG (Solid) TC
    • Outer Shield Notes: Two drain wires applied helically for added flexibility
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Thickness:0.018 in (0.46 mm)
    • Outer Jacket Nom. Diameter: 0.270 in
    • Outer Jacket Ripcord: Yes
    • UL Voltage Rating: 300 V
    • Overall Cable Diameter (Nominal): 0.270 in
    • Storage Temperature Range: -20°C To +75°C
    • Installation Temperature Range: 0°C To +75°C
    • Operating Temperature Range: -20°C To +75°C
    • UL Temperature Rating: 90°C
    • Bulk Cable Weight: 36 lbs/1000 ft.
    • Max. Recommended Pulling Tension: 45 lbs.
    • Min. Bend Radius/Minor Axis: 1 in.
    • Min. Bend/Installation: 2.100 in
    • CPR Compliance: CPR Euroclass: Eca
    • NEC / UL Compliance: Article 800, CMP-LP (0.6A), CL3P
    • CEC / C(UL) Compliance: CMP
    • IEEE Compliance: POE per 802.3af & POE+ 802.3at-2009


  • Item Includes:

    • 2183P CMP-LP/Plenum 4K UHD HDBaseT Ethernet Media Cable 4-Pr 12AWG - Black - 1000 Foot


  • Warranty:

    • 10 Limited Year Warranty


  • GTIN:

    0612825391678
