Belden 5100UP CL3 2 Conductor High Flex Commercial Audio Cable Str BC Unshielded 2-14 AWG - Black - 1000 Foot

ITEM #: BL-5100UP-1000 MFG #: 5100UP 0101000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$873.90

Our Price:

$669.15

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

5100UP 0101000 - Overview

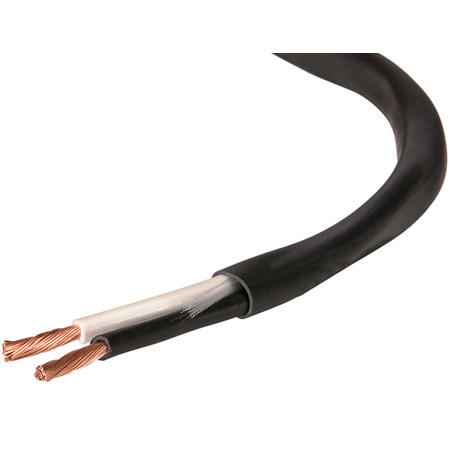

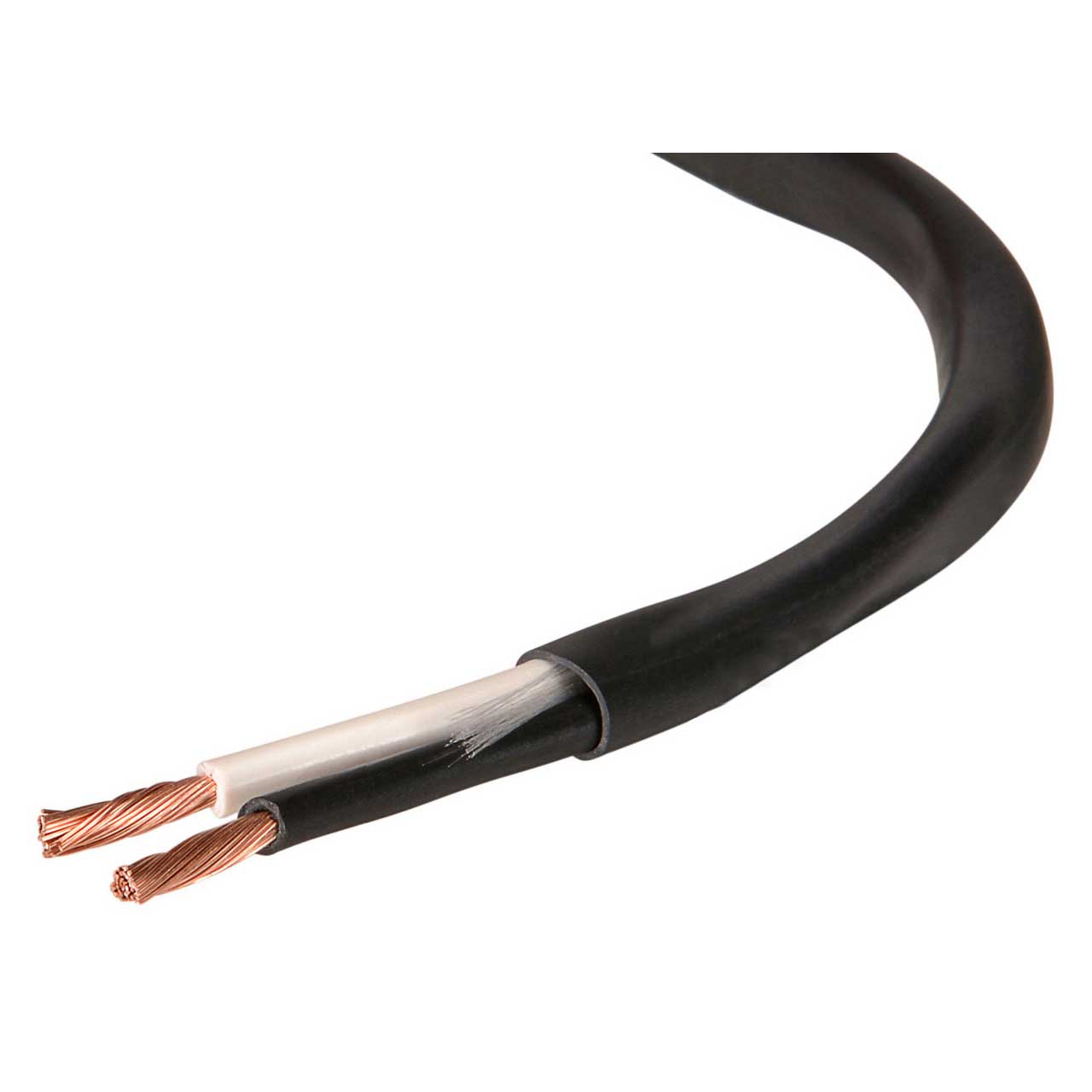

Belden 5100UP is a 2 Conductor(2x14 AWG) Commercial Audio and Speaker Cable. It's highly flexible, CL3 Rated (300v) with stranded bare copper conductors featuring PVC insulation in a PVC jacket with ripcord.

Belden offers quality Speaker Cables that are suitable for commercial and professional installations so you can reliably connect speakers to receivers or power amplifiers. Available options include plenum, indoor/outdoor, halogen-free, direct burial and Class 1 configurations. Belden's Speaker Cable line includes direct-burial cable with ultra-high purity (99.995%), sometimes described as "oxygen-free" copper (OFC).

Applications
Audio/Speaker
Security System
Intercom/PA
Power-Limited Controls

  • Features:

    • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
    • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
    • Easy Identification: Cable jackets feature footage room and zone markings

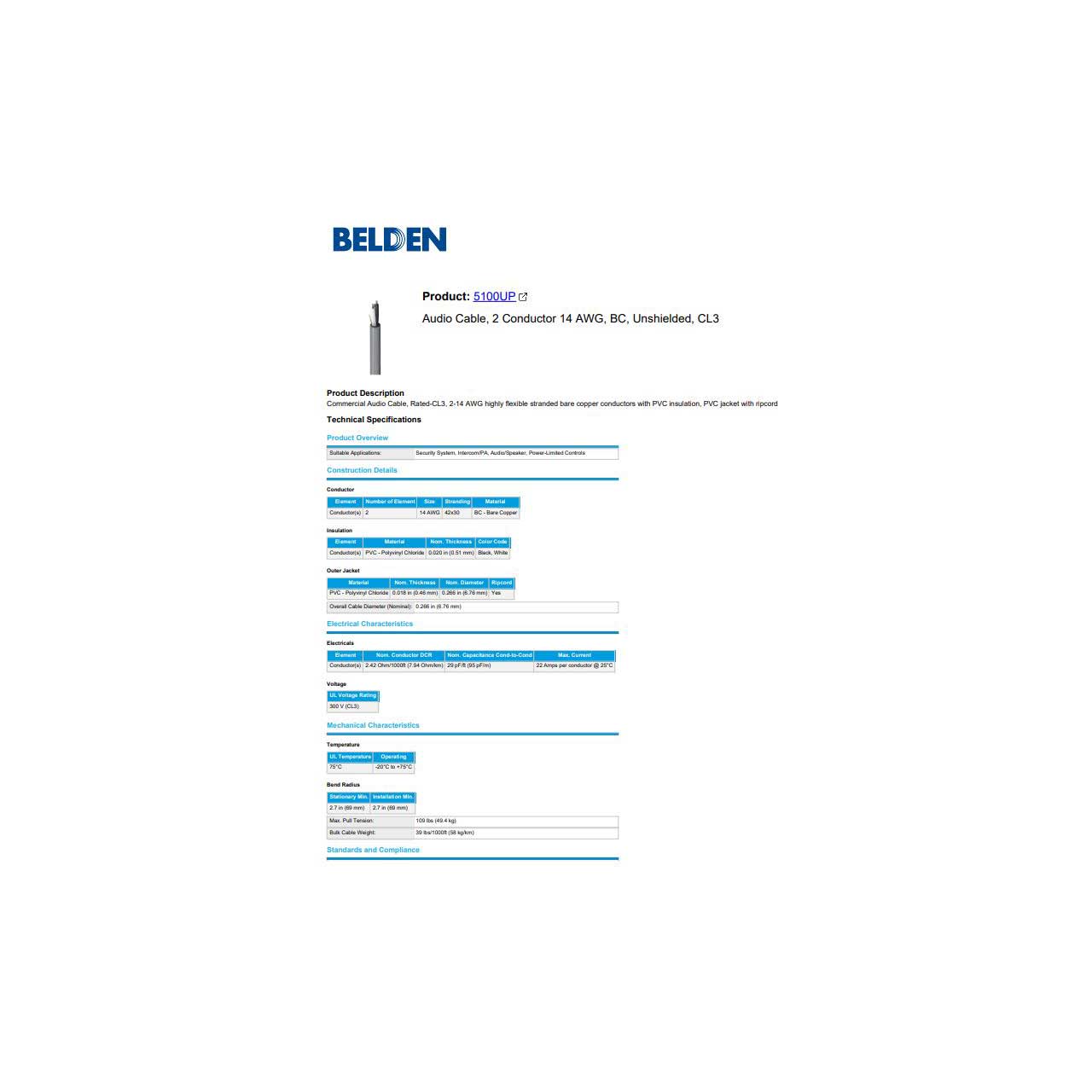

  • Specifications:

    • Elements: Conductor(s)
    • Number of Element: 2
    • Conductor AWG: 14
    • Conductor Stranding: 42x30
    • Conductor Material: BC - Bare Copper
    • Insulation Element: Conductor(s)
    • Insulation Material: PVC - Polyvinyl Chloride
    • Insulation Nom. Thickness: 0.020 in (0.51 mm)
    • Insulation Color Code: Black, White
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Thickness: 0.018 in (0.46 mm)
    • Outer Jacket Nom. Diameter: 0.266 in (6.76 mm)
    • Outer Jacket Ripcord: Yes
    • Overall Cable Diameter (Nominal): 0.266 in (6.76 mm)
    • Nom. Conductor DCR: 2.42 Ohm/1000ft
    • Nom. Capacitance Cond-to-Cond: 29 pF/ft
    • Max. Current: 22 Amps per conductor @ 25°C
    • UL Voltage Rating: 300 V (CL3)
    • Max. Pull Tension: 109 lbs
    • Bulk Cable Weight: 39 lbs/1000ft
    • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
    • Flammability / Fire Resistance: UL1685 (UL Loading), IEC 60332-1-2
    • NEC / UL Compliance: Article 725, CL3


  • Item Includes:

    • 5100UP CL3 2 Conductor High Flex Commercial Audio Cable - Black - 1000 Foot


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825156543
