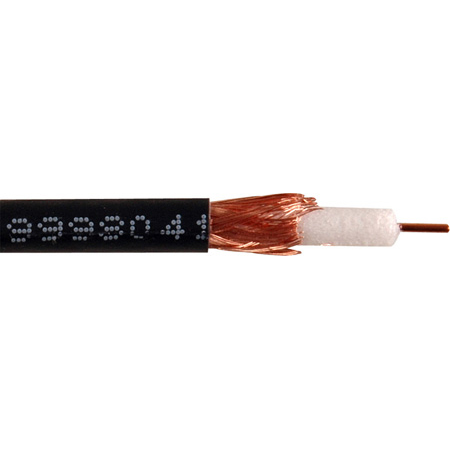

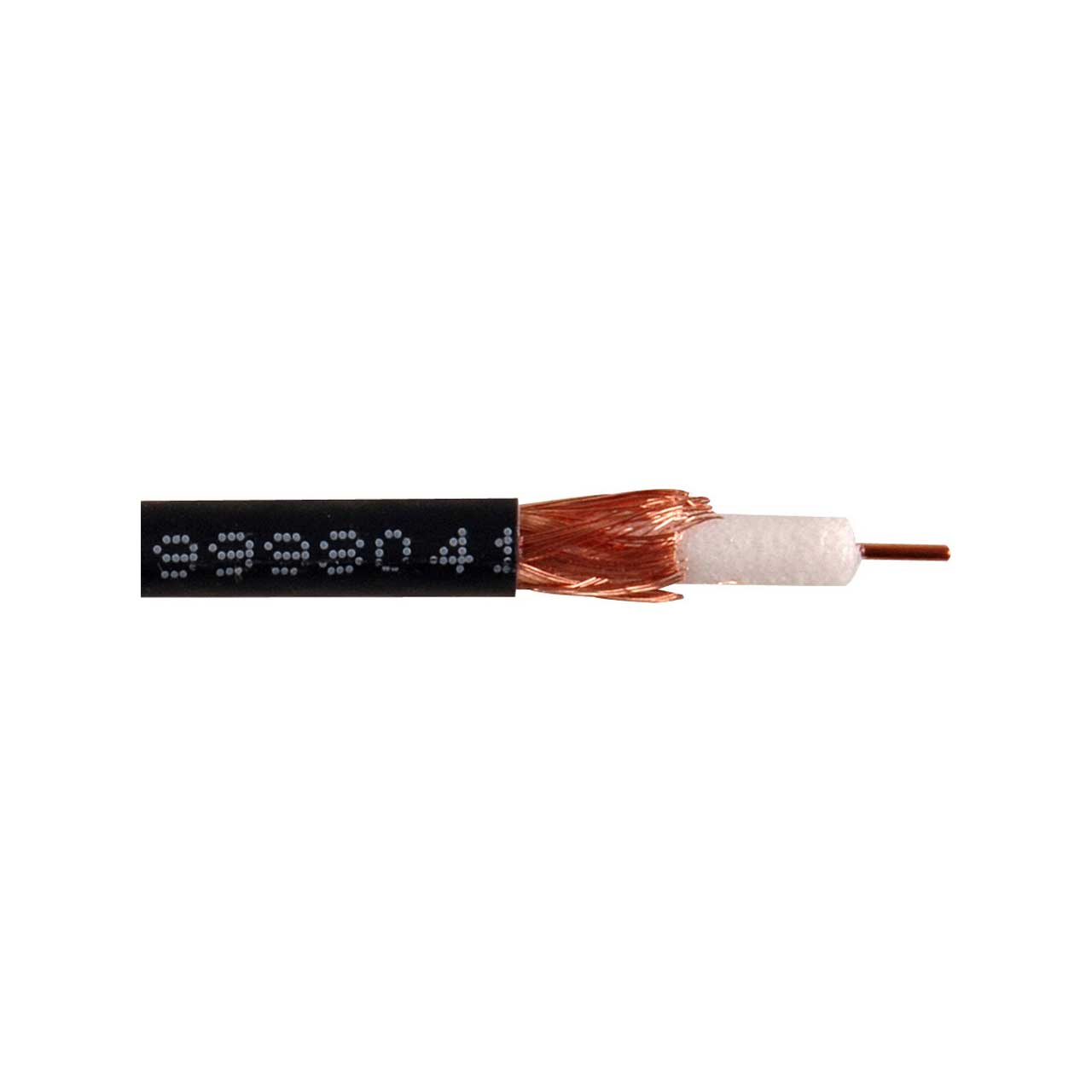

Belden 643948 New-Gen Coaxial Plenum RG59 Braided Shield Cable - Black - 1000 Foot

ITEM #: BL-643948-1000 MFG #: 643948 8771000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

List Price:

$713.00

Our Price:

$574.97

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

643948 8771000 - Overview

The 643948 Coax - CCTV Applications cable is a surveillance & CCTV cable with Plenum-CMP, a 20 AWG solid bare copper conductor, foamed FEP and Flamarrest® jacket.

  • Specifications:

    • Number of Coax: 1
    • RG Type: 59/U
    • AWG: 20
    • Stranding: Solid Conductor Material: BC - Bare Copper
    • Insulation Material: FFEP - Foam Fluorinated Ethylene Propylene
    • Outer Shield Material: BC - Bare Copper
    • Outer Jacket Material Trade Name: Flamarrest
    • Outer Jacket Material: LS PVC - Low Smoke Polyvinyl Chloride
    • Plenum (Y/N): Y
    • Nom. Characteristic Impedance: 75 Ohms


  • GTIN:

    0612825176893
