ICM FSNS6PLQ-25 ProSNS RG-6 Plenum F Coax Compression Connector - 25 Pack

Name: ICM FSNS6PLQ-25 ProSNS RG-6 Plenum F Coax Compression Connector - 25 Pack
Brand: ICM Corporation
SKU: ICM-FSNS6PLQ-25
Price: 34.73 USD
Availability: InStock

ITEM #: ICM-FSNS6PLQ-25 MFG #: FSNS6PLQ-25

ICM Corporation

List Price:

$37.56

Our Price:

$34.73

Add to Wish List Leasing Options

Availability: In Stock

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

FSNS6PLQ-25 - Overview

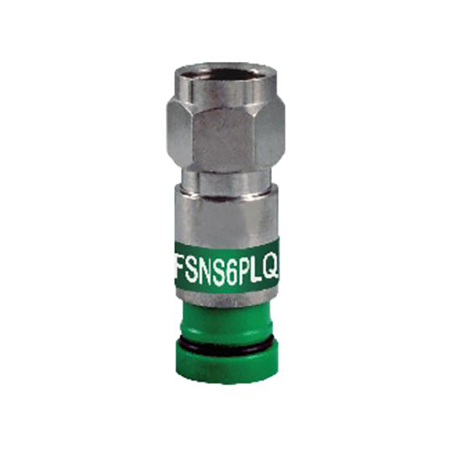

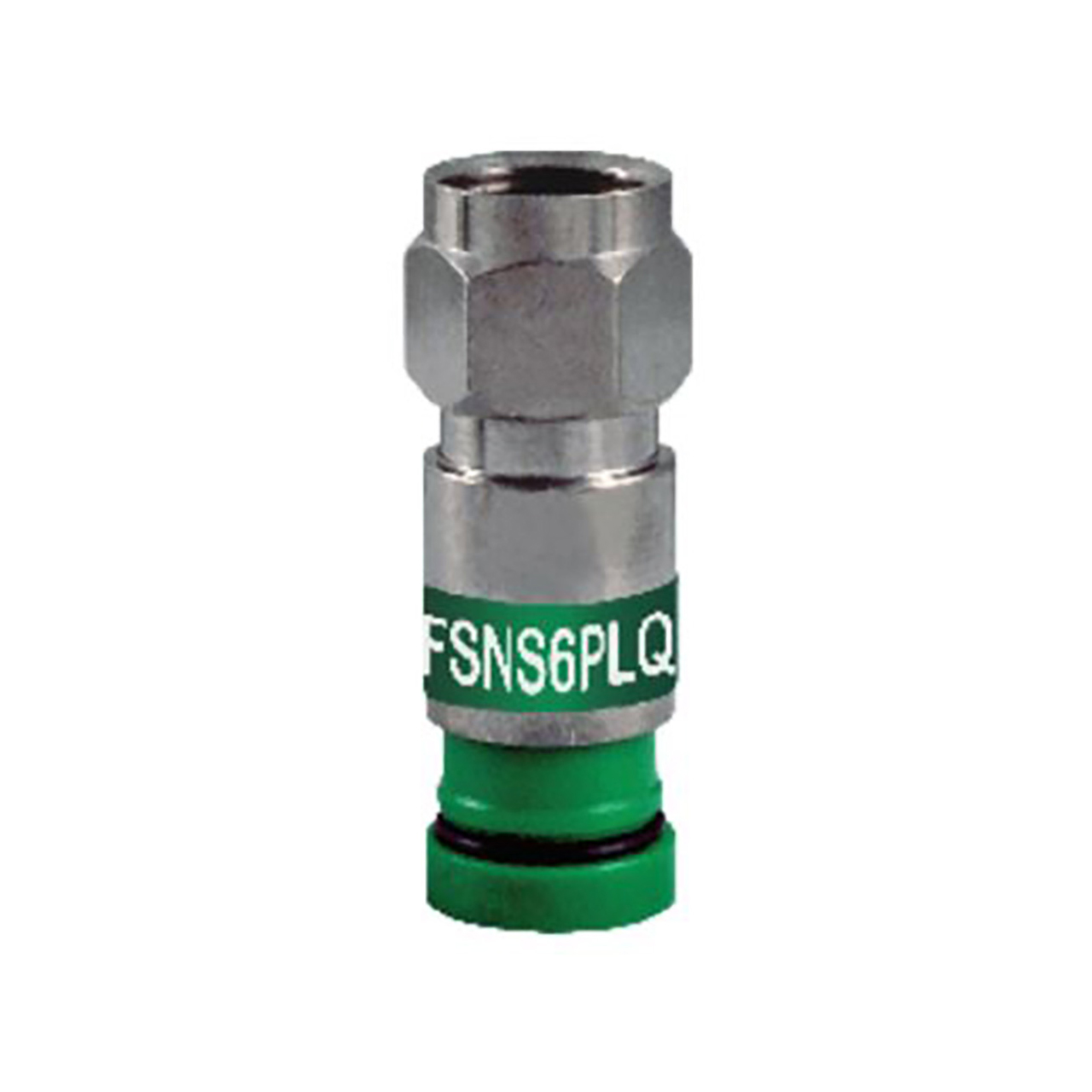

ProSNS RG-6 Plenum "F" Coax Compression Connector

F Connectors offer 360° compression and superior RF shielding performance (-85 dB effective shielding). A patented internal O-ring at the base of the nut lets the nut spin freely for easier installation. The connector's green color band allows for quick identification.

ICM ProSNS RG6 Plenum "F" connector that fits most standard, tri-shield and quad-shield coaxial cable. Polymer compression sleeve for easy insertion & lowest possible tool compression force.

Suitable Applications:
- CCTV
- Security Cameras
- Video

25 per Pack.

Specifications:
- Material: Nickel plated Brass, Gold Plated
- Nominal Characteristic Impedance: 75 Ohm
- Frequency (MHz):
  - DC-1GHz 31dB Return Loss 1.05 VSWR
  - DC-2GHz 26dB Return Loss 1.09 VSWR
  - DC-3GHz 21dB Return Loss 1.18 VSWR
- Footprint/Type: Coax
- Connector Interface Type: F
- Gender: Male - plug
- Connector Series Name: ProSNS
- Color Band: Green
- Locking: No
- Tool Compatibility: CPLCCT-SLMR, CPSNSCT-596 (compression), PSA59/6 (strip)
- Termination Type: Compression
- Cable Center Conductor Diameter Limits: 0.0399" - 0.0418"
- Cable Dielectric Diameter Limits: 0.166" - 0.193"
- Cable Outer Jacket Diameter Limits: 0.230" - 0.281"
- RG Type: 6
- Series Type: 6
Item Includes:
- 1x ICM FSNS6PLQ-25 Snap-N-Seal RG6 F Connector for Quad Shielded Cable - 25 Pack
GTIN:
0845671003987
