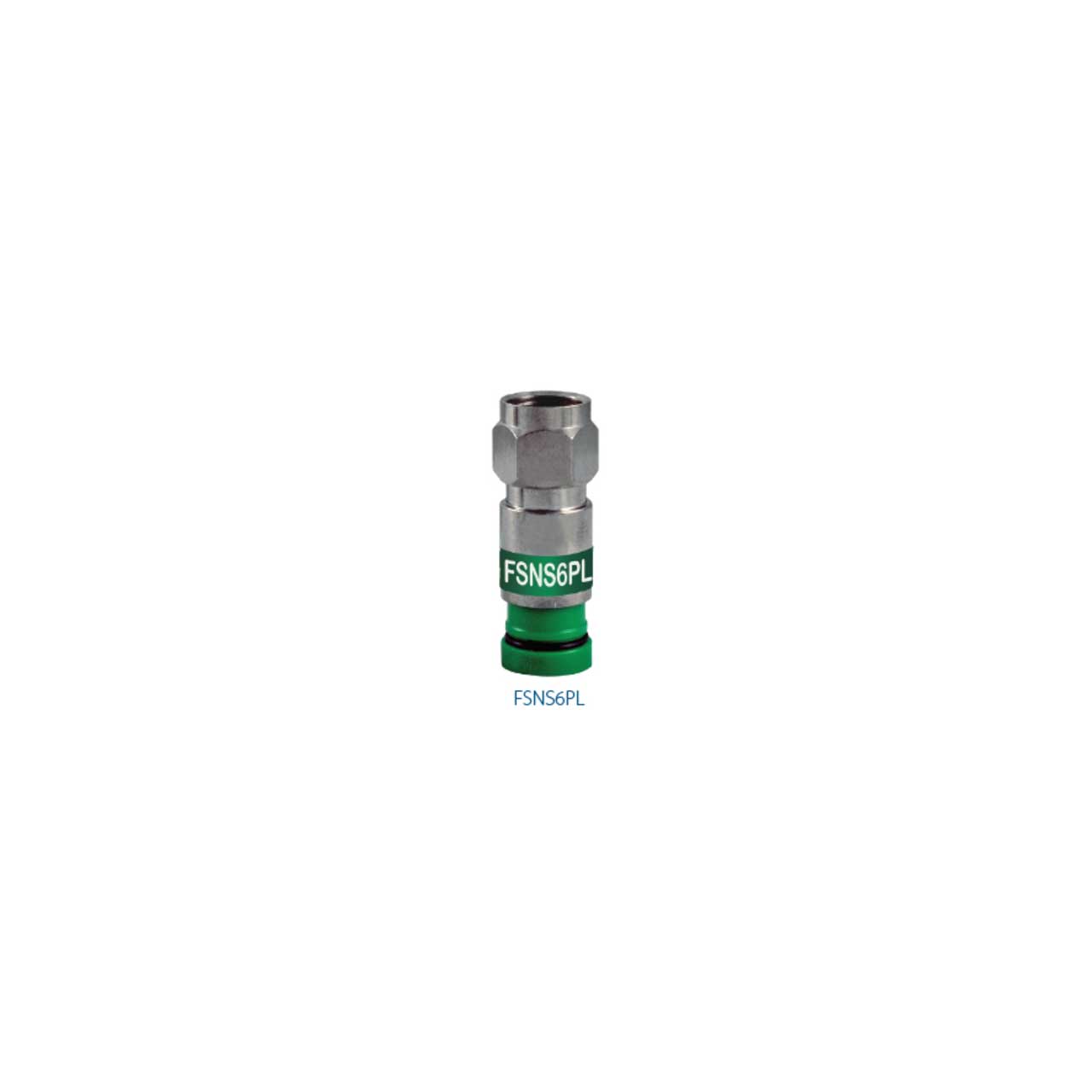

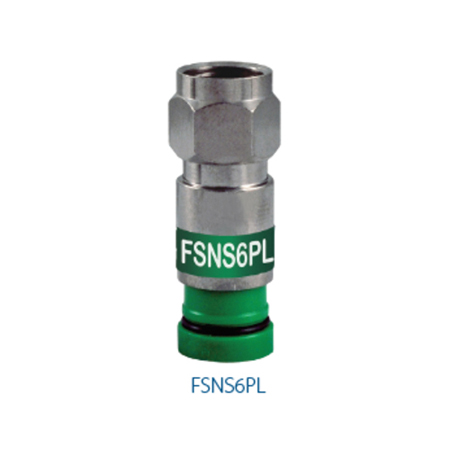

Belden FSNS6PL Pro Snap-N-Seal RG6 75 Ohm Plenum F Connectors - 25/Pack

FSNS6PL - Overview

ProSNS RG-6 Plenum "F" Coax Compression Connector

• Specifications:

  • Material: Nickel Plated Brass / Gold Plated
  • Nominal Characteristic Impedance: 75 Ohm
  • Footprint/Type: Coax
  • Connector Interface Type: F
  • Gender: Male - plug
  • Connector Series Name: ProSNS
  • Color Band: Green
  • Locking: No
  • Tool Compatibility: CPLCCT-SLMR or CPSNSCT-596 (compression), PSA59/6 (strip)
  • Termination Type: Compression
  • Cable Center Conductor Diameter Limits: .0399 - .0418 inch
  • Cable Dielectric Diameter Limits: .165 - .172 inch
  • Cable Outer Jacket Diameter Limits: .220 - .250 inch
  • RG Type: 6
  • Series Type: 6


  • Return Loss (RL) Frequency [MHz]
    DC-1 GHz 31 dB Return Loss 1.05 VSWR
    DC-2 GHz 26 dB Return Loss 1.09 VSWR
    DC-3 GHz 21 dB Return Loss 1.18 VSWR
  • Electrical Characteristics Notes: Cable Pullout Force Exceeds 40 Lbs


• Item Includes:

  • 1x Belden FSNS6PL Pro Snap-N-Seal RG6 75 Ohm Plenum F Connectors - 25/Pack


• GTIN:

  0845671004243
